The Axis was engineered to be the "go-to" microphone for engineers who need one reliable tool that excels across multiple genres. Its Discrete Class-A FET electronics and transformer-coupled balanced output ensure an ultra-low noise floor and high sensitivity. With a high 136dB Max SPL, it is rugged enough to handle high-pressure sources like drum overheads or brass instruments without distortion, while remaining sensitive enough to capture the most subtle vocal nuances.
Product Description
The 34mm Gold-Sputtered Capsule:
The heart of the Fluid Audio Axis is its newly developed 34mm large-format diaphragm. This gold-sputtered membrane provides a wide frequency response (20Hz - 20kHz) and a smooth, uncolored sound. The cardioid pattern offers excellent off-axis rejection, ensuring that your recordings are focused on the artist and free from unwanted room reflections or background noise.
Professional Record-Ready Kit:

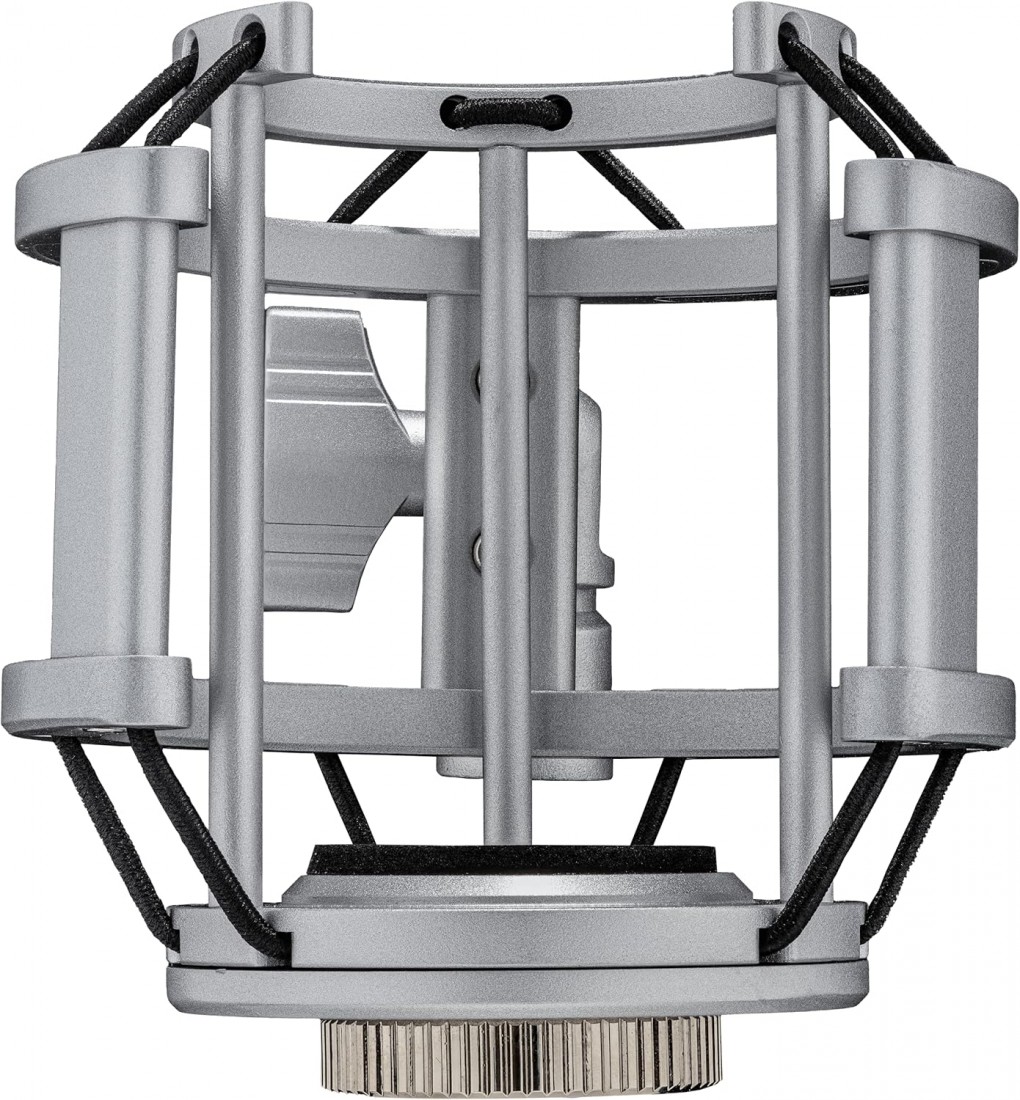

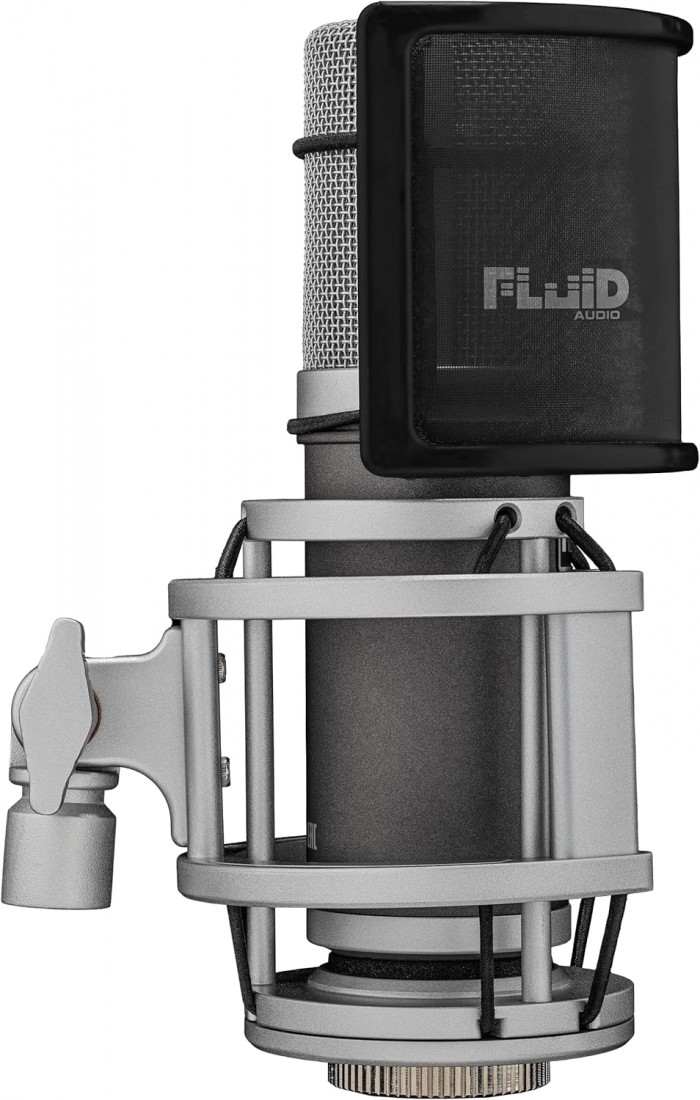

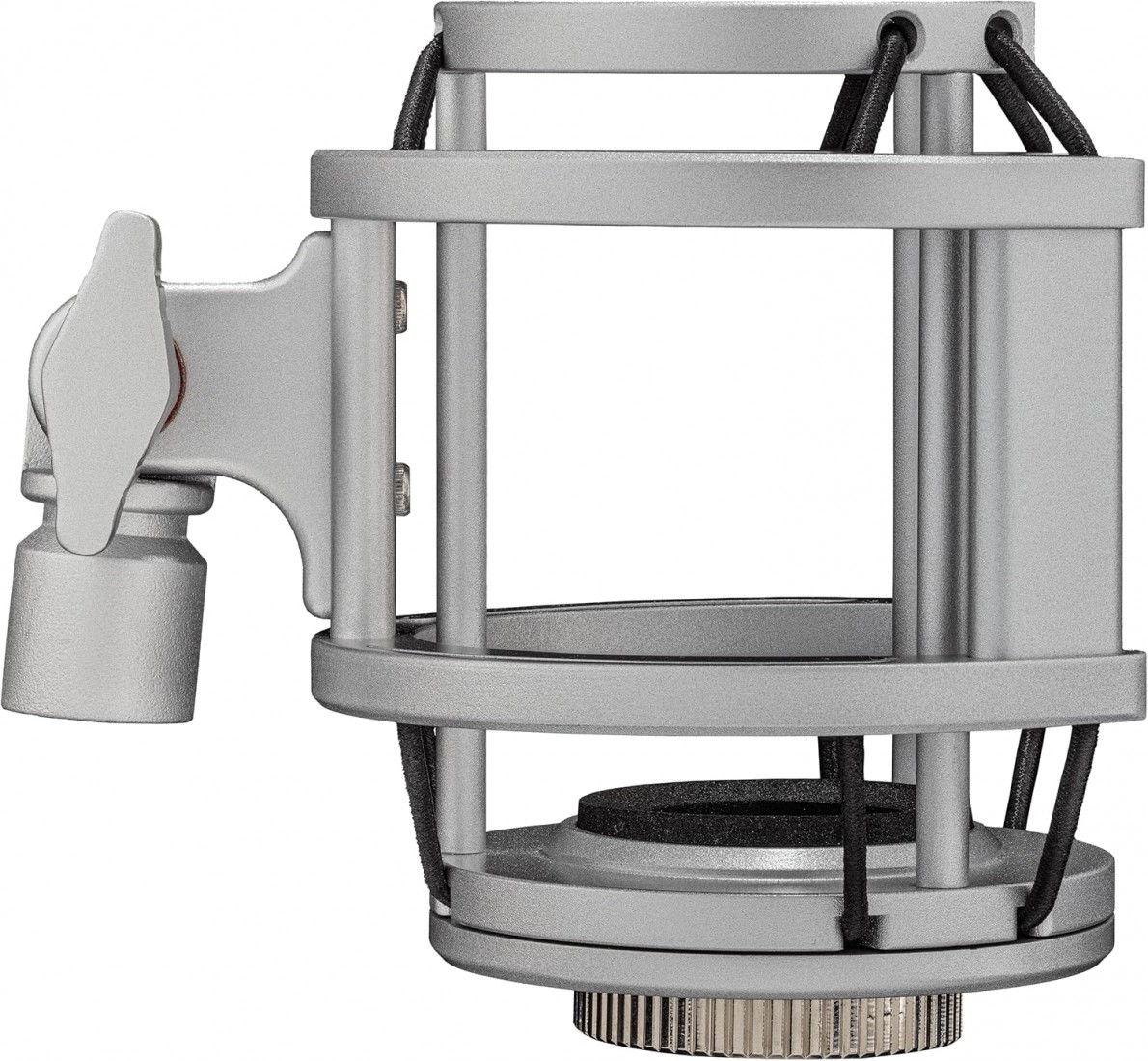

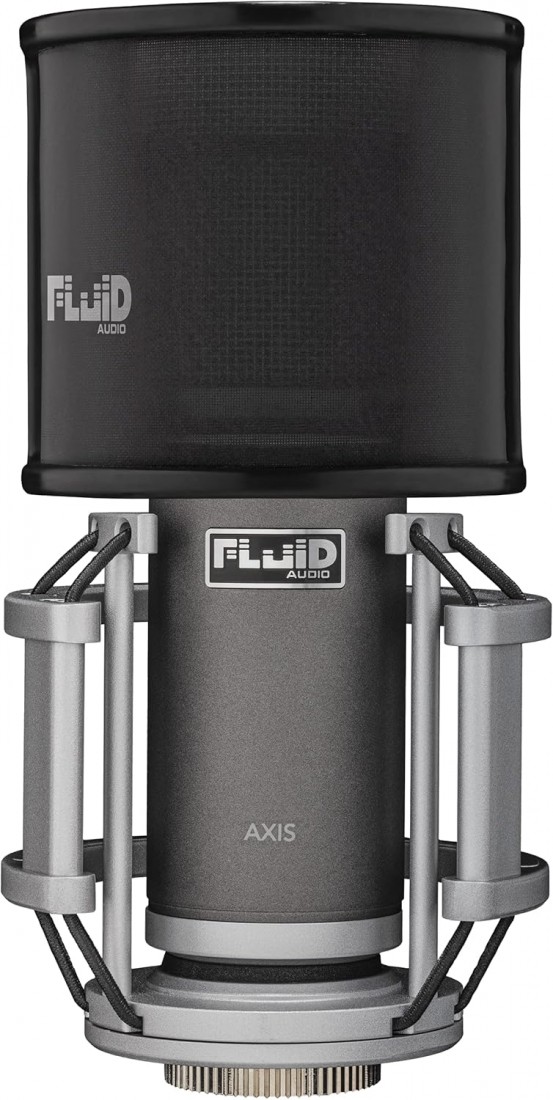

Fluid Audio includes everything you need to start recording immediately at a professional level. The Axis ships with a professional shock mount to decouple the mic from floor vibrations, a two-layer pop filter to tame plosives, and a high-grade 5-meter (16ft) XLR cable from Scale Technologies. The entire kit is protected by a reinforced hard-shell foam-lined carrying case, making it as portable as it is powerful.
Built to Last:

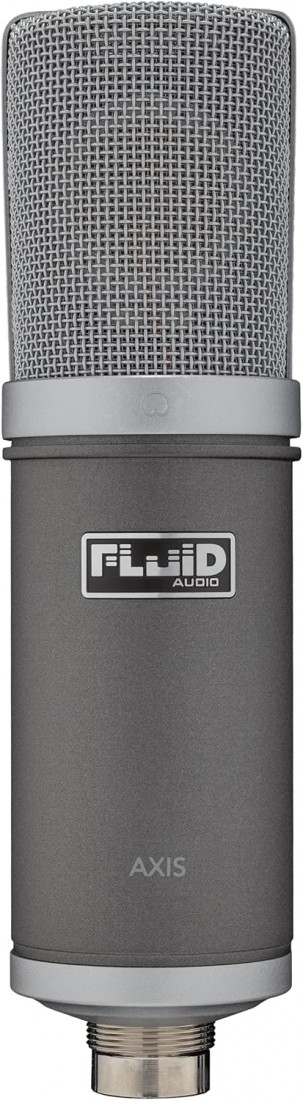

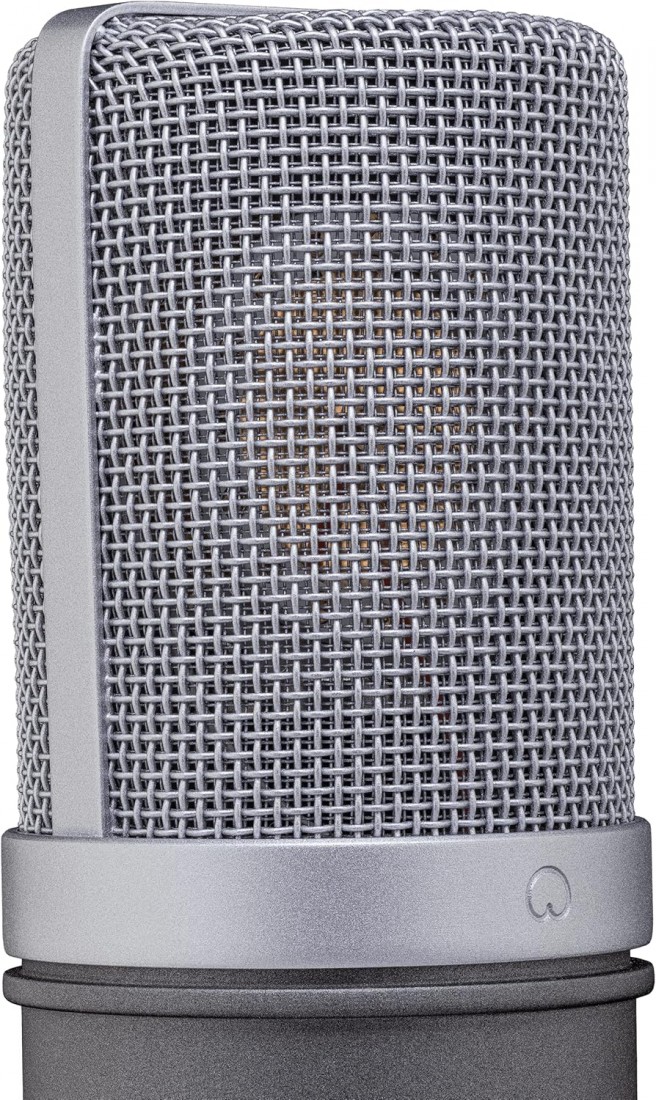

The microphone features an elegant and durable brass housing with a high-quality mesh grille that protects the sensitive capsule. The gold-plated XLR output connectors ensure a reliable, corrosion-free signal path for years of studio use. Its sophisticated electronic design allows for a large dynamic range, making it a "workhorse" that competes with microphones in the $1,000+ price bracket.
Key Features
Large 34mm Capsule: Gold-sputtered diaphragm for high-fidelity audio capture.
Cardioid Polar Pattern: Focused pickup area for superior isolation.
Class-A FET Electronics: Low-noise, high-sensitivity circuitry for clean recordings.
High SPL Capability: Handles up to 136dB, perfect for loud instruments like drums.
Record-Ready Bundle: Includes shock mount, pop filter, and premium XLR cable.
Rugged Brass Housing: Durable construction designed for professional studio environments.
Gold-Plated XLR: Ensures maximum signal integrity and longevity.
Technical Specifications
Specification
Details
Capsule Type
34mm Large Gold-Sputtered Diaphragm
Polar Pattern
Cardioid
Frequency Range
20 Hz – 20 kHz
Sensitivity
12.4mV/Pa (-38dBV/Pa +/- 3 dB @ 1kHz)
Equivalent Noise
16dB (A-weighted)
Max SPL
136 dB (@1kHz, 1% THD into 1kΩ)
S/N Ratio
77 dB (A-weighted)
Power Requirement
48V +/- 4V Phantom Power
Ideal For
Professional Vocals: Delivering a smooth, articulate sound that sits perfectly in a mix.
Acoustic Instruments: Capturing the natural resonance of pianos and acoustic guitars.
Podcasting & Streaming: Providing a high-end broadcast tone with excellent room rejection.
Drum Overheads: Handling high sound pressure levels while maintaining high-frequency detail.
