Product Overview

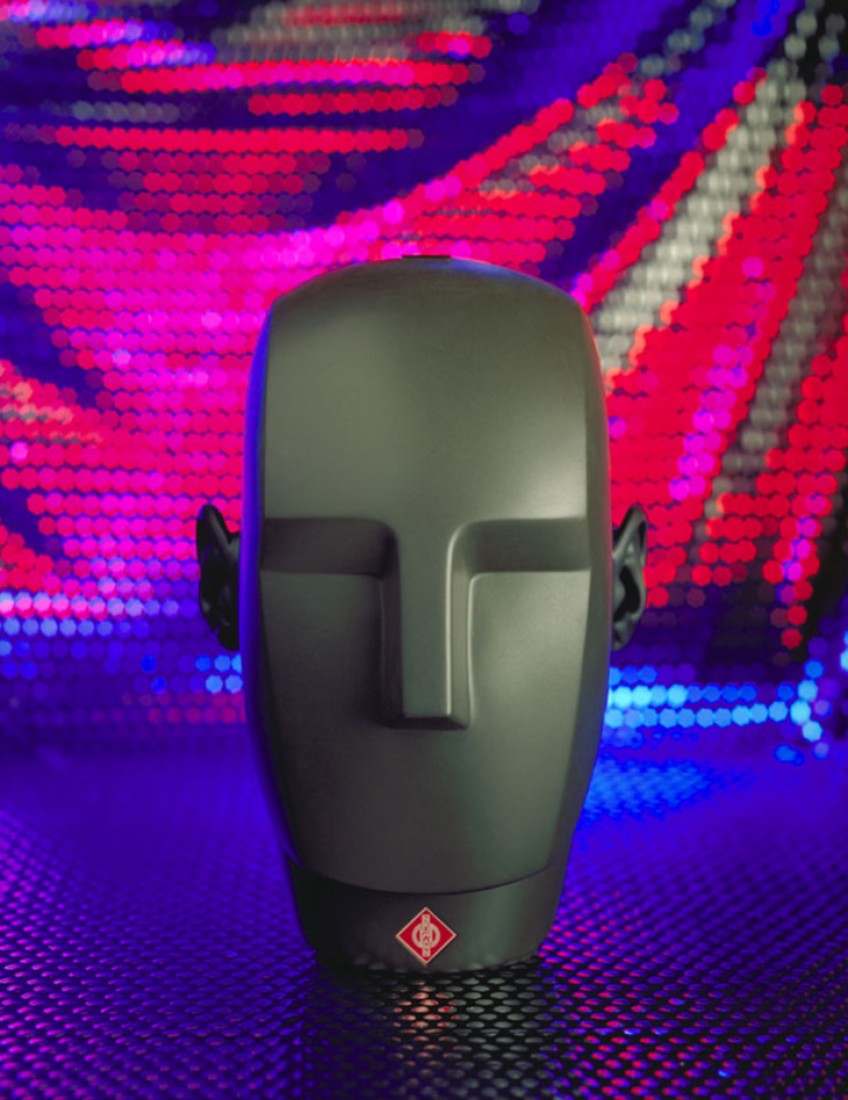

The KU 100 (often called the "Fritz") is more than a microphone; it is a replica of the human head designed to preserve the spatial cues of an acoustic event. Traditional stereo techniques try to move the sound to the listener; binaural recording with the KU 100 moves the listener into the scene. While primarily optimized for headphone playback, its diffuse-field equalization ensures that recordings remain loudspeaker compatible, offering a superior sense of depth and space even on a standard stereo system.

Product Description

The Science of Binaural Realism:

The KU 100 utilizes two omnidirectional condenser capsules mounted inside carefully modeled artificial ears. These "pinnae" replicate the complex reflections and resonances of the human outer ear, capturing the precise timing and intensity differences that our brains use to localize sound. The result is a recording with stunning lateral and vertical localization, allowing listeners to identify exactly where a sound is coming from—even behind or above them.

State-of-the-Art Electronics:

Underneath its iconic exterior, the KU 100 features Neumann’s signature transformerless circuitry. This technology provides an ultra-clean signal path with a fast transient response and extremely low self-noise (16 dB-A). It can handle high sound pressure levels of up to 135 dB (and up to 145 dB with the internal -10 dB pad engaged), making it as capable of recording a delicate whisper as it is a full orchestral crescendo.

Versatile Powering & Connectivity:

Designed for both the studio and the field, the KU 100 offers three powering modes: standard 48V phantom power, internal batteries (6x AA), or an external power supply (included). It features a balanced 5-pin XLR output for professional studio integration and two unbalanced BNC outputs for measurement and analysis equipment.

Customizable Audio Control:

Hidden inside the base of the head are switches for a -10 dB pre-attenuation (pad) and a two-stage high-pass filter. The filter allows you to choose between a linear response, a 40 Hz cut, or a 150 Hz cut to eliminate low-end rumble or wind noise, ensuring that your immersive recordings remain pristine and focused.

Key Features

• Binaural 3D Experience: Captures sound with human-like spatial accuracy.

• Loudspeaker Compatible: Diffuse-field equalization prevents the "muffled" sound of older binaural mics.

• Transformerless Circuitry: High output capability with virtually zero distortion.

• Dual-Stage Low Cut: Switchable 40 Hz or 150 Hz filters to control low-end.

• Triple Powering Options: Phantom, battery, or external mains power for total portability.

• Rugged Aluminum Case: Includes a heavy-duty flight case for secure transport.

Applications

• ASMR & Immersive Audio: The gold standard for creating ultra-realistic, "tactile" sound.

• Music & Radio Drama: Captures the natural acoustics of a room along with the performance.

• Virtual Reality (VR) & Gaming: Provides the authentic 360-degree audio required for modern 3D environments.

• Industrial Research: Used to document and analyze noise levels in automotive and workplace studies.

Technical Specifications
