Product Overview
Boutique Analog Character with Revolutionary Dual-Compression Circuitry
In modern recording, digital plug-ins often fall short when it comes to rendering vocal authority, mid-range warmth, and true acoustic separation. The Tegeler Audio VTRC addresses this issue directly by providing a complete, uncompromising all-tube signal path built from premium, hand-selected components.
The defining innovation of the VTRC is its dual-compressor architecture. Rather than forcing you to choose between smooth leveling or aggressive presence, the VTRC allows you to engage both its Vactrol-based Optical cell and its tube-driven Vari-µ gain reduction stages at the exact same time. Combined with highly flexible signal routing—allowing the passive EQ section to be placed before the compressor, after it, or directly into the side-chain path—the VTRC provides unparalleled tracking and sound-refining capabilities.
Product Description
Variable-Character Tube Preamp (Clean to Fat):
The input stage of the VTRC relies on high-quality, transformer-balanced circuitry paired with an upgraded tube input configuration. The overall character is deeply musical, offering a unique Negative Feedback control that morphs the preamp's behavior on the fly. You can transition smoothly from a highly detailed, open, and transparent modern sound ("Clean") to a thick, rich, and creamy low-mid vintage bloom ("Fat"). It features a dedicated input transformer developed specifically for high-level line signals, ensuring that previously recorded tracks can be passed through the entire EQ and tube compression grid without overloading the front-end microphone stage.
Passive Pultec-Inspired Equalizer:
The equalization section is inspired by the iconic classic Pultec design parameters, utilizing an inductive LC network to alter frequencies transparently without phase harshness. It features a variable 3-band layout:
Low-Mid Boost: Offers 7 selectable corner frequencies between 80 Hz and 1000 Hz, adding immediate volume and weight to vocals or low-end instruments.
Mid Cut: Features 11 selective frequency intervals from 200 Hz up to 7 kHz to cleanly notch out muddy keynotes or boxy resonances.
High Boost: Includes an expansive range of high frequencies up to a 24 kHz air band, enabling you to inject silky-smooth, open, and expensive-sounding top-end sheen into any source.
The Dual-Engine Compressor Block:
The dynamics section gives you access to two completely different compressor topologies that can work independently or simultaneously in series:
Optical Compressor: Built around an internal LED beaming onto a light-sensitive resistor. Because of the natural "memory effect" of the optical resistor, the timing reacts smoothly to incoming levels, creating an open, transparent compression that holds the vocal nicely in place without flattening micro-dynamics.
Vari-Tube Compressor (Vari-µ): Directly controls the amplification of the tube stage using the sidechain signal from the optical block. It provides a dense, punchy, and highly assertive tone that forces vocals or instruments to sit perfectly forward in a busy mix without losing harmonic warmth.
Key Features
PURE CLASS-A TUBE TOPOLOGY: Uses a discrete 3-triode valve configuration to deliver authentic harmonic depth and analog warmth.
CONCURRENT DUAL COMPRESSION: The first channel strip worldwide that lets you use Optical and Vari-µ compression at the same time.
PULTEC-STYLE PASSIVE EQ: Classical inductor-based LC design provides ultra-musical tone shaping across low, mid, and high frequencies.
24 kHz AIR BAND BOOST: High-frequency EQ band extends up to 24 kHz for adding open boutique clarity and presence to vocal tracks.
ADAPTIVE FILTER ROUTING: Flexible layout switch lets you place the EQ before the compressor, after it, or switch it directly into the compressor's side-chain for high-end de-essing.
CLEAN-TO-FAT TIMBRE PREAMP: Continuous character matching gives you total control over input saturation and thickness.
DEDICATED LINE INPUT TRANSFORMER: Separate high-level line input routing lets you use the VTRC as a premium outboard processor during mixdown.

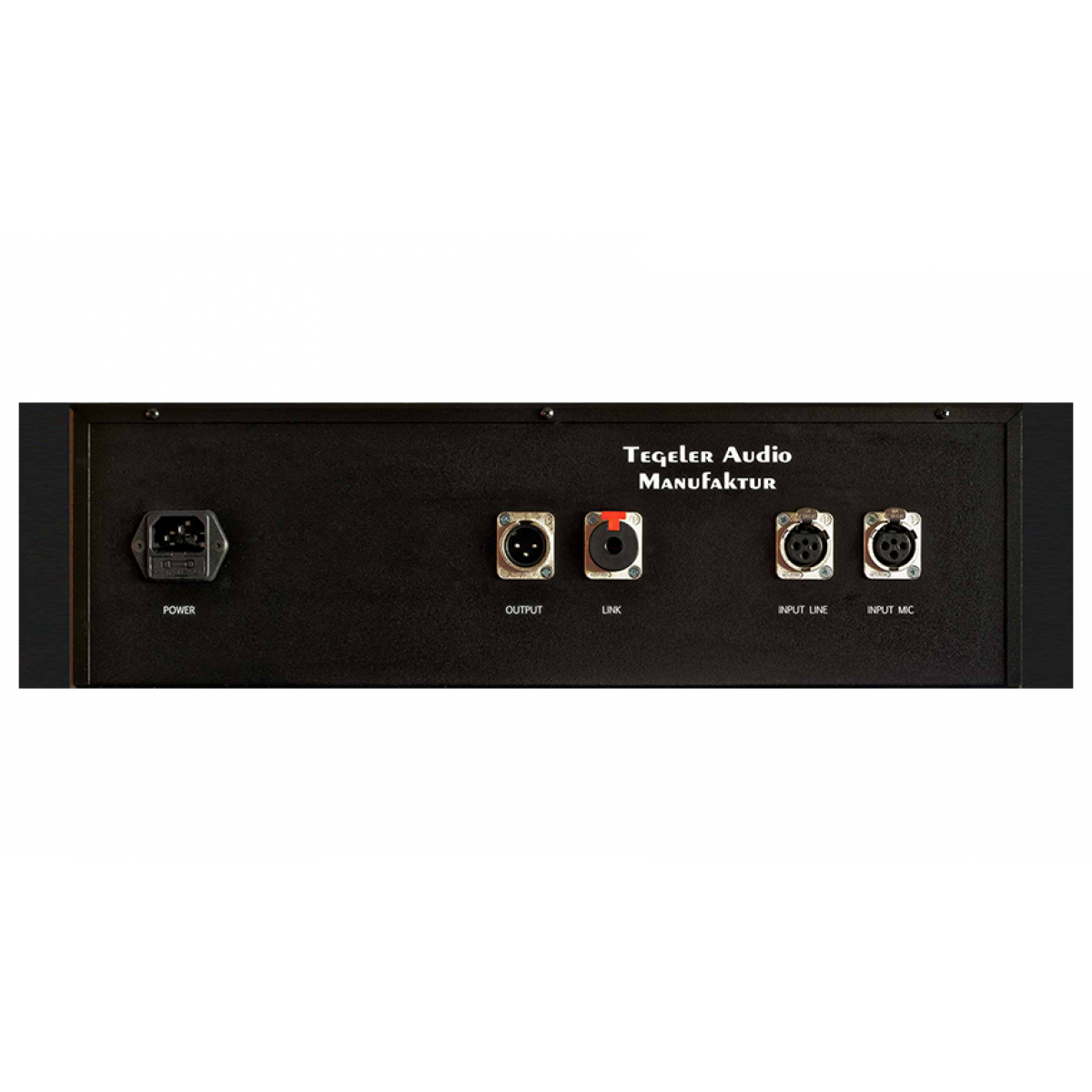

STEREO LINK CAPABILITY: Two separate VTRC channel strips can be linked together on the rear panel for cohesive stereo-bus processing.
STEPPED HARDWARE POTENTIOMETERS: High-precision stepped controls ensure accurate recall and identical matching across left/right configurations.
HIGH-IMPEDANCE FRONT DI INPUT: Integrated 100 kOhm Hi-Z instrument jack on the front panel provides direct boutique tracking for electric bass and guitars.
Technical Specifications
Feature
Specification
Circuit Architecture
Pure Class-A Tube Signal Path (3 Triodes)
Input & Output Matching
Fully Transformer Balanced Layout
Frequency Response
20 Hz – 20,000 Hz ±1.5 dB
Potentiometers
Precision Stepped Controls
Maximum Microphone Input Level
+12 dBu
Maximum Line Input Level
+20 dBu
Maximum Instrument Input Level
+6 dBu
Line Input Impedance
≥ 2.4 kΩ
Instrument Input Impedance
≥ 100 kΩ
Output Impedance
< 600 Ω
Maximum Output Level
+24 dBu
Dynamic Range
≥ 95 dB
Preamplifier Controls
Gain, Input, Character (Clean to Fat), +48V Phantom, Phase Invert
