Product Overview

The Ultimate Low-Profile Troubleshooting Microphone for Tight Stage and Studio Setups

In live sound reinforcement and studio tracking, capturing high-energy instruments like tom-toms, percussion, and aggressive guitar cabinets often presents a spatial challenge. Standard handheld dynamic microphones can be obstructive, difficult to position under cymbals, and prone to taking accidental hits from drumsticks.

The Telefunken M81-SH completely eliminates these positioning constraints while offering a tailored sonic response designed to tame overly bright or thin instruments. It packs the exact flat frequency signature and high-SPL capabilities of the full-sized handheld M81 into a lightweight, shortened chassis. Featuring an integrated stand mount at the base rather than requiring a separate clip, it slips effortlessly into dense drum kits and crowded instrument arrays. It brings a balanced, "mix-ready" authority to your tracking session without needing external phantom power or bulky external shockmounts.

Product Description

Low-Mass Capsule Architecture and Custom T80 Transformer Core:

The exceptional speed and balanced response of the M81-SH begin with its specialized transducer engineering. It houses a proprietary, 25 mm ultra-thin low-mass moving coil capsule. Because the diaphragm layer is significantly lighter than those found in traditional dynamic microphones, it responds to incoming sound waves with rapid transient accuracy, capturing the sharp stick attack of a drum head or the sudden burst of a brass section cleanly.

This high-performance capsule drives a custom-wound Telefunken Elektroakustik T80 impedance-matching transformer. This premium hardware component provides the M81-SH with its trademark sonic depth, body, and immense analog headroom. It matches internal signals flawlessly while smoothing out harsh digital artifacts, resulting in a rich midrange focus and a beautifully rounded top end that helps instruments sit naturally in a complex mix.

Flat Frequency Voicing and Balanced Proximity Control:

The M81-SH is specifically optimized to complement the brighter M80-SH, serving as an expert troubleshooting microphone for overly harsh or thin sound sources. Its tightly controlled Supercardioid polar pattern creates a highly focused pickup zone directly in front of the capsule, offering exceptional off-axis rejection to eliminate cymbal wash, stage bleed, and ambient room reflections.

While other dynamic microphones push upper-mid presence aggressively, the M81-SH features a tailored frequency curve where the top end is pulled back slightly between 2 kHz and 10 kHz. This creates a flatter overall characteristic that naturally tames sibilance, dampens the piercing bite of electric guitar amplifiers, and fattens up thin horn sections. Additionally, the acoustic housing is calibrated to minimize the proximity effect, preventing low-mid muddiness and boomy mid-bass build-up when the microphone is placed mere inches away from a drum head or a speaker grille.

Tour-Grade Durability and Sleek Low-Profile Chassis:

Every M81-SH microphone is hand-assembled, calibrated, and sonically verified at Telefunken’s headquarters in South Windsor, Connecticut. Built for the road, the chassis features a lightweight zinc die-cast construction that reduces overall weight while integrating vibration-dampening technology to isolate the capsule from mechanical stand rumble and stage vibrations. Finished in Telefunken's classic flint grey powder coat and capped with a durable chrome headgrille, the M81-SH is engineered to survive accidental stick deflections and intense touring schedules while maintaining a prestigious, professional appearance on camera and on stage.

Key Features

• COMPACT LOW-PROFILE DESIGN: Shortened body architecture with an integrated stand mount allows easy placement in tight, crowded spaces.

• SMOOTH, FLAT FREQUENCY RESPONSE: Tailored presence band controls harsh high frequencies, making it ideal for bright instruments and taming harshness.

• CUSTOM T80 TRANSFORMER: Equipped with a custom-wound Telefunken Elektroakustik transformer for pristine impedance matching and depth.

• LOW-MASS DIAPHRAGM CAPSULE: 25 mm ultra-thin capsule element delivers rapid transient response and avoids boxy midrange buildup.

• TIGHT SUPERCARDIOID PATTERN: Focuses heavily on the intended sound source while aggressively rejecting side-axis stage bleed and cymbal wash.

• VIBRATION-DAMPENING TECHNOLOGY: Internally isolated capsule mechanics minimize mechanical stand thumps, rim vibrations, and stage rumble.

• EXTREME 135 dB SPL HANDLING: Effortlessly manages intense sound pressure levels directly in front of loud rack toms, floor toms, and guitar cabs.

• INCLUDED RIGHT-ANGLE XLR CABLE: Ships with a premium 5-meter right-angle XLR cable to maintain a low physical footprint on stands and drum clips.

• HAND-TESTED IN THE USA: Proudly assembled, calibrated, and quality-checked at Telefunken's Connecticut facility.

Technical Specifications

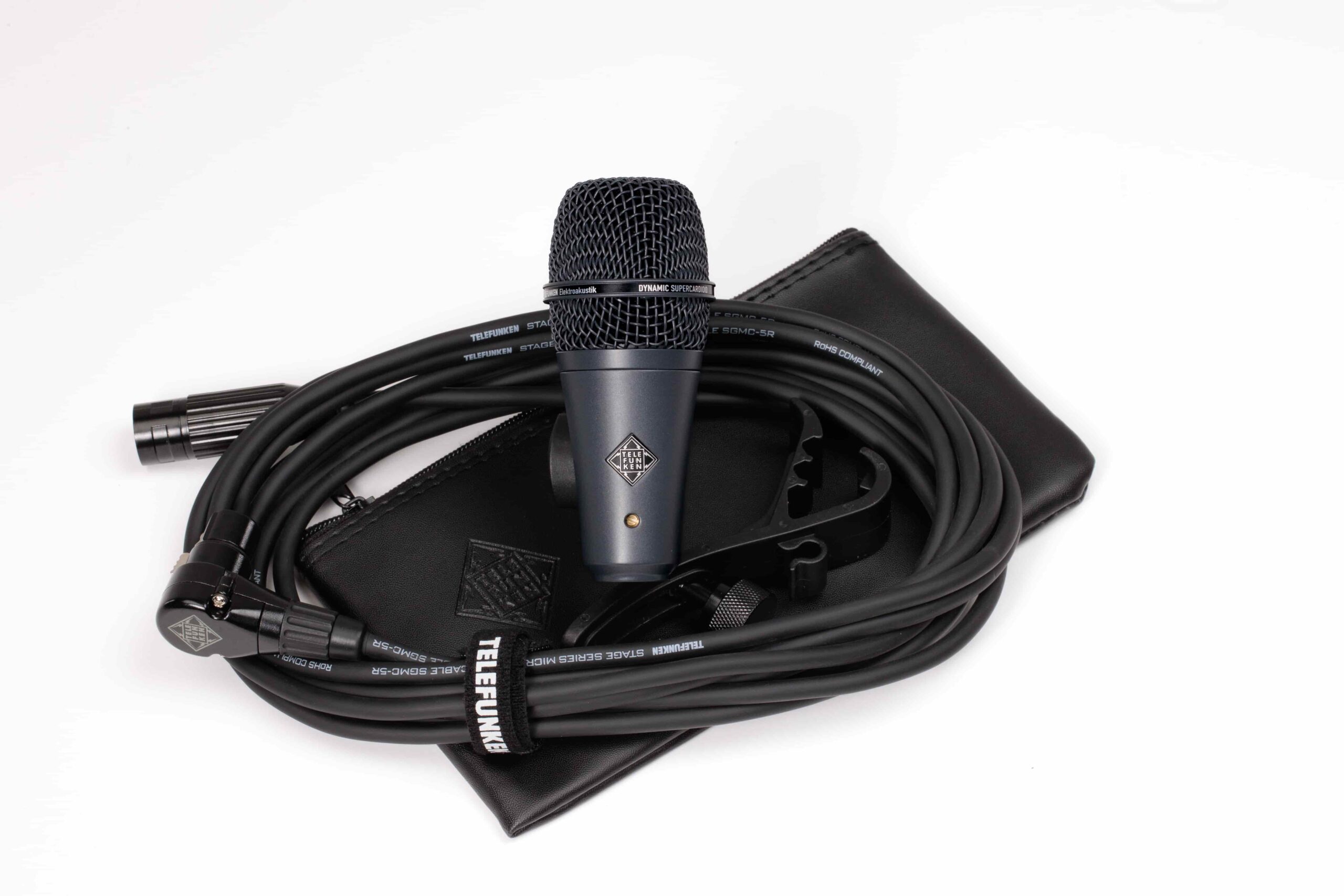

What’s Included in the Box

• 1 x Telefunken M81-SH Low-Profile Dynamic Series Microphone Main Unit

• 1 x Telefunken SGMC-5R 5-Meter (16.9 ft) XLR Cable with Right-Angle Female Connector

• 1 x Telefunken M 785 Plastic Microphone Drum Rim Mount Clip

• 1 x Telefunken ZB82 Premium Faux Leather Protective Zippered Storage Pouch

• 1 x Official Telefunken Elektroakustik Sticker & User Manual
