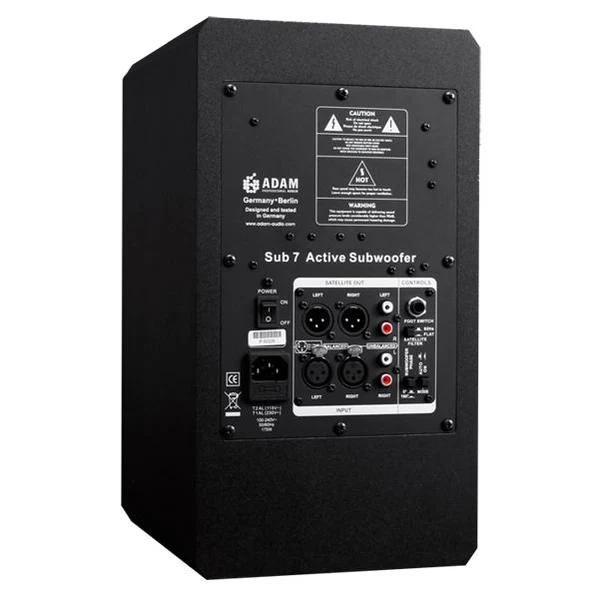

In addition to desktop audio recording applications, the ADAM Audio Sub7 7" subwoofer is well suited to mobile and broadcast applications, surround setups, and multimedia uses such as gaming and home audio. The ADAM Audio Sub7's small footprint allows for easy placement in small spaces. The subwoofer's front panel features 2 motorized controls for input level and crossover frequency settings for dialing in the optimal settings for each environment. These knobs can also be controlled with an included wireless remote control, allowing users to optimize their sound reproduction without leaving the listening position. The Sub7 speaker is equipped with both balanced XLR and unbalanced RCA in and output connectors and numerous controls. A 0/180 phase switch and a switchable 85Hz highpass help tailor the sound to the system and room. The low cutoff frequency of 31Hz (-3 dB point) enables this subwoofer to fill out the lows of any system while keeping a compact form factor. In addition to desktop audio recording applications, the ADAM Audio Sub7 is well suited to mobile and broadcast applications, surround setups, and multimedia uses such as gaming and home audio.
Product information
Technical Details
Model Name
Sub7
Speaker Type
Subwoofer
Special Feature
subwoofer
Recommended Uses For Product
Output
Compatible Devices
Desktop, Gaming Console, Home Theater, Television
Surround Sound Channel Configuration
5.1
Colour
Black
Item Weight
7.98 kg
Is Waterproof
false
Number of Items
1
Control Method
App
Wireless Communication Technology
Infrared
Speaker Size
7 Inches
Power Source
ac
Brand Name
ADAM Audio
Colour Name
Black
Product Dimensions
27.94 x 20.32 x 36.83 cm; 7.98 kg
Item model number
SUB7
Manufacturer
Adam Audio
Item Weight
7 kg 980 g
Technical Data
View the specifications of the ADAM Audio Sub7 by clicking each drop-down section.
General Data
Panel: Front
Weight: 17.6 lb (8 kg)
Height x Width x Depth: 14.5″ (370 mm) x 8″ (200 mm) x 11″ (280 mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Remote control, batteries (2 x AAA), power cord, manual
Acoustics
Frequency Response: 32 Hz – 150 Hz
THD > 60 Hz: ≤1 %
Max. peak SPL at 1 m: ≥107 dB
Crossover Frequencies: 50 – 150 Hz
Audio Input Connectors
Analog: XLR / RCA
Input Impedance: 10 kOhm
Driver
Basket Diameter: 7″
Voice Coil Diameter: 1.5″ (38 mm)
Cone Material: Paper
Amplification
Type: PWM
Amp. Power RMS / Music: 140 W / 210 W
Control Options
EQ 80 Hz: -60 to +6 dB
