Key Features

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
• Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
• VU LED meters for dialing in the perfect level

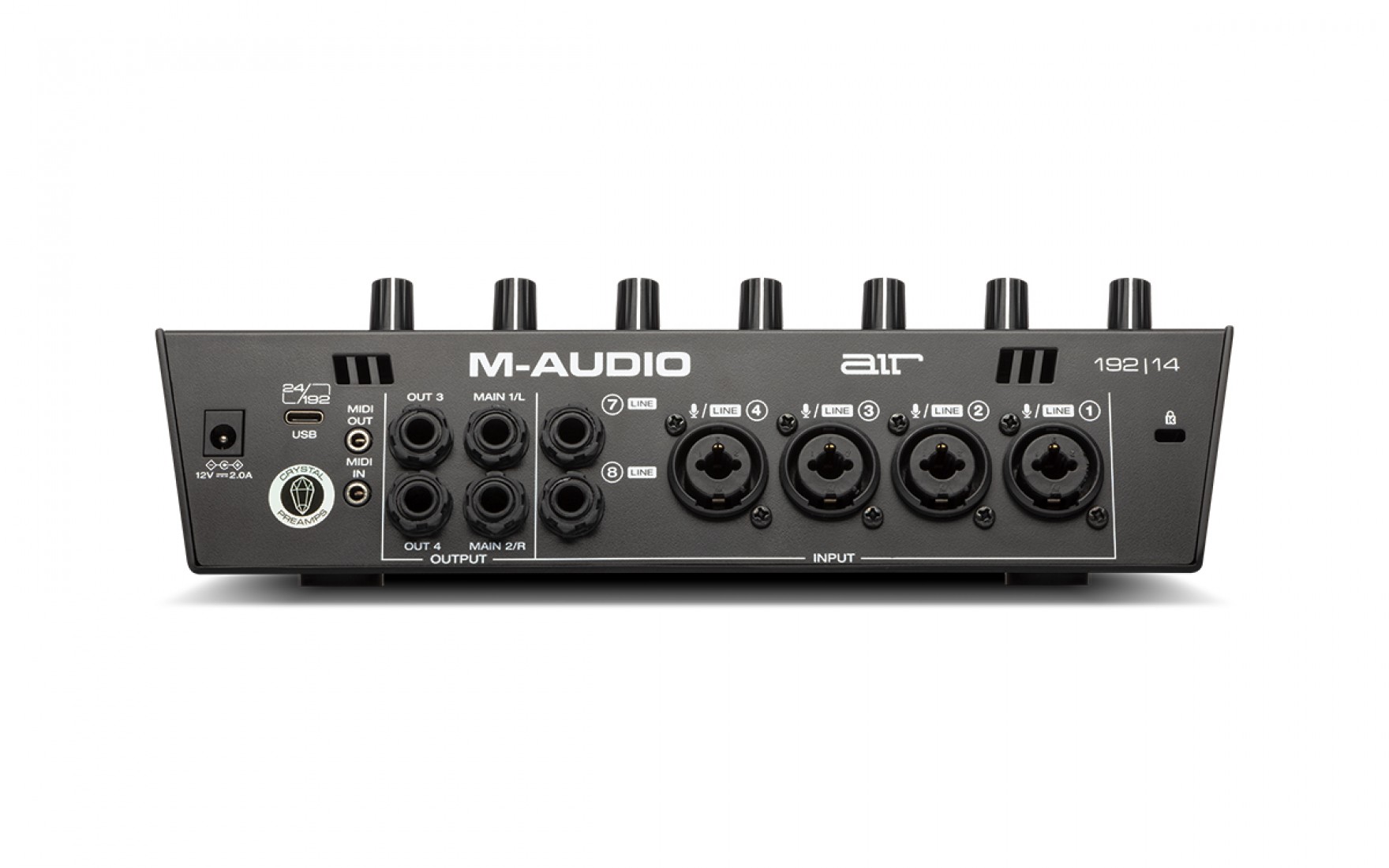

• (4) XLR+¼" TRS combo inputs, (2) ¼” instrument inputs and (2) ¼” line inputs
• MIDI input/output for connecting virtually any external MIDI gear
• Stereo ¼” with direct mono/stereo switch; (2) ¼” assignable auxiliary outs
• (2) ¼” headphone outputs with independent source and level controls
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal
• *Round trip latency is dependent on buffer settings, and computer hardware

Downloads

• AIR 192-14 User Guide v1.1

What’s In The Box

• AIR 192|14
• USB-C-to-USB-C Cable
• USB-C-to-USB-A Cable
• (2) 1/8" (3.5 mm) to MIDI Adapters
• Software Download Cards
• User Guide
• Safety and Warranty Manual

Specifications

Minimum System Requirements

Standard USB 2.0 or USB-C Port

Windows: 7 (32 or 64 bit)

OSX: 10.8

Consult support.m-audio.com for current software system requirements

Premium Software Suite Included

Ableton Live Lite is one of the most popular performance and production programs available in the world. A powerful music creation tool, Ableton Live Lite enables musicians and producers to spontaneously compose, record, remix, improvise, and edit musical ideas in a fluid audio/MIDI environment. Explore sonic possibilities in real time whether on stage or in the studio. When you are satisfied with your work, Ableton Live Lite lets you save it or mix it down.

Whatever you set out to achieve, MPC Beats will get you started. Incorporating the finest parts of the legendary MPC workflow, MPC Beats features all the essential tools for pro production. Edit samples, mixdown your tracks, find any sound with the synth engines found on the legendary MPCs, record audio and much more. MPC Beats will host your AU/VST plugins so as you expand your arsenal, know you’ll have complete compatibility with industry standard virtual studio technology.

The AIR Creative FX Collection Plus features 28 effects that are used by some of the world’s most respected audio professionals. AIR Creative FX Collection Plus has been featured in many of the last decade’s top film, game and music projects. Each plugin has been expertly designed with ease of use in mind and will ensure professional results each time.

This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, compressors, equalizers, delays, filters and so much more.

80 effect plug-ins provided by AIR

Included are some extra goodies to help out any podcaster, guitarist, or producer. This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, equalizers, delays, filters and so much more.

A new standard for guitar amplifier modeling software

ReValver includes ValveKing® & Custom Lite Amp Modules, 3 x cabs, 3 x mics (with multiple selectable positions), and 3x effects.

Strike is a dynamic drum and arranger instrument that features a world-class sample library and a hyper-realistic performance engine. Strike puts you in the producer’s chair, enabling you to create, control, and produce professional drum tracks with uncanny human realism. With its proprietary technology, Strike surpasses conventional MIDI programming and drumming sampling when it comes to computer-based playing, arranging, and mixing of drums. Use Strike to play a seamless crescendo, switch drum kits from ballad to crushed punk, or tweak the tuning of the snare drum. Each instrument was recorded with up to three close, two overhead, and two room microphones. Strike also provides a full mixing console, complete with built-in effects.

Hybrid 3.0 is the next generation in synthesis. This high-definition virtual synthesizer combines the coveted warmth of analog synths with a full range of futuristic digital manipulation capabilities. The result is the best of both worlds — a virtual instrument with a comprehensive set of precisely adjustable parameters that can sound like a synth you remember or something no one has ever heard before.

AIR Music’s Mini Grand is a simple-to-use yet powerful virtual piano instrument with seven different acoustic piano sounds to suit a broad range of musical styles and production needs. Combining premium quality piano samples, innovative re-pedaling technology, built-in room simulation and equal and stretched tuning, Mini Grand is the go-to plugin for authentic, emotive piano sounds.

DB-33 Tonewheel Organ is a virtual organ that recreates the sounds and controllability of classic tonewheel organs such as the Hammond B3, and the rotary-speaker cabinets they are often played through. It includes 122 preset sounds plus an extra-realistic convolution rotary cabinet and tube overdrive emulation. The rotary-speaker cabinet can also be used as an effect in its own right on an audio track.

AIR Music’s Xpand!2 is a multitimbral workstation offering four active sound slots, or parts, per patch. Each part is provided with its own MIDI channel, Note Range (Zone), Mix, Arpeggiation, Modulation, and Effects settings—an excellent method for creating individual parts. Harnessing the four parts together to build one amazing Patch is where Xpand!2 reveals its true power. Using everything from wavetables and FM synthesis to sample playback, the expert sound design team at Air Music Tech has carefully created thousands of ready-to-play Xpand!2 patches.

AIR TubeSynth

The AIR TubeSynth plugin emulates the sound of vintage analog polyphonic synthesizers. Dive into a collection of warm pads, brass synths, and so much more in this massive collection of synthesizer presets.

AIR Electric

AIR Electric plugin is your total electric piano collection on MPC. Choose from a wide collection of keyboards like Rhodes, Wurlitzers, FM keyboards, and more. Dedicated control sections provide deep virtual control over keyboard pickups, envelope, bell and noise settings, and much more.

AIR Bassline

The AIR Bassline plugin emulates the sound of classic monophonic synthesizers. Create your own unique synth patches with the integrated AIR effects sections.

Chop up and mix 2 gigs of samples ranging from deep ambient synth pad loops to vintage drum one shots. These are all designed to inspire your music production and provide professional sounding samples that will shine in your mix. Touch Loops perfectly captures the tone and intensity of each sample, so they enhance and complement any song, wherever you use them. This incredible value can be found in your M-Audio account, ready to be downloaded and chopped to your liking!
