Legendary Studio Sound, Wireless Freedom

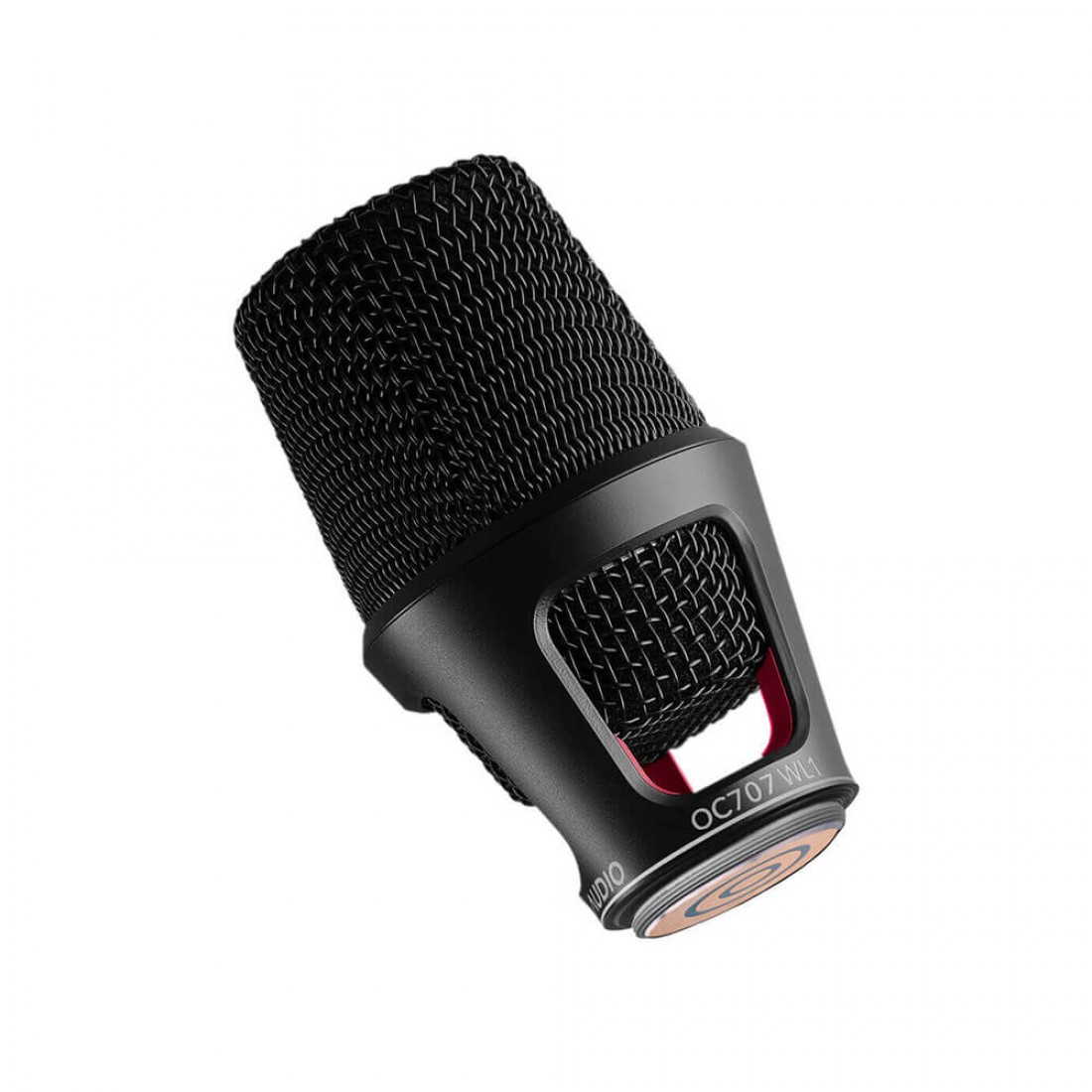

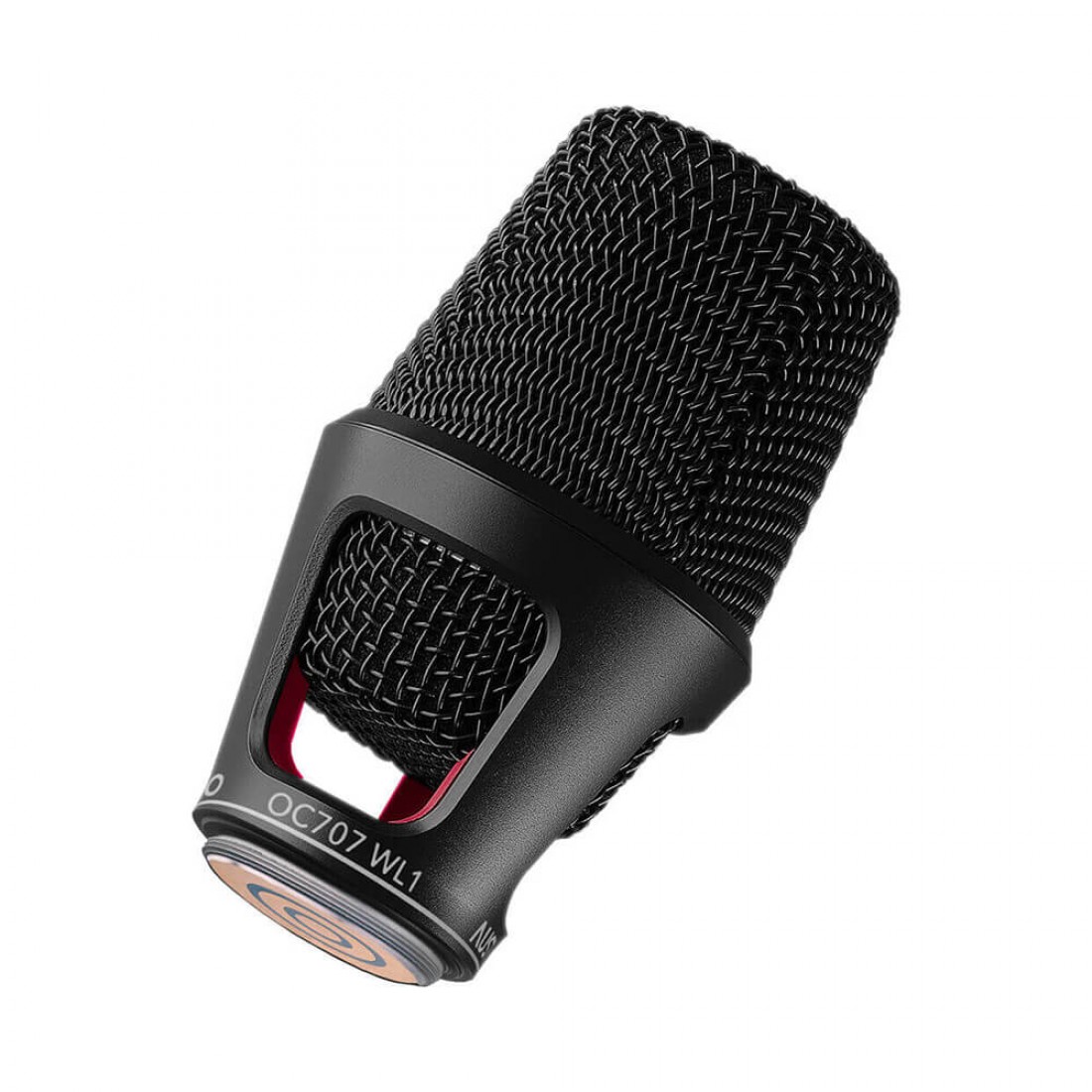

The OC707 WL1 is more than just a replacement head; it is a high-performance upgrade for industry-standard wireless systems. Built around the handmade OCC7 condenser capsule from Vienna, it is perfectly tuned to the human voice. It allows artists to move freely across the stage without sacrificing the detail, depth, and "silky" high-end typically reserved for high-end wired studio microphones.
Austrian Engineering for the Stage:
The heart of the OC707 WL1 is the OCC7 true condenser capsule. Developed and built in Vienna, this small-diaphragm capsule provides a frequency response that is meticulously optimized for vocals. Unlike many wireless capsules that can sound compressed, the OC707 WL1 faithfully captures every facet of a performance, from subtle whispers to powerful high-notes, without overemphasizing sibilance.
Open Acoustics & Proximity Mastery:
Transparent Audio Path: Utilizing proprietary Open Acoustics Technology, the capsule is mounted in a way that minimizes sound-reflecting surfaces. This results in a signal that is naturally open and free from the boxy resonances often found in enclosed handheld designs.
Optimized Proximity Effect: The microphone is engineered to handle changes in distance beautifully. Whether you are singing directly on the grille or backing off for volume, the tonally open character of your voice is preserved without muddy low-end buildup.
Handling Consistency: A breakthrough in design ensures that your sound and feedback behavior do not change even when directly gripping the microphone head grille—a common issue with many live vocal mics.
Durability Meets Precision:
The Austrian Audio OC707 WL1 is built for the rigors of professional touring. Its rugged metal housing and reinforced mesh grille protect the sensitive electronics from the physical demands of the road. With a massive 152 dB Max SPL, it can handle the loudest vocalists without clipping, making it a reliable choice for everything from intimate jazz clubs to massive stadium tours.
Handmade OCC7 Capsule: High-resolution true condenser sound made in Vienna.

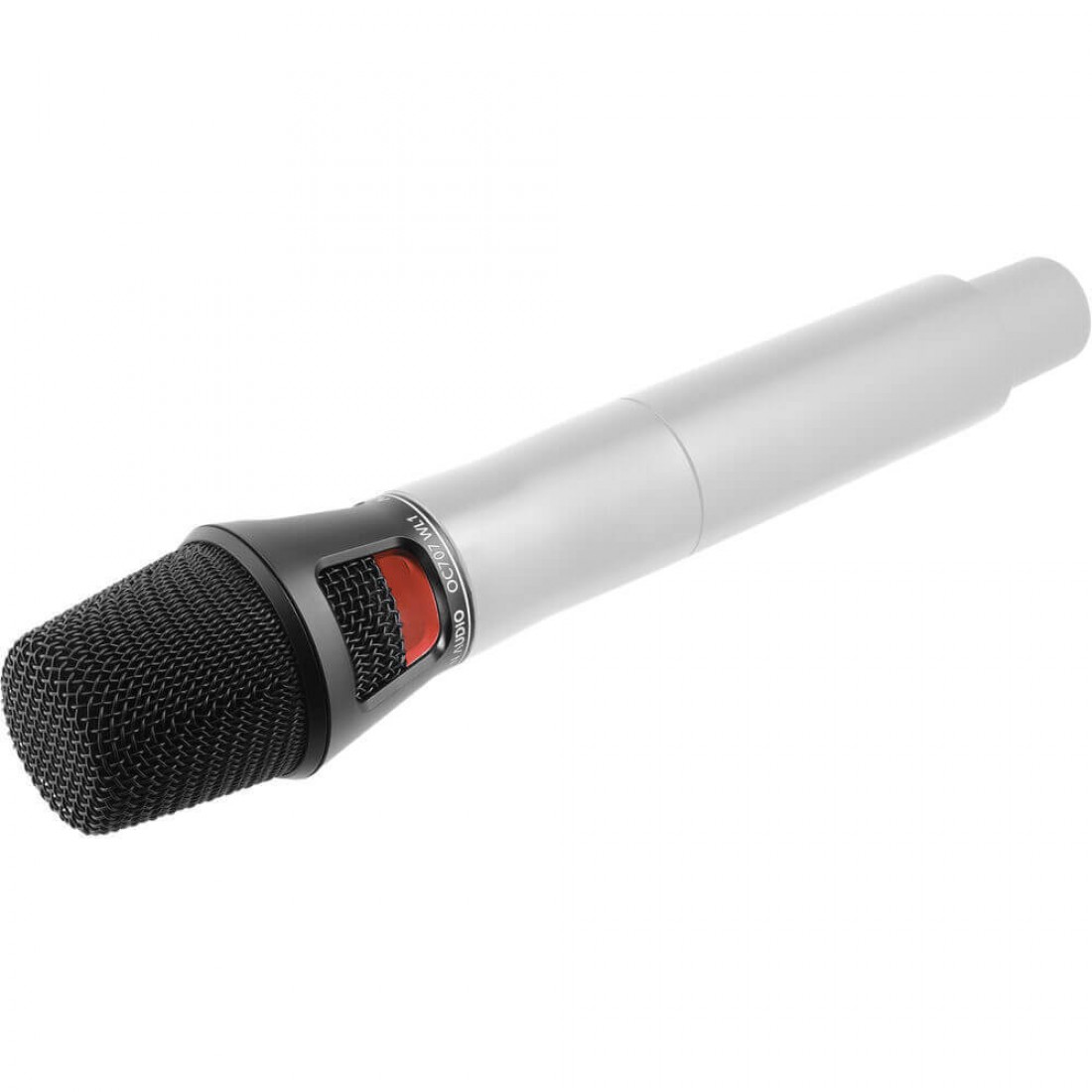

Broad Compatibility: Fits Shure (Axient, QLXD, ULXD, etc.), Sony, and Lectrosonics transmitters.
Open Acoustics Design: Delivers a resonance-free, transparent signal.
Superior Feedback Rejection: Optimized cardioid pattern for loud stage monitoring.
Advanced Pop Protection: Innovative diffuser reduces plosives without muffling high-end.
Stable Performance: Sound signature remains consistent regardless of how the mic is held.
Rugged Construction: Professional-grade metal housing and protective grille.
| Specification | Details |
| Microphone Type | True Condenser Wireless Capsule |
| Polar Pattern | Cardioid |
| Frequency Range | 35 Hz – 20 kHz |
| Max SPL | 152 dB SPL |
| Equivalent Noise | 26 dB SPL (A-weighted) |
| Sensitivity | 4.3 mV/Pa |
| Supply Voltage | 5-10 V |
| Compatibility | Shure®, Sony®, Lectrosonics® Transmitters |
| Dimensions | 92 x 53 mm |
| Weight | 195 g |
1 x Austrian Audio OC707 WL1 Wireless Capsule (Black)
1 x Protective Carrying Pouch
