Product Overview

The New Benchmark for Versatility

The OC818 is an "Instant Classic" because it bridges the gap between legendary vintage tone and cutting-edge digital control. It is the world’s first multi-pattern dual-output microphone, allowing you to capture the front and back diaphragms separately. This unique architecture, combined with the CKR12 ceramic capsule (based on the legendary CK12 design), ensures that any OC818 is automatically match-paired with any other unit, providing flawless stereo imaging for any engineer.

Product Description

Surgical Precision and Post-Production Power:

What sets the OC818 Silver apart is its ability to be "re-designed" after the performer leaves the booth. Using the secondary mini-XLR output and the PolarDesigner plug-in, you can change the polar pattern of your recording during the mix phase. This allows you to surgically remove room bleed or adjust the frequency response of the patterns in 255 different positions, a feat impossible with traditional microphones.

Advanced Engineering and Control:

• Custom CKR12 Ceramic Capsule: Handmade in Vienna to critical dimensions, this capsule offers the warmth of a vintage classic with modern reliability and lower self-noise (< 9 dB SPL).

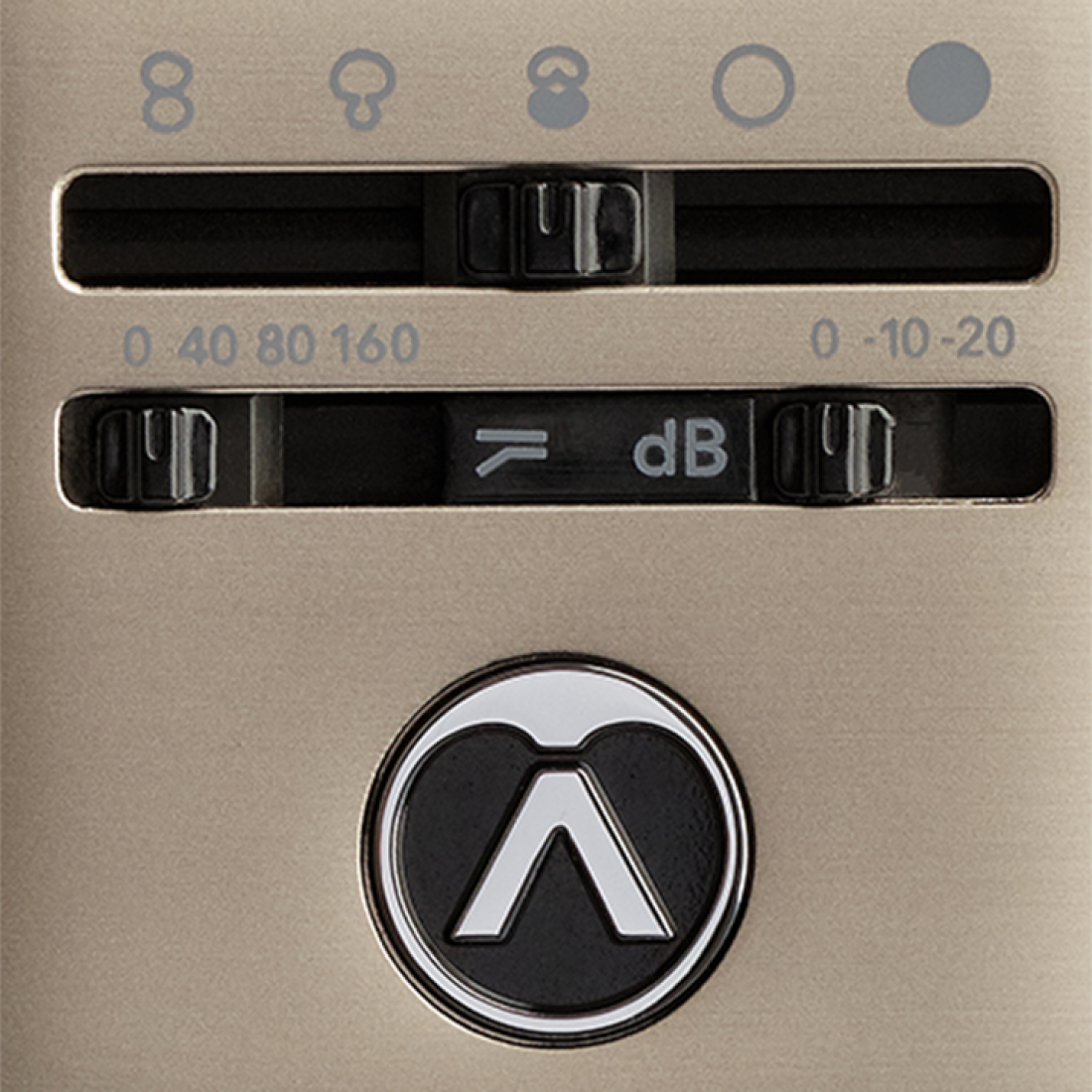

• Triple High-Pass Filter: Features selectable settings at 40Hz, 80Hz, and 160Hz to eliminate rumble or handle the proximity effect during close-mic sessions.

• Switchable Pads: With -10dB and -20dB pad settings, the OC818 can handle extreme sound pressure levels up to 158 dB SPL, making it just as capable on a loud drum kit as it is on a delicate whisper.

Wireless Control & Immersive Audio:

The OC818 can be transformed into a wirelessly controlled microphone via the optional OCR8 Bluetooth dongle. This allows you to toggle polar patterns and pad settings from your mobile device while the mic is high on a stand or in a live room. Additionally, its dual-diaphragm output makes it a perfect choice for spatial audio and immersive recording techniques like AmbiCreator.

Key Features

• Handmade CKR12 Ceramic Capsule: Delivers the legendary detail and nuance of the CK12 design.

• Multiple Polar Patterns: Cardioid, Omni, Figure-8, and Hypercardioid (plus 255 custom patterns via software).

• Dual Output Mode: Capture both diaphragms for total pattern control in post-production.

• Handmade in Vienna: Built to the highest European standards for professional reliability.

• Match-Paired Consistency: Every unit is calibrated to within 1dB of every other OC818 produced.

• Microprocessor Control: Digital control of analog patterns for maximum stability.

• Bluetooth Compatible: Remote control settings via the PolarPilot App (requires optional OCR8).

Technical Specifications

What’s Included in the Box

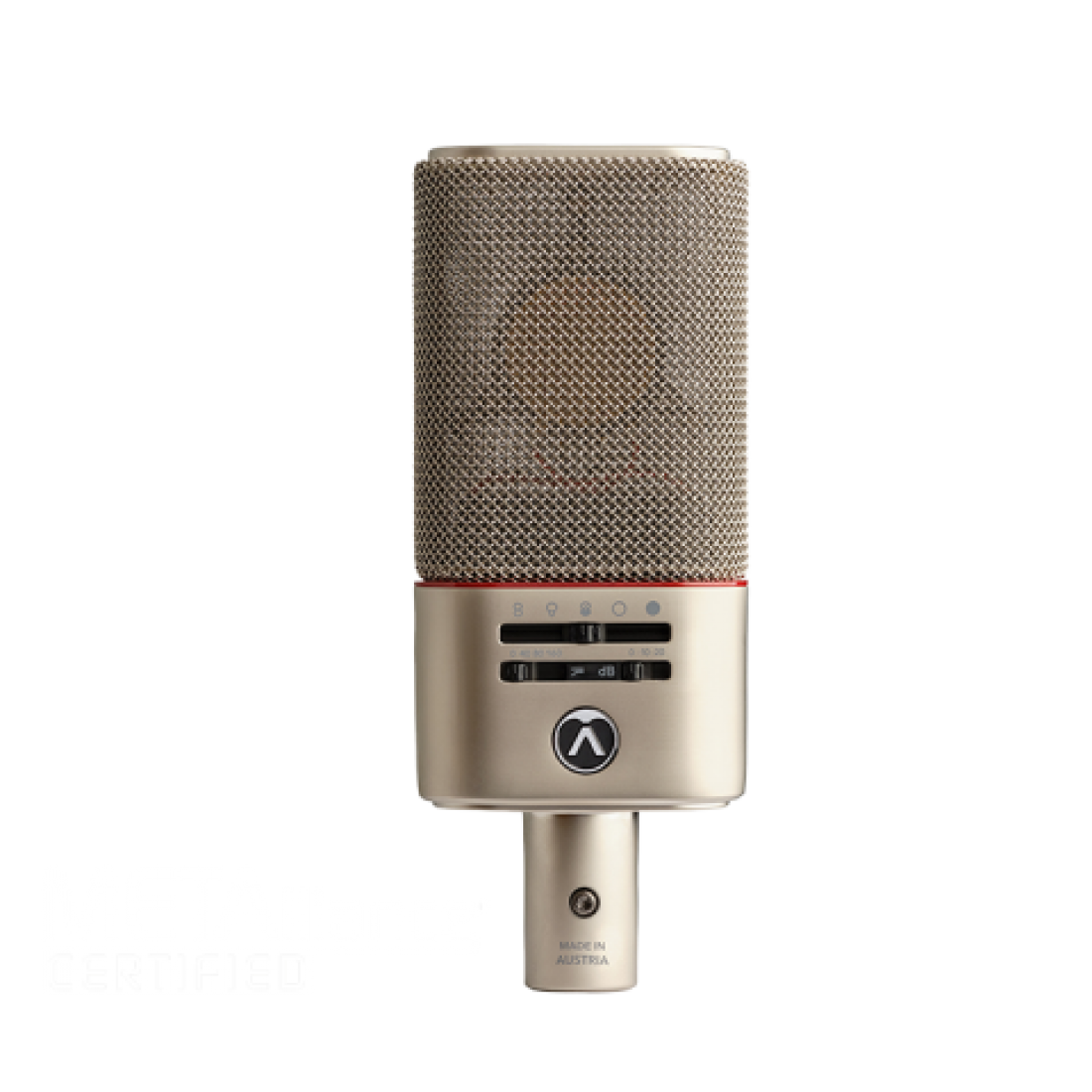

• 1 x Austrian Audio OC818 Microphone (Silver)

• 1 x OCS8 Spider Shock Mount

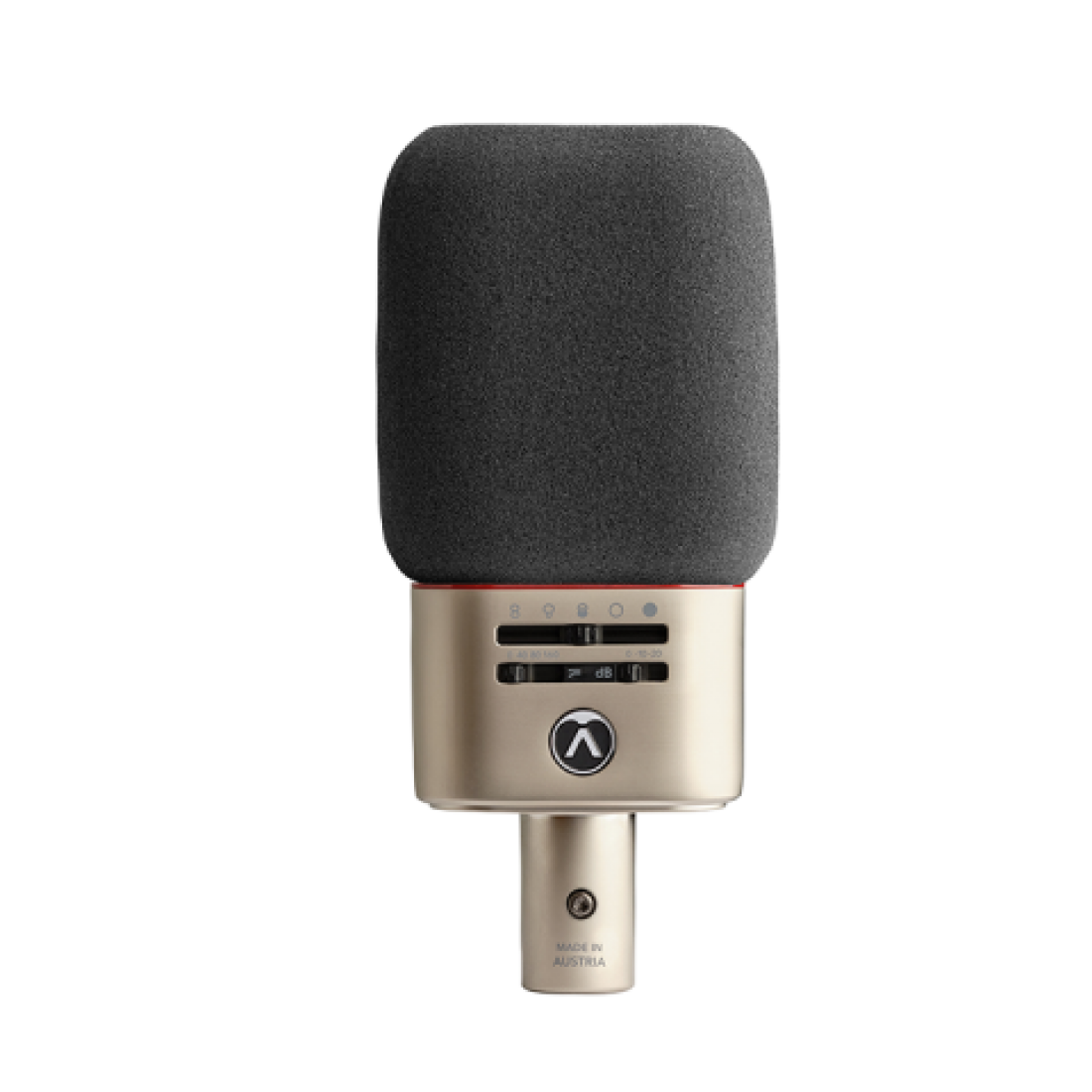

• 1 x OCW8 Foam Windshield

• 1 x OCH8 Mic Clip

• 1 x OCC8 Mini-XLR Cable

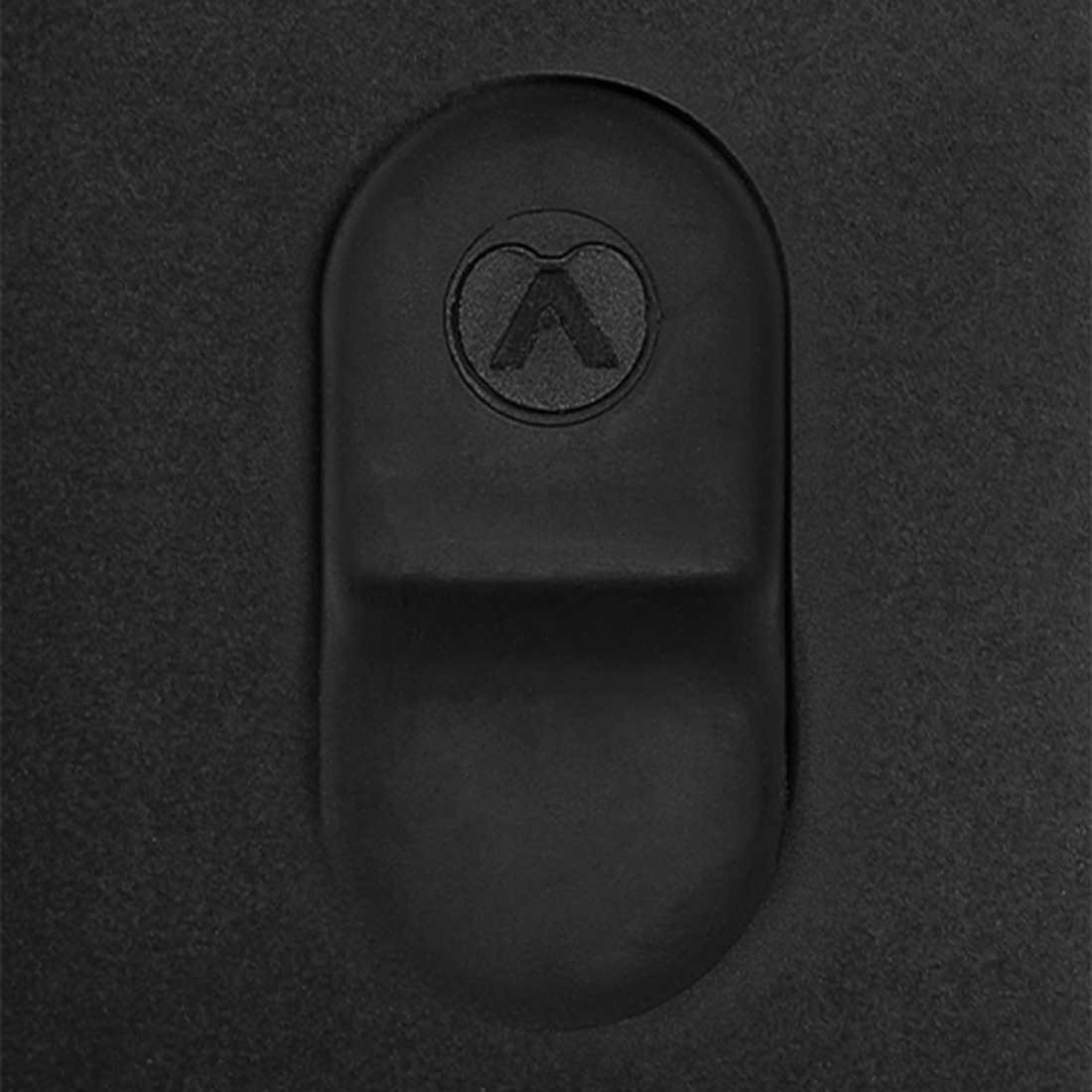

• 1 x Premium Protective Carry Case
