Product Overview

Precision and Power in a Sealed Enclosure

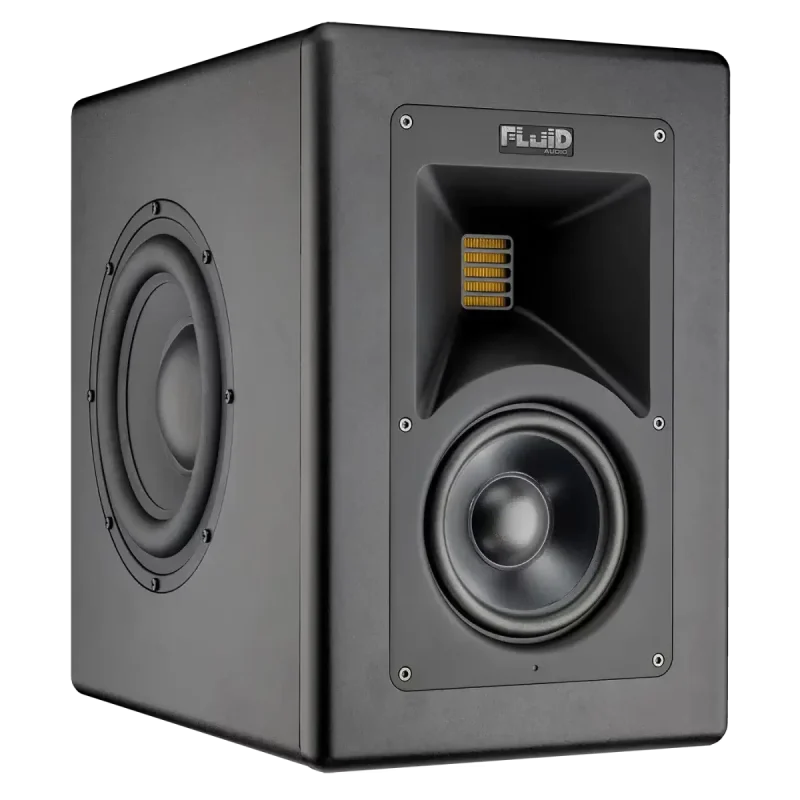

The Image 2 serves as a dedicated nearfield or midfield monitor, offering incredible imaging and an extremely flat frequency response. Its sealed-box architecture ensures a natural low-frequency roll-off and fast transient response, making it less sensitive to room positioning than ported designs. Whether you are working in a stereo setup or a complex Dolby Atmos immersive environment, the Image 2 provides the translation and clarity required for high-end professional audio production.

Product Description

Vi-bracer™ Technology and Bass Performance:

The Fluid Audio Image 2 utilizes proprietary Vi-bracer™ technology to manage low frequencies. Two side-mounted 8-inch ultra-long-throw woofers are braced together internally by a rigid rod. This configuration cancels out reaction forces and cabinet vibrations, allowing for "sub-like" bass extension (±4.6dB at 28Hz) that remains tight and transparent even at high volumes.

Advanced Driver and Waveguide Design:

• High Frequencies: A waveguide-mounted AMT (Air Motion Transformer) tweeter provides transparent sound with a fast attack and high efficiency.

• Midrange: A 5-inch aluminum cone driver with a shorting ring reduces harmonic distortion, keeping the critical midrange clear and forward.

• Quad-Amplification: Each driver is powered by its own dedicated Class-D amplifier (225W x 2 for bass, 150W for mid, 75W for high), totaling 675 Watts of headroom.

Direct Sonarworks Integration & 2-in-1 Versatility:

The Image 2 is one of the few monitors that allows you to store Sonarworks SoundID Reference profiles directly on its native DSP. You can measure your room and upload up to four different profiles via USB, ensuring your monitors are always calibrated regardless of the audio source. Additionally, it features a CubeMix mode (activated via an optional footswitch) that switches the speaker to a mid-focused reference, helping you check how your mix will translate to consumer devices like laptops or phones.

Key Features

• Active 3-Way System: Quad-amplified design with 675W total power.

• Direct Room Correction: Store Sonarworks SoundID Reference profiles on the built-in DSP.

• Vi-bracer™ Dual 8" Woofers: Opposing design eliminates resonance for clear, deep bass.

• AMT Tweeter: Detailed and fast high-frequency response with low distortion.

• 2-in-1 Monitor: Switchable CubeMix mode for checking mix translation.

• Digital & Analog I/O: Supports Analog XLR, TRS, and AES/EBU and S/PDIF digital inputs.

• USB Connectivity: Easy firmware updates and calibration profile uploads.

Technical Specifications

Ideal For

• Professional Mixing & Mastering: For those needing a full-range system with pinpoint accuracy and massive headroom.

• Immersive Audio (Dolby Atmos): Compact enough for surround or height channels while providing enough power for main LCR positions.

• Unideal Rooms: The sealed cabinet and internal DSP correction make it easier to achieve a flat response in smaller or untreated spaces.

• Workflow Efficiency: Engineers who want calibrated sound without running external software on their computer.

What’s Included in the Box

• 1 x Fluid Audio Image 2 Monitor

• 1 x Power Cord

• 1 x USB Cable (for DSP/Updates)

• Acoustic Isolation Pads

• Quick Start Guide
