The FO1 is designed for creators who value the unique character of analog gear but require the speed of a modern digital workflow. It functions as an expansion to your existing setup, allowing you to route audio through four mono or two stereo analog paths. With its unique QR Code Recall system, you can save visual snapshots of your hardware settings directly within your DAW project, ensuring that every session is 100% recallable.
Product Description
Seamless Plugin Integration:

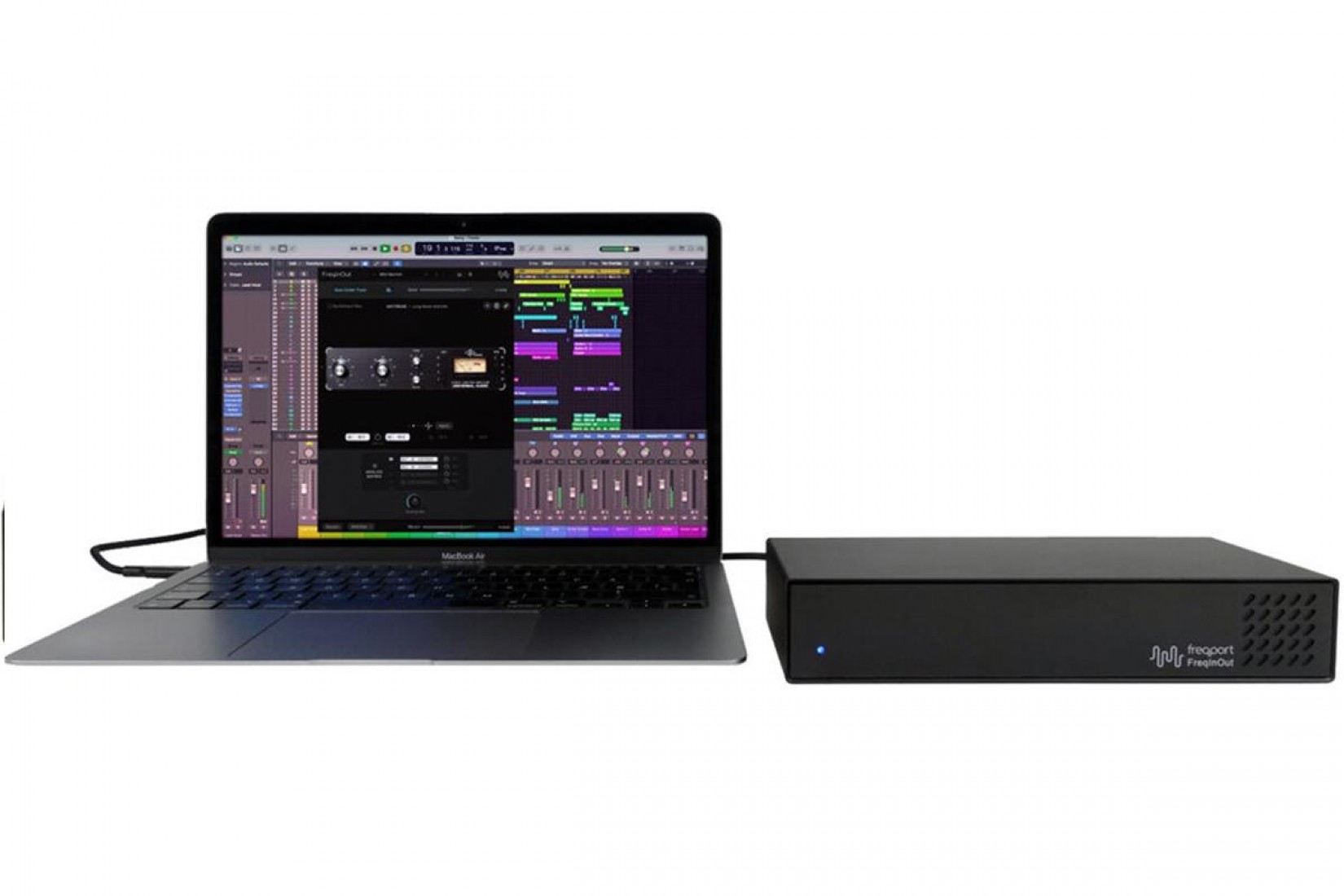

The FO1 operates via dedicated VST, AU, and AAX plugins. Once connected via USB-C, you can simply drop a Freqport plugin onto any track or bus in your DAW to route audio through your external hardware. The system handles all the routing internally, allowing you to automate analog parameters and bypass gear with a single click.
Advanced Hardware Matrix:
The internal Analog Matrix allows you to reconfigure the signal flow of your connected gear without moving a single cable. You can chain devices in series, set up parallel processing for "New York style" compression, or even utilize Mid-Side (M/S) processing for advanced stereo imaging and mastering tasks.
Pristine 32-bit Conversion:
To maintain the integrity of your high-end outboard gear, the FO1 utilizes Pro-grade ESS converters. With a 120dB dynamic range and support for sample rates up to 192kHz, the interface ensures that the warmth and detail of your analog signal are captured with absolute accuracy, free from digital artifacts.
Key Features
DAW Plugin Workflow: Use your outboard gear as a plugin with full automation and recall.
4-In / 4-Out I/O: Flexible connectivity for up to four mono or two stereo analog devices.
ESS Pro Converters: High-fidelity 32-bit / 192kHz conversion for elite audio quality.
Automatic Latency Compensation: Perfectly aligns analog signals with your DAW timeline.
Hardware Analog Matrix: Digitally reconfigure signal paths and processing modes.
QR Code Recall: Visually document and store hardware settings within your session.
Bus Powered / DC Option: Can be powered via USB-C for portability or an external 12V adapter.
Technical Specifications
Feature
Specification
Connectivity
USB-C (High Speed)
Analog I/O

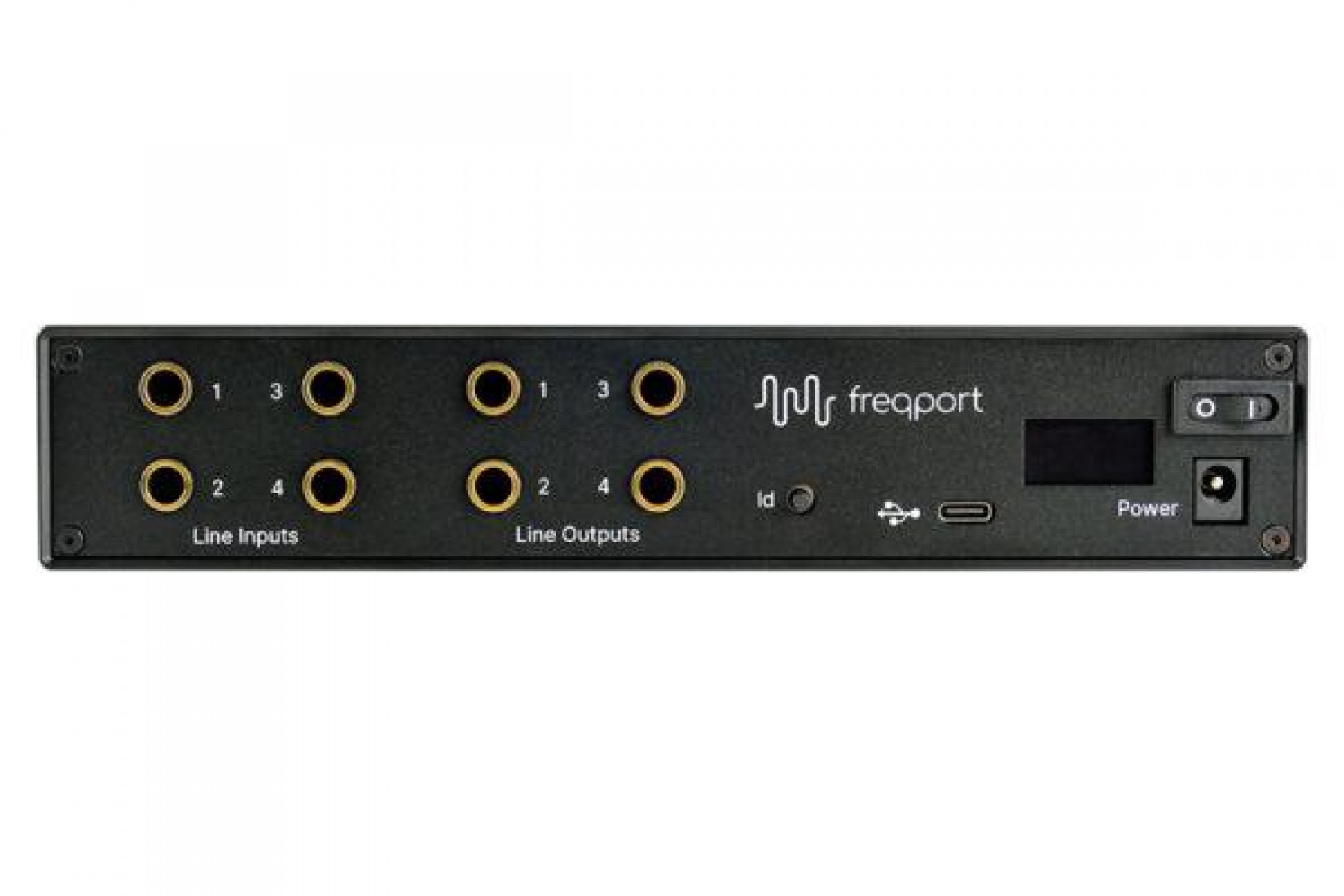

4 x 1/4" TRS Inputs / 4 x 1/4" TRS Outputs
Max Sample Rate
192 kHz / 32-Bit
Dynamic Range
120 dB (DAC) / 116 dB (ADC)
Max Input/Output Level
+18 dBu
Processing Modes
Mono, Stereo, Parallel, Mid-Side (M/S)
Form Factor
Desktop (Solid Metal Chassis)
Dimensions / Weight
220 x 105 x 43 mm / 810g
Freqport FreqInOut FO1 USB Studio Outboard Interface
