Product Overview

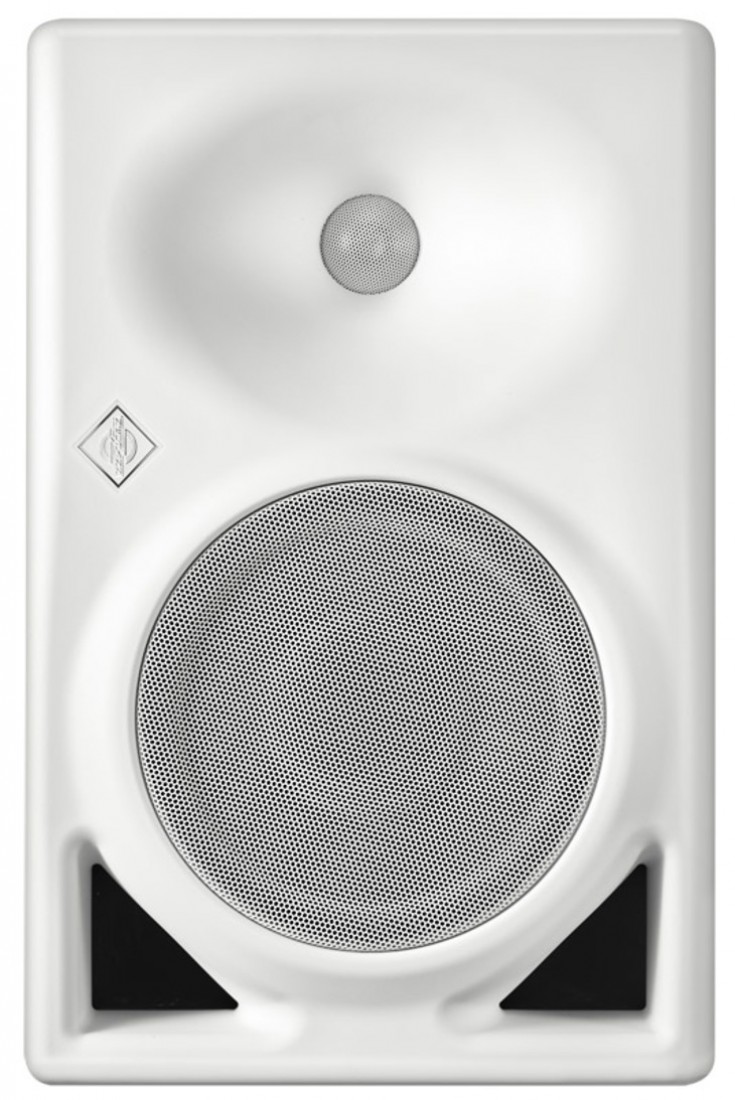

The KH 150 W (509131) represents the next generation of Neumann monitoring. Positioned between the compact KH 120 II and the three-way KH 310, it provides a level of low-end authority and surgical precision previously unheard of in this cabinet size. Built to extremely tight tolerances (±0.8 dB), it ensures a razor-sharp stereo image and incredible transparency. The white "W" edition is designed to complement modern studio aesthetics without compromising on the legendary Neumann "what you hear is what you get" philosophy.

Product Description

Reference-Class Bass Extension:

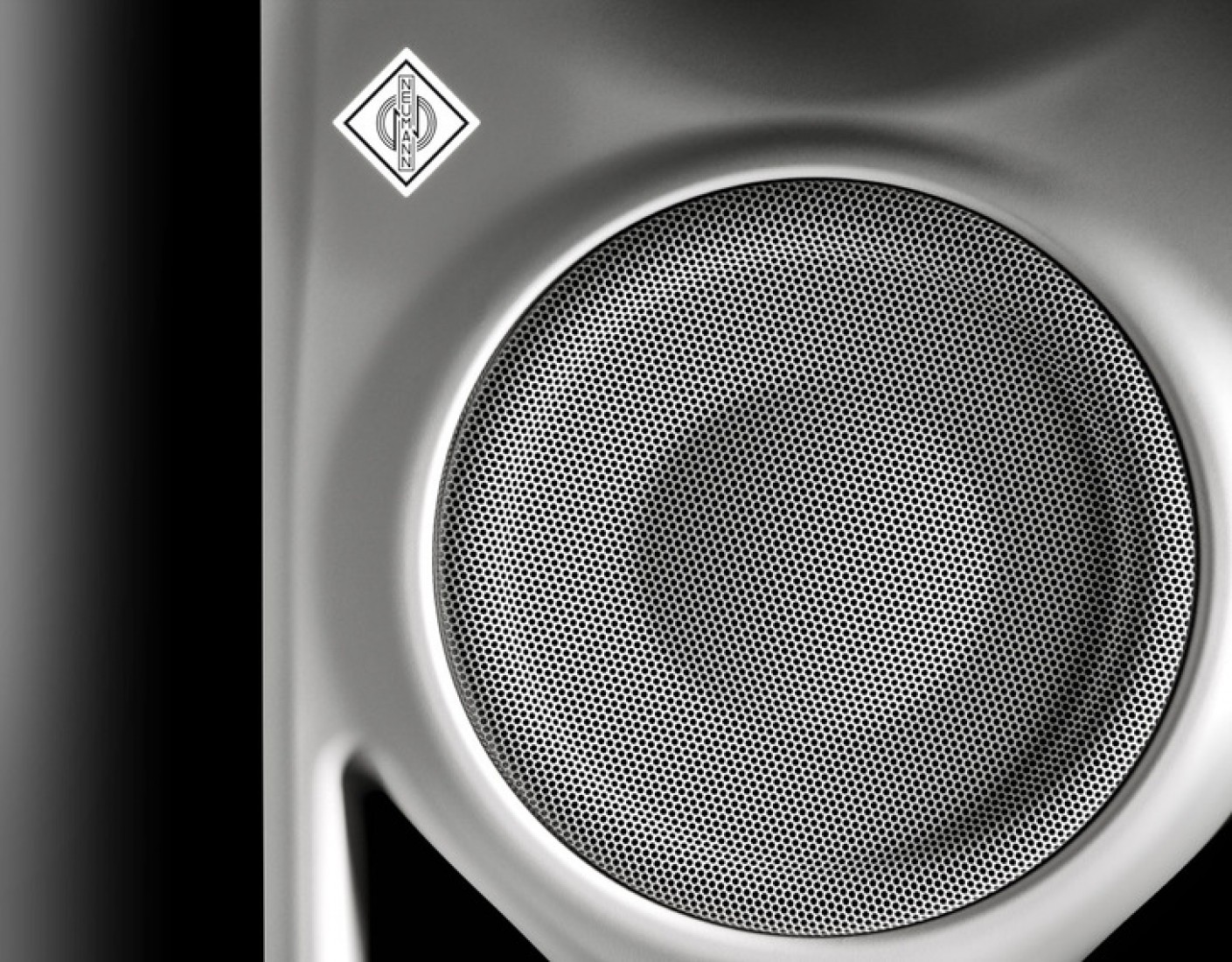

The KH 150 W utilizes a state-of-the-art 6.5" woofer housed in a high-strength, 20-liter bass reflex cabinet. This combination allows it to reach a linear low-frequency response down to 39 Hz—comparable to much larger three-way systems. For EDM, urban music, and film scoring, the KH 150 W provides the low-end honesty needed to make critical mixing decisions without necessarily requiring an external subwoofer.

DSP-Driven Accuracy:

The internal DSP engine is the core of the KH 150's superior performance. It enables sophisticated digital crossovers that eliminate the phase distortion inherent in traditional analog filters. The result is a linear phase response (105 Hz to 16 kHz), providing stunningly clear mids, precise impulse reproduction, and finely resolved reverbs.

MA 1 Automatic Room Alignment:

The KH 150 W is "Network-Enabled," allowing it to connect directly to your computer via a standard Ethernet switch. Using the Neumann MA 1 (sold separately), the monitor can be professionally calibrated to your specific room’s acoustics. The calibration data is stored directly on the monitor’s internal DSP chip, ensuring consistent, reference-grade sound regardless of your source equipment.

Mathematically Modeled Dispersion™ (MMD™):

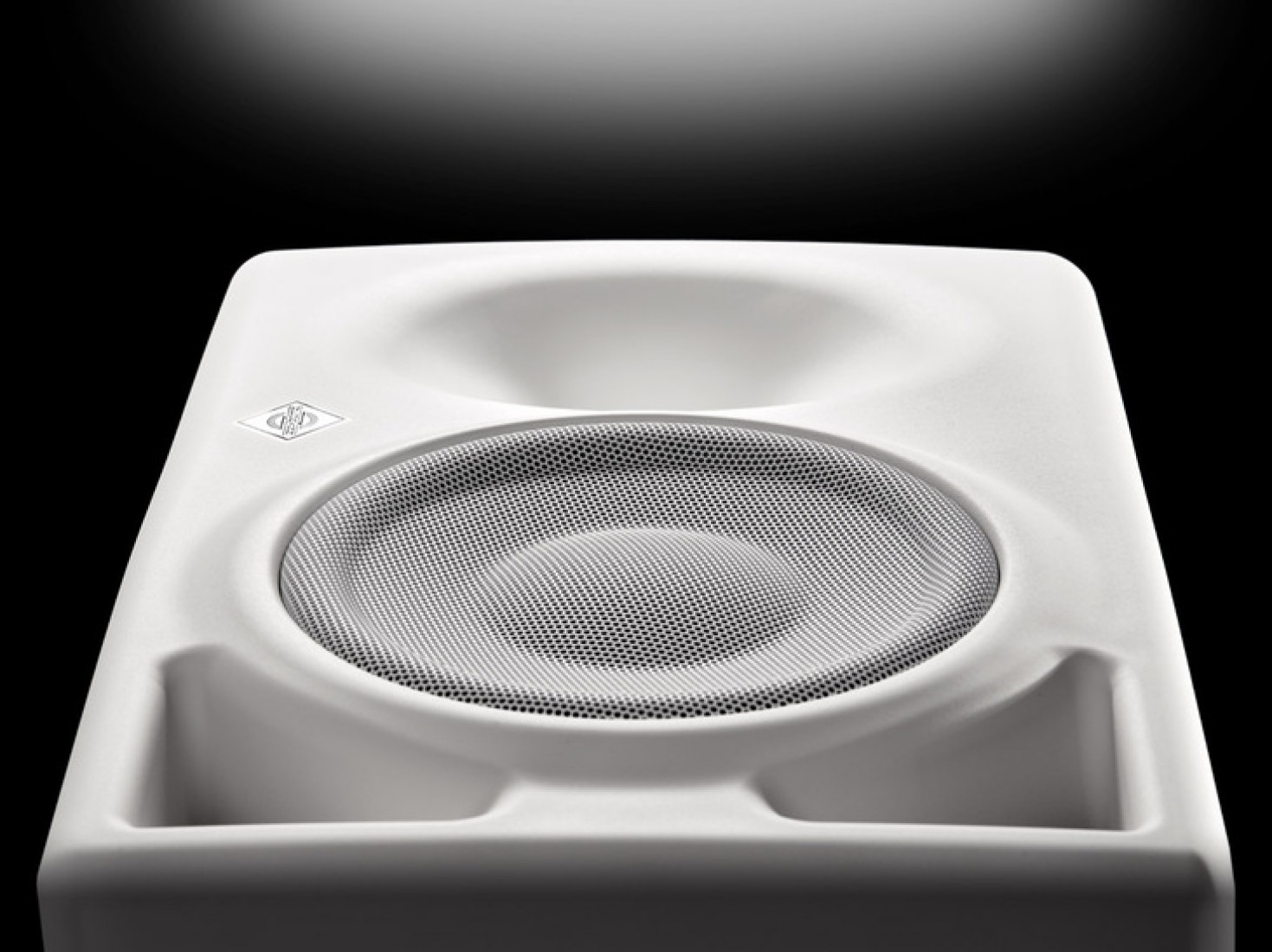

Neumann’s proprietary MMD™ waveguide is optimized for the 1" alloy fabric dome tweeter to provide a wide horizontal "sweet spot" while strictly controlling vertical dispersion. This design minimizes unwanted reflections from mixing consoles or desks, ensuring that the sound remains consistent even as you move along your workspace.

Key Features

• Exceptional Low-End: 6.5" high-precision woofer reaching 39 Hz.

• DSP-Linearized Phase: Transparent mids and extreme accuracy in the time domain.

• High Output: Bi-amplified Class-D power (145 W LF / 100 W HF) with 118.7 dB SPL.

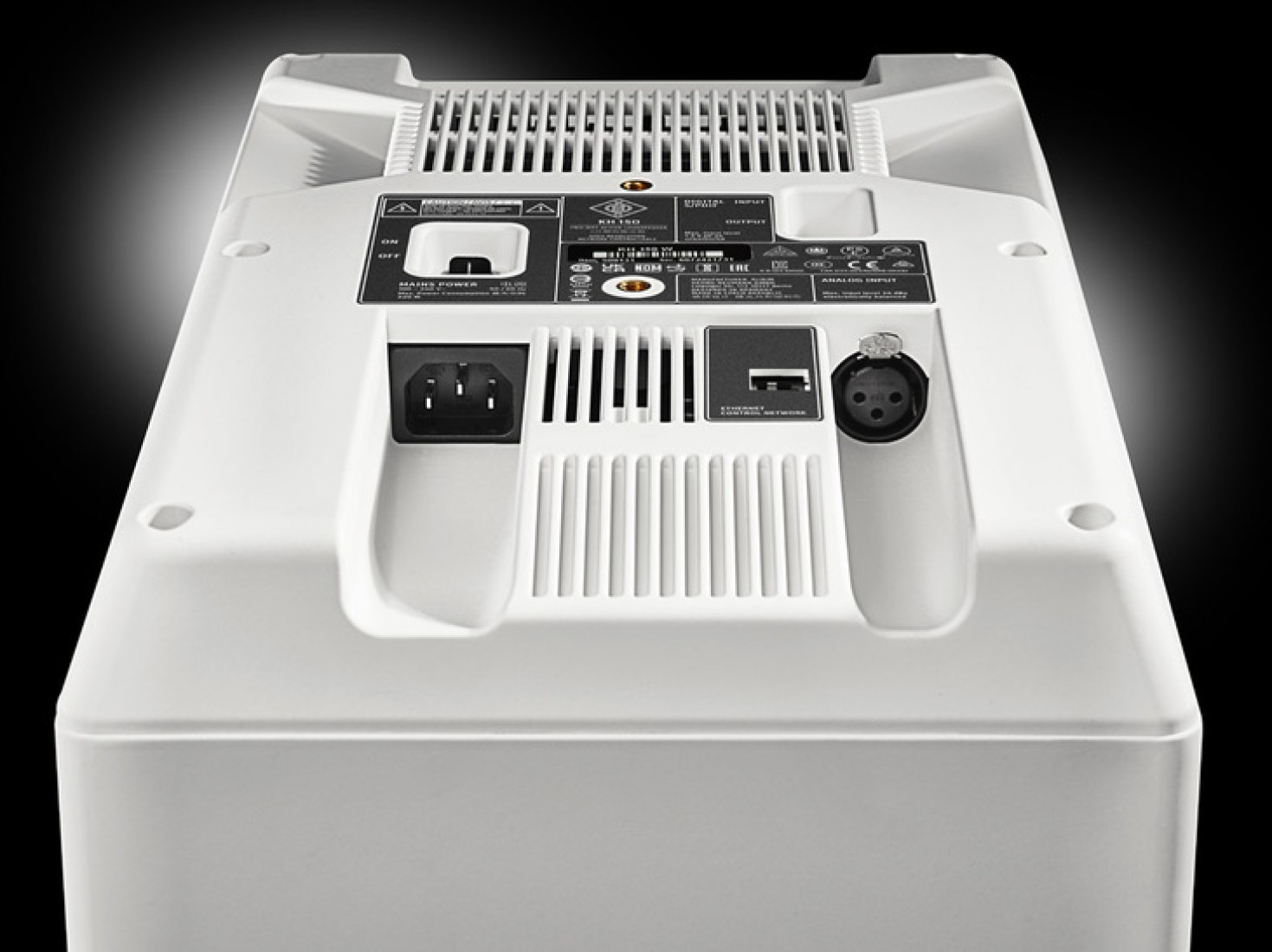

• Network Control: RJ45 Ethernet port for MA 1 alignment and remote management.

• Superior Consistency: Extremely low unit-to-unit tolerances of ±0.8 dB.

• Flexible Inputs: High-quality analog XLR and Digital S/PDIF (RCA) connectivity.

• Modern Aesthetic: Elegant White (W) finish for contemporary studio environments.

Applications

• Mixing & Mastering: Neutral response and phase linearity for critical final decisions.

• Electronic Music Production: Powerful bass response suitable for EDM and Hip-Hop.

• Broadcast & Post-Production: Accurate dialogue reproduction and detailed sound design.

• Immersive Audio: Perfectly matched for height and surround channels in Dolby Atmos® setups.
