Product Overview

The New Standard for Immersive and Multi-Channel Audio

The KH 810 II is engineered for world-class recording, broadcast, and post-production studios transitioning to immersive formats like Dolby Atmos®. It acts as the intelligent bridge for your monitoring system, offering enough DSP processing power to align not just the subwoofer, but also the connected analog KH line monitors. This ensures that every speaker in your 7.1 or 3D array works in perfect harmony, with a time-aligned and color-neutral response that is essential for critical mixing and mastering decisions.

Product Description

Surgical Precision at Extreme Depths:

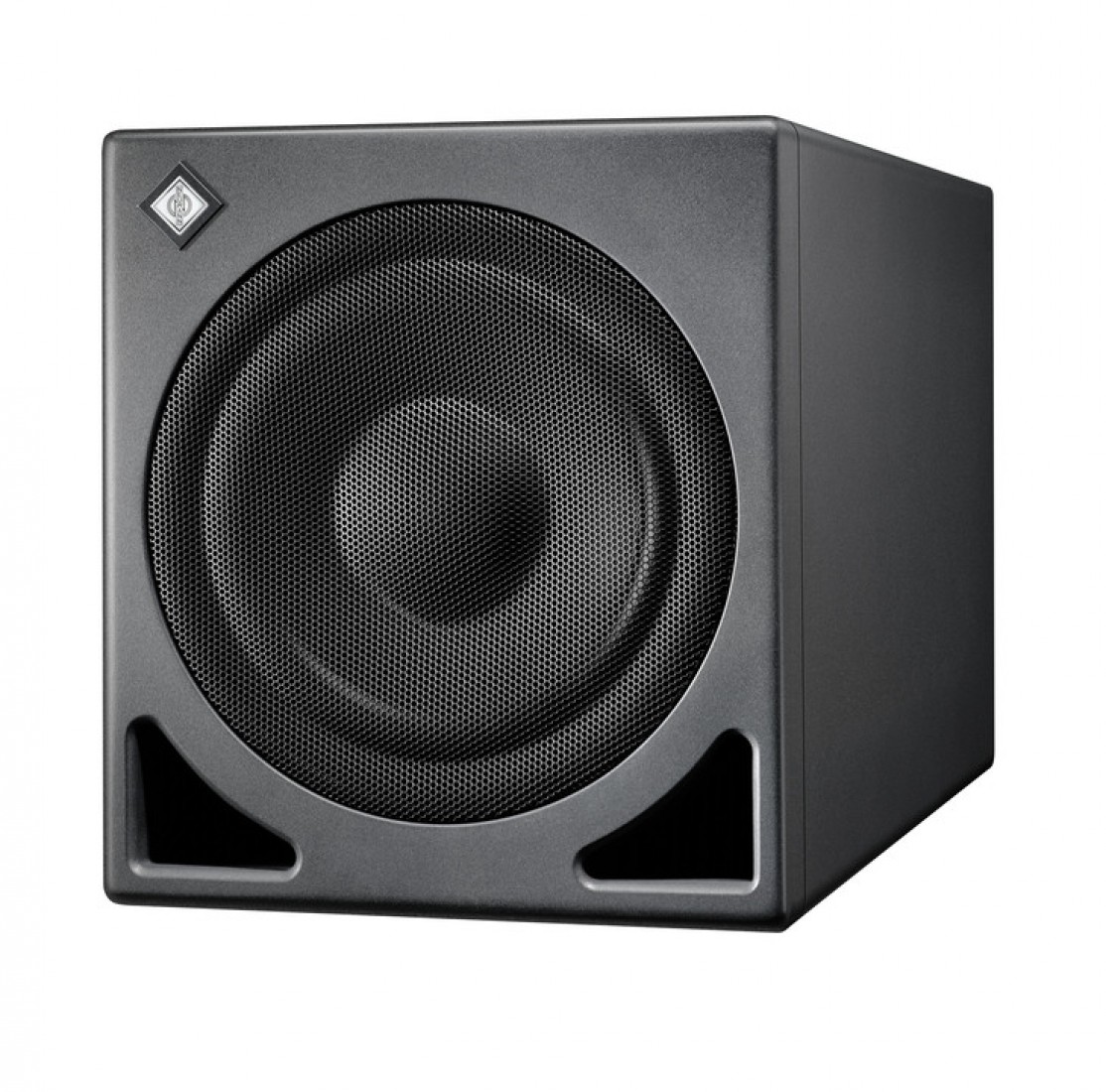

The KH 810 II features a newly developed 10" long-throw driver with Extremely Linear Force Factor™ (ELFF™) technology. This engineering allows the driver to maintain a linear pistonic motion even at high excursions, delivering twice the output potential of the smaller KH 750 series. The result is a "dry," punchy bass response that extends down to 16 Hz, providing the "physical" low-end authority required for modern film scores and electronic music.

DSP-Powered Multi-Channel Alignment:

The standout feature of the KH 810 II is its integration with the Neumann MA 1 Automatic Monitor Alignment. Using the MA 1 software, the subwoofer’s internal DSP can calibrate the entire multi-channel system. It corrects room-induced frequency anomalies and linearizes the phase response across the crossover point, effectively "disappearing" the subwoofer into the room and creating a seamless transition to the main monitors.

High-Definition Bass Management:

Equipped with a flexible, bypassable multichannel bass manager, the KH 810 II is compatible with everything from mono to complex 3D audio systems. It features a 4th-order active crossover and four distinct routing modes:

1. Multichannel 80 Hz: Standard management for 5.1/7.1 setups.

2. External Bass Management: For use with dedicated studio controllers.

3. LFE 120 Hz: For cinema and broadcast standard compliance.

4. LFE Full Range: For daisy-chaining multiple subwoofers in a Plane Wave Bass Array™ (PWBA™).

Professional Connectivity & Build:

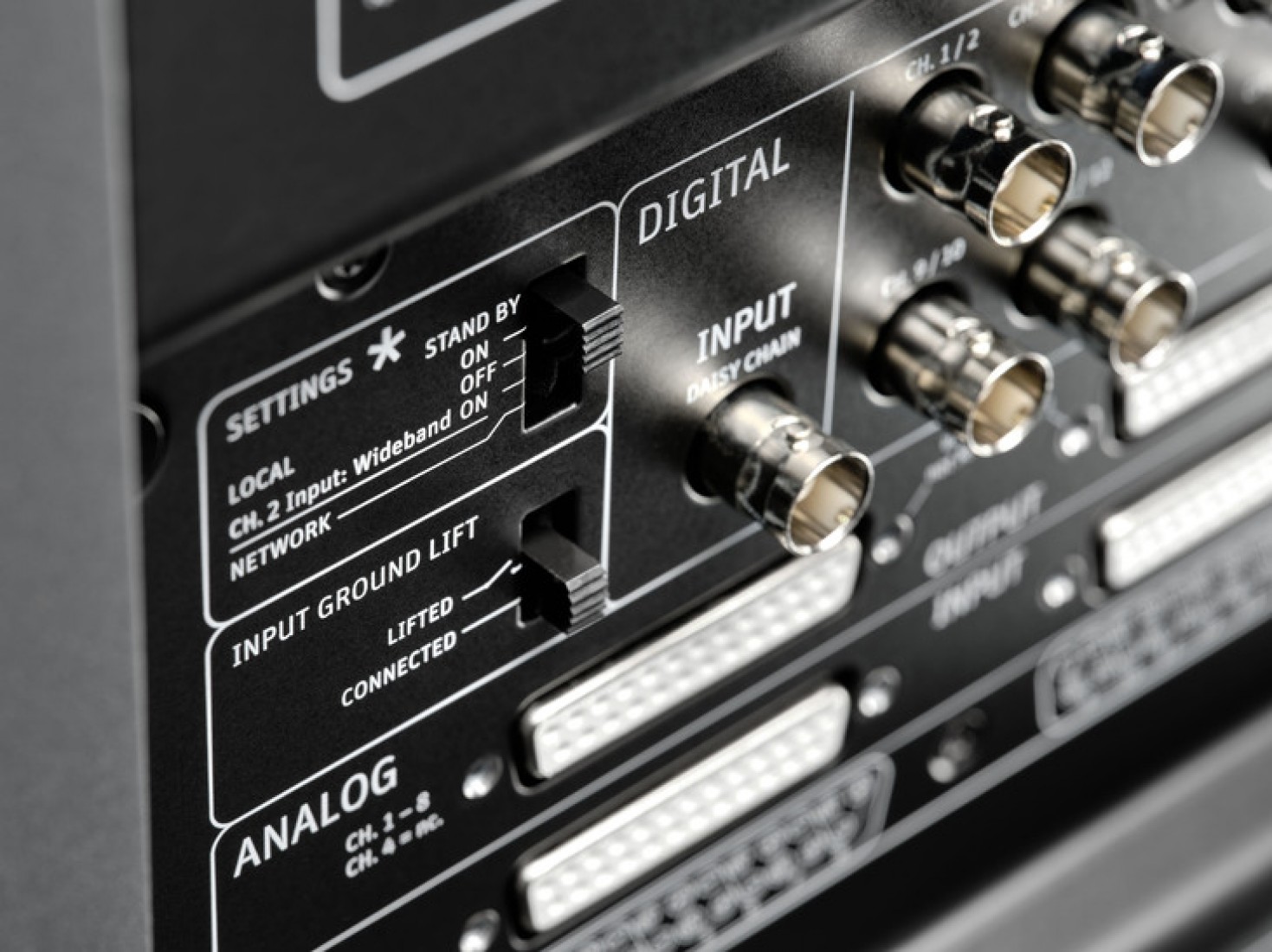

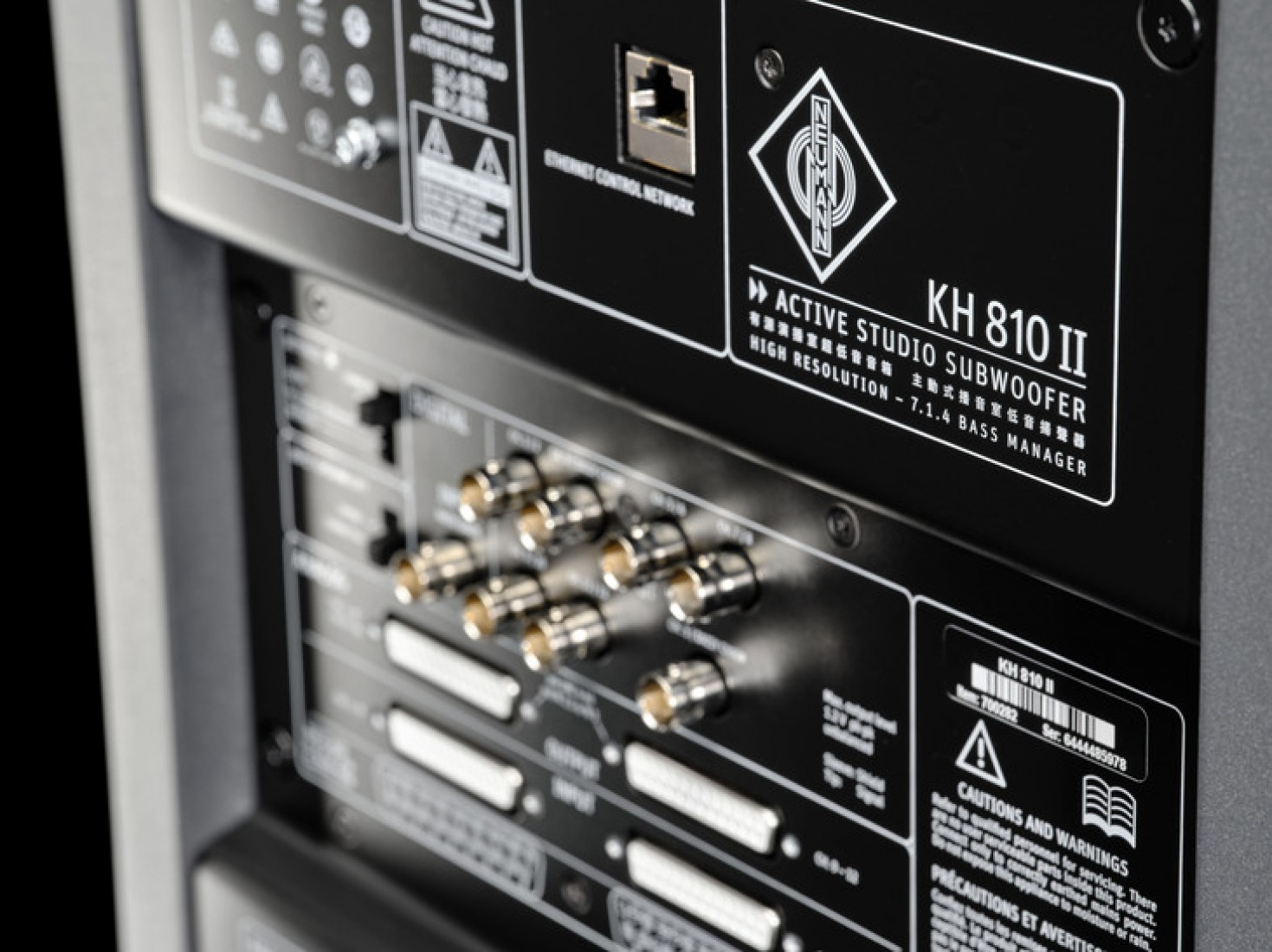

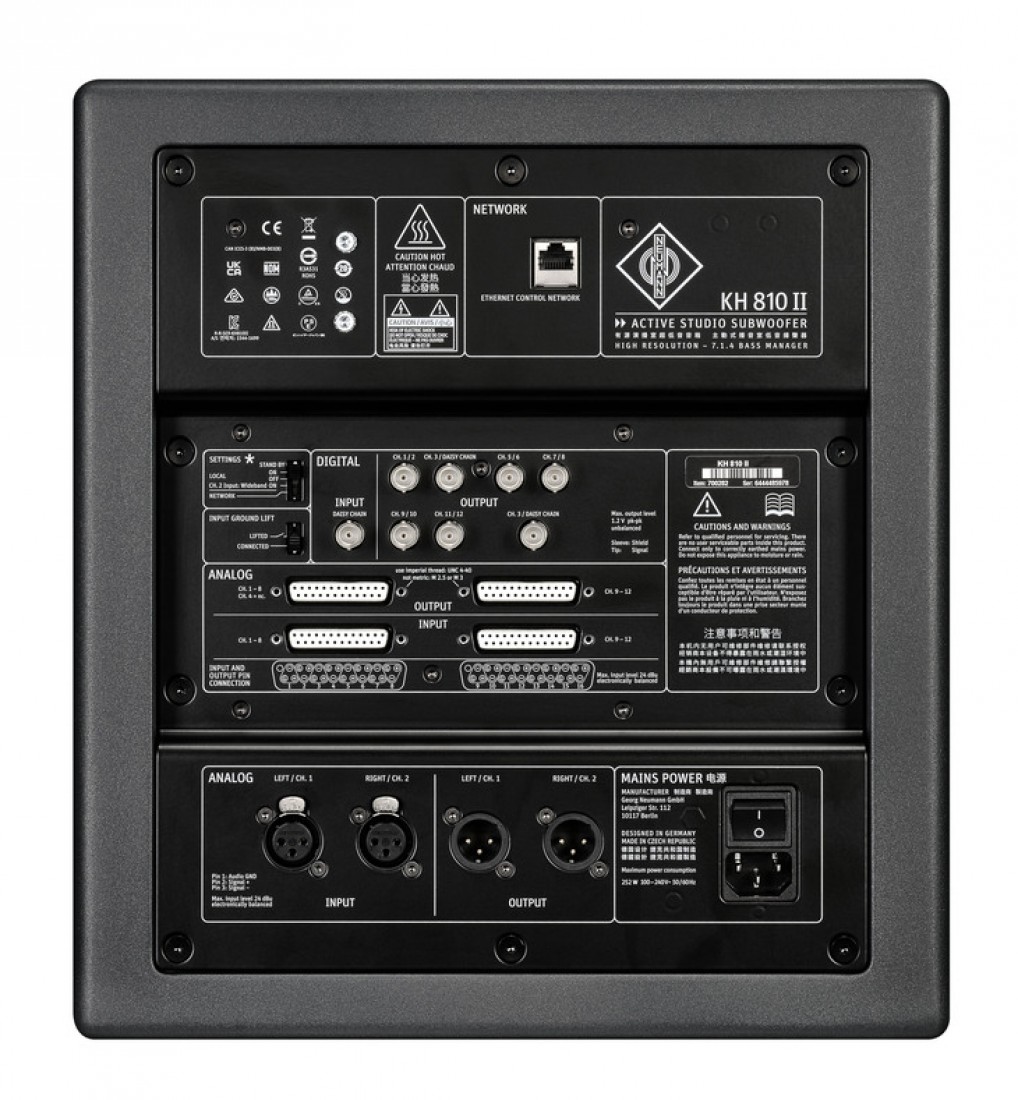

The KH 810 II features electronically balanced XLR analog I/O for eight channels, ensuring standard professional interfacing. It also includes an Ethernet port for central network control via the MA 1 software. The cabinet is constructed from high-density, low-resonance materials and features a front-mounted port for flexible placement—either next to a wall or flush-mounted—without losing acoustic accuracy.

Key Features

• Reference Bass Extension: Linear frequency response down to 16 Hz.

• Integrated DSP Engine: Advanced room correction and phase linearization for the entire system.

• MA 1 Ready: Fully compatible with Neumann's automated room alignment software.

• 10" ELFF™ Driver: High-output woofer with ultra-low harmonic and intermodulation distortion.

• Multichannel Management: 7.1/3D-ready routing with 4th-order crossovers.

• PWBA™ Support: Easily daisy-chained to create Plane Wave Bass Arrays.

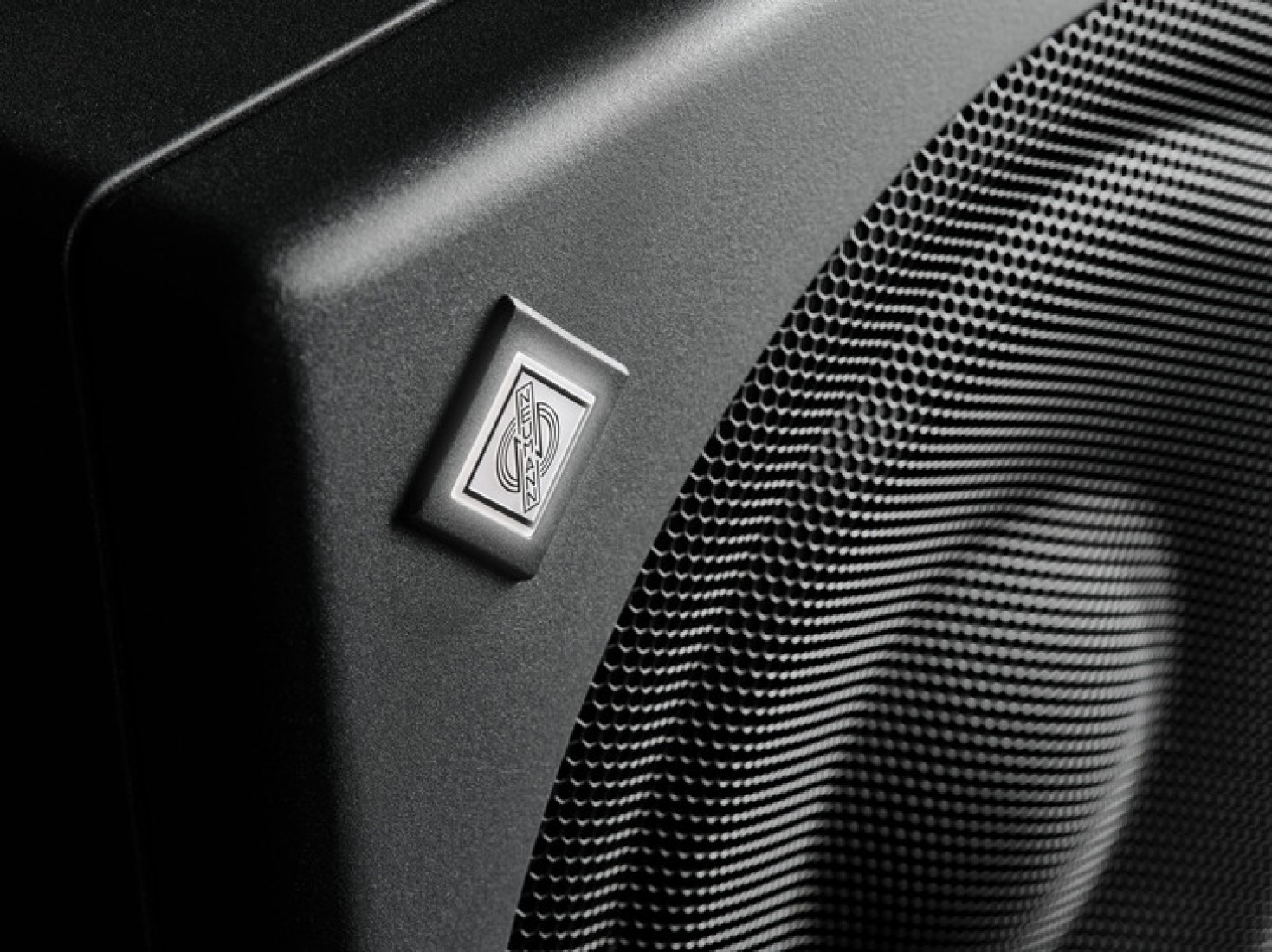

• Robust Driver Protection: Integrated metal grille and sophisticated thermal/excursion limiters.

• Universal Power Supply: Switched-mode design for reliable worldwide performance.

Applications

• Immersive Audio Mixing: The ideal LFE foundation for Dolby Atmos® and 360 Reality Audio.

• 7.1/5.1 Surround Production: High-definition bass management for film and TV post-production.

• Reference Mastering: Absolute phase accuracy and low-end transparency for critical final checks.

• Large-Scale Arrays: High SPL reserves suitable for main monitoring in larger control rooms.

Technical Specifications
