Vintage Transformer Warmth Meets Absolute Signal Clarity
Direct boxes are essential tools in modern audio production, but generic DI units often strip away the low-end authority and transient bite of your instruments. The Telefunken TDP-1 Mono Passive Direct Box is built with a different philosophy: it preserves the natural dynamics and organic texture of your source while injecting a subtle, musical analog character. Because it uses a completely passive design, it requires no phantom power, batteries, or external power supplies—just plug in and start capturing pristine audio.
The secret weapon behind the TDP-1's legendary sound is its internal British-made Carnhill transformer. When hit with active bass lines, electric pianos, or acoustic guitar pickups, this premium transformer core saturates gracefully, smoothing out harsh peaks while filling out the lower-mids. Whether you are running a line straight to a stadium front-of-house console or tracking a rare vintage synthesizer into a high-end studio preamp, the TDP-1 handles your signal with absolute precision, zero distortion, and ultimate road reliability.
Product Description
Premium British Carnhill Transformer Engine:
The acoustic identity of the TDP-1 is anchored entirely by its custom-wound Carnhill transformer. Hand-selected for its superior harmonic properties and extreme headroom, this transformer ensures a broad, ruler-flat frequency response from 10 Hz all the way up to 40 kHz. It provides flawless impedance matching, effortlessly stepping down high-impedance ($100\text{ k}\Omega$) instrument lines into low-impedance ($600\text{ }\Omega$) mic-level signals. The result is an exceptionally low-noise floor and a deep, multi-dimensional soundstage that makes your direct instruments sound massive in a mix.
Bulletproof Hardware Architecture and Stage Protection:
The exterior of the TDP-1 is built like a tank to withstand the punishing environment of live concert touring. The enclosure is constructed from heavy-duty extruded aluminum, eliminating flex and shielding internal components against stray electromagnetic fields. All toggle switches are deeply recessed within the chassis walls, ensuring they cannot be accidentally flipped or snapped off when packed into road cases or stepped on mid-performance.

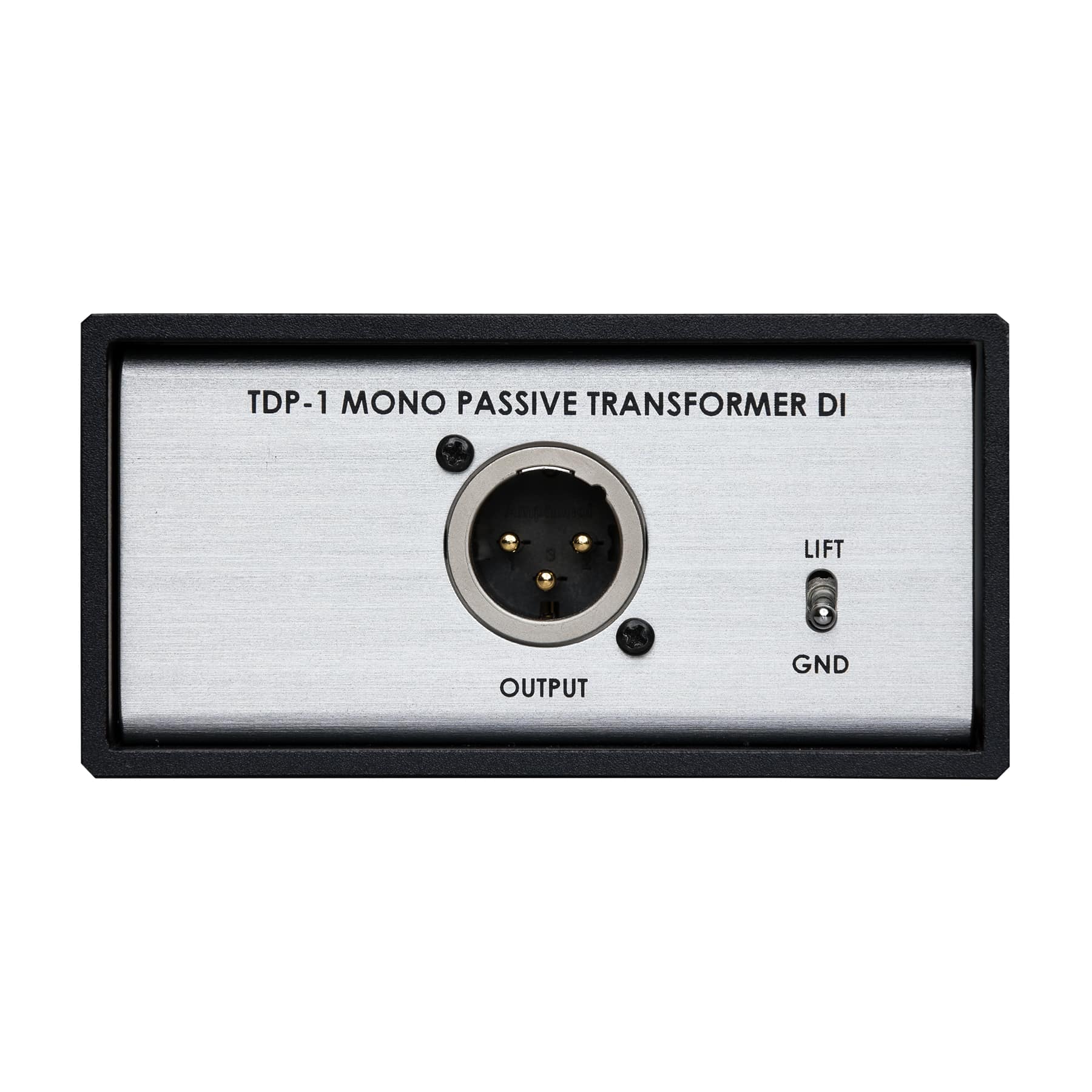

Every single connection point on the TDP-1 utilizes top-tier hardware. The instrument input and through-put jacks are genuine, heavy-duty 1/4" connectors, while the balanced output features a premium 3-pin Neutrik XLR connector with 24K gold-plated pins. This gold-on-gold contact ensures maximum electrical conductivity and stops corrosion or oxidation from degrading your sound over decades of live and studio use.
Advanced Utility Control and Hum Isolation:
To handle the unpredictable signal levels found in professional live tracking, the TDP-1 is equipped with a rugged -15 dB attenuation pad. Engaging this switch allows the DI box to comfortably accept hot line-level outputs from DJ mixers, digital audio interfaces, or active preamp electronics without clipping the internal transformer core.
Additionally, the unit features a dedicated Ground Lift switch. When dealing with complex stage power distribution networks that create nasty background hums and 60 Hz buzzes, activating the ground lift isolates the input and output grounds. This breaks dangerous loop circuits instantly, restoring a dead-silent noise floor to your signal path.
Key Features
BRITISH CARNHILL TRANSFORMER: Driven by a premium, custom-wound Carnhill transformer (UK) for rich analog weight, warmth, and massive headroom.
100% PASSIVE CIRCUITRY: Pure plug-and-play design that requires no batteries, wall adapters, or +48V phantom power to operate.
