Product Overview

Distributed Monitoring Reimagined: Flawless Latency-Free Audio Over IP

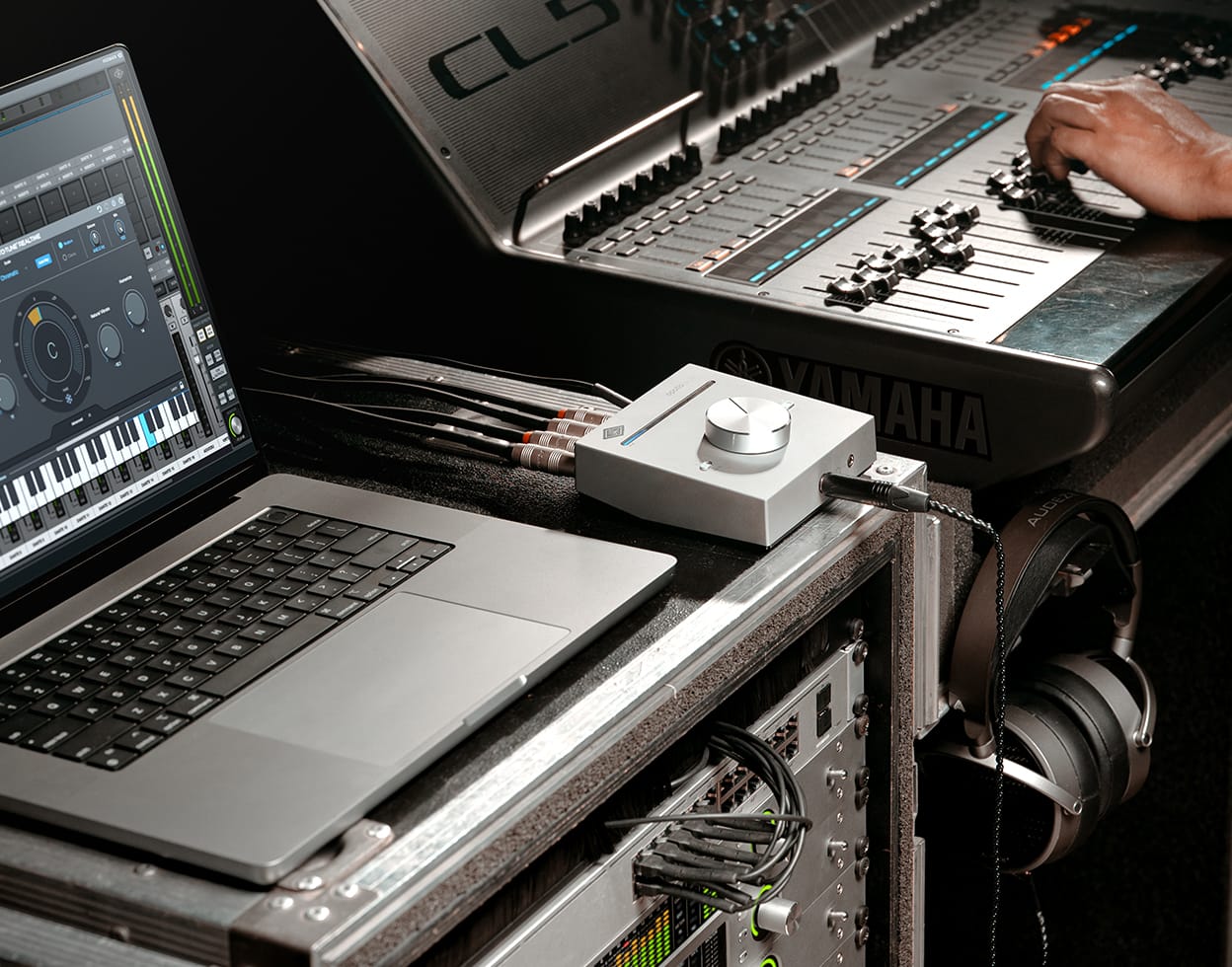

The Apollo e2m Personal Monitoring Station removes the distance limitations and signal degradation of long, traditional analog headphone extensions. By operating directly on an IP-based Dante network, this rugged endpoint can be placed exactly where the performer stands—whether that is next to a drum kit, at a broadcast podium, or inside an isolated vocal booth hundreds of feet away from the machine room.

While the Apollo e2m is optimized to deliver zero-latency cue mixing when paired with a host Apollo x16D network setup, its standalone versatility allows it to function as a high-fidelity stereo headphone hub and line interface across any standard Dante audio ecosystem. It seamlessly receives digital network feeds while simultaneously acting as a local line-level injection or breakout point. Housed in a heavy-duty, compact enclosure, the e2m features a built-in 5/8" threaded socket for immediate mic-stand mounting, giving performers easy access to local volume controls without cluttering the performance space.

Product Description

High-Current Audiophile Headphone Amplification:

The core of the Apollo e2m is its premium, high-current stereo headphone amplifier. Designed to drive any studio monitor headphones—from high-impedance open-back mastering models to ultra-sensitive low-impedance in-ear monitors (IEMs)—it delivers punchy, transparent sound without a hint of background hiss or distortion. Engineers and performers can trust that what they hear is an exact, uncolored representation of the mix, with crisp transient response and tight low-end definition, even at high monitoring volumes on loud stages.

Flexible Input/Output Breakout Capabilities:

Beyond its stellar headphone output, the e2m acts as a versatile stereo line interface. It features balanced analog line inputs and outputs, allowing it to function as a localized network node. Performers can feed a local stereo playback source (like a keyboard, backing track rig, or click track) straight into the Dante network, or route the balanced line outputs into active stage wedges, localized studio monitors, or an external personal mixer. The intelligent internal converters ensure maximum headroom and signal parity across all conversion points.

Tour-Grade Ergonomics & PoE Efficiency:

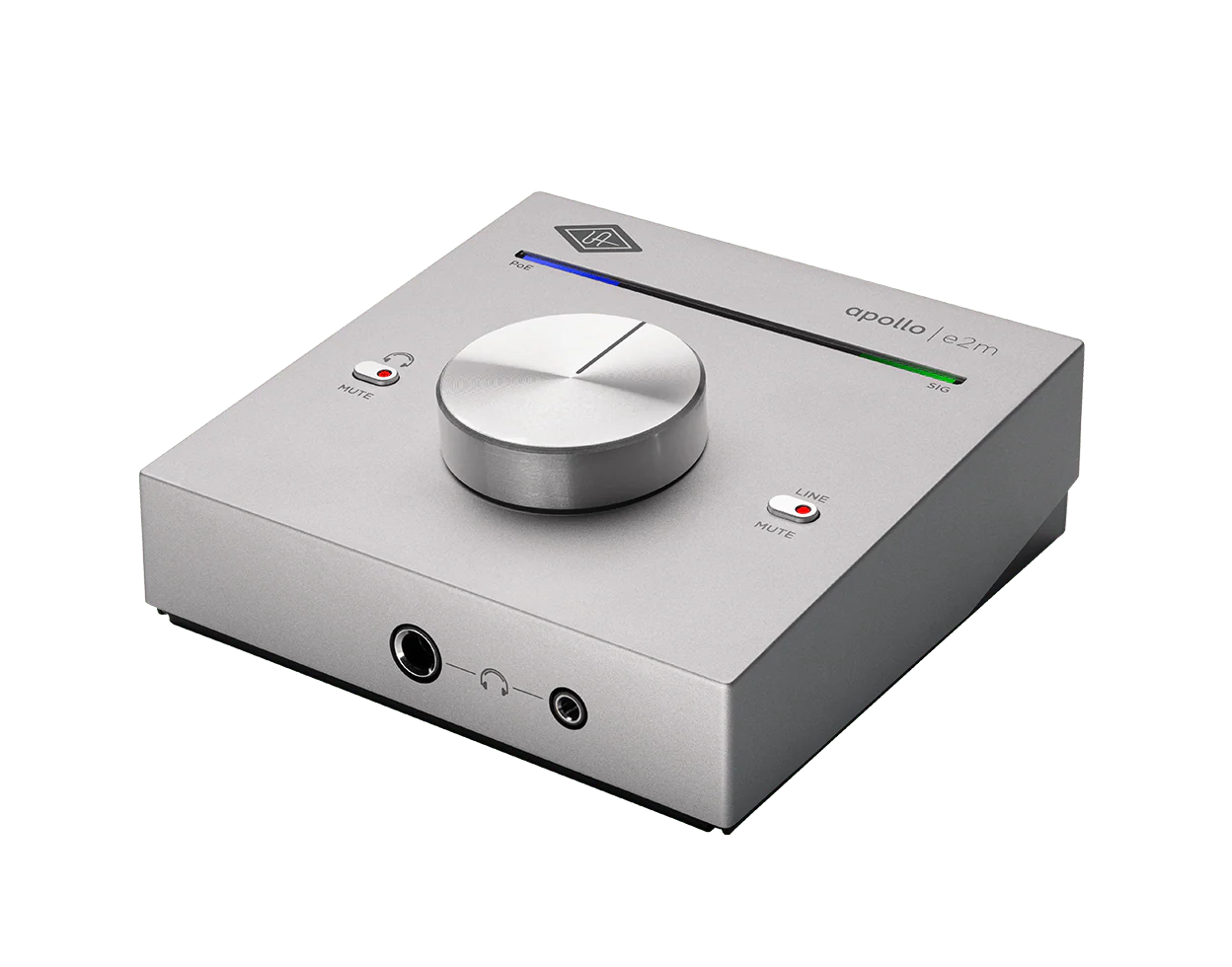

Universal Audio designed the e2m to survive the rigors of the road while maintaining a clean, modern aesthetic. Operating entirely on standard PoE (802.3af), it draws minimal power from network switches, keeping cabling minimal and organized. The top panel features a large, precision-weighted volume encoder for fast level adjustments, along with bright LED status indicators for power, network sync, and signal clipping. For multi-musician configurations, each unit includes a custom coupling bracket, letting you lock the e2m side-by-side with other Apollo network endpoints (like the e1x preamp) on a single rack tray or stand adapter.

Key Features

• NATIVE DANTE & AES67 MONITORING: Flawless digital audio receiving and transmitting over IP networks, featuring AES67 support for cross-platform utility.

• POWER OVER ETHERNET (PoE): Efficient system execution that powers the headphone amp and line circuitry entirely through a network cable—no local AC wall adapters needed.

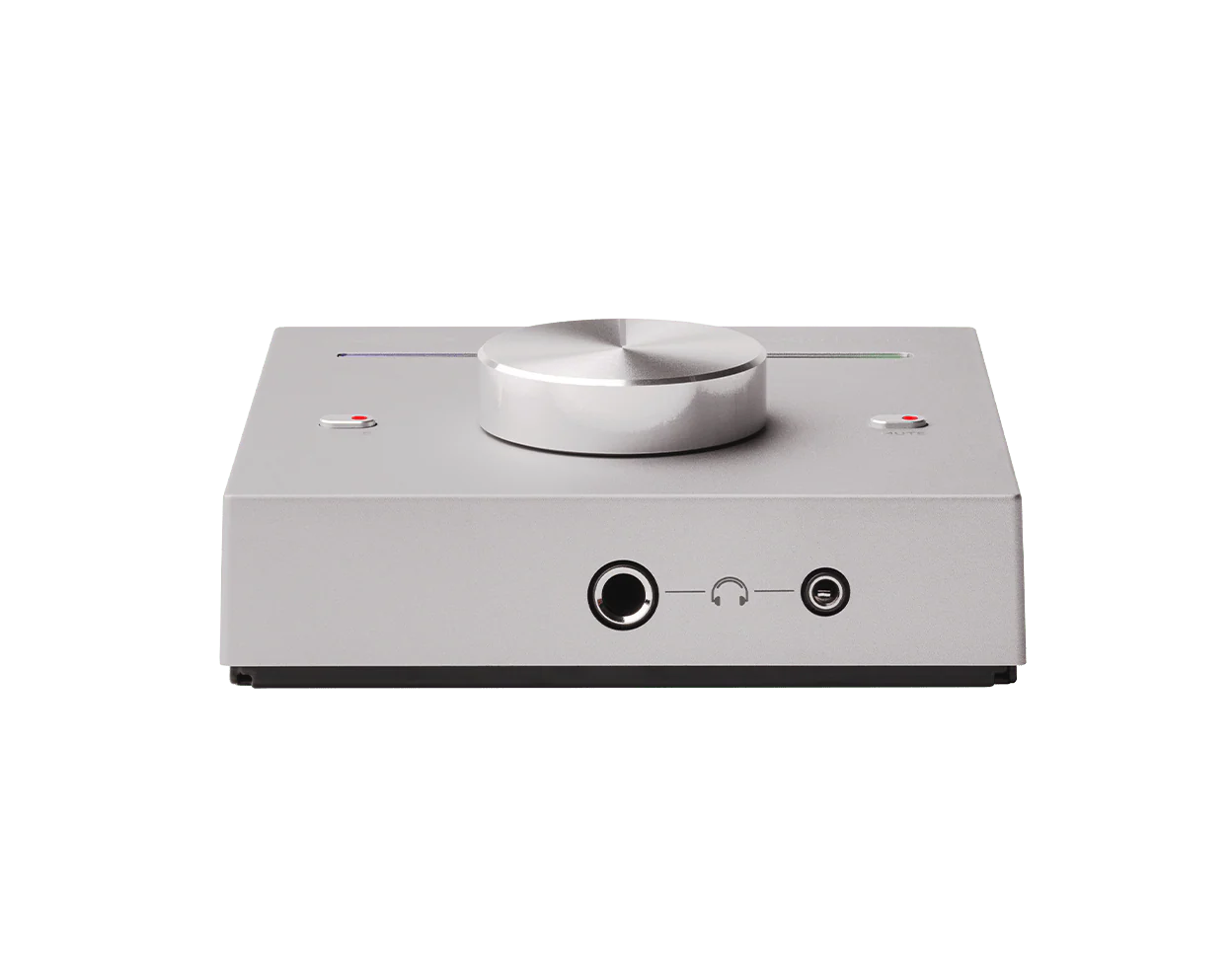

• AUDIOPHILE HEADPHONE DRIVE: Ultra-clean, high-current headphone output optimized to drive high-impedance studio headphones and sensitive IEMs with ease.

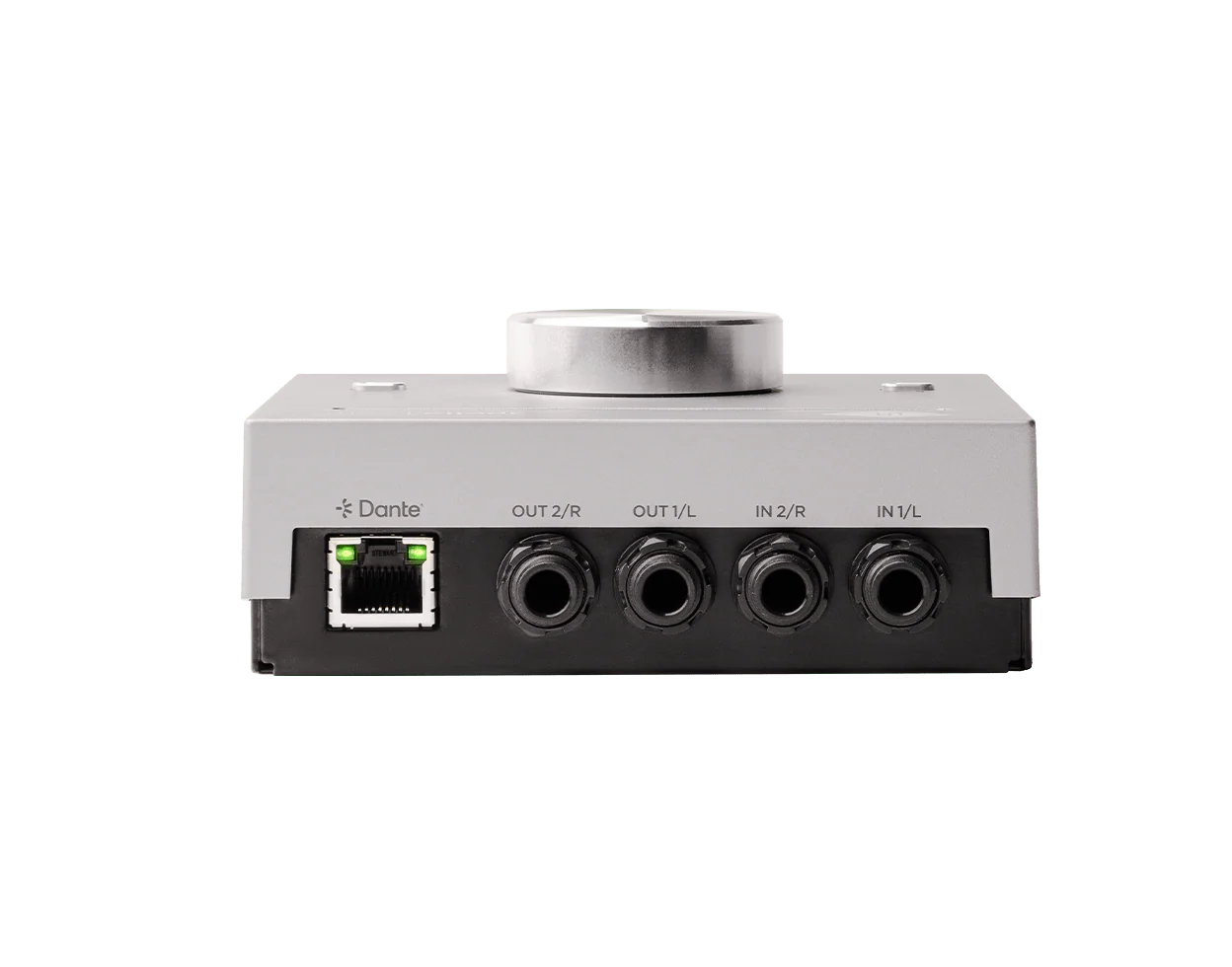

• BALANCED LINE-LEVEL INTERFACE: Equipped with local balanced line inputs and outputs to inject local hardware gear or feed local stage monitors.

• STUDIO-GRADE SONIC TRANSPARENCY: Boasts 120 dB of dynamic range and a vanishingly low -112 dB THD+N rating for highly critical audio monitoring.

• INTEGRATED MIC-STAND MOUNT: Includes a rugged 5/8" threaded socket underneath the chassis for immediate attachment to standard boom arms and stage poles.

• LOCAL KNOB & LED FEEDBACK: Large, tactile volume encoder for immediate control over cue levels, paired with clear signal, clip, and network status LEDs.

• MODULAR LOCKING DESIGN: Shipped with a premium metal coupling bracket to cleanly link multiple Apollo network units together in a unified space.
