Product Overview

Expanded I/O and Elite Gen 2 Conversion for Collaborative Workspaces

When a standard desktop interface runs out of microphone inputs or routing options, the Apollo x4 Gen 2 Essentials+ Edition steps in. It builds on the footprint of smaller desktop interfaces by offering four pristine onboard preamps and expanded physical outputs, making it the perfect choice for tracking live vocals, multi-mic acoustic guitars, synths, or a small drum setup without needing an external outboard rack.

Equipped with Universal Audio's completely redesigned Gen 2 Elite-Class digital-to-analog converters, the Apollo x4 Gen 2 delivers premium clarity, a lower noise floor, and excellent spatial imaging. Operating over high-bandwidth Thunderbolt 3 connectivity on both Mac and Windows systems, its built-in QUAD Core processing engine handles your heavy plugin computation internally, leaving your DAW system light, responsive, and completely free from latency issues.

Product Description

Four Unison Preamps with Assistive Auto-Gain:

The interface features four Unison-enabled microphone/line combo preamps alongside two front-panel Hi-Z instrument inputs. Unison technology creates a physical, bi-directional hardware link where loading a modeled plugin changes the actual input impedance, analog circuit behavior, and gain structures of the physical interface to match vintage hardware desks from Neve, API, and Manley. To optimize staging, the Gen 2 platform introduces Assistive Auto-Gain. With a single button click in the UAD Console software, the Apollo instantly calculates and sets ideal gain levels across all selected inputs, preventing unwanted digital clipping while protecting clean headroom.

Elite Gen 2 Audio Fidelity & Room Calibration:

The foundation of the Gen 2 series is its upgraded monitoring matrix. Delivering a spacious 129 dB dynamic range and a pristine -120 dB THD+N, the x4 Gen 2 ensures that your mixing and mastering decisions translate accurately to the outside world.

To overcome bad room acoustics, the interface runs Apollo Monitor Correction powered by Sonarworks®. This feature lets you load your custom SoundID Reference calibration curves directly into the Apollo’s internal DSP chip. The acoustic speaker and headphone corrections operate with zero added latency, meaning you can monitor through a completely flat frequency profile without stressing your computer’s CPU.

Comprehensive Desktop Command & Crossover Control:

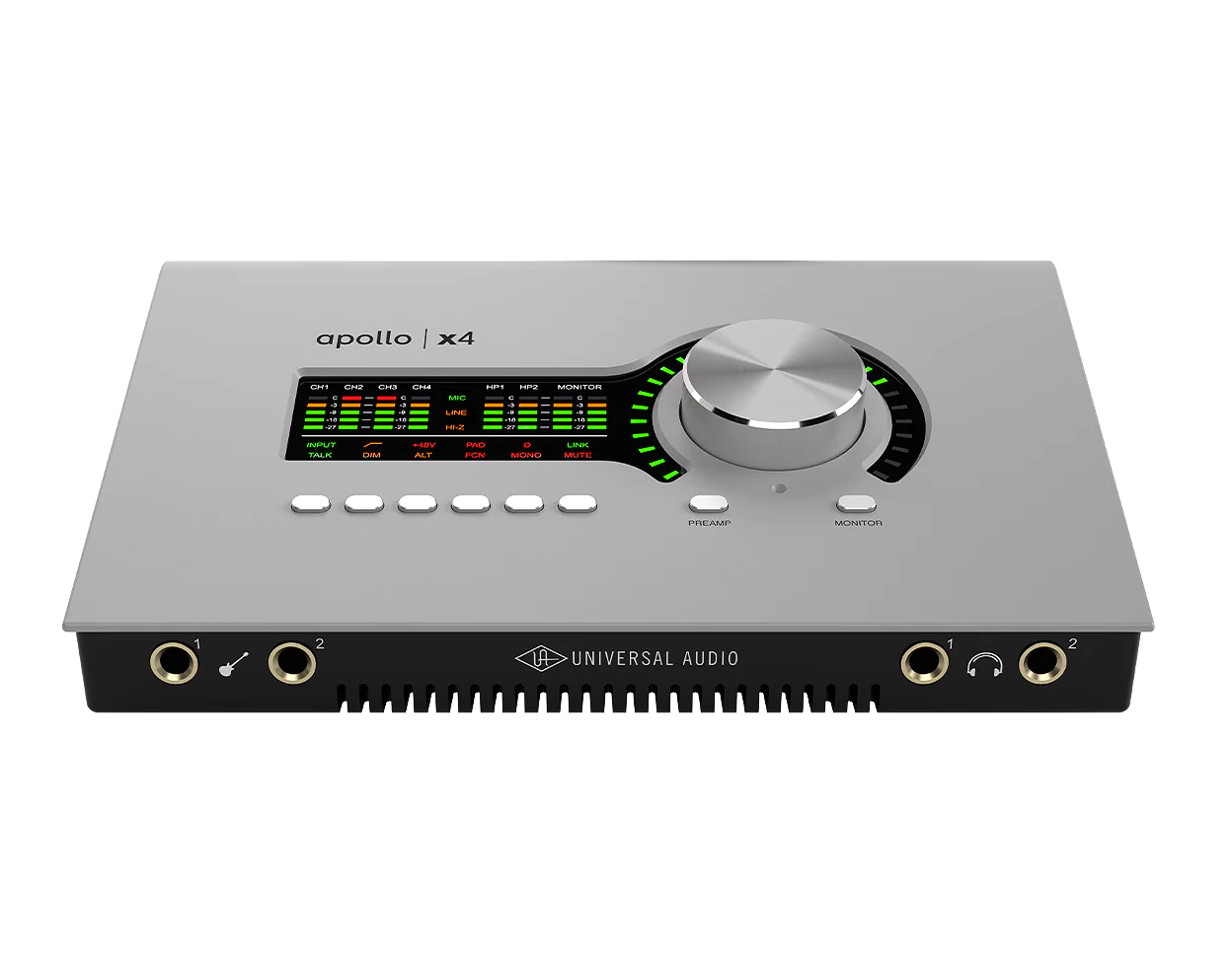

The heavy-duty desktop enclosure acts as an advanced studio monitor controller. It features physical buttons for Alt speaker switching, Mono summing, Dim, and Mute, along with a built-in Talkback Microphone to seamlessly communicate with artists. For studios using a subwoofer, the upgraded UAD Console App brings hardware-driven Bass Management, letting you establish exact low-frequency crossover boundaries directly inside the interface’s digital matrix for tight low-end management.

Essentials+ Premium Software Package:

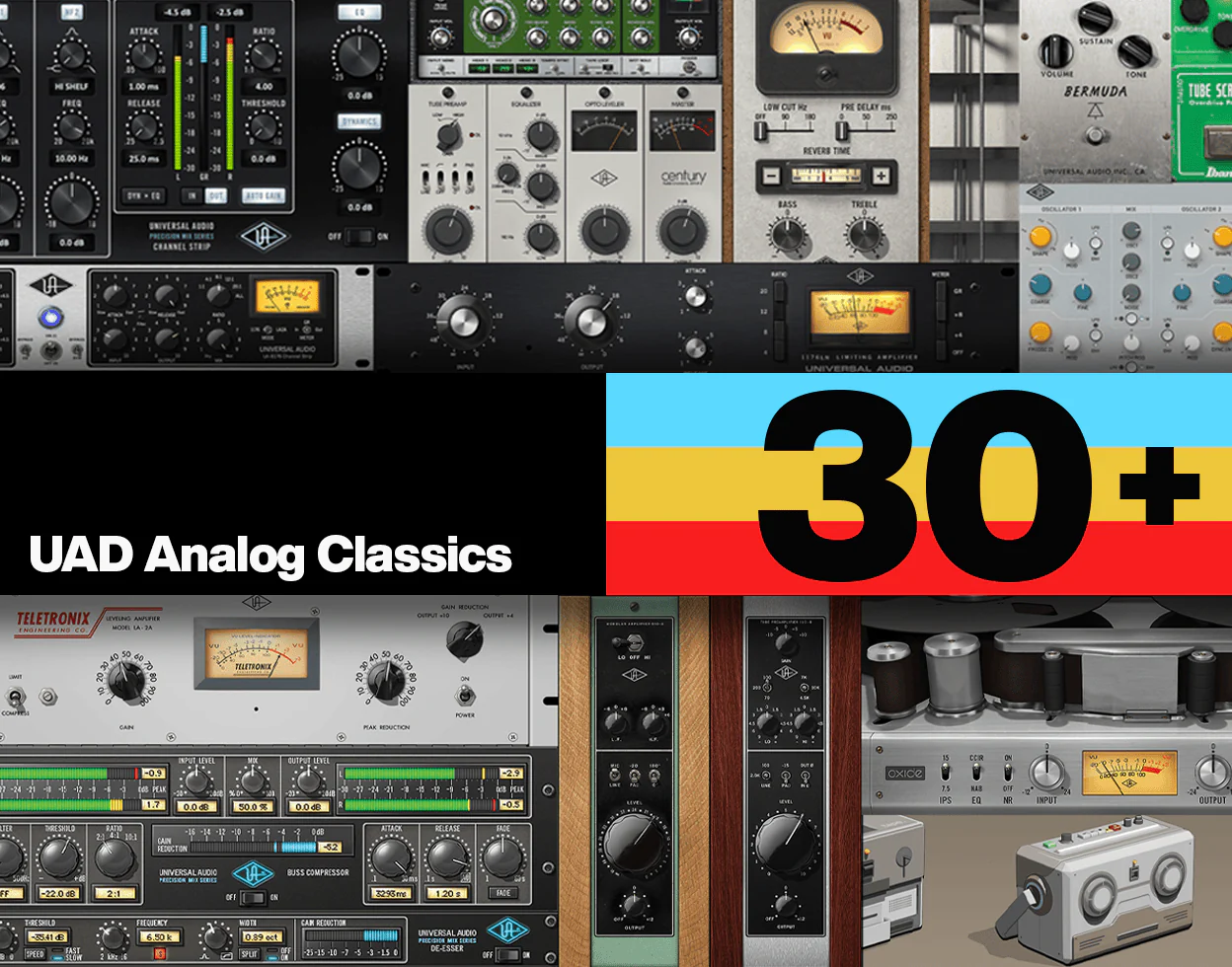

Right out of the box, the Essentials+ Edition includes a curated collection of over 36+ industry-standard UAD plugins. This bundle provides everything needed to produce and mix radio-ready tracks, including the Teletronix LA-2A Classic Leveler Collection, 1176 Classic Limiter Collection, Pultec Passive EQ Collection, Oxide Tape Recorder, Verve Analog Machines Essentials, and Auto-Tune Realtime Access for real-time pitch correction.

Key Features

• QUAD CORE SHARC DSP PROCESSING: Dedicated internal four-chip DSP offloads system-heavy analog modeling tasks from your native CPU.

• GEN 2 ELITE-CLASS AUDIO CONVERSION: Overhauled D/A monitoring converters deliver 129 dB of dynamic range for hyper-accurate monitoring.

• FOUR UNISON MIC PREAMPS: Track through real-time impedance-matching emulations of classic gear from Neve, API, Avalon, and SSL.

• ASSISTIVE AUTO-GAIN: Calibrates and locks in ideal input recording levels across multiple channels simultaneously in seconds.

• APOLLO MONITOR CORRECTION: Runs Sonarworks® SoundID Reference speaker and headphone profiles directly on internal DSP with zero latency.

• ESSENTIALS+ PLUG-IN SUITE: Includes over 36+ premium UAD titles, including iconic Teletronix levelers, Pultec EQs, and Auto-Tune.

• INTEGRATED BASS MANAGEMENT: Real-time DSP crossover controls inside the UAD Console app for clean, balanced subwoofer integration.

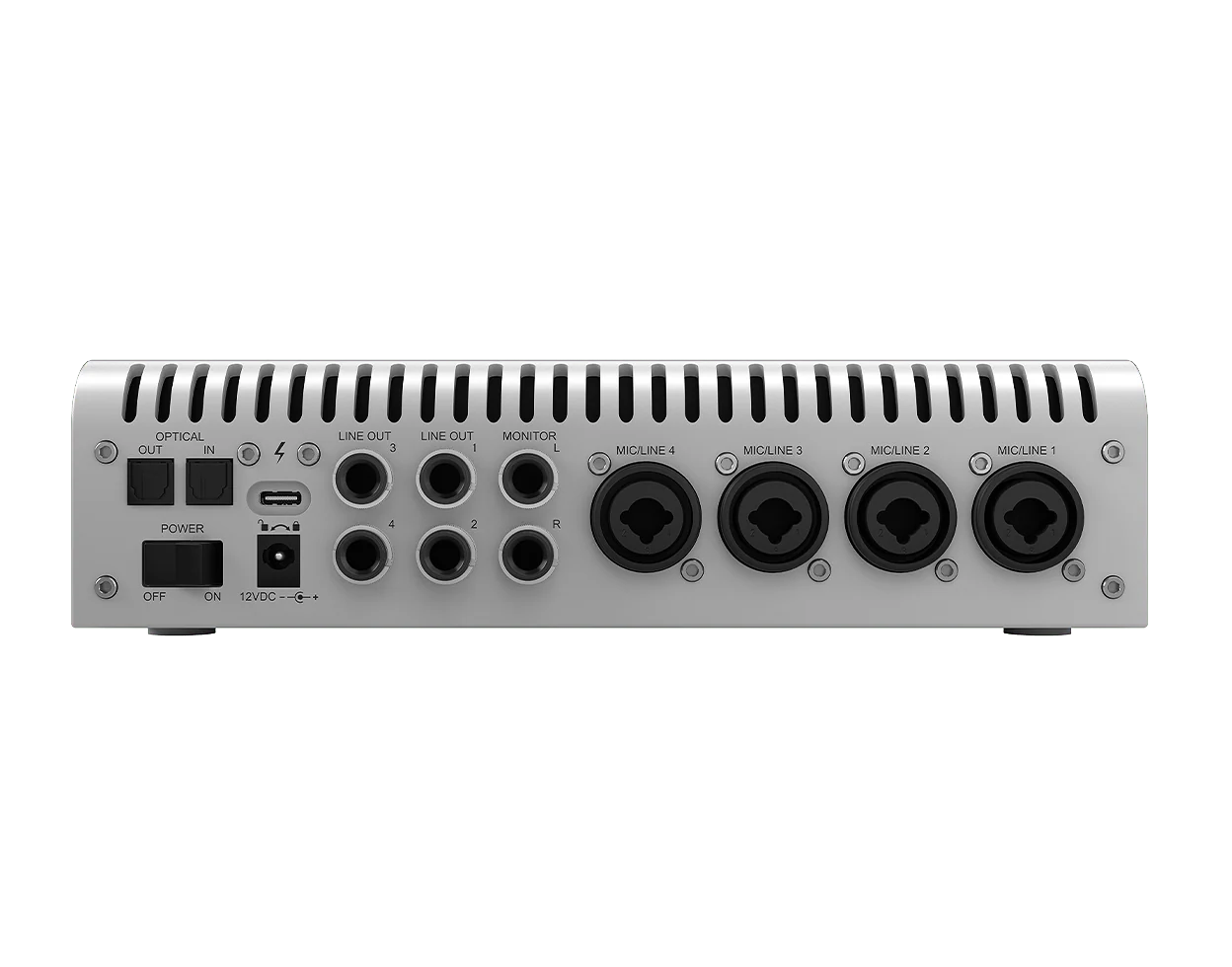

• EXPANDED DESKTOP I/O: 4 Mic/Line preamps, 6 Balanced line outputs, 2 Front Hi-Z inputs, and Dual independent stereo headphone outs.

• THUNDERBOLT 3 CONNECTIVITY: Premium low-latency PCIe drivers ensure seamless performance on modern Mac and Windows workstations.

Technical Specifications

What’s Included in the Box

• 1 x Universal Audio Apollo x4 Gen 2 Desktop Audio Interface

• 1 x External 12V DC Power Supply Adapter with International Wall Socket Kit

• 1 x UAD Essentials+ Edition Plug-In Bundle Activation and Set-Up Guide

• 1 x Official Universal Audio Product Registration and Factory Warranty Documentation

• (Note: Thunderbolt 3 connecting cables are sold separately)
