ADAM Audio A4V Powered 2-Way Studio Monitor

Home / ADAM Audio A4V Powered 2-Way Studio Monitor

ADAM Audio A4V Powered 2-Way Studio Monitor

SKU: SWTADAM A4V

₹75500 / ~~₹75500~~

(Inclusive of all taxes)

A4V Designed for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor.

AVAILABLE OPTIONS

_________________________

Color:

Availability: 5 in stock

Quantity:

FAVORITE

IN THE DETAILS

Technical Data

View the specifications of the ADAM Audio A4V by clicking each section.

General Data
- Display: Front panel multi-color LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 5.8 kg (12 lbs 13 oz)
- Dimensions (Height x Width x Depth): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide

Acoustics
- Frequency Response @ -3 dB: 58 Hz – 41 kHz
- Frequency Response @ -6 dB: 52 Hz – 45 kHz
- Crossover Frequencies: 3.0 kHz
- Max SPL per speaker at 1 m (sine bursts): 100 dB SPL
- Max SPL per speaker at 1 m (IEC-weighted noise): 109 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 101 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 104 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 88 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 91 dB SPL
- Dolby DARDT max SPL in full space: 112 dB SPL
- Dolby DARDT max SPL in full space (bass managed): 117 dB SPL

Audio Input Connectors
- Analog: XLR, RCA
- Input Impedance: 9 kOhm / 3.3 kOhm
- Max. Input Level: +19 dBu

Drivers
- Woofer
  - Basket Diameter: 4″
  - Voice Coil Diameter: 1″ (25 mm)
  - Cone Material: MLM
- Tweeter
  - Type: X-ART
  - Diaphragm Area: 4 inch² (2420 mm²)
  - Equivalent Diaphragm Diameter: 2″ (56 mm)
  - Velocity Transform Ratio: 4 to 1
  - Diaphragm Weight: 0.17 g
  - Waveguide: HPS (rotatable)
  - Waveguide Dispersion: 120° horizontal, 70° vertical

Amplification
- Woofer
  - Amplifier Type: PWM
  - Peak (10% THD, limiter deactivated): 110 W
  - RMS (1% THD, limiter deactivated): 90 W
- Tweeter
  - Amplifier Type: Class A/B
  - Peak (10% THD, limiter deactivated): 20 W
  - RMS (1% THD, limiter deactivated): 15 W

Signal Processing
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 – 10 ms, 0.1 ms
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiterS

Control Options [via Network]
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference

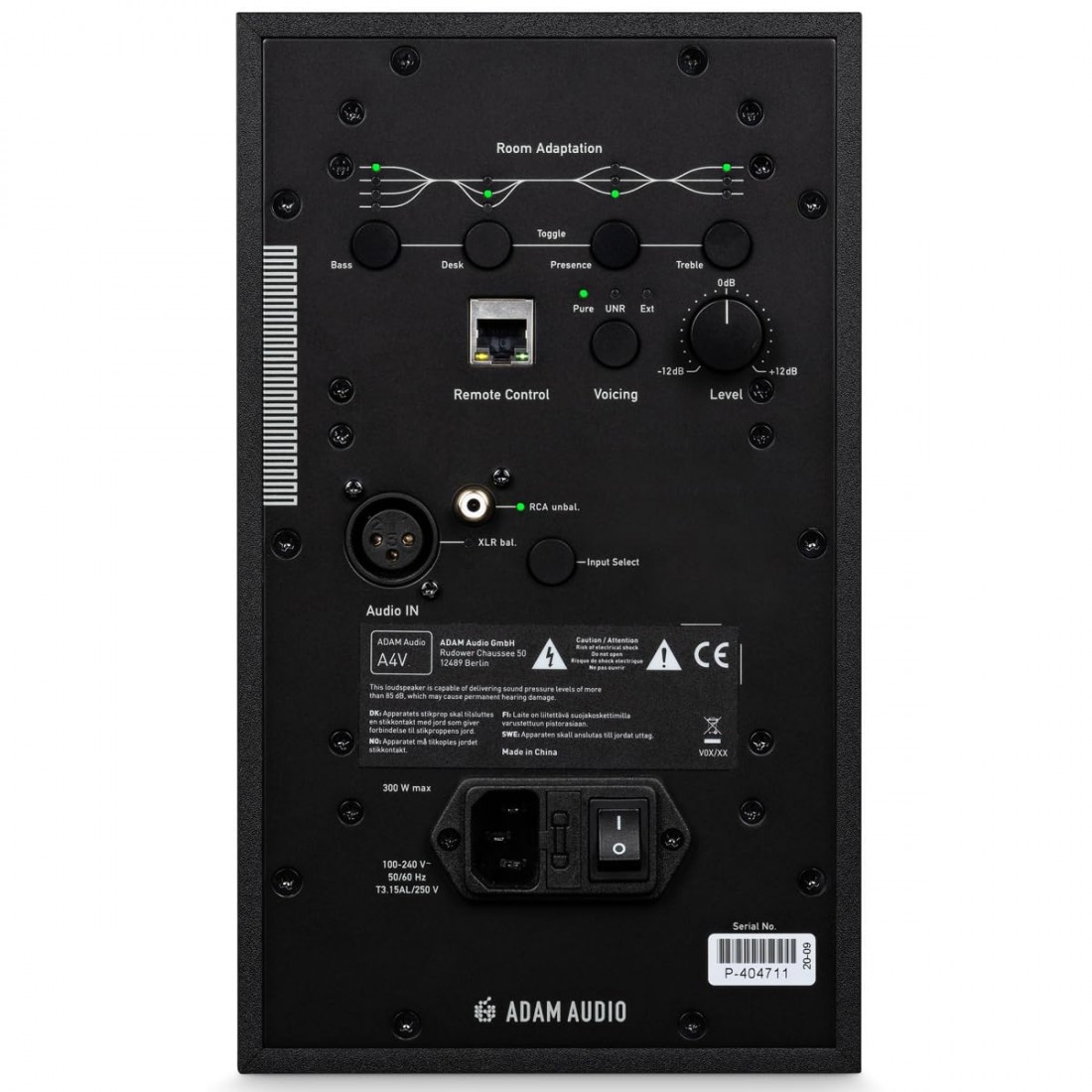

Control Options [via Backplate]
- Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12 dB to +12 dB
- Input Selection: Balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption:
  - Bass: +2, 0, -2, -4 dB
  - Desk: 0, -2, -4 dB
  - Presence: +1, 0, -1 dB
  - Treble: +1.5, 0, -1.5 dB
