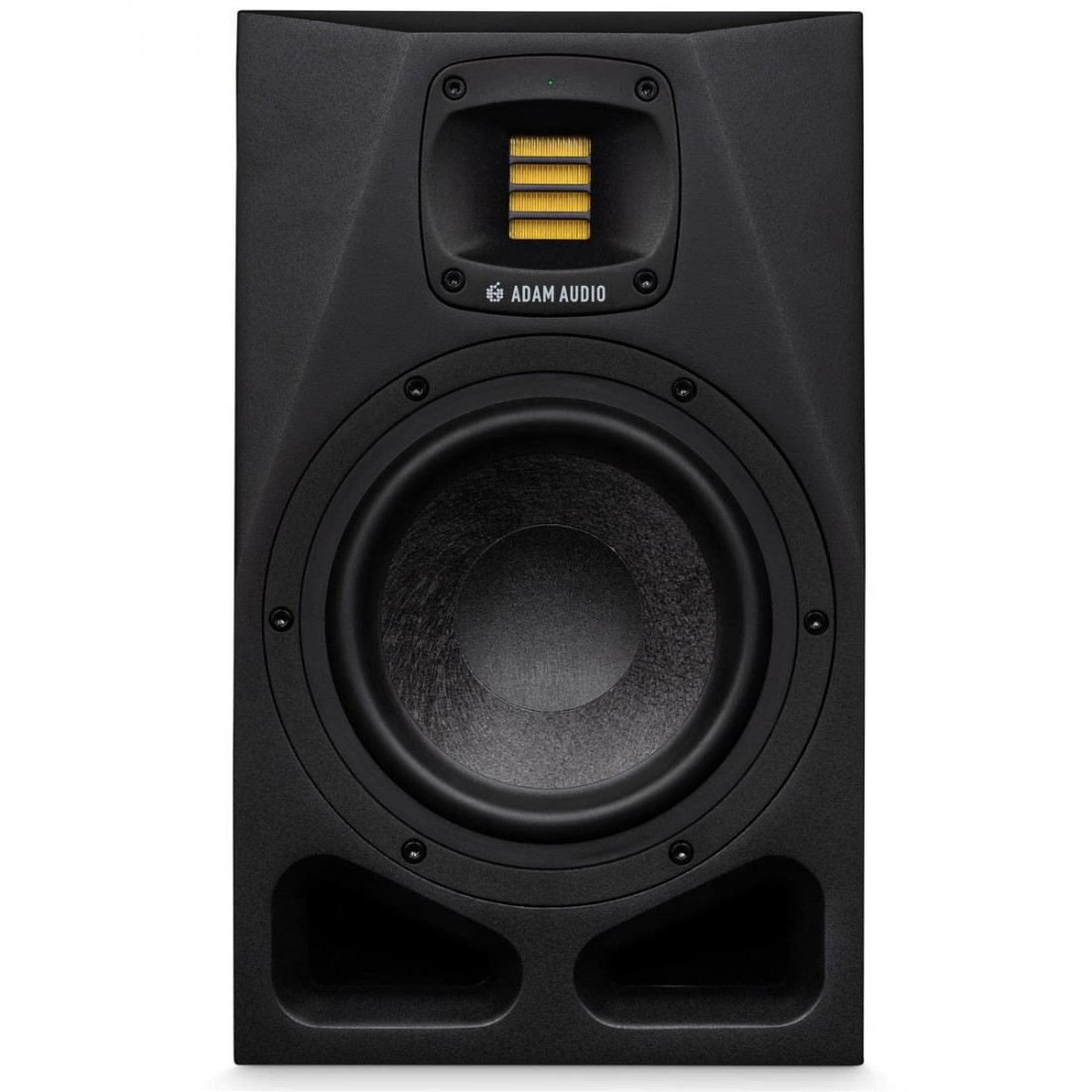

A NEW INDUSTRY STANDARD
The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.
DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.
German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
7'' Woofer (Multi-Layer Mineral)
Total Peak Amp. Power: 130 W
Frequency Response @ -6 dB: 40 Hz - 45 kHz
Max. peak SPL per speaker at 1 m: 105 dB SPL
Explore the technology
ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the A7V.
A Control Remote Software
The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control.
Learn more
Rotatable HPS Waveguide & X-ART Tweeter
Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.
Learn more
Bass Reflex System, Cabinets and Mounting
The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular.
Learn more
Automated Room Correction with Sonarworks
ADAM Audio is proud to partner with Sonarworks on an automated room correction solution that runs directly on the DSP of A Series monitors.
Learn more
Hybrid Amplification
The A Series combines the best of both digital and analog worlds.
Learn more
Multi-Layer Mineral Woofer [MLM]
The latest materials and advanced analysis and design processes have led to the development of our new long-throw woofers.
Learn more
Voicings
A “Voicing” is a pre-defined sound profile of an A Series monitor. On the back panel, you will find two different selections, “UNR” and “Pure”.
Learn more
Room Adaptation
On the back panel of A Series speakers, you will find four bands of room adaptation equalization: Bass, Desk, Presence and Treble.
Learn more
Digital Signal Processing
The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision than analog-only speakers.
Learn more
Technical Data
View the specifications of the ADAM Audio A7V by clicking each drop-down section.
General Data
Display: Front panel multi-colour LED
Cabinet Design: Dual front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 300 W max.
Operating Conditions:-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
Weight: 8.7 kg (19 lb 3 oz)

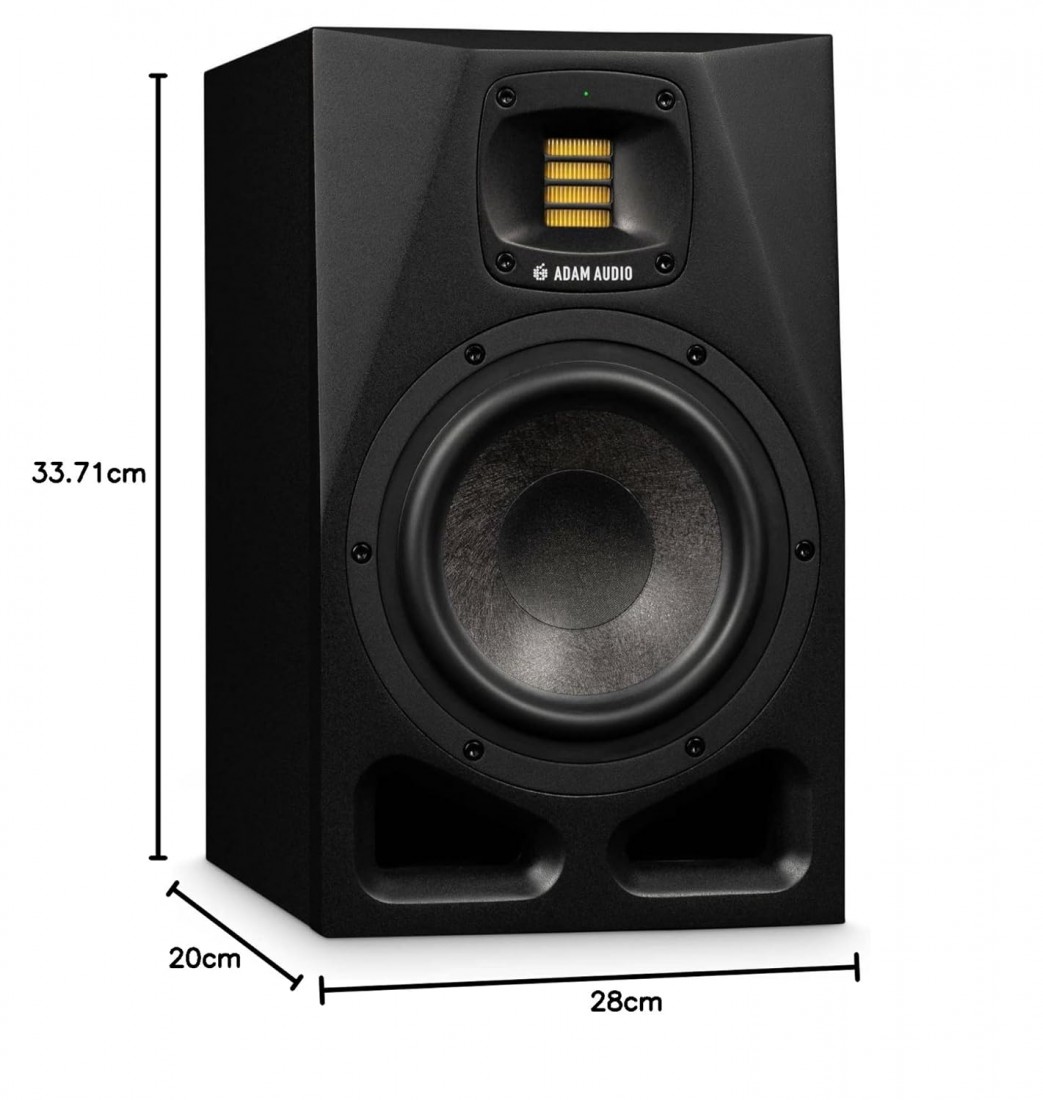

Dimensions (Height x Width x Depth): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide
Acoustics
Frequency Response @ -3 dB: 44 Hz – 41 kHz
Frequency Response @ -6 dB: 40 Hz – 45 kHz
Crossover Frequencies: 2.8 kHz
Max. peak SPL per speaker at 1 m (sine bursts): 105 dB SPL
Max. peak SPL per speaker at 1 m (IEC-weighted noise): 113 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 105 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 108 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 95 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 98 dB SPL
Dolby DARDT max SPL in full space: 115 dB SPL
Dolby DARDT max SPL in full space (bass managed): 119 dB SPL
Audio Input Connectors
Analog: XLR, RCA
Input Impedance: 9 kOhm / 3.3 kOhm
Max. Input Level: +19 dBu
Drivers
Woofer
Basket Diameter: 7″
Voice Coil Diameter: 1.3″ (33 mm)
Cone Material: MLM
Tweeter
Type: X-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equivalent Diaphragm Diameter: 2″ (56 mm)
Velocity Transform Ratio: 4 to 1
Diaphragm Weight: 0.17 g
Waveguide: HPS (rotatable)
Waveguide Dispersion: 120° horizontal, 70° vertical
Amplification
Woofer
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 110 W
RMS (1% THD, limiter deactivated): 90 W
Tweeter
Amplifier Type: Class A/B
Peak (10% THD, limiter deactivated): 20 W
RMS (1% THD, limiter deactivated): 15 W
Signal Processing
AD converter: 24-bit
Internal sample rate: 96 kHz
Delay range, resolution: 0 – 10 ms, 0.1 ms
Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
Measurement Data
Here you can view the results of common loudspeaker measurements for the ADAM Audio A7V.
