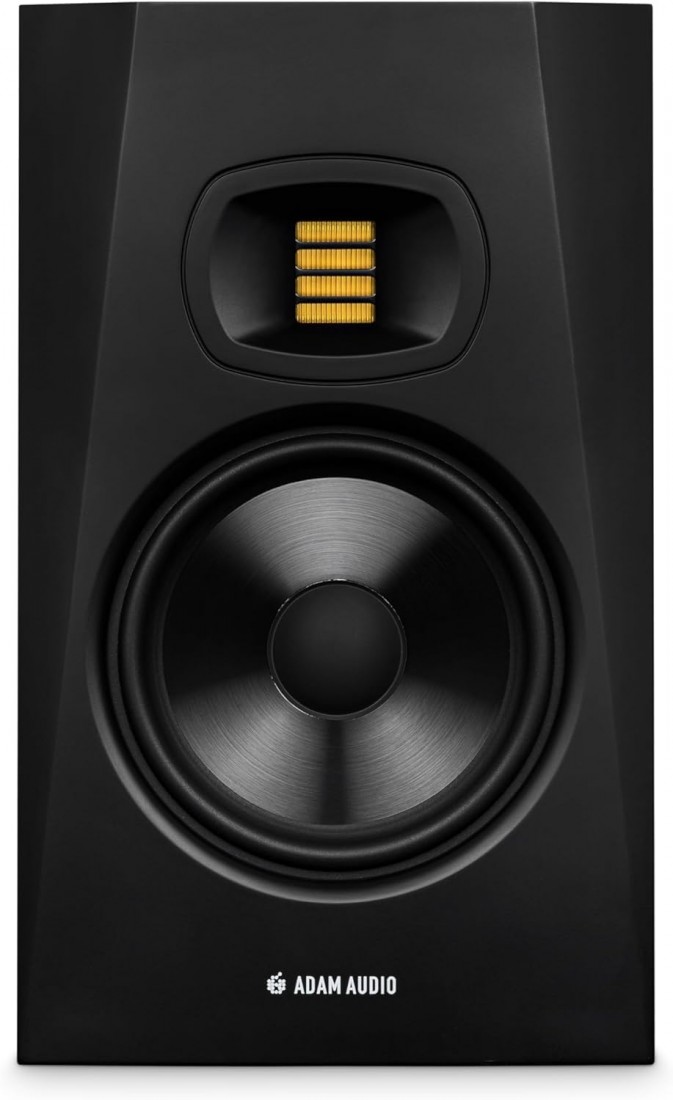

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

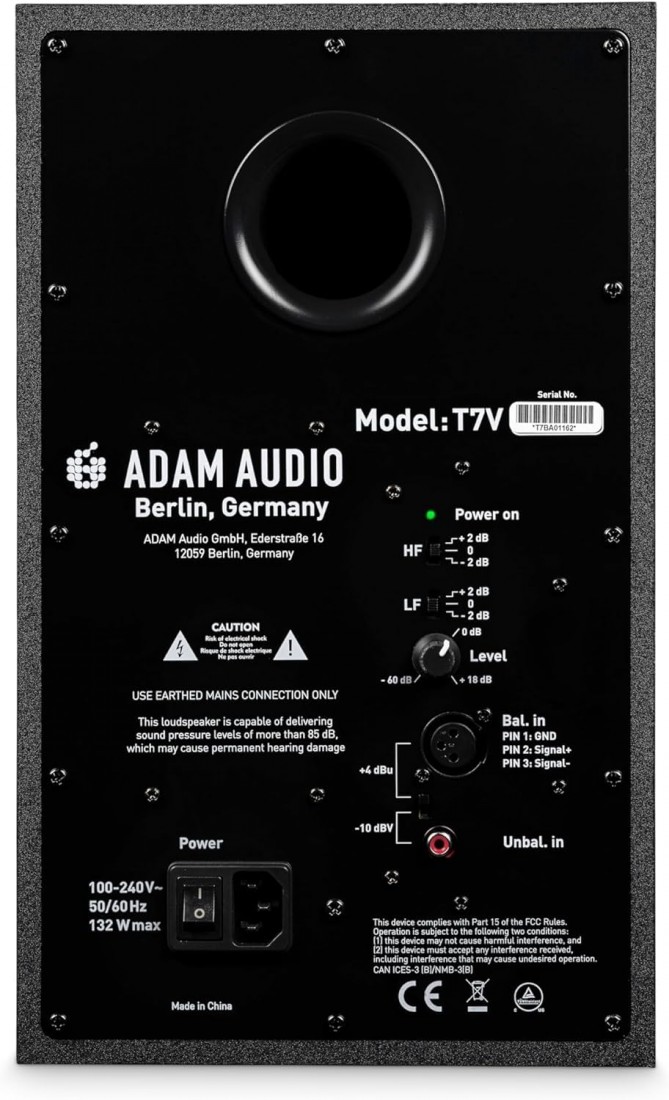

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.
The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.
The ADAM Audio T10S subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.
U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
Polypropylene 7” woofer and rear-firing bass-reflex port
Total RMS Amp. Power: 70 W
Frequency Response: 39 Hz - 25 kHz (-6 dB)
Max. SPL Per Pair at 1 m: ≥110 dB
STATE OF THE ART TECHNOLOGY
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.
U-ART Tweeter
The U-ART 1.9” tweeter design is based on that used in the X-ART and S-ART tweeters employed respectively in the AX Series and S Series monitors.
The S-ART tweeter comprises the latest iteration of ADAM’s respected folded accelerated ribbon design, produced to tighter tolerances than ever before, and...
ADAM units use the new technology for both the amp and the power supply section (i.e. no more transformers) combined with state of the art input and filter s...
