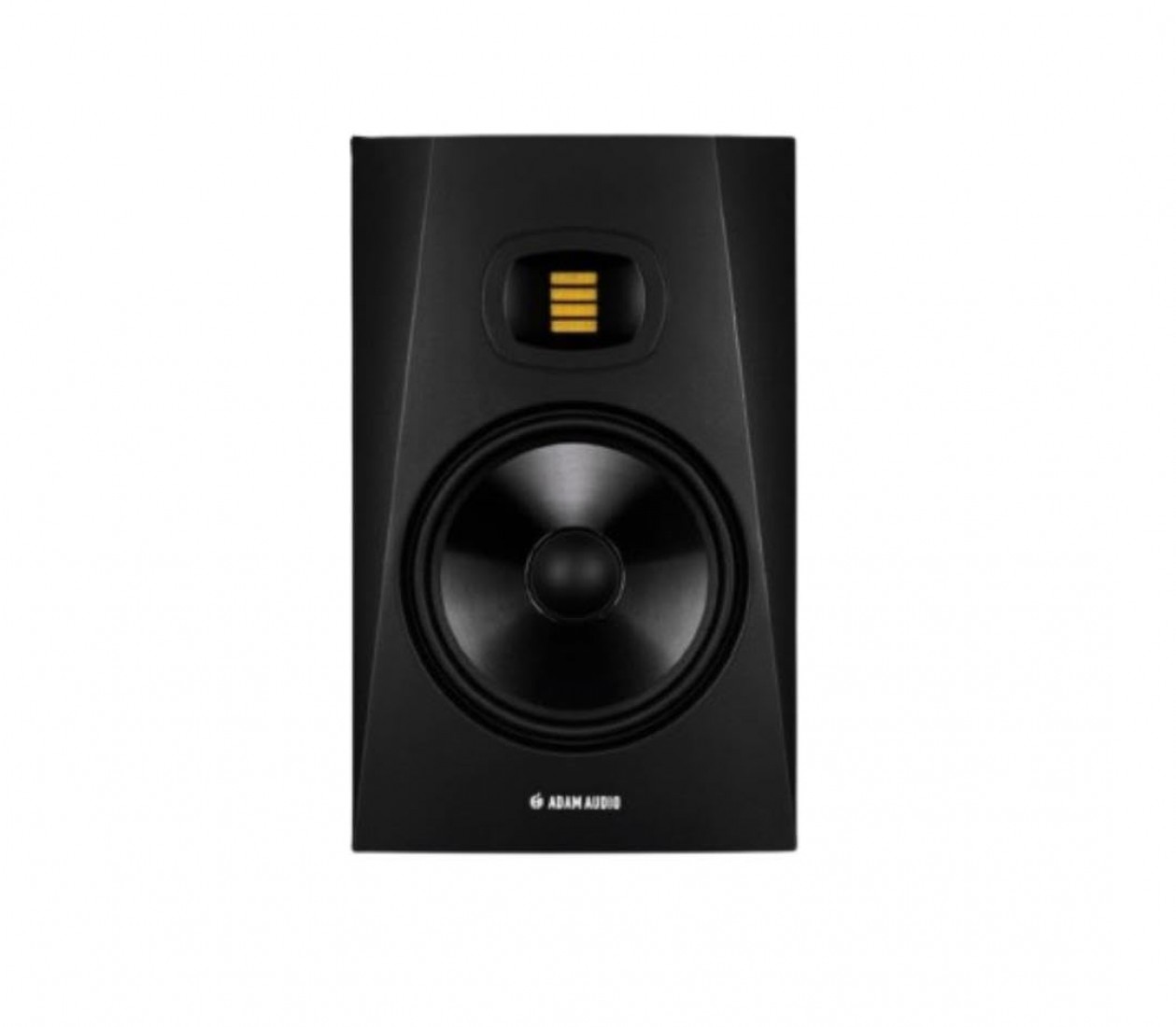

ADAM Audio T8V Active Powered Studio Monitor

Home / ADAM Audio T8V Active Powered Studio Monitor

ADAM Audio T8V Active Powered Studio Monitor

SKU: SWTADAM T8V

₹45500 / ₹45500

(Inclusive of all taxes)

Designed around the same technology, features and build quality as its smaller siblings, the T8V provides best-in-class characteristics and sound performance.

AVAILABLE OPTIONS

_________________________

ADAM Audio T8V

The T8V is an affordable, professional 2-way powered studio monitor with an 8˝ woofer and ADAM Audio’s latest addition to the T Series.

The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter’s 4:1 velocity transfer ratio, in combination with the new Class D amplifiers’ high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.

The T8V is the perfect studio speaker for those who have always wanted to work with an 8“ monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.



U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide

Polypropylene 8” woofer and rear-firing bass-reflex port

Total RMS Amp. Power: 90 W

Frequency Response: 33 Hz - 25 kHz (-6dB)

Max. SPL Per Pair at 1 m: ≥118 dB



STATE OF THE ART TECHNOLOGY

ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.

adam-audio-t-series-u-art-tweeter-technology-teaser

U-ART Tweeter

The U-ART 1.9” tweeter design is based on that used in the X-ART and S-ART tweeters employed respectively in the AX Series and S Series monitors.

Learn moreadam-audio-t-series-hps-waveguide-technology-teaser

HPS Waveguide

The S-ART tweeter comprises the latest iteration of ADAM’s respected folded accelerated ribbon design, produced to tighter tolerances than ever before, and...

Learn more

adam-audio-t-series-PWM-technology-teaser





Technical Data

View the specifications of the ADAM Audio T8V by clicking each drop-down section.



  • General Data

    • Panel: Rear
    • Max. Power Consumption: 150 W
    • Weight: 21.6 lb (9.8 kg)
    • Height x Width x Depth: 15.8″ x 9.8″ x 13.2″ (400 mm x 250 mm x 335 mm)
    • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
    • Delivery Contents: Power cord, Quick Start Guide



  • Acoustics

    • Frequency Response: 33 Hz – 25 kHz (-6 dB)
    • THD > 80 Hz: 0.5 %
    • Max. SPL per pair at 1 m: ≥118 dB
    • Crossover Frequency: 2.6 kHz



  • Audio Input Connectors

    • Analog: XLR / RCA
    • Input Impedance: 10 kOhm / 20 kOhm



  • Drivers

    • Woofer
      • Basket Diameter: 8″
      • Voice Coil Diameter: 1″
      • Cone Material: Polypropylene
    • Tweeter
      • Type: U-ART
      • Diaphragm Area: 4 inch² (2420 mm²)
      • Equiv. Diaphragm Diameter: 1.9″ (48 mm)
      • Velocity Transform Ratio: 4 to 1
      • Diaphragm Weight: 0.17 g
      • Waveguide: HPS



  • Amplification

    • Woofer
      • Amplifier Type: PWM
      • Amp. Power RMS: 70 W
    • Tweeter
      • Amplifier Type: PWM
      • Amp. Power RMS: 20 W



  • Control Options

    • Input Sensitivity: -10 to +4 dB
    • Gain: Yes
    • High Shelf EQ > 5 kHz: -2 dB, 0 dB, +2 dB
    • Low Shelf EQ < 300 Hz: -2 dB, 0 dB, +2 dB



SEE WHAT YOU HEAR

MEASUREMENT DATA

Here you can view the results of common loudspeaker measurements for the ADAM Audio T8V.
