Product Overview

Precision from Every Angle

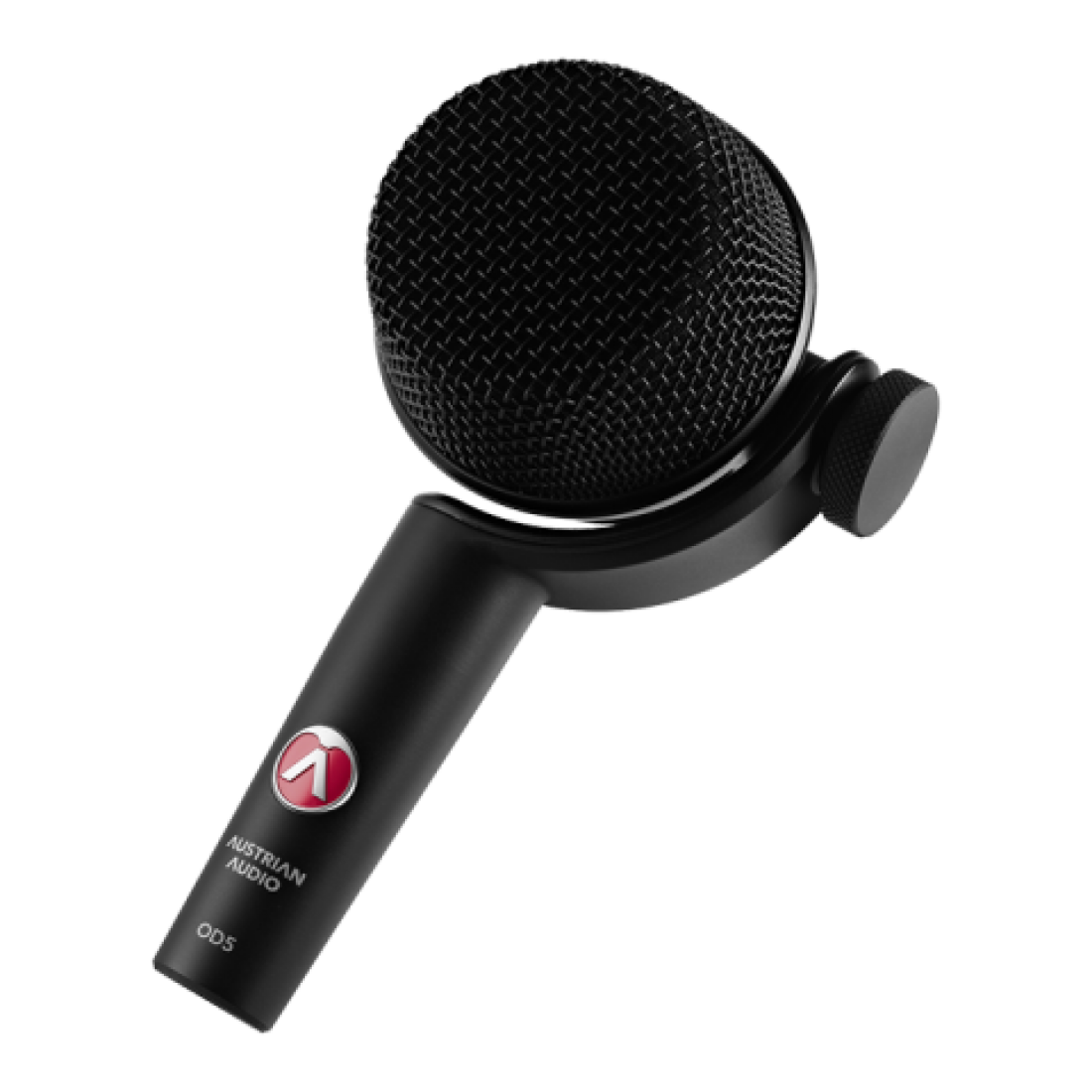

The OD5 is designed to solve the common frustrations of studio and stage miking. Its unique swivel mechanism allows the microphone basket to rotate 220°, enabling you to find the "sweet spot" on a snare drum or speaker cabinet without fighting with restricted microphone stands. By utilizing an active-dynamic circuit, Austrian Audio ensures the mic has a high sensitivity of 6.7 mV/Pa, allowing it to capture the subtle transients of woodwinds while still being able to withstand the thunderous volume of a kick drum.

Product Description

The Active Dynamic Advantage:

Unlike standard passive dynamic mics, the OD5 uses active circuitry powered by phantom power. This provides two major benefits: first, it makes the microphone cable-invariant, meaning the frequency response won't change even if you use 50-foot cables; second, it allows for the integration of a sophisticated high-pass filter and a -10dB pad. This makes it an incredibly versatile workhorse that can be moved from a delicate acoustic guitar to a loud brass section with just a flip of a switch.

Proprietary Open Acoustics Technology:

The Austrian Audio OD5 employs a specialized suspension system for both the capsule and the basket. This Open Acoustics design reduces internal resonances and provides a highly precise cardioid pattern. This ensures that even when you have "bleed" from other instruments (like cymbals hitting a snare mic), the off-axis sound remains natural and undistorted, making your final mix much cleaner.

Versatile Tone Shaping:

• CAB (Cut & Boost) Filter: The 80Hz filter is specifically tuned for guitar amps, removing muddy low-end while increasing "pressure" in the bass region to give the amp more punch.

• 120Hz High-Pass Filter: A standard second-order filter to eliminate unwanted stage rumble or floor vibrations.

• Extreme SPL Handling: Capable of handling up to 151 dB SPL (and over 160 dB with the pad engaged), it is one of the most overload-resistant microphones in its class.



Key Features

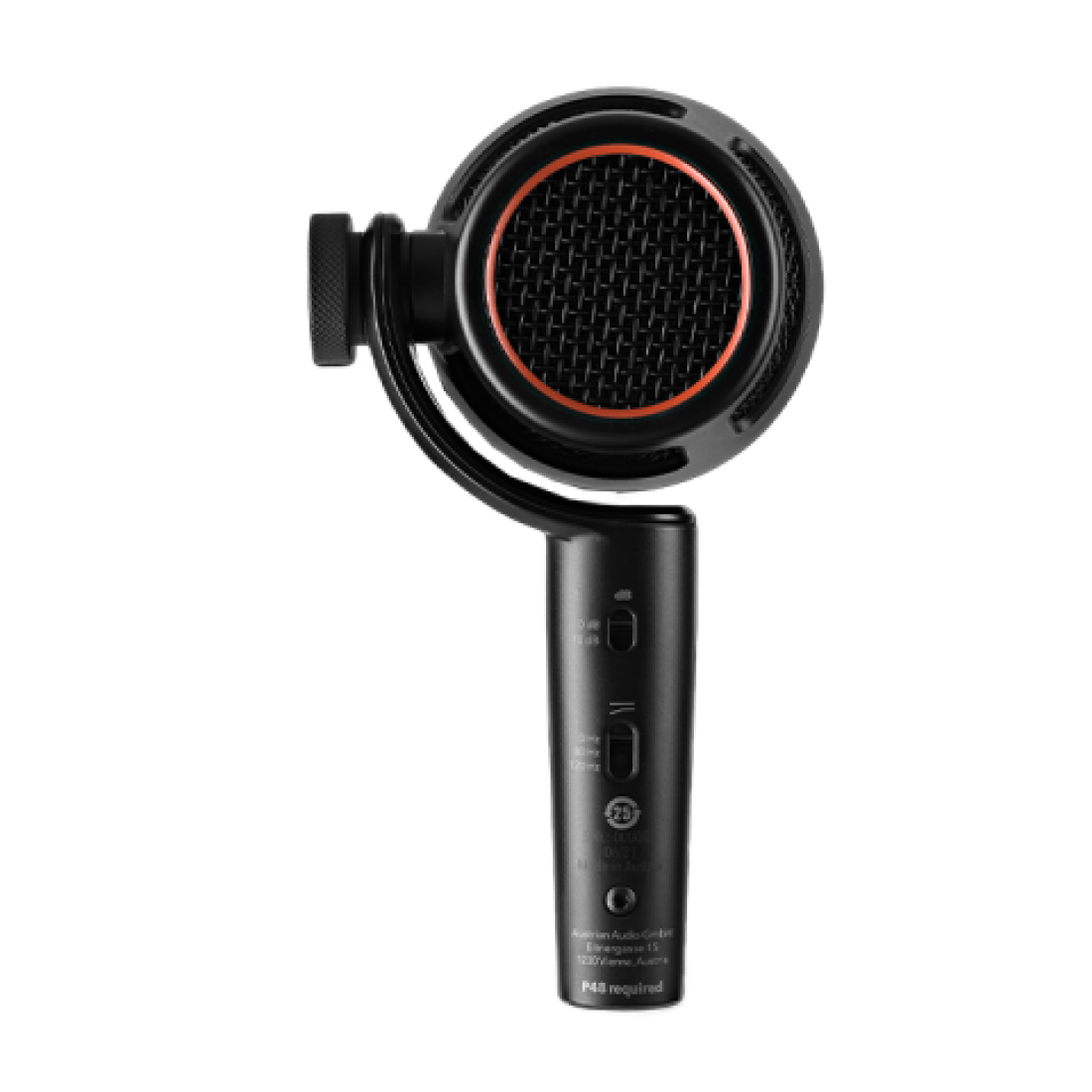

• Active Dynamic Circuit: Requires 48V phantom power for a strong, consistent signal.

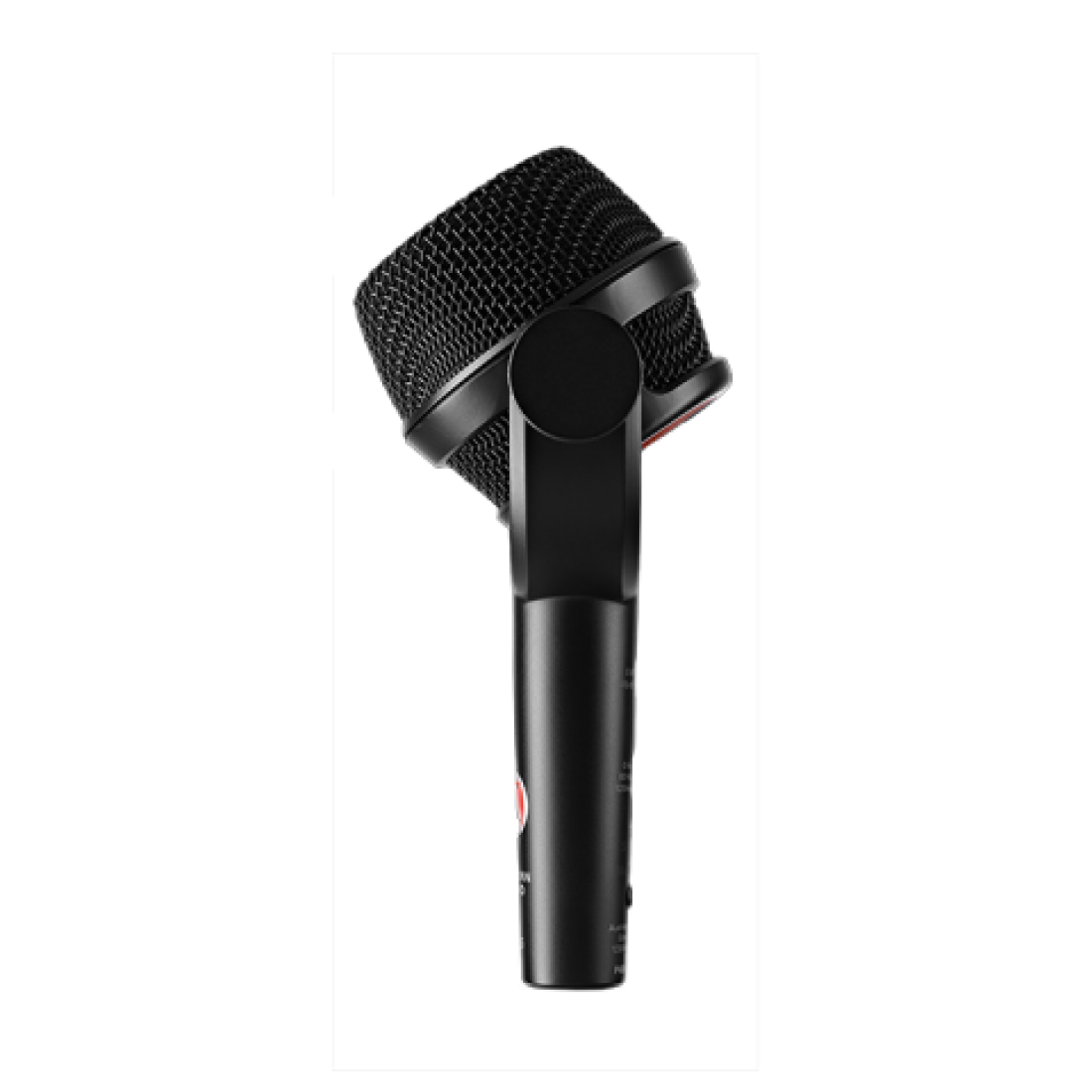

• 220° Swivel Joint: Simplifies mic alignment in cramped spaces like drum kits.

• High Precision Cardioid Pattern: Minimizes feedback and ensures natural off-axis sound.

• CAB Filter at 80 Hz: Optimized specifically for high-impact guitar cabinet miking.

• Switchable -10dB Pad: Lowers capsule voltage to prevent clipping on loud sources.

• Rugged Die-Cast Body: Built for the most challenging live tour environments.

• Handmade in Vienna: Precision engineering from the world-class Austrian Audio facility.

Technical Specifications

What’s Included in the Box

• 1 x Austrian Audio OD5 Microphone

• 1 x OCH8 Microphone Clip

• 1 x MSC2 Carrying Case
