The Ultimate Hybrid Hub for Production, Tracking, and Reference Monitoring
The SPL Crimson 3 redefines the desktop studio workflow by combining a multi-channel USB audio interface with a fully featured, hardware-based analog monitor controller. While standard interfaces force you to rely on software mixers and digital volume faders—which crush your digital bit-depth and introduce monitoring latency—the Crimson 3 routes and attenuates everything in the pure-analog domain. Hand-built with premium discrete components in Germany, it functions as a seamless standalone analog monitor matrix even when disconnected from your computer, delivering uncolored transparency and zero-latency performance.
Product Description
Premium 24-Bit/192kHz Conversion with Boutique Discrete Preamps:
The digital core of the Crimson 3 features ultra-linear 24-bit/192kHz converters that deliver incredible phase accuracy and dynamic range. On the analog front-end, it comes equipped with two boutique discrete microphone preamplifiers. These high-headroom preamps serve up an exceptionally clean, fast, and transparent gain structure, capturing the raw, uncolored character of dynamic, condenser, or delicate ribbon microphones. Two independent Hi-Z instrument inputs on the front panel allow singer-songwriters to track electric guitars or active basses directly into the discrete hardware stage with pristine DI fidelity.
True Standalone Monitor Control and Multi-Speaker Routing:

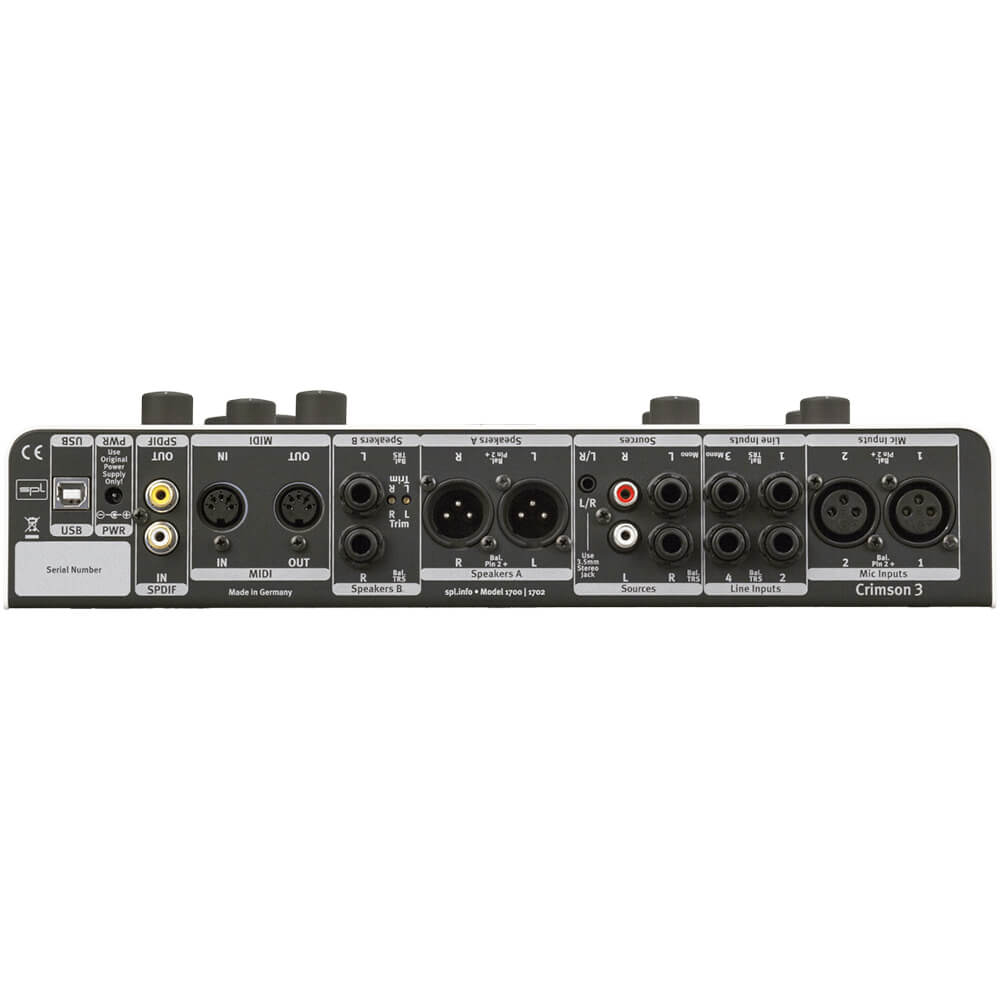

Unlike typical bus-powered interfaces, the Crimson 3 features a robust internal power architecture that allows it to operate as a high-end, standalone monitor controller. The massive, high-mass aluminum master volume knob controls a premium analog cell that guides your stereo image smoothly without left/right channel level drift. The rear panel drives two independent stereo loudspeaker pairs (Speaker A and Speaker B) via balanced XLR and TRS lines. Toggling between main studio mains and secondary nearfield references is completely seamless via dedicated top-panel hardware keys.
Integrated Talkback System and Zero-Latency Cue Mixing:
To manage complex artist tracking sessions, the Crimson 3 integrates a professional Talkback system directly into the desktop surface. Featuring a built-in electret condenser microphone and a dedicated hardware level control, it allows producers to communicate instantly with artists in the live room. The highly intuitive Artist Mode lets you set up an independent, latency-free cue mix. Musicians can hear their live performance balanced perfectly against the DAW playback, completely bypassing the round-trip buffer delays of the computer.
Dual Headphone Amps and the Pure-Analog Phonitor Matrix:
The front panel features two independent high-output headphone amplifiers, each equipped with its own dedicated volume pot. Headphone Output 1 integrates SPL's world-famous Phonitor Matrix crossfeed circuit. Traditional headphone tracking introduces an unnatural, exaggerated left/right isolation that causes ear fatigue and leads to poor panning choices. The Phonitor Matrix naturally bleeds a calculated portion of the opposite channel's signal into each ear, perfectly emulating the natural crosstalk and 30° placement angle of real studio monitors so your headphone mixes translate flawlessly to the real world.
Key Features
All-In-One Studio Solution: Combines a 6x6 USB audio interface, dual boutique preamps, a standalone monitor controller, and a talkback station into one desktop device.
Pristine 24-Bit/192kHz Converters: High-resolution digital-to-analog and analog-to-digital clocking guarantees immense structural clarity and linear phase response.
Innovative Phonitor Matrix: Built-in analog speaker-emulation crossfeed circuit on Headphone 1 reproduces natural loudspeaker crosstalk to improve headphone translation.
Dual Boutique Preamps & Hi-Z Inputs: Two discrete mic preamps with independent 48V phantom power and two front-panel high-impedance DI instrument lines.
Hardware-Based Talkback System: Built-in condenser talkback mic with dedicated top-panel gain control for instant, seamless artist communication.
Dual Speaker Switching (A/B): Dedicated top-panel hardware switches let you instantly compare your mixes across two different sets of studio monitors.
Zero-Latency Artist Cue Mix: Fluid "Monitor Mix" knob balances live analog inputs against DAW playback for latency-free recording.
Class-Compliant USB Interfacing: Connects seamlessly out of the box with Mac and iOS devices without requiring complex drivers, with high-performance ASIO drivers available for PC.
Technical Specifications
Feature
Specification
Device Type
USB Audio Interface, Standalone Monitor Controller & Talkback System
Audio Resolution
24-Bit / 192 kHz High-Performance Conversion
Analog Inputs
2 x XLR/TRS Combo (Mic/Line), 2 x 1/4" TRS (Line 3-4), 2 x 1/4" TS (Hi-Z Inst 1-2)
Additional Inputs
2 x RCA Stereo (Source 1), 1 x 1/8" (3.5mm) Stereo Jack (Source 2)
Loudspeaker Outputs
2 x XLR Balanced (Speaker A Stereo), 2 x 1/4" TRS Balanced (Speaker B Stereo)
Additional Output Paths
2 x 1/4" TRS Balanced (DAW Direct Outputs 1-2)
Headphone Outputs
2 x 1/4" (6.35 mm) TRS Stereo Jacks (Headphone 1 with Phonitor Matrix)
Digital I/O Ports
1 x USB 2.0 (Type-B), 1 x S/PDIF Coaxial Input & Output
Microphone Preamper Gain
Up to +60 dB of clean, discrete analog gain
Frequency Range
10 Hz to 200 kHz (-3 dB, Analog Core Framework)
Total Harmonic Distortion (THD+N)
0.0012% (Mic Input to Line Output) — Absolute tracking purity
Maximum Input & Output Level
+22 dBu (Providing massive pro-studio headroom)
Dimensions (W x H x D)
330 x 60 x 207 mm (13.0 x 2.36 x 8.15 inches)
Unit Weight
2.70 kg (5.95 lbs)
What’s Included in the Box
1 x SPL AUDIO Crimson 3 Audio Interface & Monitor Controller Unit (Black)
1 x Standard USB-A to USB-B Data Connectivity Cable
1 x 12V DC / 1.5A External Switching Power Supply Adapter
1 x Official User Operations Manual & Digital Driver Installation Guide
