The Ultimate High-Voltage Hub for Impeccable Headphone Mixing and Monitor Switching
The SPL Phonitor 3 + Expansion Rack Bundle represents the absolute pinnacle of analog monitoring, designed specifically for top-tier mixing rooms, mastering facilities, and premium hybrid production environments. While standard monitor stations route signals through digital faders or low-voltage integrated circuits that squash transients and color audio, this system handles your entire front-end setup using SPL's legendary 120V analog rails. By combining the pure-analog Phonitor 3 with its hardware Expansion Rack, this package takes up just a 2U space in your 19-inch studio outboard bay, turning a standalone desktop amp into a full-scale routing command center.
Product Description
Flagship 120V VOLTAiR Core for Absolute Sonic Purity:
The primary internal architecture of the Phonitor 3 is engineered using SPL’s exclusive VOLTAiR 120V operating technology. Running on a massive $\pm$60V DC internal power grid (four times the voltage ceiling of standard IC semiconductor op-amps), it delivers an unparalleled dynamic range of 141.4 dB. This creates massive headroom and eliminates clipping or thermal compression, ensuring your transients translate with exceptional punch, micro-detail, and an ultra-low noise floor that lets your source material breathe without coloration.
The Phonitor Matrix and Advanced Diagnostic Workspace:
Standard headphone monitoring forces an artificial left/right split that doesn't exist when listening to loudspeakers in a room. The Phonitor 3 rectifies this via its fully variable Phonitor Matrix. Utilizing pure analog circuitry without digital DSP latency, it features continuously variable knobs for Crossfeed (interaural level difference) and Speaker Angle (interaural time difference up to a standard 30° placement). This lets you precisely dial in the exact spatial image of your physical studio monitors, allowing you to accurately judge panning, center-level balancing, and stereo width directly on headphones.
Expansion Rack Integration with Passive 4-Way Speaker Switching:

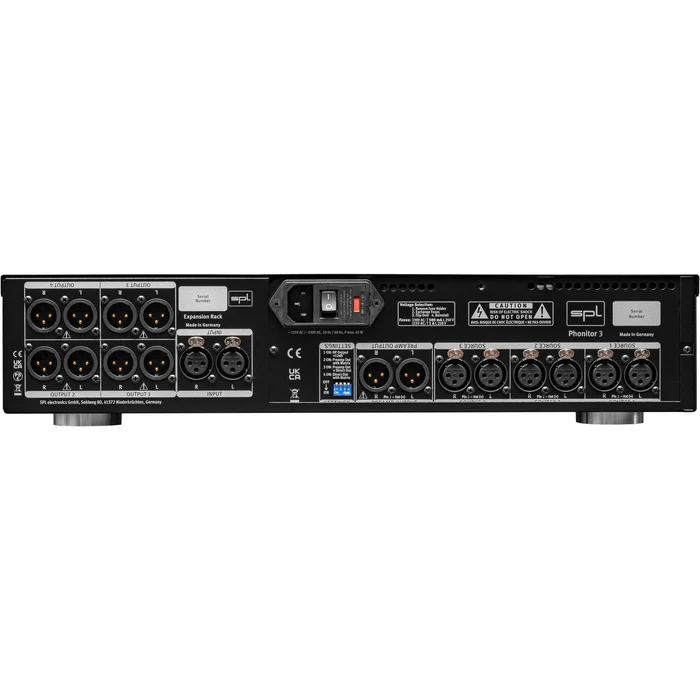

The structural Expansion Rack completely redefines the functionality of the device. Beyond serving as a robust 19-inch 2U rack housing with a sleek black faceplate, it integrates a high-performance, passive four-way rotary switch. This matrix expands the stereo output of the Phonitor 3 into four separate balanced XLR stereo outputs. This lets engineers hook up, calibrate, and toggle cleanly between four independent loudspeaker pairs (such as full-range mains, midfield monitors, nearfield references, and consumer test grids). Because the switching operates 100% passively, there are no active electronics, extra power supplies, or coloring components added to your monitoring line.
Precision Level Tracking and Classic VU Aesthetics:
Housed in a robust, low-profile metal chassis with a thick, premium aluminum faceplate, the unit combines modern technology with timeless analog soul. The main output level is governed by a heavy-duty, high-mass aluminum volume knob paired with a premium motorized ALPS RK27 "Big Blue" potentiometer for immaculate channel matching. Front-panel visual feedback is driven by dual mechanical VU meters featuring an integrated calibration switch (-6 dB / -12 dB), allowing you to accurately track input levels even when driving hot, high-voltage mastering signals.
Key Features
COMPLETE MONITORING BUNDLE: Merges the world-class pure-analog Phonitor 3 headphone amp/monitor controller with a matching 19-inch 2U Expansion Rack.
120V VOLTAiR POWER RAILS: High-voltage operational amplifiers ($\pm$60V DC) yield an incredible 141.4 dB dynamic range with near-infinite signal headroom.
PASSIVE 1-TO-4 SPEAKER SWITCHING: The Expansion Rack's front-panel rotary switch passively routes your master stereo signal to up to 4 stereo monitor pairs with zero signal color.
VARIABLE PHONITOR MATRIX: True analog speaker-emulation crossfeed controls simulate realistic cross-talk and 30° placement angles on headphones to prevent ear fatigue.
COMPLETE OUTBOARD DIAGNOSTIC RIG: Front-panel tactical hardware toggles provide instant Mono summing, Polarity Phase Inversion (L/R), and Left/Right channel soloing.
PREMIUM ALPS RK27 POTENTIOMETER: Large, high-mass 45mm aluminum volume control drives a motorized tracking cell for perfect stereo channel balance.
DUAL BACKLIT VU METERS: Mechanical level meters display incoming hot mastering levels accurately, equipped with selectable sensitivity pads (-6 dB / -12 dB).
PURE ANALOG SIGNAL PATH: Completely discrete analog processing preserves the integrity of your outboard gear without any internal digital stages.
Technical Specifications
Feature
Specification
Bundle Components
Phonitor 3 Analog Controller + 19" 2U Passive Expansion Rack
