Product Overview

Elite Mastering-Grade Authority Over Any Loudspeaker Configuration

Many stereo power amplifiers compromise on structural depth, bass accuracy, and soundstage stability when confronted with complex speaker impedance curves or high-volume peaks. The SPL Performer s1200 is built specifically to eliminate these bottlenecks, serving as the ultimate stereo amplification destination for high-end residential hi-fi setups and professional studio tracking spaces alike.

Operating entirely on custom high-voltage circuitry, the s1200 completely isolates sensitive low-level audio signals from the brute-force current demands of heavy bass woofers. Whether accepting signals from balanced studio XLR runs or premium unbalanced RCA chains, it rules over your loudspeakers with iron-fisted control—guaranteeing uncompressed, fluid, and natural instrument textures from soft acoustic recordings to thunderous orchestral movements.

Product Description

Dual-Stage Operating Infrastructure with 120V VOLTAiR:

The flawless clarity and massive energy of the Performer s1200 are rooted in its bi-operational voltage infrastructure. The initial input and driver tracking networks are powered entirely by SPL's proprietary 120V VOLTAiR technology, running on an ultra-clean plus/minus 60V DC internal rail system. This keeps the incoming signal pristine, boasting a massive -123 dB A-weighted noise floor.

When that pristine signal meets the heavy output section, the amplifier passes the torch to a dedicated plus/minus 80V DC high-current power rail system. This dual-stage insulation prevents heavy back-electromotive forces generated by the speakers from muddying the delicate input tracking circuitry, maintaining incredible spatial separation, low distortion, and excellent stereo depth under heavy loads.

A Vault of Raw Energy – 1440VA Transformer & 70k µF Capacitance:

An amplifier can only be as dynamic as its power supply reservoir. The physical core of the s1200 houses a custom-engineered 1,440 VA linear toroidal transformer, heavily shielded and vacuum-encapsulated to suppress physical vibrations and stray magnetic hum. This massive transformer feeds a premium storage reservoir containing 70,000 µF of fast-charging storage capacitors. When a musical crescendo explodes or an electronic sub-bass line drops, this enormous electrical reservoir discharges instantaneous current without any voltage sagging or temporal smear, rendering transients with jaw-dropping realism.

Precision Input Level Trimming & Smart Protections:

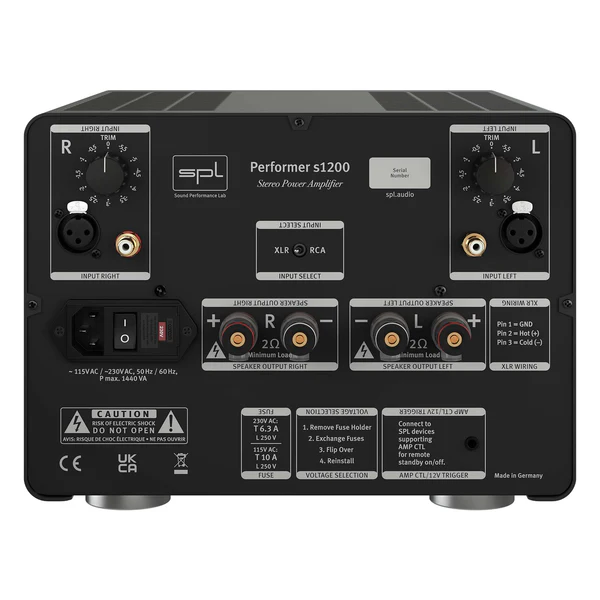

The back of the s1200 features an ultra-precise Input Trimming Potentiometer that allows you to scale down incoming signals from 0 dB to -5.5 dB in highly accurate 0.5 dB steps. This feature is invaluable for perfectly level-matching your stereo amplifier with various preamplifier outputs, balancing room acoustics, or optimizing the overall sweet spot of your system's volume control.

To protect your premium loudspeaker investment, the Performer s1200 includes advanced, non-invasive Protection Circuitry:

• Overheating Safeguard: Monitored by internal thermal sensors, the unit safely manages its cooling cycles through low-noise fans if pushed past safe operating limits.

• DC Voltage Overload Protection: If the amplifier detects harmful direct current (DC) at its terminals, an integrated micro-controller trips a yellow warning LED and immediately disconnects the speaker outputs, safeguarding voice coils from destruction without degrading the analog signal path.

Key Features

• 120V VOLTAiR INPUT CORE: High-voltage operational rails unlock massive input headroom, ultra-low distortion, and an exceptionally quiet background noise floor.

• MASSIVE STEREO POWER OUTPUT: Delivers up to 2 x 520W RMS into 4 Ohms and 2 x 550W RMS into 2 Ohms to control difficult loudspeaker configurations easily.

• DUAL-STAGE SYSTEM POWER RAILS: Separates input driver loops (+/-60V) from the power amplification stage (+/-80V) to isolate heavy woofer feedback.

• 1,440 VA TOROIDAL TRANSFORMER: Custom-wound linear power core provides an endless supply of raw energy while maintaining silent physical operation.

• 70,000 µF STORAGE DECK: High-capacitance storage bank delivers lightning-fast transient response and deep, authoritative low-end definition.

• FLEXIBLE XLR & RCA INPUT NODES: Equipped with both professional balanced XLR inputs and unbalanced RCA inputs to sync with any preamplifier source.

• PRECISION 0.5 dB TRIMMING MATRIX: Hardware trim attenuator allows you to match preamplifier gain curves precisely from 0 dB down to -5.5 dB.

• ROBUST MULTI-OPTION BINDING POSTS: Heavy-duty gold-plated connection terminals comfortably accept bare wire, spade lugs, or standard 4mm banana plugs.

• SMART 12V CONTROL RECEPTACLE: Integrated 12-volt trigger circuit (AMP CTL) synchronizes your amplifier's power states instantly with your preamplifier.

• NON-INVASIVE PROTECTIVE SENSORS: Intelligent micro-controllers guard internal arrays against thermal hazards and harmful DC voltage anomalies.

Technical Specifications

What’s Included in the Box

• 1 x SPL AUDIO Performer s1200 Reference Powerful Stereo Power Amplifier Main Unit

• 1 x Heavy-Duty High-Current AC Grounded IEC Power Cable

• 1 x Set of Premium Vibration-Isolating Mechanical Chassis Feet

• 1 x Official SPL Professional Fidelity Series Performer s1200 Reference Manual
