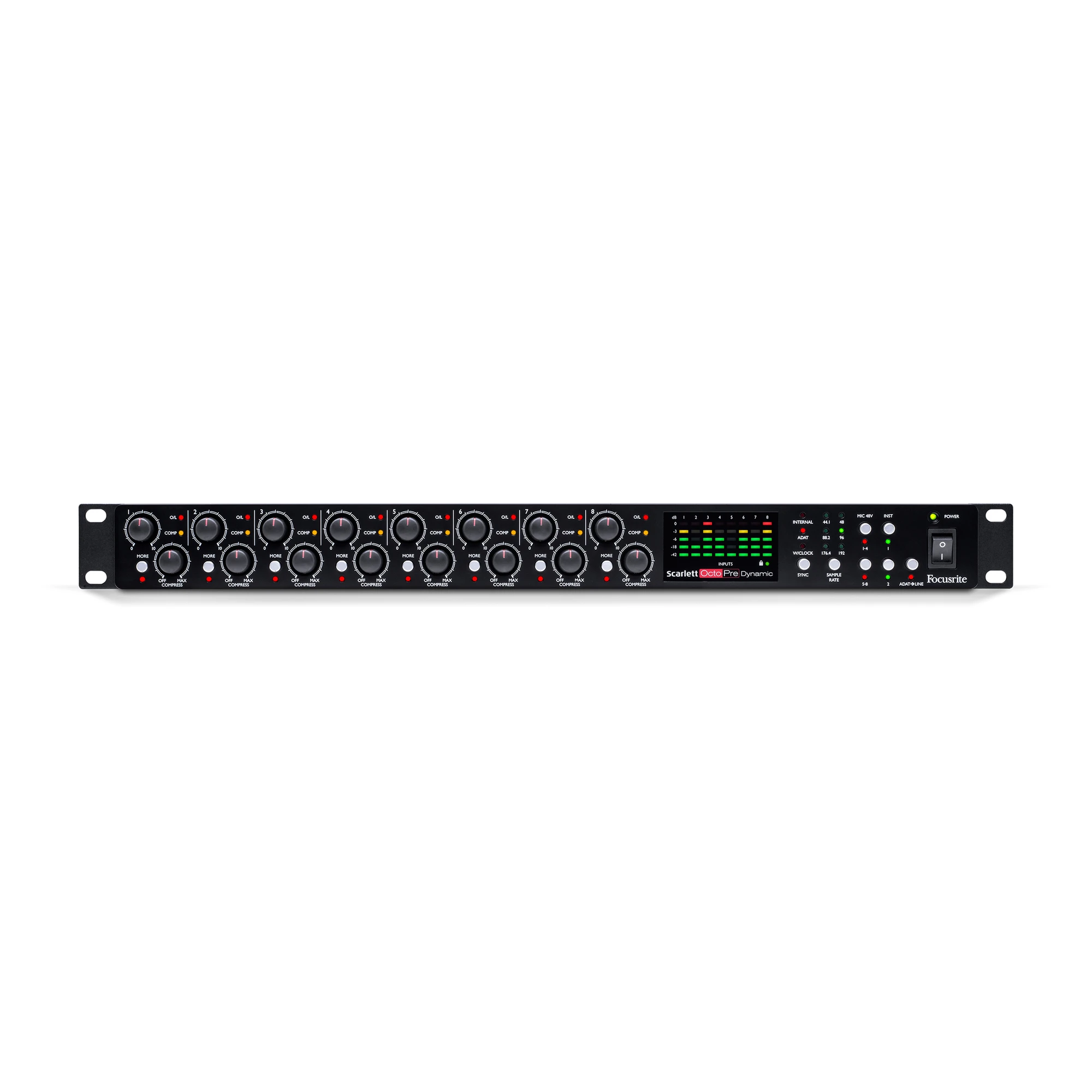

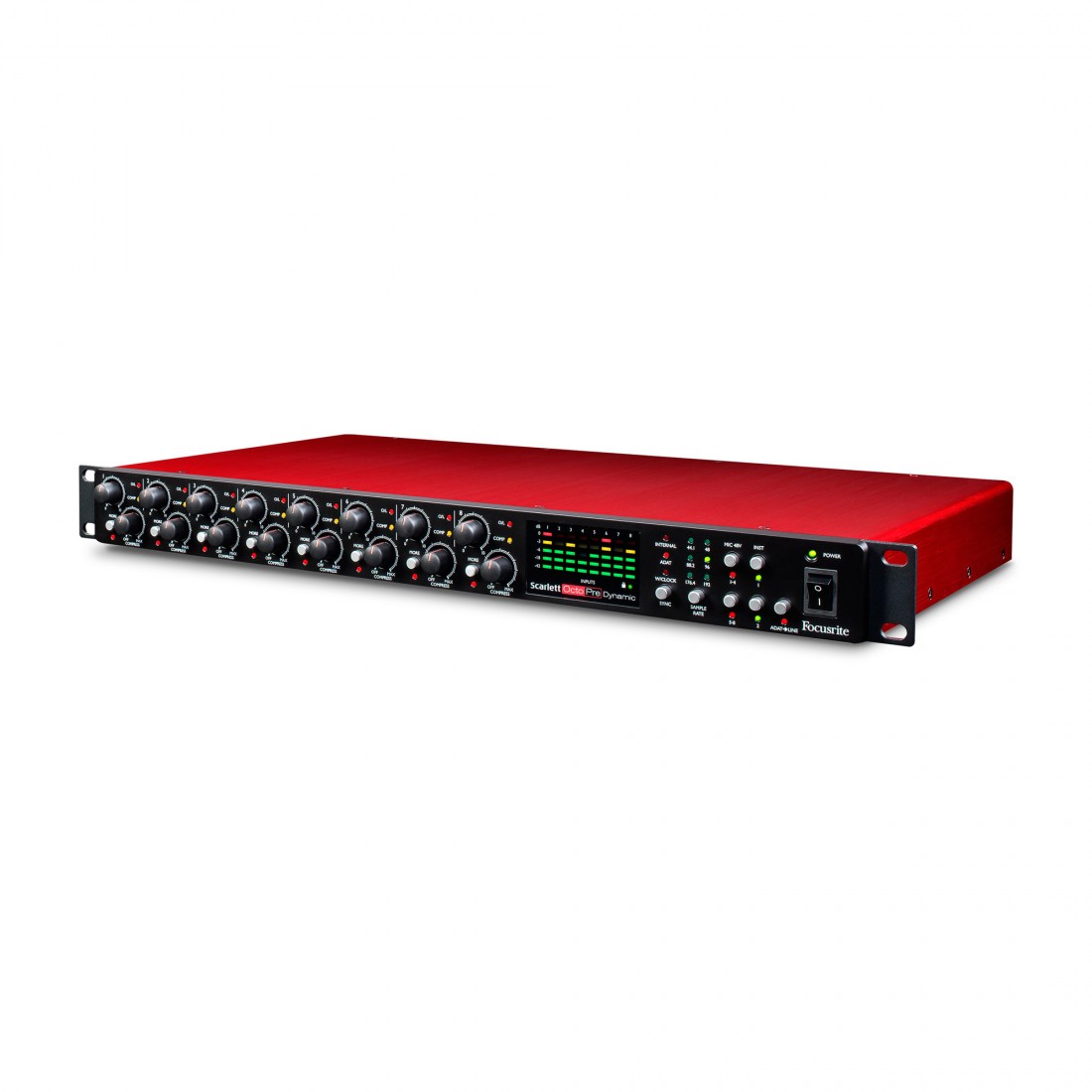

Focusrite Scarlett OctoPre Dynamic Eight-channel mic pre with A-D/D-A conversion and analogue compression
Home / Focusrite Scarlett OctoPre Dynamic Eight-channel mic pre with A-D/D-A conversion and analogue compression
Product Overview
Dynamics Control Before the Digital Stage
The Scarlett OctoPre Dynamic is engineered to help you capture a polished sound before the signal even hits your DAW. The integrated analog compressors allow you to tame peaks and add musical "glue" to your tracks during recording. Its bidirectional design offers 8 channels of ADAT output (for inputs) and 8 channels of ADAT input (for D-A conversion), effectively doubling the utility of your current interface.
Product Description
Musical Analog Compression:
Every input channel features a dedicated, single-knob soft-knee VCA compressor. This allows for transparent dynamic control that maintains the natural character of your performance. For more aggressive applications, the "More" button doubles the compression ratio (from 2:1 to 4:1), making it ideal for adding punch to percussion or stabilizing dynamic vocals.
Bidirectional AD/DA Versatility:
This unit acts as a complete digital-to-analog hub. The OctoPre Dynamic features 8 channels of high-quality D-A conversion via its ADAT inputs. You can route these to the 8 balanced line outputs to feed an analog console or external processors, facilitating a modern hybrid workflow.
Professional Performance and Sync:
With high-resolution 24-bit conversion and JetPLL™ jitter elimination, your audio remains detailed and phase-accurate. The unit includes per-channel 5-segment LED metering and switchable 48V Phantom Power, ensuring you have the feedback and power required for professional studio sessions.
Key Features
Eight Scarlett Preamps: Clean, natural sound with 50dB gain and high headroom.
Analogue Compression: Soft-knee VCA compression on every input channel for smooth dynamic control.
"More" Mode: Instantly increases the compression ratio for a more aggressive, punchy sound.
192kHz AD/DA Conversion: 8 channels of high-resolution expansion for both input and output.
Dual ADAT I/O: Send and receive 8 channels of audio over simple optical cables.
JFET Instrument Inputs: Two front-panel inputs designed to handle high-output guitar pickups.
Word Clock I/O: BNC connectors for perfect synchronization within digital studio environments.
Technical Specifications
Component
Specification
Details
General
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 kHz
Microphone Inputs
Frequency Response
20Hz - 20kHz (+0.5/-1.5dB)
Dynamic Range / THD+N
109 dB (A-weighted) / <0.001%
Noise EIN / Gain Range
-127 dBu / 50 dB
Max Input (Pad/No Pad)
+16 dBu / +8 dBu
Line Inputs
Dynamic Range / THD+N
109 dB (A-weighted) / <0.002%
Max Input / Gain Range
+22 dBu / 50 dB
Instrument Inputs
Dynamic Range / THD+N
108 dB (A-weighted) / <0.01%
Max Input / Gain Range
+13 dBu / 50 dB
Line Outputs
Max Level (0 dBFS)
+16dBu (or >21dBu if ADAT not used)
Output Impedance
136 Ω or 576 Ω (Balanced)*
Compression
Ratio (Normal / More)
2:1 / 4:1
Note: Output impedance varies by serial number (136 Ω for ≤ W960065003383; 576 Ω for > W960065003383).
What’s Included in the Box
1 x Focusrite Scarlett OctoPre Dynamic
1 x IEC Power Cable
Hitmaker Expansion Bundle: Includes Pro Tools Artist, Ableton Live Lite, and premium software from Antares, Softube, and more.
