Product Overview

The MCM 114 Drum Set is built to meet the rigorous demands of professional percussionists and sound engineers. At its core is the KK 14 electret capsule, which offers a level of tonal balance and low-end clarity previously unheard of in miniature microphones. The set includes everything needed for a high-end setup: the high-fidelity capsule, a flexible gooseneck, the instrument-safe MC 7 drum rim clip, a locking connection cable, and the MCM 100 XLR output stage.

Product Description

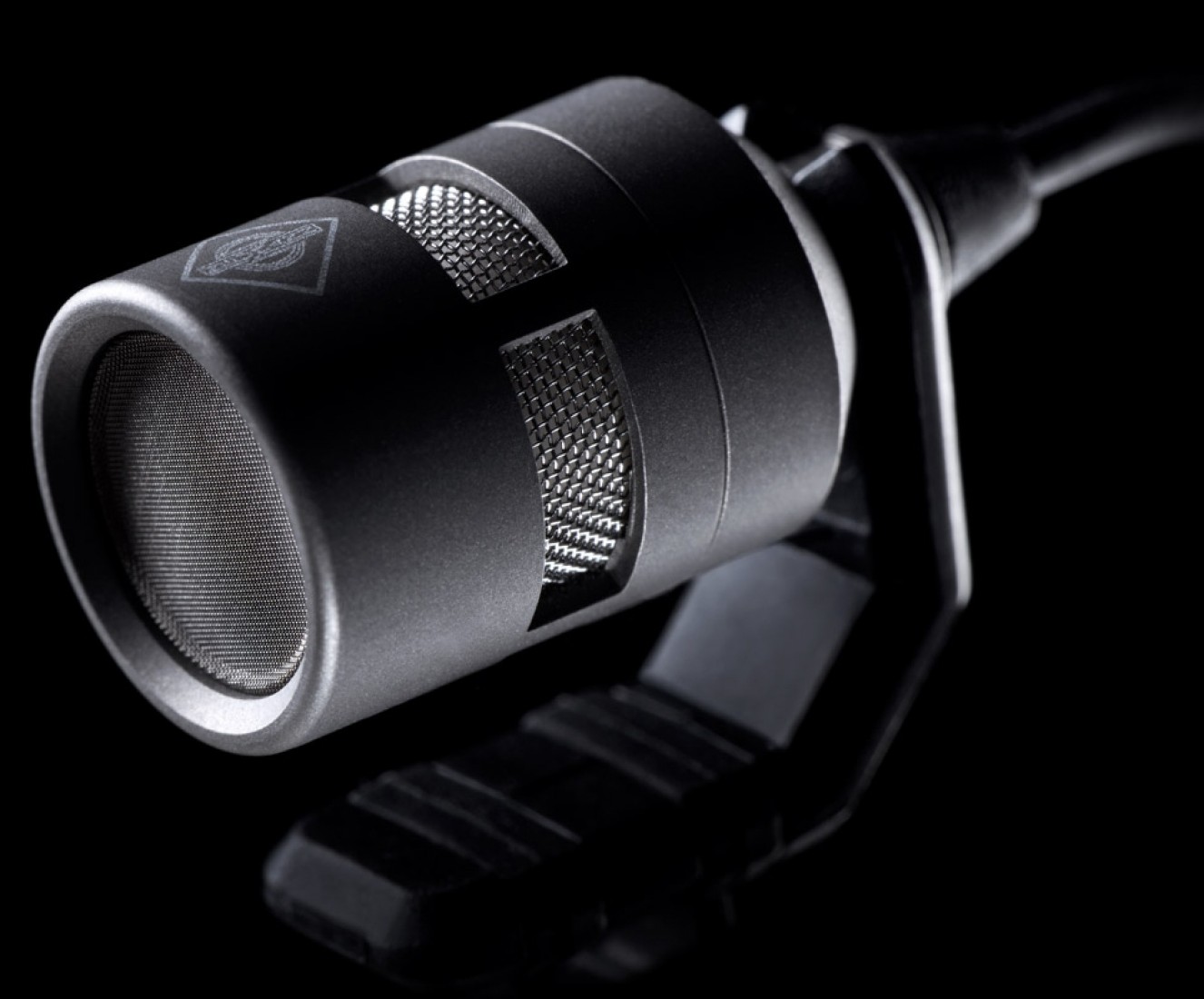

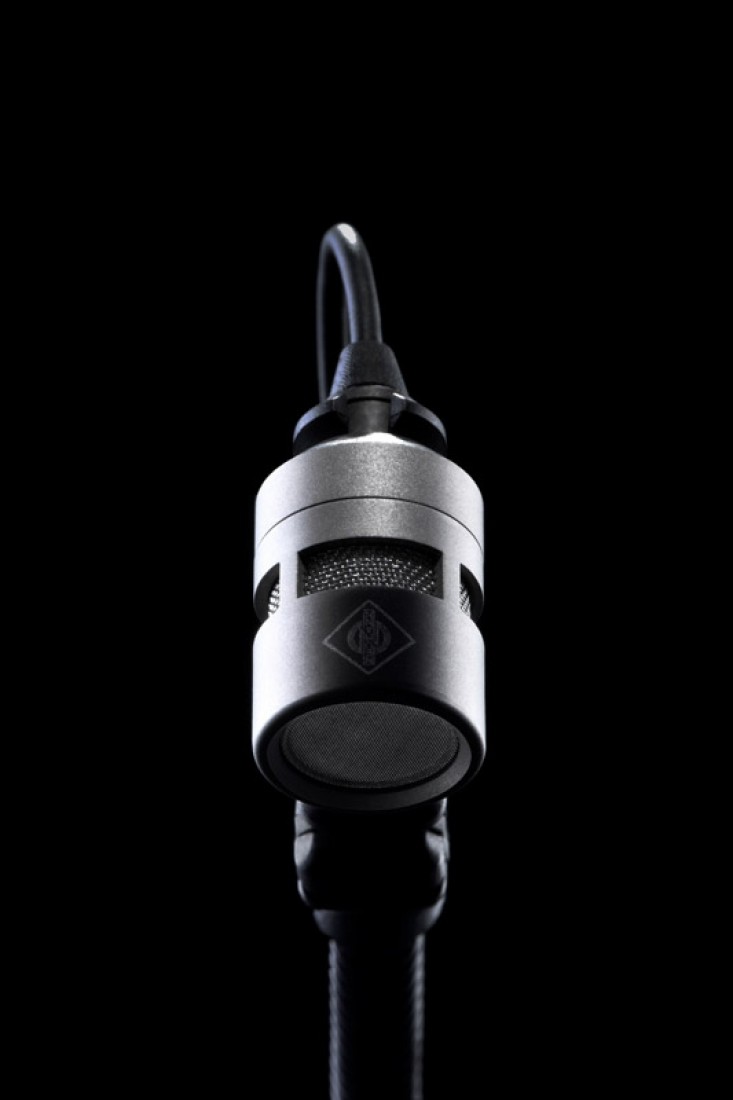

The Power of the KK 14 Capsule:

Percussion instruments require a microphone that can handle immense transient peaks without losing detail. The KK 14 capsule captures the full body of the drum and the crisp "crack" of the stick hit with incredible accuracy. With a massive Max SPL of 153 dB, it handles the most aggressive heavy-hitting drummers without distortion. Its cardioid polar pattern provides excellent isolation, minimizing "bleed" from nearby cymbals or other drums in the kit.

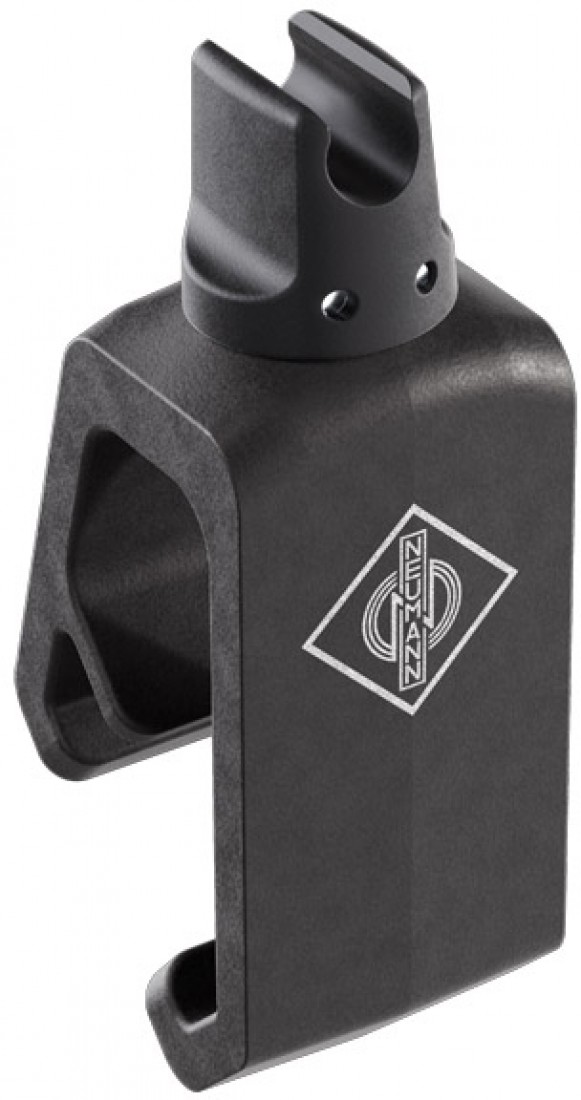

High-Impact MC 7 Rim Mounting:

The included MC 7 clip is specifically designed to grip the hoops of snares and toms securely. It features a robust clamping mechanism that fits rims up to 20 mm thick. To protect the instrument's chrome or lacquer finish and provide mechanical isolation, the clip is fully lined with a soft-touch rubber coating. This ensures that the vibration of the drum shell does not interfere with the microphone's signal.

Flexible and Stable Positioning:

The SH 150 gooseneck (150 mm) provides the flexibility to position the capsule at the perfect angle relative to the drumhead. To ensure the microphone stays exactly where you aim it, the holder on the MC 7 clip locks in 45-degree increments. This prevents the gooseneck from sagging or shifting during a high-energy performance, providing a reliable and repeatable sound for every set.

Wired and Wireless Ready:

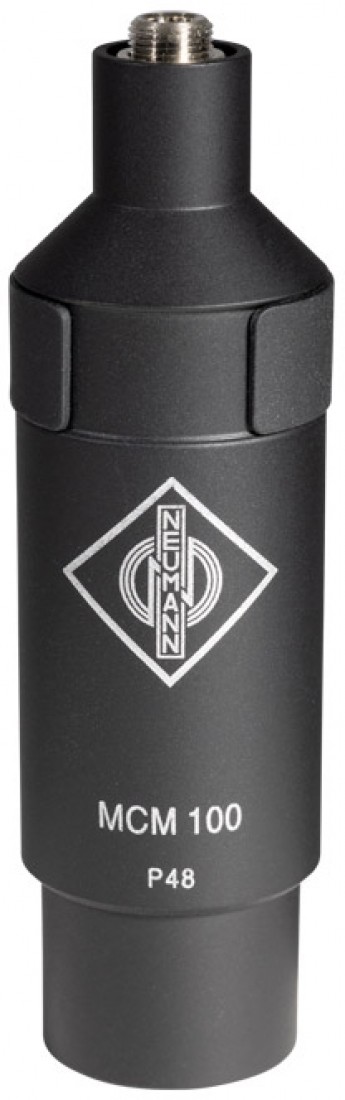

This set is designed for maximum versatility on stage. For wired applications, the included MCM 100 output stage converts the signal to a balanced XLR for direct connection to a mixer using standard phantom power. For drummers who require more freedom or use electronic hybrid setups, the modular cables can be swapped for optional adapters compatible with Sennheiser, Shure, and Lectrosonics wireless beltpacks.

Professional Discreet Look:

Every component of the MCM 114 set features a sleek, non-reflective Black finish. This ensures that the microphone hardware remains virtually invisible to the audience and cameras, keeping the focus on the drummer and the kit during televised performances or professional video shoots.

Key Features

• Legendary KK 14 Capsule: Studio-grade cardioid electret with unmatched tonal balance.

• MC 7 Drum Rim Clip: Secure, rubberized mounting that protects the hoops and decouples vibrations.

• Extreme Dynamic Range: Handles up to 153 dB SPL with absolute clarity.

• Stepped 45° Locking: Keeps the gooseneck firmly in place during high-impact play.

• Modular Connectivity: Includes XLR output stage; compatible with major wireless brands.

• Rugged & Discreet: Professional black finish designed for the rigors of world tours.

What’s in the Box?

• KK 14 Cardioid Capsule

• SH 150 Gooseneck (150 mm)

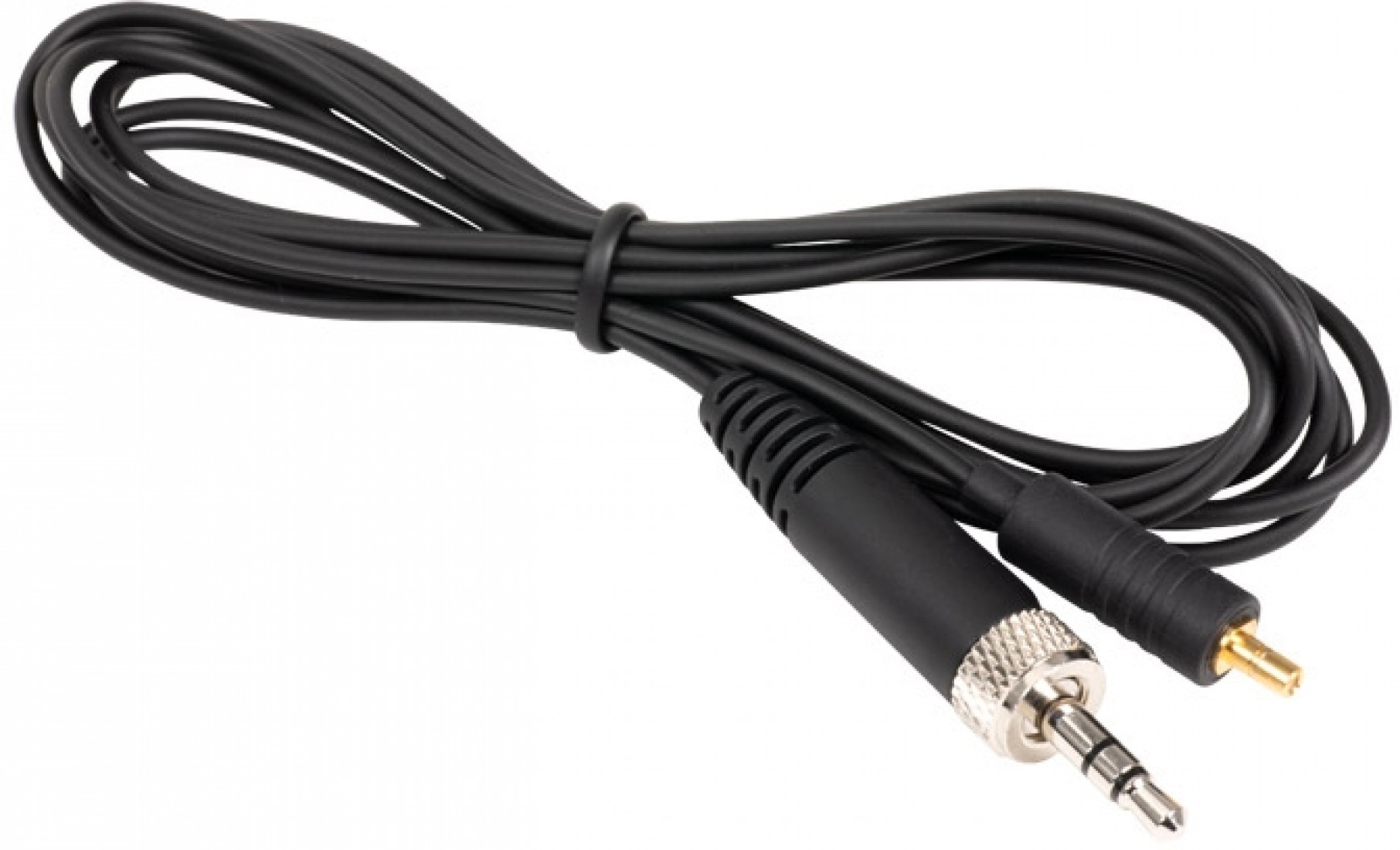

• AC 31 Connection Cable (3.5 mm TRS, 1.8 m)

• WS 110 Windshield

• MCM 100 Output Stage (XLR)

• MC 7 Clip for Drum Rims

• Soft Case for storage and transport

Technical Specifications
