Product Overview

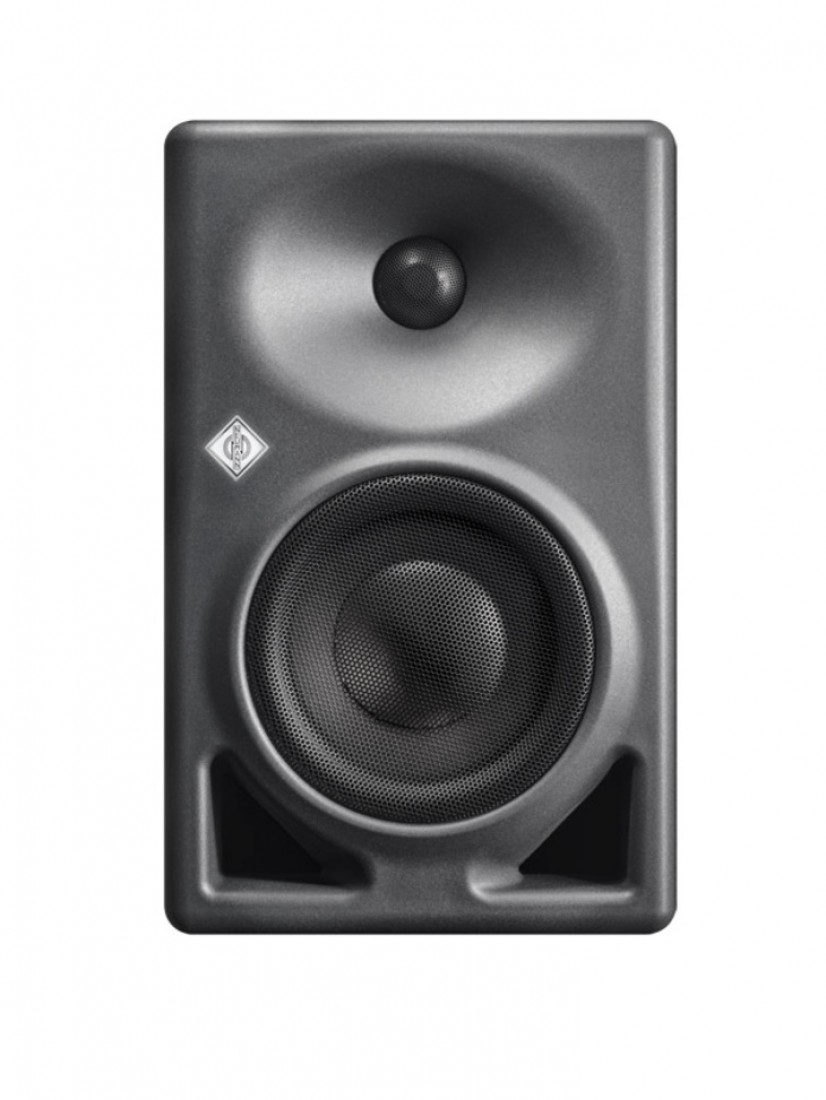

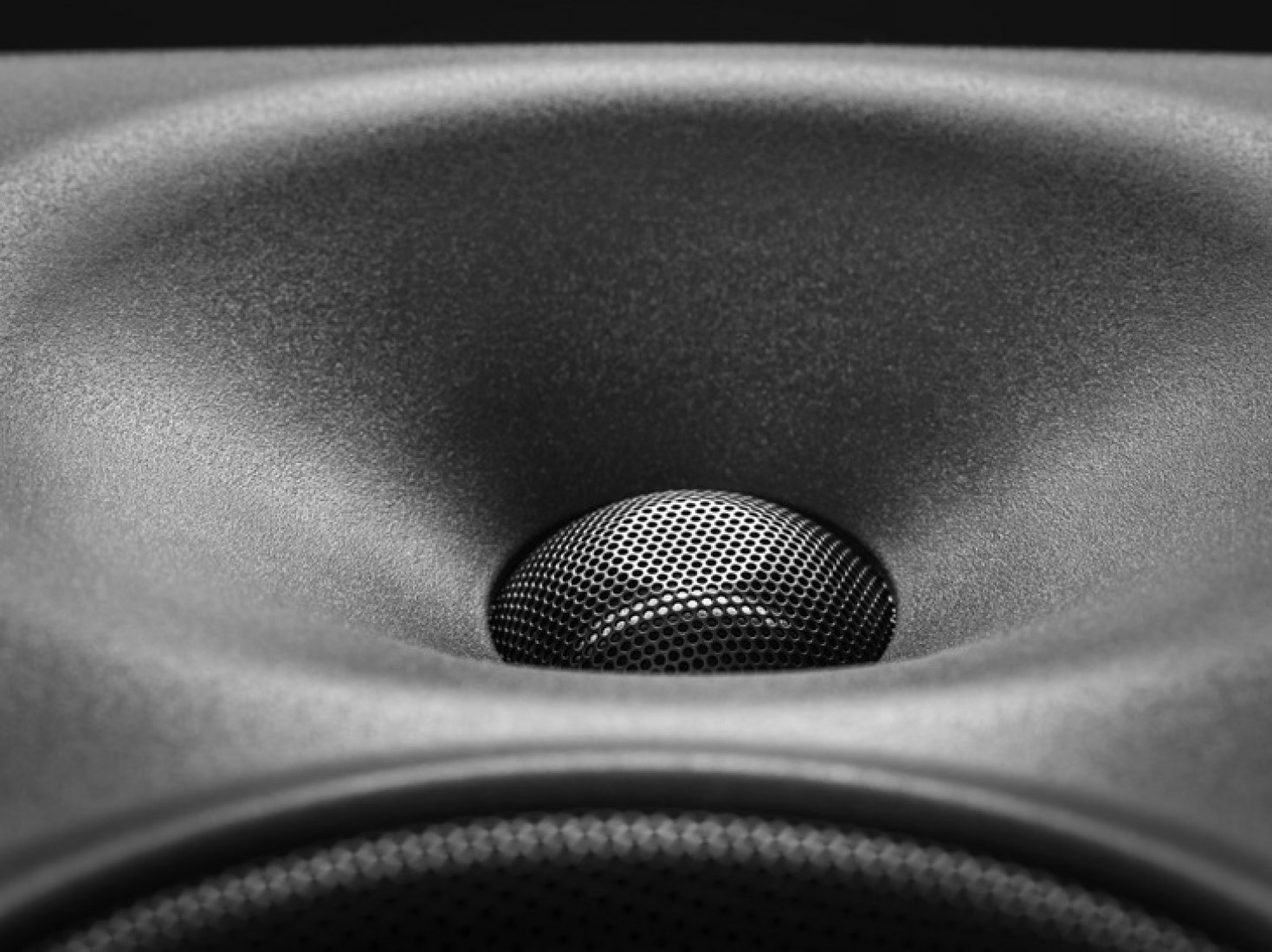

The KH 120 II (509120) takes the blueprint of the original KH 120—a monitor world-renowned for its honesty—and enhances every performance metric. It features a new 5.25" high-precision woofer and a 1" alloy fabric dome tweeter housed in a Mathematically Modeled Dispersion™ (MMD) waveguide. The standout addition is the internal DSP engine, which allows the monitor to be perfectly calibrated to your room's unique acoustics using the Neumann MA 1 alignment system. This ensures a phase-linear response and a rock-solid stereo image that simply wasn't possible in previous analog generations.

Product Description

A New Benchmark for Linear Response:

The KH 120 II is engineered for absolute truth in monitoring. It boasts an incredibly flat frequency response from 44 Hz to 21 kHz (±3 dB), ensuring that your EQ and compression decisions translate perfectly to any playback system. By utilizing DSP-controlled crossovers, Neumann has eliminated the phase distortion common in traditional analog filters, resulting in a level of clarity and transient detail usually reserved for much larger flagship monitors.

DSP-Powered Room Correction:

Every room has acoustic flaws that "color" what you hear. The KH 120 II features an internal DSP processor that works seamlessly with the Neumann MA 1 Automatic Monitor Alignment. By measuring your room with the MA 1 microphone, the monitor's internal filters are automatically adjusted to compensate for room modes and reflections. This gives you a "calibrated" listening environment where the low-end is tight and the midrange is perfectly transparent.

Redesigned Class-D Amplification:

The move to high-efficiency Class-D amplifiers (145W for the woofer / 100W for the tweeter) allows the KH 120 II to deliver higher sound pressure levels (116.8 dB) while consuming significantly less power. These amps provide the necessary headroom to handle complex transients without clipping or heat buildup. Additionally, the "Auto Standby" feature reduces power consumption to 0.3W when the monitor is not in use, meeting the latest environmental standards.

Versatile Connectivity and Placement:

The KH 120 II is designed to fit into any professional workflow. It features an XLR Analog input for traditional consoles and a Digital S/PDIF (RCA) input for direct digital connections. Its compact composite cabinet is extremely rigid, reducing internal standing waves. With a wide variety of mounting options available, it is equally at home on a desk, a wall, or in a multi-channel Dolby Atmos® ceiling grid.

Key Features

• Next-Gen Drivers: 5.25" woofer and 1" tweeter for ultra-low distortion.

• DSP Internal Engine: Advanced crossover and phase-linear response.

• MA 1 Calibration Ready: Compatible with Neumann Automatic Monitor Alignment.

• MMD™ Waveguide: Large "sweet spot" with minimized desktop reflections.

• Powerful Bi-Amplification: 245W total Class-D power for high dynamic range.

• Enhanced Bass: Linear low-frequency extension down to 44 Hz.

• Flexible Inputs: XLR Analog and S/PDIF (RCA) Digital connectivity.

• EU/KR Certified: Optimized for European and South Korean power grids.

Applications

• Nearfield Mixing: The ultimate reference for home, project, and pro studios.

• Immersive Audio: Ideal for surround, 5.1, 7.1, and Dolby Atmos® setups.

• Broadcast & Editing: High speech intelligibility for radio and post-production.

• Mobile Recording: Compact and rugged enough for high-end remote rigs.

• Mastering: High-resolution detail for final QC and critical listening.

Technical Specifications
