Product Overview
Professional Monitoring Quality via Digital Expertise
The MA 1 Automatic Monitor Alignment is an integrated solution specifically designed for Neumann studio monitors. Unlike conventional correction software, MA 1 does not require a plug-in or special audio driver during playback. The alignment data is stored and processed within the DSP-powered loudspeakers themselves. This results in increased clarity, consistency across monitors, dry bass, and a time-correct, highly accurate depiction of reverbs and acoustic spaces.
Product Description
Reliable Monitoring Anywhere:
The MA 1 is a dedicated tool for aligning network-enabled KH Line monitors in stereo systems. It also supports stereo systems with Bass Management via additional subwoofers. For users with analog (non-network-enabled) KH Line monitors, alignment is still possible when connected through a Neumann KH Network-enabled subwoofer. This configuration offers the added benefit of phase linearization for analog monitors, significantly increasing accuracy in tonality and stereo localization.
How It Works:
The alignment is a guided process that requires no specialized acoustics knowledge:
Gather Performance: Connect your KH line monitors to your interface and the individually calibrated Class I MA 1 microphone to the mic input.

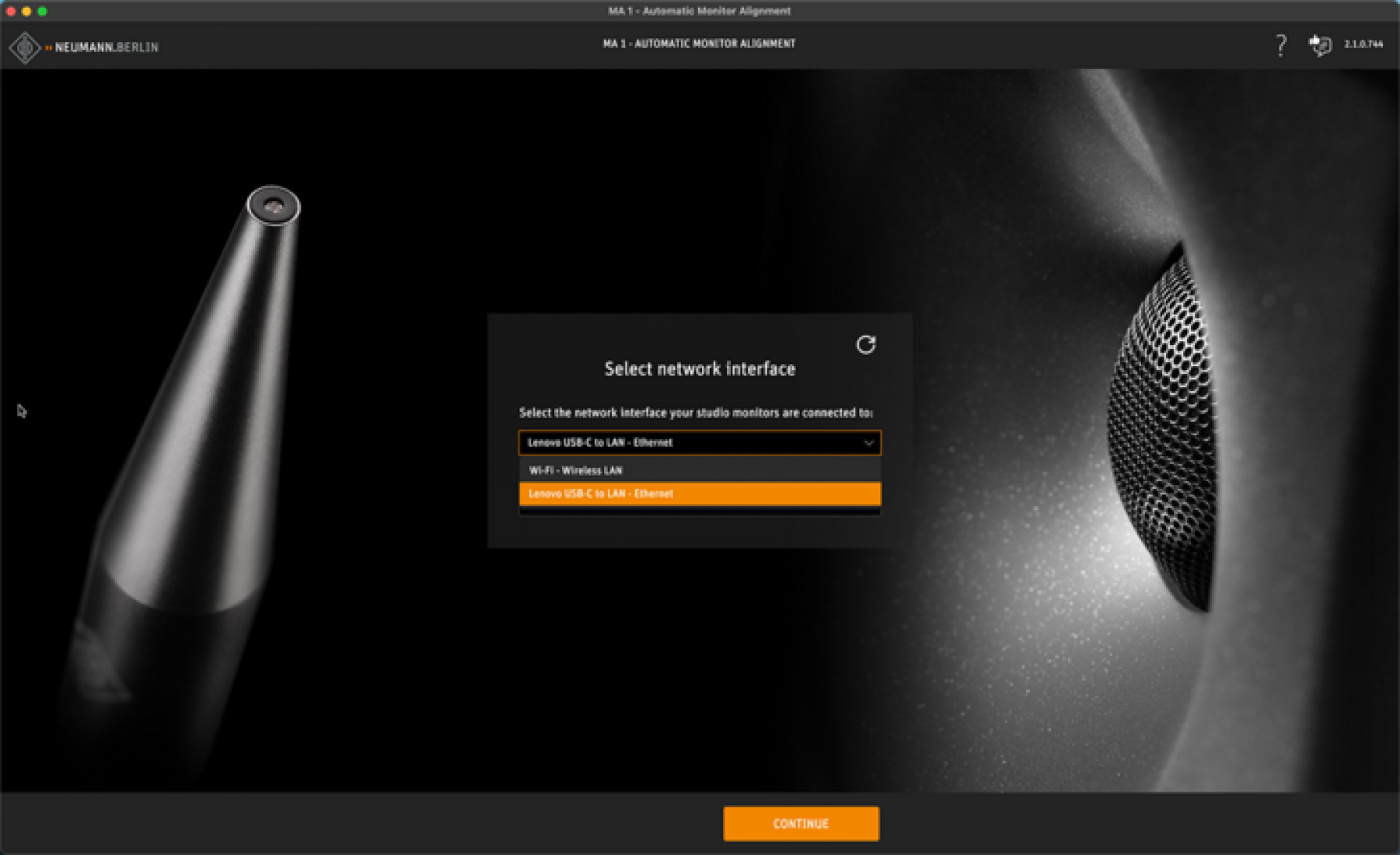

Network Connection: Connect the monitors to your computer via a standard Ethernet switch.
Analyze & Correct: The software ascertains the room's acoustic properties and generates correction parameters based on a room-specific target curve.
Finalize: Once aligned, the parameters are stored in the monitors. The Ethernet connection can then be removed, though keeping it allows for advanced functions like switching presets or deactivating subwoofers.
Multichannel & Bass Management:
The MA 1 ensures optimal summation between subwoofers and satellites, preventing the subwoofer from being perceived as a separate sound source. For those looking to expand into surround or immersive setups, a Multichannel Extension license is available as a separate paid extra.
Key Features

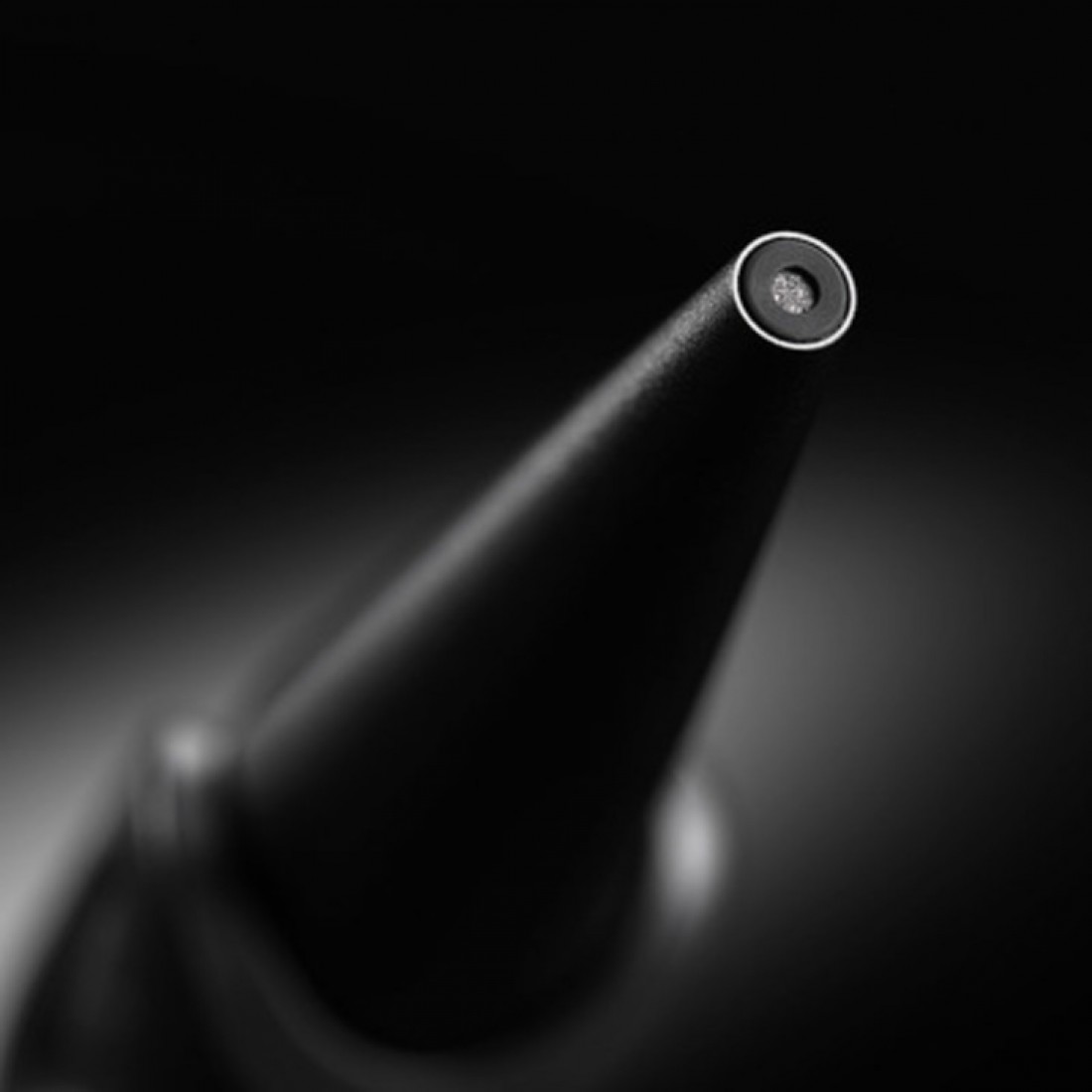

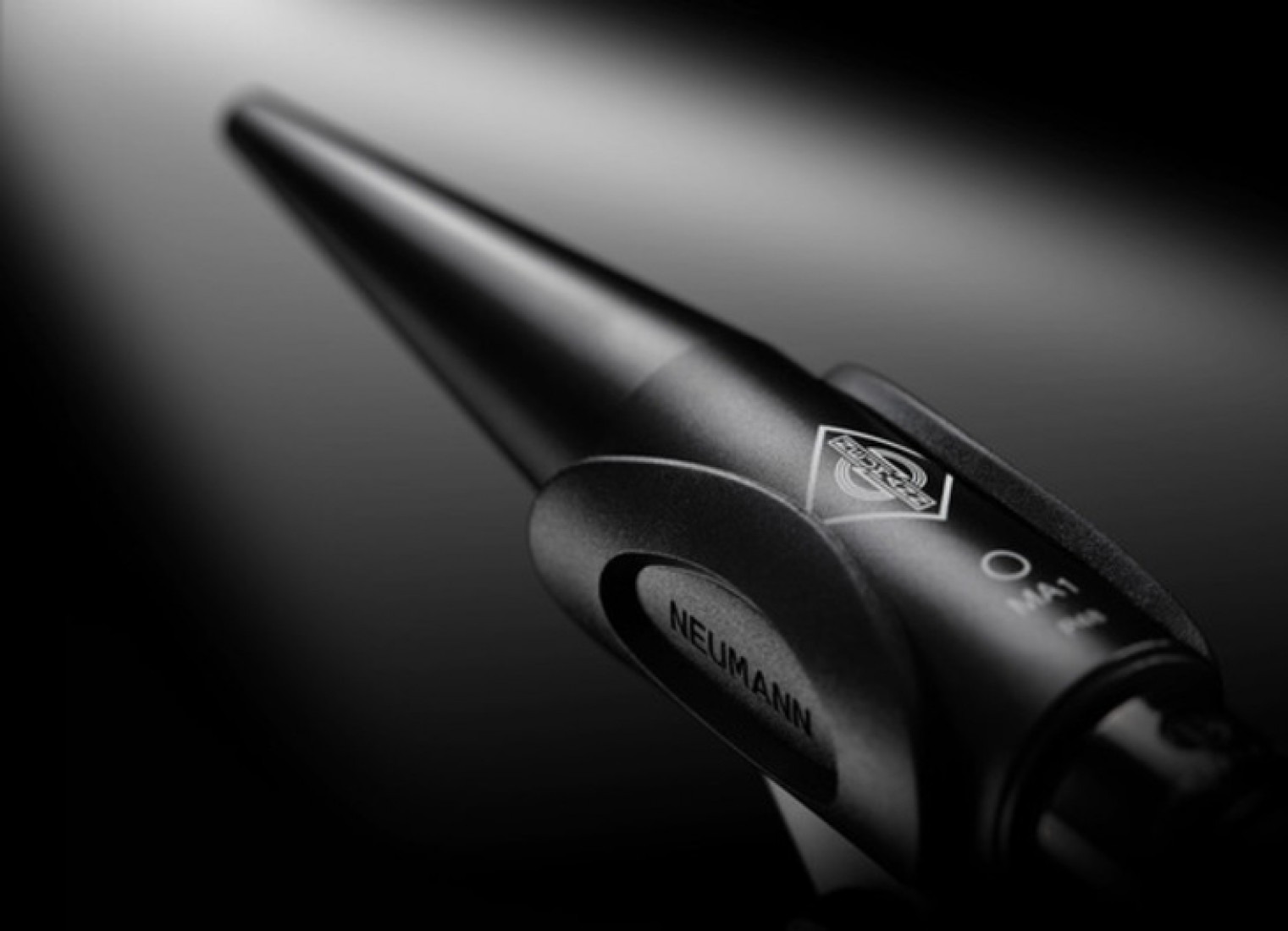

Individually Calibrated Microphone: Class I measurement microphone specifically developed for this software.
Room Mode Compensation: Precise and effective compensation of room acoustic issues.
DSP Storage: No plugins or drivers needed for playback; data is stored in the monitors.
Phase Linearization: Enhances the accuracy of analog monitors (KH 120, 310, 420) when used with a DSP subwoofer.

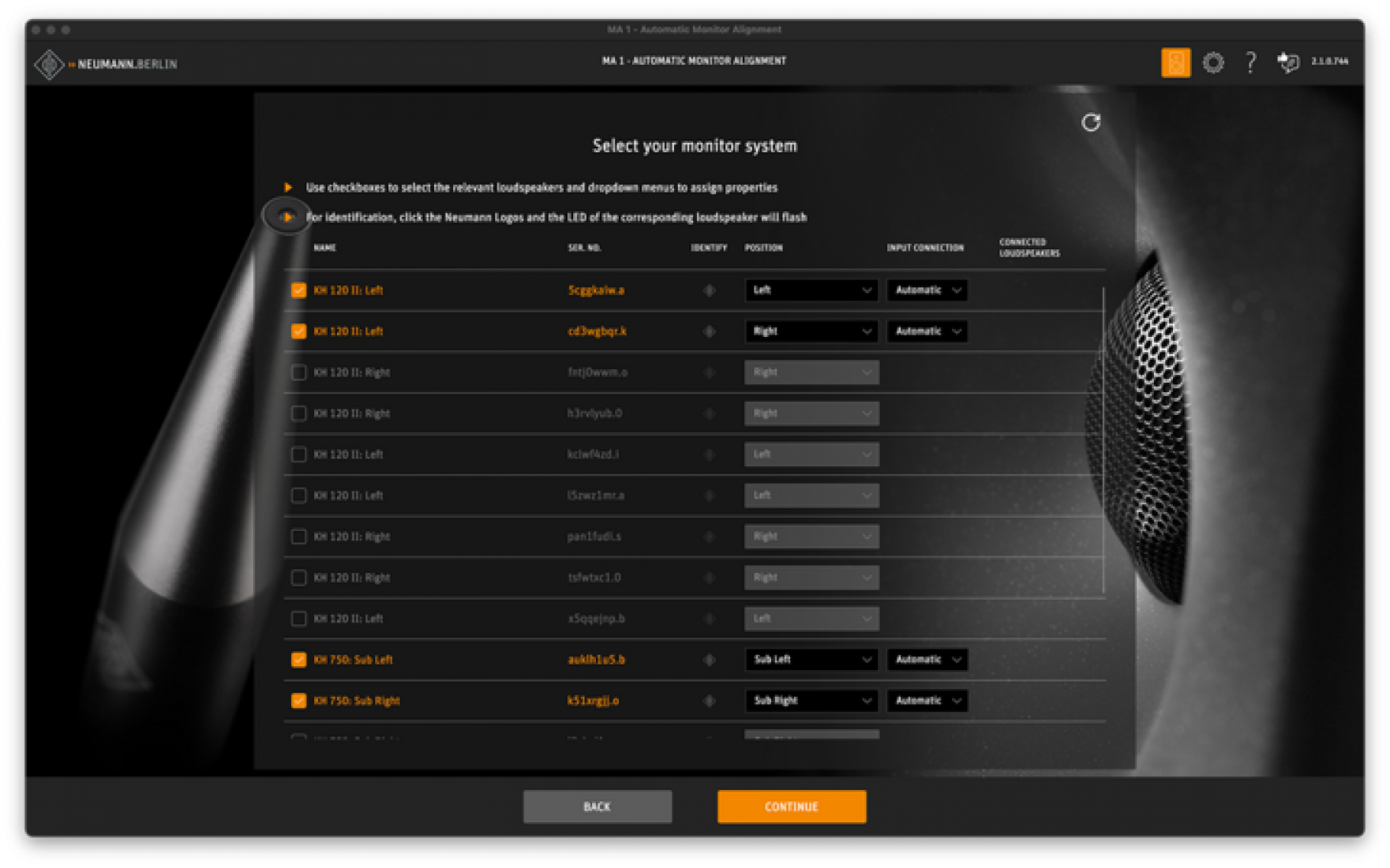

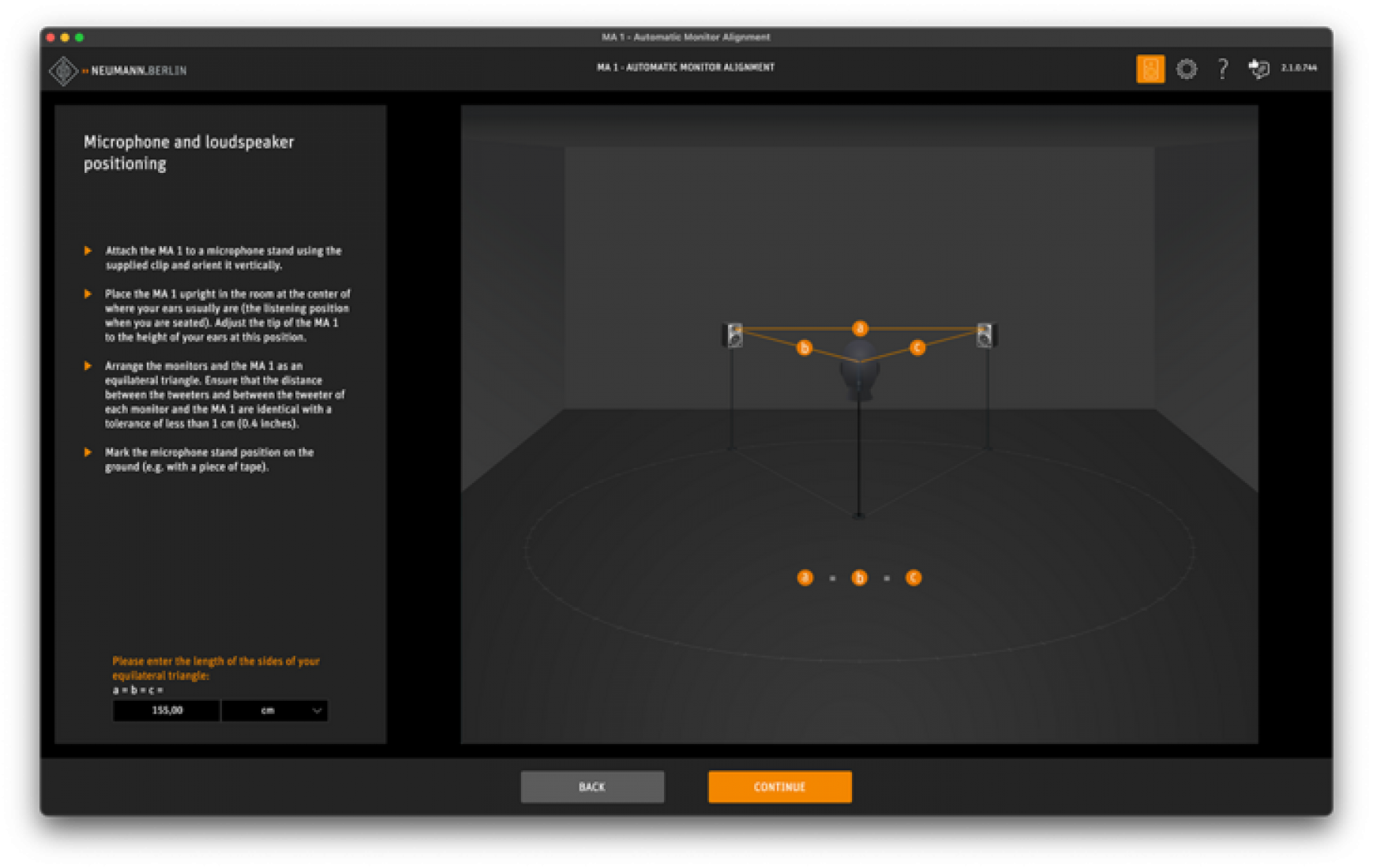

Guided Process: Step-by-step software instructions for flawless calibration.
Target Curve Customization: Modify the calculated target curve to meet your specific listening needs.
Hardware & Software Requirements
Requirement
Details
Operating System
PC: Windows 10/11 (64-bit)
Audio Interface
1x Balanced analog mic input with 48V phantom power
Network
Standard Ethernet switch supporting IPv6
Screen Resolution
1280 × 720 px or higher
Driver
ASIO driver (required for Windows)
Compatibility List
Network-Enabled (Direct Control):
KH 80 DSP, KH 120 II, KH 150.
KH 750 DSP, KH 805 II, KH 810 II, KH 870 II (including AES/AES67 versions).
Non-Network-Enabled (Via DSP Subwoofer):
KH 120 A/D, KH 310 A/D, KH 420.
Important Information
Software Download: The MA 1 software is available in the Neumann Product Registration portal under "Software Download."
iPad App Note: Using MA 1 will overwrite any previous adjustments made via the Neumann.Control iPad app.

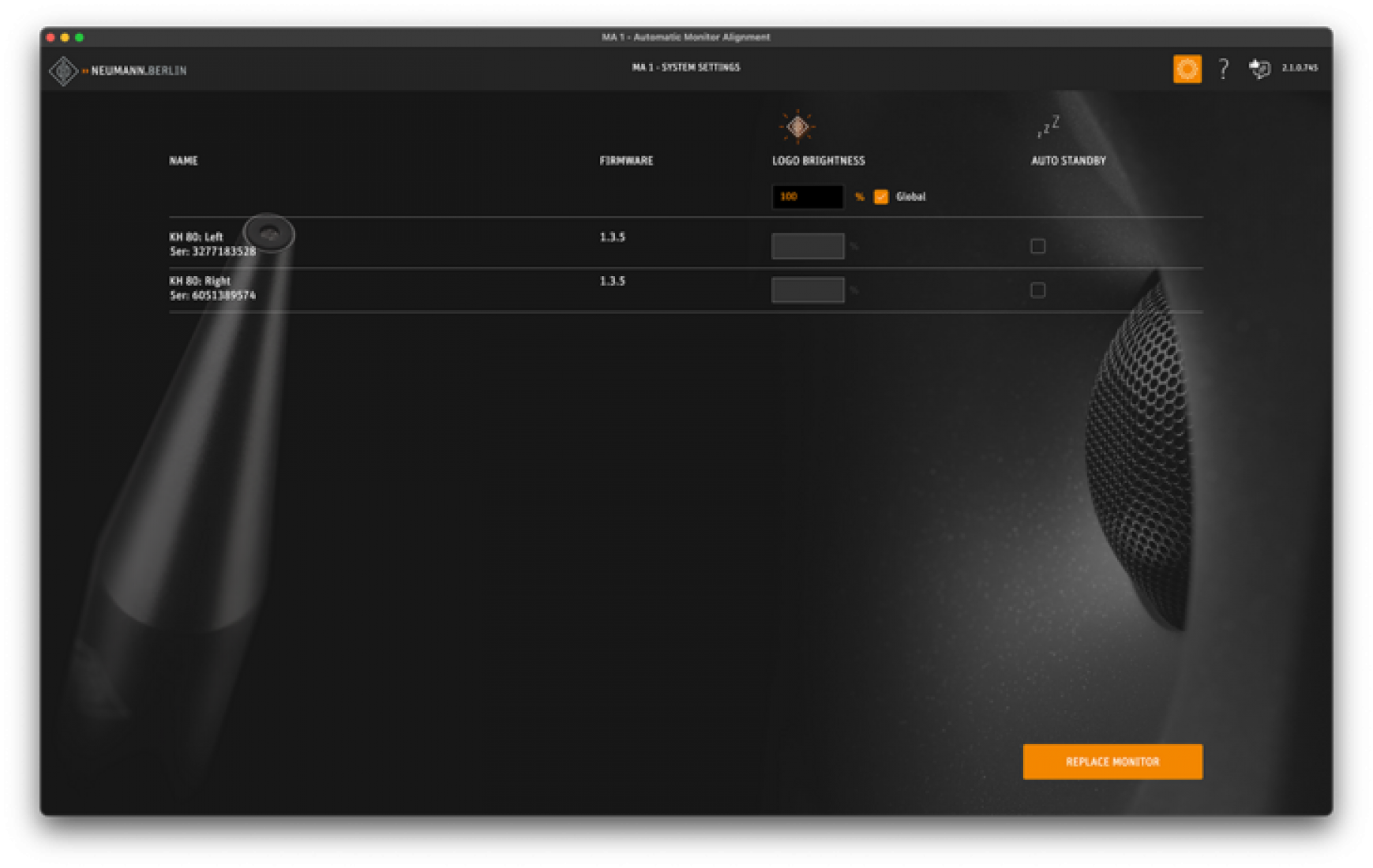

System Control: A continuous network connection is only required if you wish to control level settings or switch presets during operation.
Microphone Linearization: To use the MA 1 microphone in third-party applications, you can calculate the individual correction curve here.
