Product Overview
The Ultimate Expression of High-Resolution Digital Reconstruction
In typical premium digital-to-analog converter designs, sonic bottlenecks rarely arise from the digital conversion chip itself. Instead, limitations occur within the subsequent analog low-pass filtering and line-driving stages, where standard low-voltage operational amplifiers struggle to preserve the full transient energy and spatial depth of a high-resolution file.
The SPL Diamond completely eliminates this operational ceiling. By processing converted digital current outputs immediately through its signature high-voltage analog rail matrix, the Diamond ensures that digital audio is reconstructed with its micro-dynamics, transient punch, and three-dimensional soundstage completely intact. Offering a sleek, compact desktop footprint that mirrors the Elector and Director series, it functions beautifully as a standalone premium DAC or as a streamlined, direct-to-amplifier digital preamplifier.
Product Description
Unrivaled Headroom with 120V VOLTAiR Technology:
The defining characteristic of the Diamond is its analog backend, powered by SPL's exclusive VOLTAiR technology. Running on a dedicated internal plus/minus 60V DC linear network—effectively delivering four times the voltage ceiling of conventional consumer and pro-audio conversion units—the Diamond achieves a massive +32.5 dBu of analog output headroom. This high-voltage architecture allows the discrete analog filters to handle sharp, complex digital transient spikes with absolute transparency. Digital files completely shed their cold, clinical edge, adopting a relaxed, wide, and deep sonic signature devoid of phase smear or dynamic compression.
Premium DAC768 Conversion Matrix:
On its digital front, the Diamond incorporates an ultra-resolution DAC768 processing architecture centered around a premium 32-bit converter chipset. It handles asynchronous PCM streams up to a breathtaking 768 kHz and native Direct Stream Digital signals up to DSD256 (DSD4) over USB.

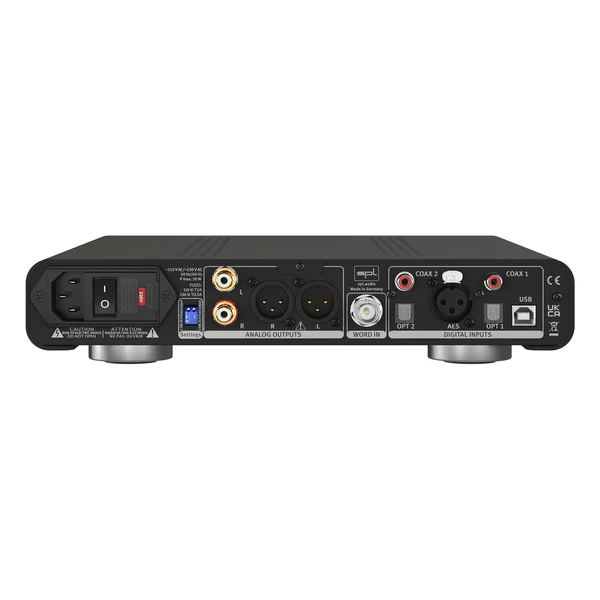

Input Versatility: Features comprehensive digital routing options including professional balanced AES/EBU, coaxial S/PDIF, and optical Toslink terminals to sync up network streamers, CD transports, computers, or television decks simultaneously.
Discrete Reconstruction Filters: Instead of passing the converted signal into cheap off-the-shelf IC chips, the delicate low-pass filtering stages are meticulously designed by SPL using discrete VOLTAiR components, protecting the analog spectrum from high-frequency digital ripples.
Fixed or Variable Preamplifier Integration:
The front-panel layout features an intuitive, logic-driven source selector switch alongside an automated dot-matrix LED display that instantly reads out the active input and incoming sample rates. To adapt smoothly to any audio environment, the Diamond features a rear toggle switch to choose between two operational output layouts:
Variable Mode: Engages a premium analog volume control potentiometer, allowing the Diamond to serve as a high-definition digital preamplifier hooked directly to active monitors or stereo power amplifiers (like the SPL Performer series).
Fixed Mode: Bypasses the volume circuitry completely, sending an uncompromised line-level signal straight into an external analog preamplifier or mastering console.
Key Features
120V VOLTAiR AUDIO RAIL PLATFORM: Operates on SPL’s proprietary high-voltage rails for unmatched analog headroom, ultra-low distortion, and maximum transparency.
768 kHz PCM & NATIVE DSD256: Decodes high-resolution PCM up to 768 kHz and native DSD up to DSD256 over asynchronous USB.
COMPREHENSIVE DIGITAL INPUT HUB: Equipped with asynchronous USB, balanced AES/EBU, coaxial S/PDIF, and optical Toslink inputs.
FIXED OR VARIABLE LINE OUTPUTS: Switch easily between running the unit as a direct monitor-driving digital preamp or a fixed-output mastering DAC.
DOT-MATRIX SAMPLE RATE DISPLAY: A highly visible front-panel display instantly verifies clock lock and indicates incoming digital sample frequencies.
INTERNAL LINEAR POWER ENGINE: Utilizes a highly shielded toroidal transformer to prevent magnetic stray fields from introducing background hum or noise.
134.5 dB DYNAMIC RANGE: Provides an ultra-wide dynamic soundstage that easily captures micro-details hidden within high-resolution formats.
12V TRIGGER CONNECTIONS: Features Amp CTL outputs to automatically wake up or put connected power amplifiers to sleep alongside the unit.
COMPACT INDUSTRIAL CHASSIS: Premium milled aluminum faceplate and robust housing designed to stack perfectly with other SPL components.
Technical Specifications
Feature
Specification
Device Type
Premium Stereo Digital-to-Analog Converter (DAC) and Digital Preamplifier
Core Architecture
Proprietary 120V VOLTAiR Rail Technology (+/-60V DC Analog Audio Operating Rails)
