Product Overview

Absolute Control, Unlimited Current, and True Mastering-Grade Authority

Most standard high-end power amplifiers lose their grip when speaker impedance drops, compressing the soundstage, losing bass texture, and clipping prematurely during complex musical movements. The SPL Performer m1000 completely rewrites this narrative. Designed as a dedicated, ultra-powerful mono-block, it isolates all channel crosstalk permanently while dedicating its entire power supply layout to driving a single loudspeaker cabinet.

By separating the internal operating architectures into a voltage-amplification input stage driven by VOLTAiR components and a brute-force bipolar power output matrix running on separate rails, the m1000 bridges the gap between delicate musicality and seismic power. Whether driving massive multi-driver towers, low-sensitivity planar arrays, or unpredictable high-end speaker loads, this flagship mono-block rules over the drivers with total authority, maintaining absolute linearity from whispered details to earth-shaking crescendos.

Product Description

Dual-Stage Operating Rail Architecture with 120V VOLTAiR:

The astonishing clarity and endless energy of the Performer m1000 are rooted in its bi-operational voltage infrastructure. The initial input and driver tracking networks are powered entirely by SPL's proprietary 120V VOLTAiR technology, running on an ultra-clean plus/minus 60V DC internal rail system. This keeps the incoming signal pristine, boasting a massive -123 dB A-weighted noise floor and ultra-low harmonic distortion profiles.

When that pristine signal meets the heavy output section, the amplifier passes the torch to a towering plus/minus 91V DC high-current power rail system. This dual-stage insulation prevents the massive back-electromotive currents generated by heavy bass woofers from feeding back into the delicate input tracking circuitry, maintaining flawless structural separation and stereo depth under heavy loads.

A Vault of Raw Energy – 1375VA Transformer & 100k µF Capacitance:

An amplifier can only be as powerful as its power supply. The physical core of the m1000 houses a custom-engineered 1,375 VA linear toroidal transformer, heavily shielded and vacuum-encapsulated to suppress physical vibrations and stray magnetic hum. This massive transformer feeds a premium storage reservoir containing 100,000 µF of fast-charging storage capacitors. When an orchestra explodes or an electronic sub-bass line drops, this enormous electrical reservoir discharges instantaneous current without any voltage sagging or temporal smear, rendering transients with jaw-dropping realism.

Precision Input Level Matching & Safe Overload Safeguards:

The back of the m1000 features a rugged, 6-position Input Trim Potentiometer that allows you to scale down incoming signals from 0 dB to -5.5 dB in highly accurate 1 dB increments. This feature is invaluable for perfectly level-matching your left and right mono-blocks with various preamplifier outputs, or optimizing the overall sweet spot of your system's volume control.

To protect your premium loudspeaker investment, the Performer m1000 includes advanced, non-invasive Protection Circuitry:

• Overheating Safeguard: Monitored by internal thermal sensors, the unit safely manages its cooling cycles through low-noise fans if pushed past safe operating limits.

• DC Voltage Overload Protection: If the amplifier detects harmful direct current (DC) at its input or output terminals, an integrated micro-controller trips a yellow warning LED and immediately disconnects the speaker outputs, safeguarding voice coils from destruction without degrading the analog signal path.

Key Features

• 120V VOLTAiR INPUT Core: High-voltage operational rails unlock massive input headroom, low distortion, and an exceptionally quiet background.

• SEISMIC MONO-BLOCK POWER OUTPUT: Delivers up to 1000W RMS into 2 Ohms and 750W RMS into 4 Ohms to control difficult loudspeaker configurations effortlessly.

• DUAL-STAGE SYSTEM POWER RAILS: Separates input driver loops (+/-60V) from the power amplification stage (+/-91V) to isolate heavy woofer feedback.

• 1,375 VA TOROIDAL TRANSFORMER: Custom-wound linear power core provides an endless supply of raw energy while maintaining silent physical operation.

• 100,000 µF STORAGE DECK: High-capacitance storage bank delivers lightning-fast transient response and deep, authoritative sub-bass extension.

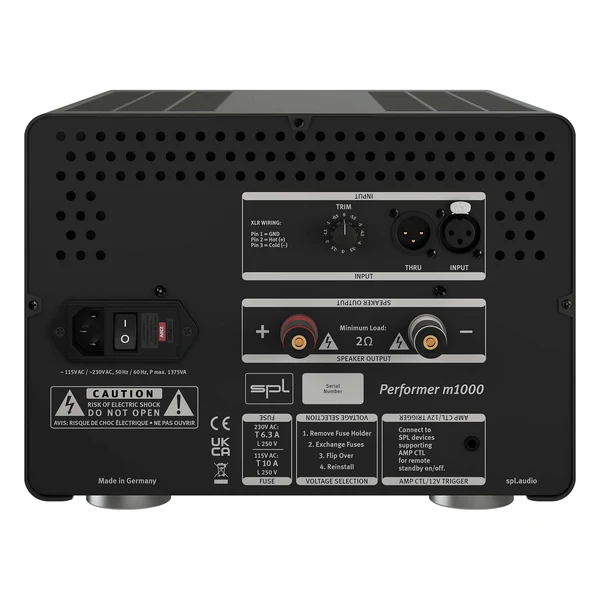

• ROBUST MULTI-OPTION BINDING POSTS: Heavy-duty gold-plated connection terminals comfortably accept bare wire, spade lugs, or standard 4mm banana plugs.

• CONVENIENT XLR INPUT & THRU NODES: Premium balanced input matching coupled with a passive loop-through port to easily bi-amp or daisy-chain multiple mono-blocks.

• 6-WAY STEPPED INPUT CALIBRATION: Hardware trim attenuator allows you to match preamplifier gain curves precisely from 0 dB down to -5.5 dB.

• SMART 12V CONTROL RECEPTACLE: Integrated 12-volt trigger circuit synchronizes your mono-block's power states instantly with your preamplifier.

• NON-INVASIVE PROTECTIVE SENSORS: Intelligent micro-controllers guard against thermal runaways and destructive DC voltage offsets.

Technical Specifications

What’s Included in the Box

• 1 x SPL AUDIO Performer m1000 Powerhouse Mono-Block Power Amplifier

• 1 x Heavy-Duty High-Current AC Grounded IEC Power Cable

• 1 x Set of Premium Vibration-Isolating Mechanical Chassis Feet

• 1 x Official SPL Professional Fidelity Series Performer m1000 Reference Manual
