The Analog Command Center for Precision Mastering Environments At the heart of every serious mastering studio is a console responsible for source switching, gain staging, analog insert routing, and speaker monitoring. The SPL DMC excels in this exact role by removing color and artifacts entirely from the path.
The console organizes its workflows into two clear zones: Inputs (for signals targeted for active processing) and Sources (for reference playback, secondary DAWs, or external media decks). Whether scaling up to handle analog processors via the integrated stereo insert loops or matching playback loudness differences using independent Left/Right trims, the 3RU DMC handles signal routing intuitively and with extreme ergonomic precision.
Product Description
Unrivaled Headroom with 120V Rail Technology: Most discrete pro-audio gear operates on standard plus/minus 15V or plus/minus 18V rails. The SPL DMC completely changes the rules by running on a plus/minus 60V DC internal audio rail—effectively double or four times the operating voltage of common op-amps. This immense power supply allows the console to accept blistering input signals up to +32.5 dBu without a hint of clipping or saturation distortion. This architecture guarantees a completely relaxed, open, and fatigue-free listening experience while maintaining microscopic transient definition across the entire 4 Hz to 300 kHz frequency response array.
Precision Gain Staging and Trim Controls: The preamp configuration features discrete Left and Right Input Trim knobs that operate in precise, repeatable 0.25 dB steps. This lets you micro-correct for stereo image imbalances or carefully drive external analog chains. For sweeping leveling changes, a large, premium potentiometer handles Recording Gain rides over a plus/minus 10 dB window. If you ever need an absolutely uncolored trace, the gain stage can be completely switched off, physically removing the control circuits from the live path.
Intelligent Processing and Monitoring Bypasses: Evaluating processing changes objectively requires eliminating loudness bias. The DMC incorporates a highly intuitive Auto-Bypass engine with an adjustable Interval control. This automatically toggles the insert chain on and off at predetermined times, letting the engineer focus entirely on the sound. Furthermore, double-tapping any active input button triggers Direct Input Monitoring. This allows you to audition your uncompromised raw input source without disturbing the running print to your destination DAW or analog tape deck.
Comprehensive Speaker Layout and Immersive Expansion: The backend monitoring matrix manages up to four speaker profiles (three stereo pairs: A, B, C; plus a dedicated mono system: D) along with a dedicated Subwoofer terminal. Linking the subwoofer to any monitor pair is as simple as pressing both buttons simultaneously. For studios expanding into immersive mixing formats like Dolby Atmos or Auro 3D, the stereo DMC bridges cleanly with the SPL MC16 16-channel analog monitor controller. Once linked, the volume pot on the DMC seamlessly masters the multi-channel array without requiring annoying cable patches or physical reorganizations.
Key Features
120V DC OPERATING VOLTAGE: Powered by SPL’s proprietary 120V rails for unmatched dynamic range and zero internal signal compression.
5G SUPRA OPERATIONAL AMPLIFIERS: Utilizes Fifth-Generation custom op-amps optimized for ultimate thermal stability and open, transparent sound.

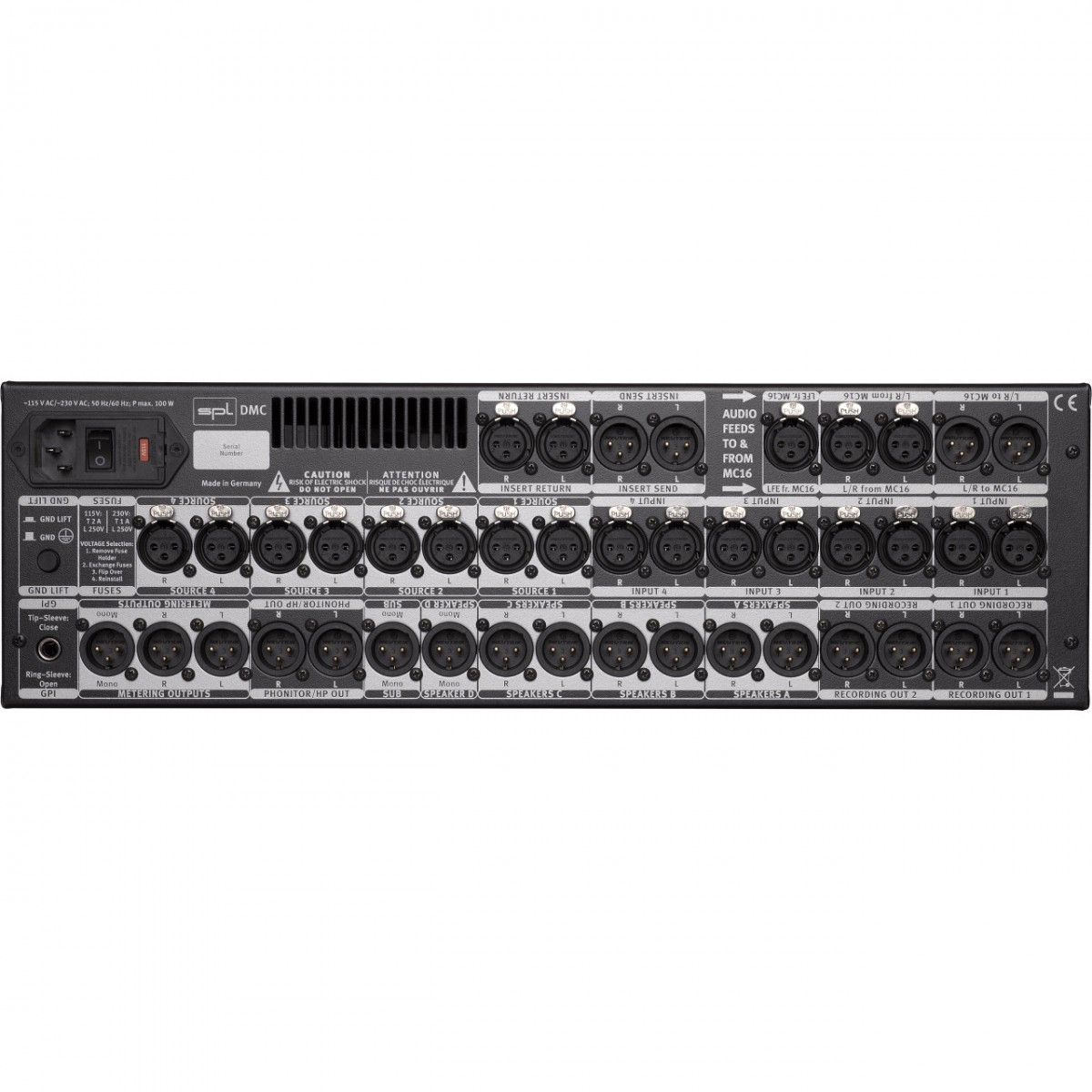

EXTENSIVE STEREO ARRAYS: Connects up to 4 stereo processing inputs, 4 stereo reference sources, and outputs to 2 stereo recording destinations.
0.25 dB STEPPED TRIMS: Employs precise, detented input and insert-return trims to correct subtle left-to-right stereo field offsets.
FOUR-PAIR SPEAKER MATRIX: Dedicated management for 3 stereo monitor sets, 1 mono radio reference speaker, and an assignable Subwoofer output.
AUTO-BYPASS GENERATOR: Hands-free audition engine switches inserts on and off at custom temporal intervals.
LOUDNESS COMPENSATION: Features a switchable plus/minus 10 dB monitor offset matrix to normalize A/B level discrepancies between inputs and outputs.
PHONITOR HEADPHONE DIRECT OUT: Includes a premium, direct analog feed out to external SPL Phonitor headphone processing modules.
IMMERSIVE MC16 UPGRADE PATH: Ready to pair with the SPL MC16 analog monitor controller to expand from stereo to full 16-channel spatial layouts.
ULTRA-WIDE BANDWIDTH LINEARITY: Passes pristine transient content across an expansive 4 Hz to 300 kHz frequency response spectrum.
