Product Overview

The Next Generation of Variable-Bias Analog Tube Compression

Achieving the perfect balance of glue, energy, and musicality on a stereo bus requires a dynamics processor that responds fluidly to the emotional nuances of a mix. The SPL Venos fulfills this exact role by taking structural inspiration from legendary vintage tube compressors and modernizing their behavior with precision German engineering and high-voltage rail designs.

Designed for intuitive operation, a single set of controls governs both the left and right channels simultaneously, eliminating the tedious task of level-matching channels manually. Whether used subtly to marry dynamic transients on a master bus or driven hard to squeeze explosive energy out of a drum sub-mix, Venos reshapes the soundstage by introducing a dramatic sense of open size and bottom-end authority the moment it is engaged.

Product Description

Unrivaled Analog Headroom with 120V Rail Technology:

At the core of Venos' exceptional sonic fidelity is SPL’s signature plus/minus 60V DC internal audio rail system—effectively delivering four times the operating voltage of standard IC-based semiconductor op-amps. This immense voltage threshold yields a massive +32.5 dBu of clean headroom and an expanded dynamic range. By shifting the internal clipping boundaries far beyond any standard line-level signal, Venos handles dense, explosive audio transients with total ease. The variable-bias tube architecture operates continuously within its optimal sweet spot, ensuring an entirely open, fatigue-free listening experience devoid of harsh digital or solid-state artifacts.

Revolutionary Hyper-Compression Engines:

Unlike conventional compressors that feature rigid, fixed ratios, Venos leverages a remote-cutoff variable-bias tube circuit where the compression ratio dynamically scales based on the input signal amplitude. Beyond traditional smooth tube leveling, SPL introduces two groundbreaking Hyper-Compression modes powered by a specialized negative-ratio circuit that leaves the main frequency response completely uncompromised:

• Punch Mode: Radically intensifies the transient energy and impact of a mix, driving the signal forward with massive kinetic authority while preserving the inherent musicality of the track.

• Focus Mode: Locks down on source material with a much tighter grip, pulling the crucial midrange information (vocals, guitars, snares) forward into sharp, vivid clarity while maintaining absolute low-end heft.

Advanced Sidechain Filters and Dual-Channel Inserts:

To keep heavy low-end information from triggering unwanted pumping, Venos incorporates three distinct sidechain filtering modes that isolate the control detection circuit without filtering the actual audio path:

• Linear Mode: Introduces a safety capacitor that rolls off detection below 20Hz, preventing sub-sonic rumble from choking the compressor.

• Modern Mode: Integrates an analog bandpass filter that directs the compressor to ignore extreme lows and highs, delivering the aggressive, cohesive glue characteristic of modern commercial mixes.

• Vintage Mode: Activates an analog filter modeled after a custom curve designed by Austrian opera singer Wolfgang Neumann, imbuing the detector with an organic, classic broadcast-era response.

  Furthermore, dedicated per-channel external Sidechain Inserts allow you to patch in external equalizers or feed an external key signal for advanced auto-ducking and EDM pumping effects.

Passive Master EQ Finishes (AirBass and Tape):

To give your processed signal its final studio polish before leaving the unit, Venos features an integrated passive analog EQ stage equipped with two curated presets:

• AirBass: Gently boosts both the lowest sub-frequencies and highest air frequencies by approximately 2dB, opening up the stereo width and enhancing low-end weight.

• Tape: Engages a specialized analog roll-off filter curve that beautifully emulates the warm, saturated high-frequency compression of a vintage tape machine.

Key Features

• 120V DC OPERATING VOLTAGE: Powered by SPL’s proprietary 120V rails for unmatched analog headroom and zero internal signal compression.

• VARIABLE-BIAS TUBE TOPOLOGY: True analog tube compression inspired by classic vintage designs to add warmth, size, and depth.

• HYPER-COMPRESSION MODES: Selectable Focus and Punch modes introduce revolutionary negative-ratio compression for unprecedented dynamic shaping.

• SIDECHAIN PRESET FILTERS: Quick toggle access between Linear, Modern, and Vintage sidechain filter curves to control compressor response.

• ANALOG PASSIVE EQ STAGE: Built-in AirBass and Tape EQ profiles to apply instant high-end sheen and tape-machine emulation.

• SINGLE-POTENTIOMETER STEREO CONTROL: A single unified control scheme coordinates both channels perfectly for seamless stereo workflow.

• DETENTED RECALL POTS: Fully stepped controls and switches ensure 100 percent precise recall across future mastering and mixing sessions.

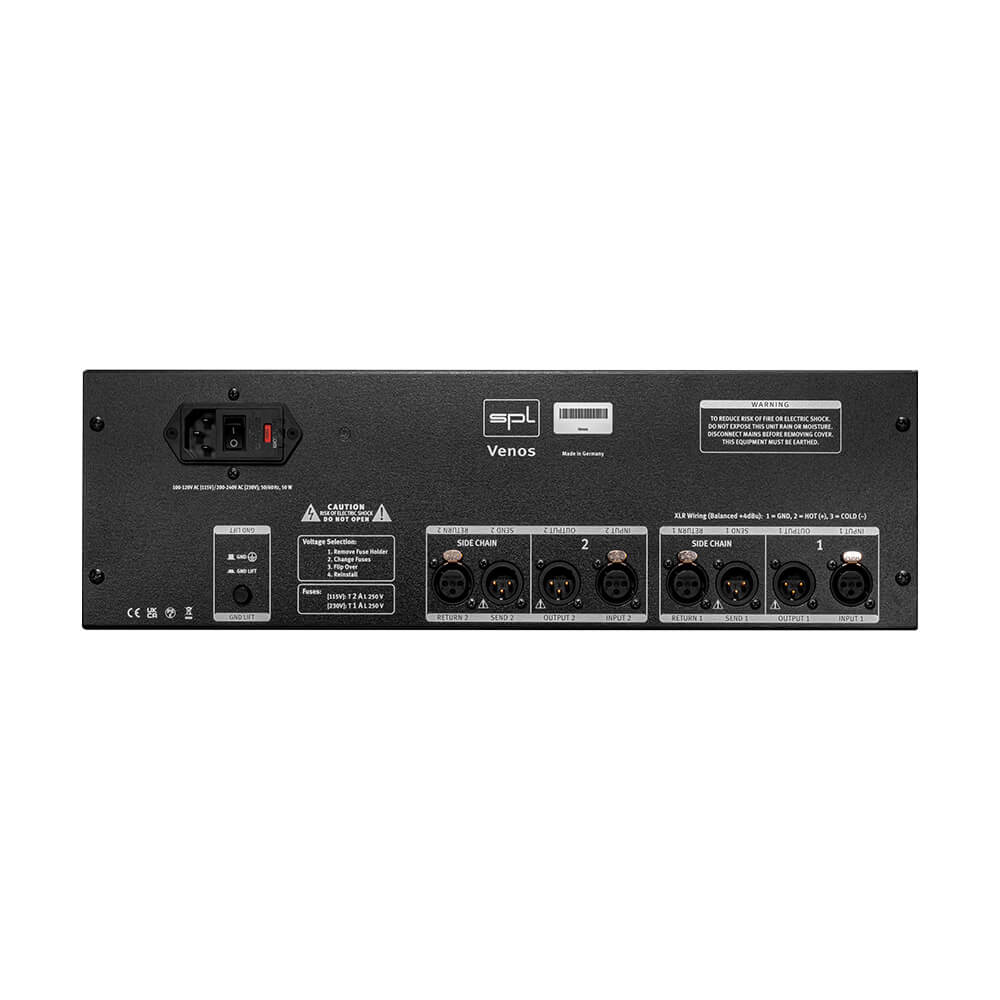

• EXTERNAL SIDECHAIN INSERTS: Send and Return routing capabilities per channel to integrate external hardware triggers or ducking paths.

• GAS-SEALED GOLD RELAYS: Premium internal switching paths utilize gold-plated components to secure perfect signal isolation and prevent cross-talk.

• ULTRA-WIDE BANDWIDTH LINEARITY: Passes pristine, high-resolution audio across an expansive 4 Hz to 300 kHz frequency response spectrum.

Technical Specifications

What’s Included in the Box

• 1 x SPL AUDIO Venos Stereo Bus Compressor Unit (3RU)

• 1 x Standard AC Grounded IEC Power Cable

• 1 x Set of Premium Rackmount Chassis Washers

• 1 x Official SPL Mastering Series Operation and System Calibration Manual
