Product Overview

The Analog Command Center for Immersive and Spatial Audio Ecosystems

With the rapid global expansion of object-based spatial audio formats in cinema, music streaming, and broadcast, mastering facilities require a bulletproof hardware solution to manage complex multi-channel speaker grids. Standard multi-channel digital audio workstation (DAW) monitoring can introduce severe safety risks—such as digital clock clips, software freezes, or unexpected full-scale output bursts that can destroy expensive studio monitors or fatigue an engineer's hearing.

The SPL MC16 addresses this critical challenge entirely within the uncolored analog domain. Functioning as a 16-input to 16-output analog volume and matrix controller, it routes multi-channel signals safely, transparently, and with total ergonomic ease. Designed to integrate fluidly with modern studios, it pairs directly with the stereo SPL DMC mastering console, allowing engineers to seamlessly jump between traditional stereo mastering and complex 16-channel immersive playback setups at the tap of a button.

Product Description

Unrivaled Headroom with 120V Rail Technology:

Like all flagship components in SPL's mastering tier, the MC16 operates on a high-voltage plus/minus 60V DC internal audio rail—effectively double or quadruple the operating power of common pro-audio gear. This immense electrical framework provides a staggering +32.5 dBu of output headroom, an expanded dynamic range, and a vanishingly low noise floor. Multi-channel mixes with massive sub-bass LFE tracking and highly dynamic overhead movements pass through the controller with absolute analog transparency, retaining precise transient definition and spatial localization across all 16 channels.

Precision 16-Tier Motorized Volume Management:

Controlling 16 individual channels of analog audio simultaneously while keeping the volume tracking absolutely identical across all speakers requires flawless component engineering. The MC16 utilizes a custom-designed, heavy-duty 16-tier potentiometer. Each channel tracking tier is tightly calibrated to ensure perfect level consistency between your front, side, rear, sub, and height monitors at any volume level. The master pot is motorized, enabling smooth physical tracking and immediate integration with remote automation systems when calibrating reference room volumes.

Surgical Multi-Channel Auditioning and Solo Matrices:

The front-panel interface features dedicated, high-grade pushbuttons to give the mastering engineer absolute forensic control over individual speakers or specialized arrays:

• Mute and Solo: Instantly isolate or silence any of the 16 channels to check for phase cancellations, localization errors, or rogue frequencies in specific zones of the room.

• Solo To Center: Pressing this unique utility routes the isolated solo channel directly to your center speaker instead of its physical location, letting you judge the frequency content of a surround track using your absolute primary center monitor.

• Dim and Mute All: Immediately lowers the listening room level by a preset attenuation factor or completely cuts all outputs to safeguard your ears and monitors during sudden routing adjustments.

Key Features

• 120V DC OPERATING VOLTAGE: Powered by SPL’s proprietary 120V rails for unmatched analog headroom and zero internal signal compression.

• 5G SUPRA OPERATIONAL AMPLIFIERS: Utilizes Fifth-Generation custom op-amps optimized for ultimate thermal stability and open, transparent sound.

• 16-CHANNEL DISCRETE ANALOG PATHS: Handles 16 independent line-level inputs and outputs simultaneously, supporting up to 9.1.6 spatial speaker configurations.

• 16-TIER POTENTIOMETER: Custom-engineered volume potentiometer provides ultra-precise level tracking across all 16 channels with no imaging shifts.

• SOLO TO CENTER ROUTING: Routes any soloed surround or overhead channel directly to the center speaker for quick acoustic evaluation.

• INTEGRATION WITH SPL DMC: Bridges seamlessly with the SPL DMC stereo console to manage stereo and immersive arrays from a unified workspace.

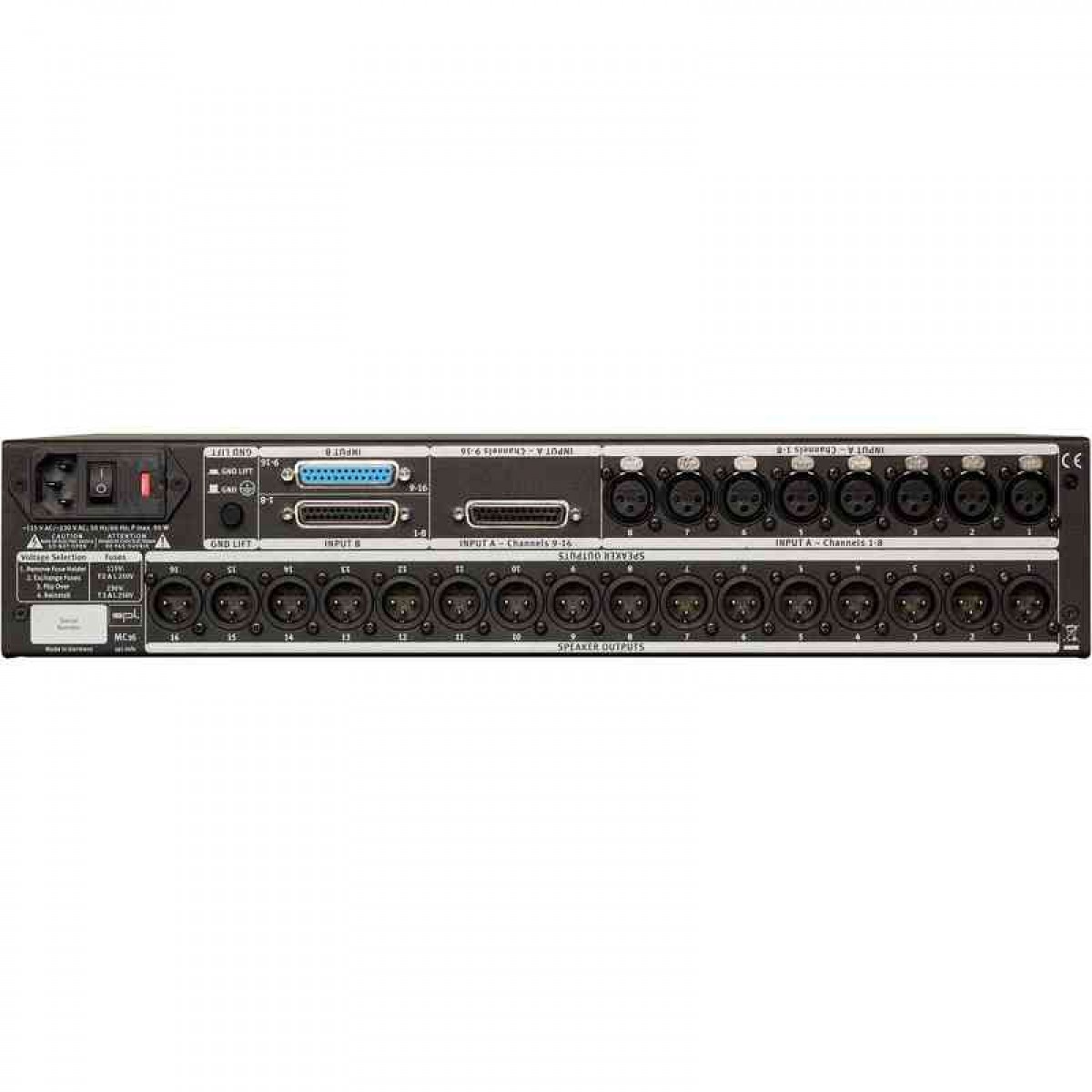

• FLEXIBLE DB25 CONNECTIVITY: High-density, balanced DB25 input and output blocks wired to industry-standard TASCAM conventions for easy patching.

• THREE SELECTABLE SPEAKER GROUPS: Save, route, and swap between different monitor arrangements instantly at the push of a button.

• GAS-SEALED GOLD RELAYS: All internal switching points deploy gold-plated relays to eliminate cross-talk, distortion, and switching artifacts.

• ULTRA-WIDE BANDWIDTH LINEARITY: Passes pristine multi-channel content across an expansive 4 Hz to 300 kHz frequency response spectrum.

Technical Specifications

What’s Included in the Box

• 1 x SPL AUDIO MC16 16-Channel Monitor Controller Unit (2RU)

• 1 x Standard AC Grounded IEC Power Cable

• 1 x Set of Premium Rackmount Chassis Washers

• 1 x Official SPL Mastering Series Operation and System Calibration Manual
