Product Overview
The Next-Generation Pure Pathway to Large-Format Console Depth
The SPL MixDream XP Mk2 addresses the ultimate challenge of modern hybrid studio setups: capturing the expansive depth, physical weight, and separation of an expensive large-format analog console without the footprint or maintenance overhead. While mixing "in the box" (ITB) provides flawless digital recall, digital summing structures often collapse the lateral stereo field and flatten transient speed as your track counts accumulate.
The MixDream XP Mk2 solves this by routing up to 16 individual channels or 8 stereo stems out of your high-end D/A converters and combining them entirely in the active analog domain. Transitioning to the polished, modern black styling of the SPL Studio Series, the Mk2 generation updates the internal component layout to deliver even wider dynamic rendering and a dead-quiet noise floor, ensuring every instrument retains its dedicated acoustic space.
Product Description
Upgraded $\pm$18V Discrete Class-A Topology:
The electronic core of the MixDream XP Mk2 features a strictly discrete Class-A transistor design running on optimized, internal $\pm$18V DC high-voltage power rails. By completely eliminating mass-produced integrated circuits (ICs) from the primary summing path, it guarantees an uncompromised audio line. The Class-A transistors stay fully conductive at all times, wiping out crossover distortion while providing a massive +28 dBu output ceiling. This enables the unit to process hot transients and deep sub-bass frequencies from high-end converters with zero structural choking or clipping.
Proprietary 60-Ohm Low-Impedance Summing Matrix:
The internal summing bus runs on a specialized 60-$\Omega$ passive-active matrix. Summing multi-track sessions at this ultra-low impedance level allows the MixDream XP Mk2 to achieve exceptional channel separation ($91\text{ dB}$) and an ultra-low residual noise floor ($-97.3\text{ dBu}$). This extreme isolation prevents left and right signals from bleeding together, preserving the precise panning coordinates, micro-details, and room reflections established in your DAW master mix.
Streamlined, High-Definition Control Set:
Refined for zero signal coloration and absolute workflow speed, the Mk2's front panel focuses strictly on pure summing execution:
Mono Toggle Switches (Channels 1/2 & 3/4): Converts these specific front-end channel pairs from standard stereo links to independent dual-mono paths. This optimizes the mixer for high-energy center elements like kick drums, snares, bass guitars, and lead vocals.
Master Output Level Gain Pot: A smooth-milled, step-less analog rotary control that adjusts the global stereo summing output from -6 dB up to +10 dB, letting you drive the sweet spot of your master A/D converter or master bus compressor.
Key Features
16-CHANNEL CLASS-A MK2 SUMMING: Sums 16 discrete analog channels or 8 stereo stems utilizing an advanced, high-voltage active Class-A transistor network.
UPGRADED $\pm$18V INTERNAL POWER: Next-generation high-voltage power path maximizes linear headroom and expands the overall dynamic expression.
LOW-IMPEDANCE 60$\Omega$ MATRIX: Active low-impedance summing bus achieves exceptional channel separation and near-zero self-noise.
MASSIVE +28 dBu HEADROOM: Handles hot signals effortlessly, allowing you to push the analog input stages hard for subtle harmonic saturation.
DEDICATED MONO LOGIC TOGGLES: Front-panel mono switches seamlessly isolate channels 1/2 and 3/4 for center-panned mix elements.

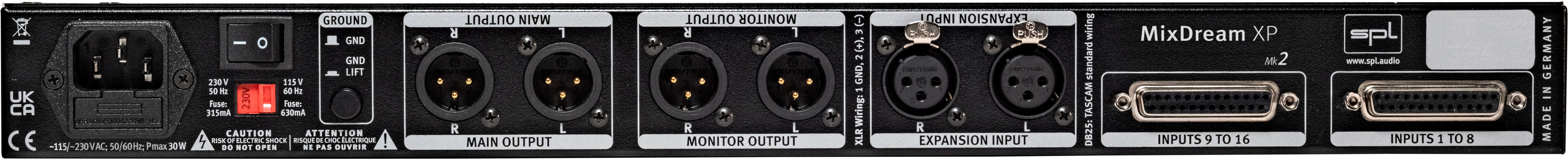

DAISY-CHAIN EXPANSION PORT: Rear-panel Expansion Input jacks allow multiple MixDream XP Mk2 units to be linked together via DB25 to scale up channel capacity.
BALANCED TASCAM DB25 INPUTS: All 16 analog input channels route through clean, gold-plated DB25 multi-pin connectors to minimize back-rack cable clutter.
SPL STUDIO SERIES HOUSING: Features a rugged 1U rack layout with a 4mm thick black anodized aluminum faceplate and solid-milled aluminum knobs.
Technical Specifications
Feature
Specification
Device Type
16-Channel Discrete Class-A Analog Summing Mixer (Mk2 Edition)
Form Factor
1U 19-inch Hardware Rackmount Unit
Summing Topology
Active Discrete Class-A Transistor Signal Path (IC-Free Matrix)
Internal Audio Rail Voltage
$\pm$18 V DC High-Headroom Framework
Analog Audio Inputs
16 x Balanced Inputs via 2 x 8-Channel DB25 Connectors (Tascam Standard)
Master Summing Outputs
2 x XLR (Left/Right Balanced Mix Out)
Master Monitor Outputs
2 x XLR (Left/Right Mirrored Monitor Output)
Expansion Input Port
1 x 2-Channel Balanced DB25 Link Jack (For chaining extra units)
