Home / SPL AUDIO Volume 8 8-channel Volume Controller
Product Overview
The Purist Analog Solution for Immersive and Multichannel Monitoring
The SPL Volume 8 addresses a critical bottleneck in modern digital multi-channel and immersive recording environments: the systematic loss of audio resolution caused by software master faders. Lowering your master volume inside a DAW or digital control panel reduces digital bit-depth, resulting in a compressed dynamic range and an altered frequency balance. The Volume 8 solves this by letting you keep your digital-to-analog converters operating at full output resolution ($0\text{ dBFS}$), handling all attenuation in the pure-analog domain with absolute phase-coherence across all eight channels.
Product Description
Eight-Ganged Master Volume Potentiometer for Phase Integrity:
The absolute centerpiece of the Volume 8 architecture is its highly specialized eight-level (eight-ganged) analog potentiometer, driven by a massive, custom-molded 45mm all-aluminum rotary knob. Rather than relying on VCA (Voltage Controlled Amplifier) or digital stepping circuits that can introduce color or artifact distortion, this robust mechanical system attenuates all eight audio channels simultaneously. This operational layout guarantees absolute phase linearity and exceptional level matching across every speaker pathway ($Left, Center, Right, Left-Surround, Right-Surround, Back-Left, Back-Right, Subwoofer$), preventing spatial image drift in your listening space.
Pristine High-Spec Balanced Analog Routing:
The internal layout of the Volume 8 is engineered with a single-minded focus on absolute sonic purity. Unlike complex multi-channel mixers that route your audio through multiple cascading operational amplifier stages, summing buses, and switches, the Volume 2 uses a highly optimized, minimalist circuit layout. This ensures that what enters the device exits completely unaltered—maintaining an ultra-wide frequency tracking response from 10 Hz to 100 kHz with a virtually non-existent distortion profile ($0.002\%$) and an exceptional 112 dB dynamic range.
Point-to-Point Muting and High-Voltage Rail Headroom:
For rapid operational troubleshooting, the front panel features an illuminated, heavy-duty hardware Mute switch. This toggle drives a premium internal telecommunications-grade relay that grounds the output signal instantly, providing clean, pop-free silencing of all eight monitors simultaneously. While the device maintains a passive-style signal purity, it runs on an active, high-voltage internal power grid. This design allows the Volume 8 to comfortably support massive professional line input and output levels up to +20 dBu, preventing transient clipping or compression.
Space-Saving DB25 Connections and Professional Integrity:

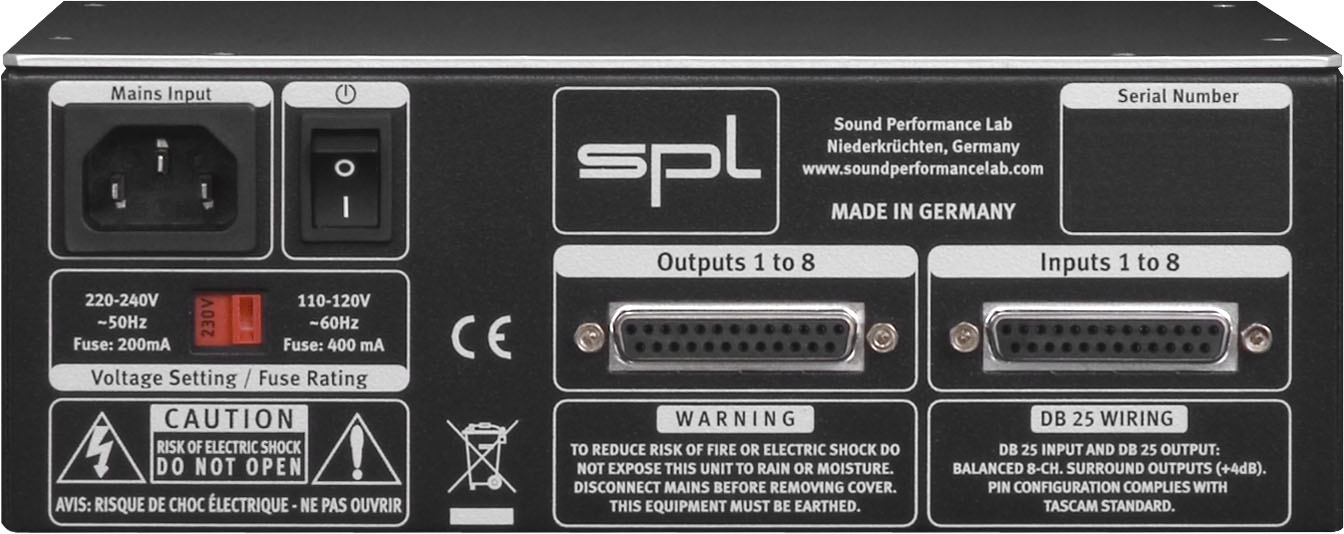

Housed in an incredibly robust, low-profile metal desktop enclosure with an elegant, thick brushed-aluminum front panel, the Volume 8 is designed to sit perfectly beneath your master screens. To manage eight channels of balanced audio cleanly without creating a cluttered cable layout, the rear panel features TASCAM-standard balanced DB25 (Sub-D) input and output ports. This allows for a clean, single-cable multi-channel link directly from your professional studio interface or summing box to your active monitor configuration.
Key Features
Pure-Analog Multichannel Attenuation: Preserves full digital bit-depth resolution by letting you monitor at low volumes while your DAW runs at maximum output.
Eight-Ganged Master Potentiometer: Premium 45mm aluminum volume control ensures absolute level matching and phase integrity across all 8 channels simultaneously.
Mastering-Grade Transparency: Minimalist active circuitry path ensures zero added coloration, phase distortion, or dynamic compression.
Illuminated Hardware Mute Relay: High-spec mechanical relay grounding system provides instantaneous, silent, pop-free monitor muting for all outputs.
High-Voltage Internal Headroom: Handles demanding professional line input signals up to +20 dBu without risking internal clipping.
