Product Overview
The High-Voltage Reference Standard for Multi-Channel Recording
The SPL Crescendo 8 eliminates the industry-wide compromise of packing multiple preamplifiers into a single chassis. Where standard multi-channel preamps suffer from internal crosstalk, transient compression, and a lack of headroom due to low-voltage integrated circuits, the Crescendo 8 scales up SPL's legendary high-voltage architecture. Hand-built in Germany, it offers eight completely discrete, uncolored channels that capture acoustic performances with unparalleled spatial depth, flawless transient speed, and three-dimensional realism.
Product Description
Proprietary 120V VOLTAiR Technology:
The engineering foundation of the Crescendo 8 is SPL’s exclusive VOLTAiR 120V operational amplifier technology. While standard professional audio components operate on a limited $\pm$15V or $\pm$18V internal power grid, VOLTAiR circuits run at a massive $\pm$60V DC. This four-fold increase in internal operating voltage yields an exceptional structural ceiling. It maximizes the dynamic range to a staggering 141.4 dB, drives the self-noise floor down to near-infinite silence, and eliminates thermal distortion. High-transient signals—such as the explosive crack of a snare drum, the dense resonance of piano hammers, or the massive dynamic swings of an orchestral brass section—pass through with absolute velocity and clarity.
Completely Discrete Class-A Circuitry:
The internal layout of the Crescendo 8 features eight independent, purely discrete channel strips running in full Class-A mode. The differential input stage utilizes precisely matched pairs of high-voltage transistors, entirely bypassing mass-produced integrated circuit (IC) op-amps that introduce phase shift, harshness, or graininess. Active servo circuits are implemented to completely avoid the use of coupling capacitors in the signal line, protecting your audio from their inherent phase-altering drawbacks. The high-current output stage maintains a low output impedance ($75\ \Omega$), allowing you to drive ultra-long studio cable snakes to a central control room with zero high-frequency degradation.
Surgical Control Interface and Fine Gain Matching:

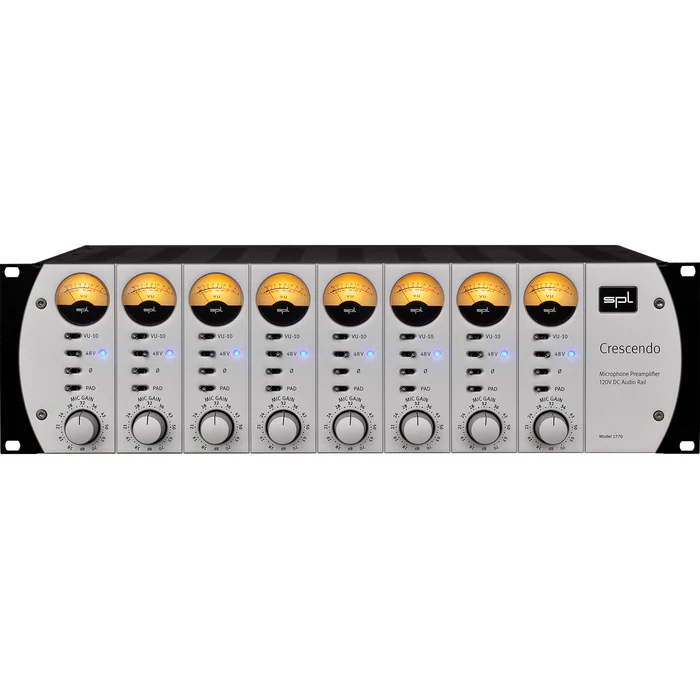

The front panel provides highly uniform, intuitive controls across all eight channels to ensure fast and accurate matching across multi-mic arrays:
Mic Gain Switch: A heavy-duty, 12-position rotary switch that increments gain from +18 dB to +70 dB in precise, repeatable 4 dB steps.
Output Level Control: An independent output pad that lets you attenuate the signal by up to $\pm$10 dB. This gives you a total potential gain profile of 80 dB, allowing you to drive the preamplifier stage hot for crisp transient saturation while safely protecting downstream AD converters from clipping.
Professional Multi-Channel Utility Suite:
Each of the eight channels is equipped with its own dedicated set of hardware diagnostic toggles driven by gold-plated, low-noise relays:
Individual 48V Phantom Power: Supplies clean, regulated, and ripple-free current to demanding condenser microphones.
Phase Inversion Toggle ($\emptyset$): Instantly flips signal polarity by 180° to fix phase cancellation when multi-miking drum kits, guitar cabinets, or stereophonic configurations.
High-Pass Filter: A 6 dB/octave tracking roll-off filter centered at 50 Hz to cleanly eliminate low-end room rumble, HVAC noise, or floor vibrations.
PAD Switch: Attenuates the input signal by -20 dB, allowing the preamplifier to accept hot line-level signals or intense transient sources without overloading the discrete input stages.
Key Features
120V VOLTAiR Power Rails: Flagship high-voltage audio operating rails ($\pm$60V DC) yield an incredible 141.4 dB dynamic range with near-infinite signal headroom.
Eight-Channel Class-A Configuration: Eight entirely discrete, sound-neutral transistor preamplifier blocks run in pure Class-A to eliminate crossover or thermal distortion.
Stepped Precision Gain Controls: 12-position master switches coupled with fine-grain output trims ensure perfect channel matching across multi-mic setups.
High-Voltage Line Headroom: Input stage handles demanding professional signals effortlessly, tracking intense acoustic peaks with zero compression.
Capacitorless Signal Path: Advanced active servo circuitry eliminates tone-altering coupling capacitors from the line path to ensure linear phase tracking.
Flexible Multi-Stage Metering: Features dedicated visual level indicators per channel to display signal activity and clip overloads instantly.
Rugged Outboard Chassis: Built into a robust 19-inch 2U rackmount metal enclosure with a thick, premium aluminum faceplate and solid-milled controls.
Handmade in Germany: Proudly hand-assembled and quality-calibrated in Germany for uncompromised lifetime performance.
