SPL AUDIO Crescendo Duo V2 2-channel Microphone Preamplifier
Home / SPL AUDIO Crescendo Duo V2 2-channel Microphone Preamplifier
Product Overview
The High-Voltage Masterpiece with a Precision Studio Facelift
The SPL Crescendo duo V2 represents the pinnacle of clean, high-headroom analog pre-amplification. Operating on an internal voltage scheme that is up to four times greater than standard pro-audio gear, this dual-channel unit completely eliminates the standard circuit bottlenecks of clipping, transient compression, and acoustic smearing.
The V2 revision updates this modern classic into the sleek, matching design aesthetic of the current SPL Studio Series, featuring a redesigned black-anodized faceplate, a structurally reinforced chassis, and a re-scaled stepped potentiometer layout that offers far more fine-tuning options within critical medium-amplification zones. For engineers capturing luthier-grade acoustic guitars, orchestral configurations, room overheads, or complex vocal dynamics, the Crescendo duo V2 stands as an "undistortable" reference standard.
Product Description
Proprietary 120V VOLTAiR High-Voltage Topology:
At the heart of the Crescendo duo V2 sits SPL’s pioneering VOLTAiR technology, utilizing proprietary, hand-developed SUPRA operational amplifiers running on a staggering $\pm$60V DC internal rail system. While conventional microphone preamps run thin at $\pm$15V or $\pm$18V—often adding harshness, clipping, and electronic strain when pushed—the V2 operates with an extra 12 dB of added headroom. It is virtually impossible to overdrive the input stage. This immense operational space ensures that fast transients pass through with zero compression, delivering a sound that is rich in detail, three-dimensional, smooth, and authentic.
Discrete Class-A Architecture with Matched Components:
The input and output signal paths are completely discrete, entirely bypassing mass-produced integrated circuits (ICs) that degrade audio fidelity. The input stages rely on precisely matched transistor pairs sealed inside a specialized thermal housing, keeping total harmonic distortion (THD+N) at a microscopic level (0.002% at 32 dB Gain) while ensuring an exceptional Common Mode Rejection of 88 dB. Active servo circuits are implemented to completely avoid the use of coupling capacitors, saving your audio from their inherent phase-shifting drawbacks.
Optimized V2 Stepped Gain Control & Output Matrix:
12-Step Mic Gain Switches: The V2 updates the core rotary controls with re-calibrated values, providing an exceptional selection of fine increments across the medium-amplification range. It sweeps cleanly from +18 dB to a powerful +70 dB of gain.
$\pm$10 dB Variable Output Pots: A switchable hardware trim attenuates or boosts the final output by $\pm$10 dB. This total potential gain profile of 80 dB allows you to push the input stage for fast transient capture while safely balancing the signal level to protect downstream AD converters from clipping.
Integrated Dual Parallel Output Splitter:

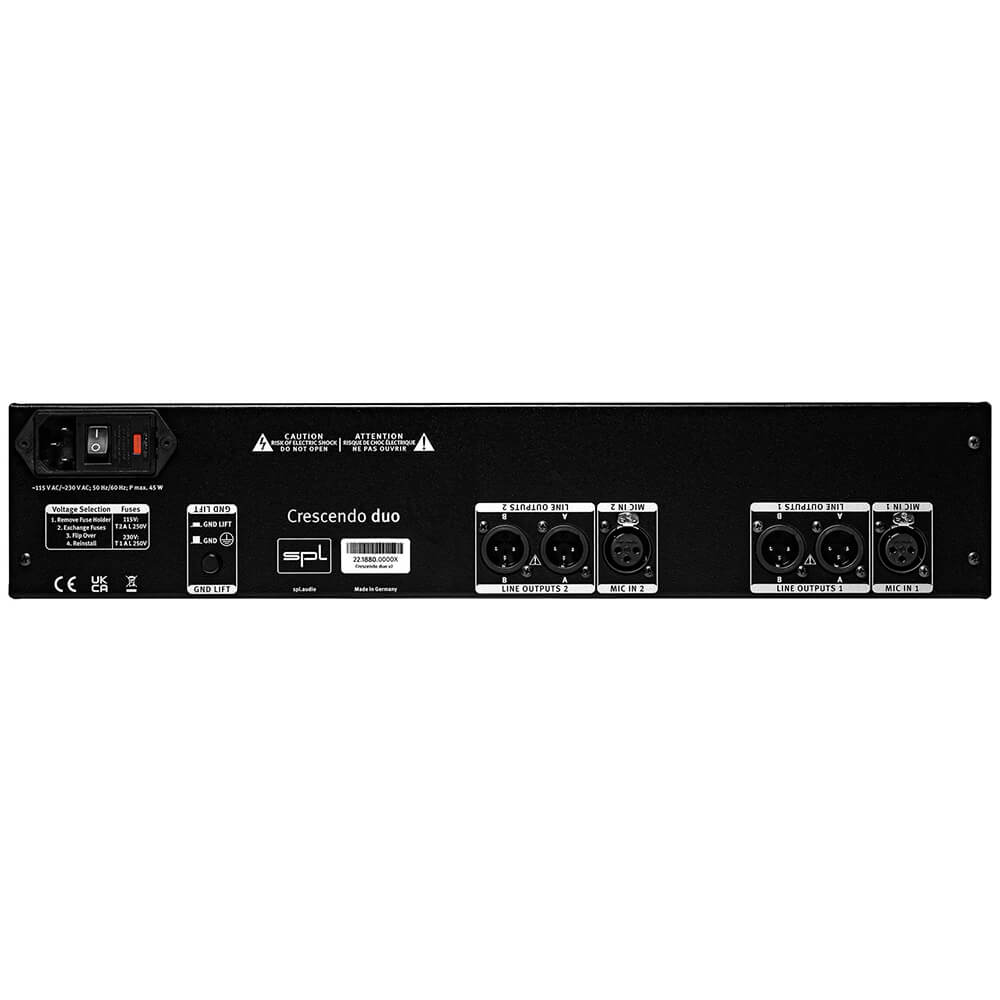

Uniquely flexible for complex studio tracking and safety backup workflows, each channel features two parallel XLR outputs. This built-in hardware splitter lets you feed your live microphone signal to two distinct hardware destinations simultaneously (e.g., a main interface converter and a backup recorder or analog mixing console) with zero signal degradation or the need for messy patch cables.
Complete Studio Utility Rig per Channel:
+48V Phantom Power: Supplies ultra-clean, ripple-free current to condenser microphones.
Polarity Reversal ($\emptyset$): Instantly flips the signal phase by 180° to reconcile multi-microphone setups.
High-Pass Filter (HP): A specialized 6 dB/octave tracking filter centered at 120 Hz to isolate and eliminate sub-bass room rumble, floor vibrations, and proximity boom.
-20 dB Input Pad: Instantly drops incoming hot sensitivity levels. When engaged, the preamplifier's working range shifts to -2 dB to 50 dB, turning the Crescendo duo V2 into a pristine, line-level outboard saturation tool for DAW stems.
Key Features

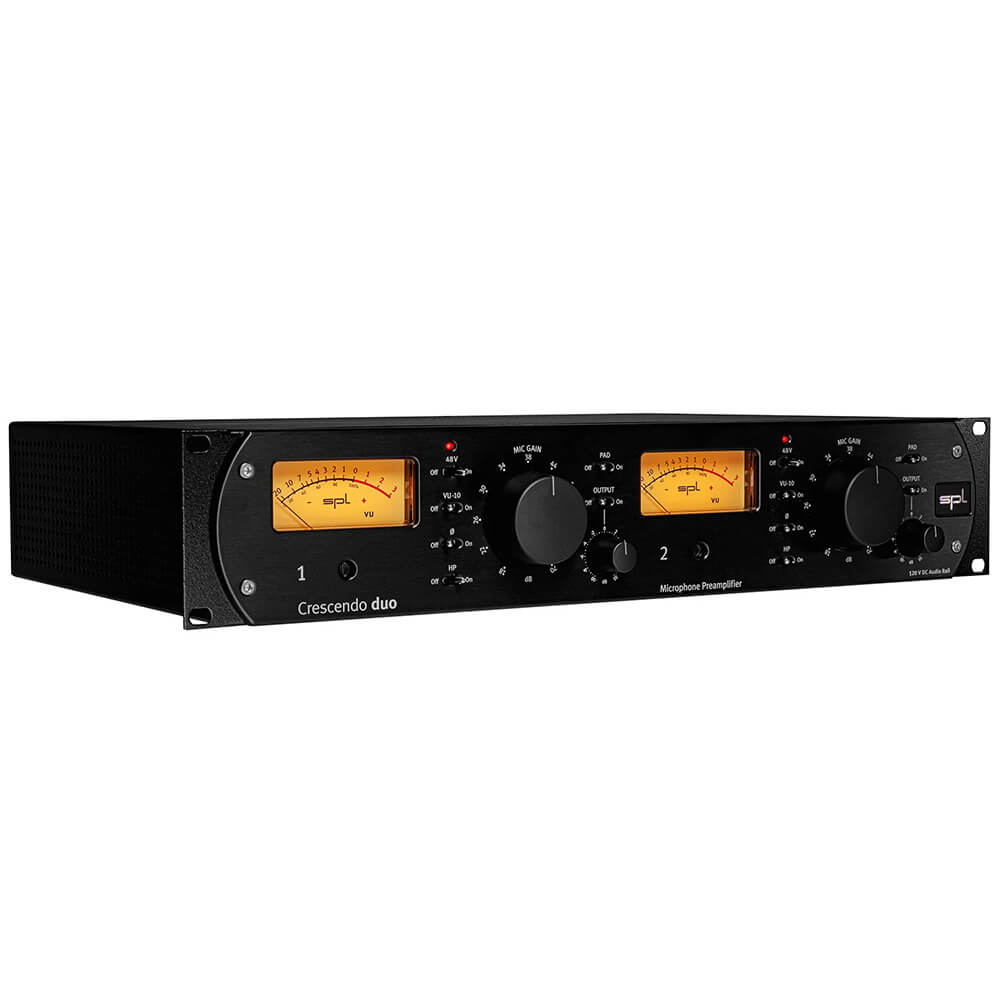

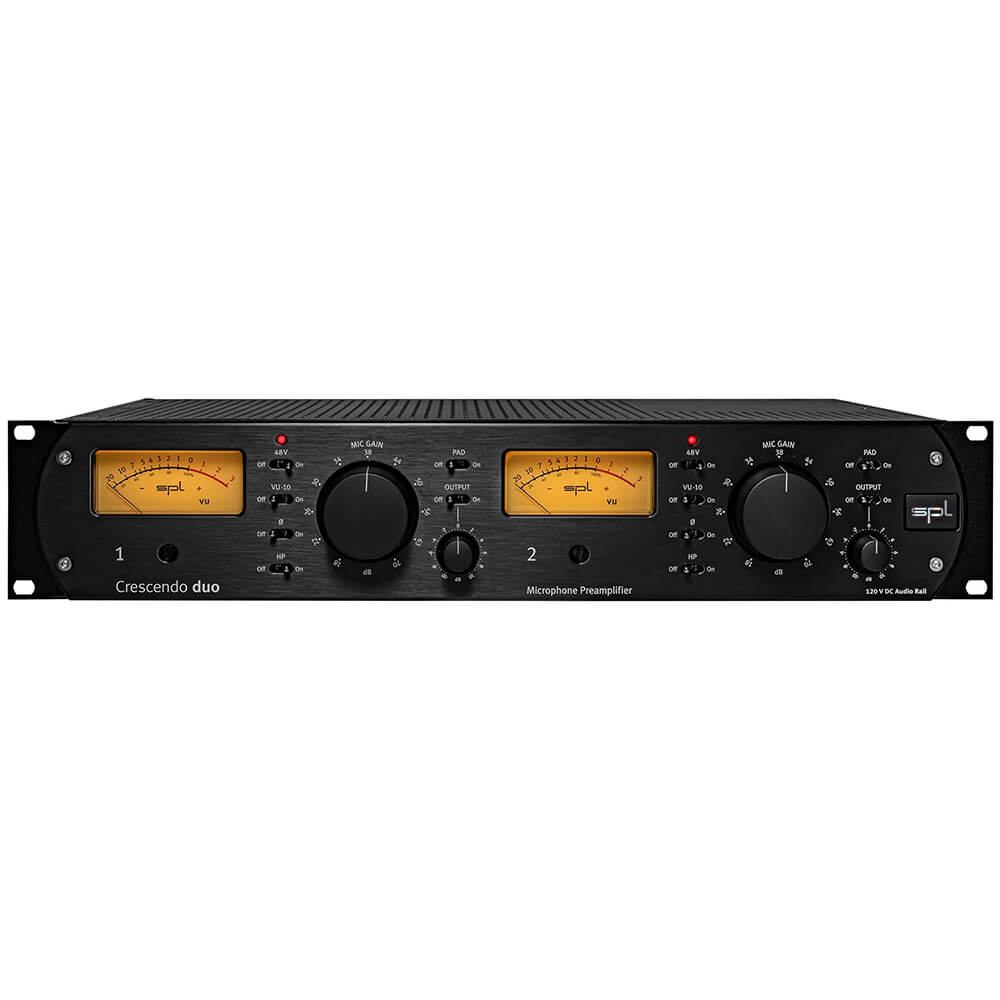

REVISED V2 STUDIO FACELIFT: Upgraded with a premium 4mm black-anodized aluminum faceplate, solid-milled aluminum knobs, and an improved powder-coated steel housing.
EXPANDED MID-GAIN INCREMENTS: Redesigned 12-position master gain switch provides highly precise values across critical medium amplification ranges.
120V VOLTAIR POWER GRID: Operates on $\pm$60V DC internal power rails, yielding near-infinite headroom and absolute immunity to transient clipping.
TRUE DUAL-MONO CLASS-A FLOW: Purely discrete transistor architecture ensures transparent sound free from crossover or thermal distortion.
80 DB OF TOTAL POTENTIAL GAIN: Delivers up to 70 dB of step-controlled gain alongside a $\pm$10 dB output trim, providing enough clean gain for low-output passive ribbon microphones.
DUAL BUILT-IN SIGNAL SPLITTERS: Features two parallel XLR outputs per channel to feed secondary backup decks or processing loops without external splitters.
ADJUSTABLE MECHANICAL VU METERS: Vintage-styled backlit VU meters equipped with a -10 dB reduction switch to display hot, high-energy dynamics accurately.
SERVO-DRIVEN CAPACITORLESS PATH: Employs advanced active servo circuitry to clear the signal path of tone-altering coupling capacitors.
