Universal Audio 4-710d Four-Channel Tone-Blending Mic Preamp w/ Dynamics
Home / Universal Audio 4-710d Four-Channel Tone-Blending Mic Preamp w/ Dynamics
Product Overview
The Ultimate Swiss-Army Knife Front-End for Multi-Microphone Tracking
When tracking complex sessions like acoustic drum kits, brass sections, or a live rhythm band, having tonal variety across your microphone inputs is critical. The Universal Audio 4-710d solves this challenge by packing four award-winning Twin-Finity™ preamps into a single, elegant 2U chassis. Rather than forcing you to choose between the bite and clarity of solid-state or the creamy warmth of vacuum tubes, the 4-710d features a continuous Tone-Blending dial per channel, letting you phase-align and mix both analog topologies in real time.
Beyond its world-class preamplifier architecture, the 4-710d acts as a complete analog-to-digital expansion system. With four integrated 1176-inspired compressors, four additional rear line inputs for patch-bay routing, and a mastering-grade 8-channel A/D converter, this heavy-duty hardware piece expands your audio interface's tracking capabilities over a single lightpipe cable while injecting legendary UA analog grit into your digital system.
Product Description
Revolutionary Twin-Finity Tube & Solid-State Tone Blending:
The core innovation of the 4-710d is its phase-aligned dual-path blending circuit on each of the four microphone preamps. Turning the central Tone knob completely counter-clockwise engages a 100% discrete Class-A solid-state transimpedance stage, which delivers ultra-clean transient response, transparent high-end detail, and tight low-end snap. Turning the knob completely clockwise paths the signal through a 100% high-voltage transimpedance vacuum tube circuit driven by a 12AX7 tube, introducing rich second-order harmonic saturation, velvety mids, and classic vintage compression. Setting the knob anywhere in between lets you dials in the perfect hybrid tone—giving you the punch of solid-state with the smooth body of a tube.
Integrated 1176-Style Dynamics & Front-Panel DI Power:
To ensure your signals remain beautifully leveled before hitting the digital conversion stage, each channel features a newly designed compression circuit inspired by UA's legendary 1176LN limiting amplifier. The dynamics switch can be set to Fast (ideal for catching sharp snare hits or aggressive acoustic strumming) or Slow (perfect for leveling vocals, electric bass, or synth pads).
For instruments, the front panel hosts four ultra-premium 1/4" Hi-Z direct inputs. Running electric bass or direct guitars through the 4-710d’s DI inputs—especially when blended heavily toward the tube circuit—thickens the tone organically and acts as a world-class analog front-end for modern software amp modelers.
Mastering-Grade 8-Channel A/D Conversion and Digital I/O:

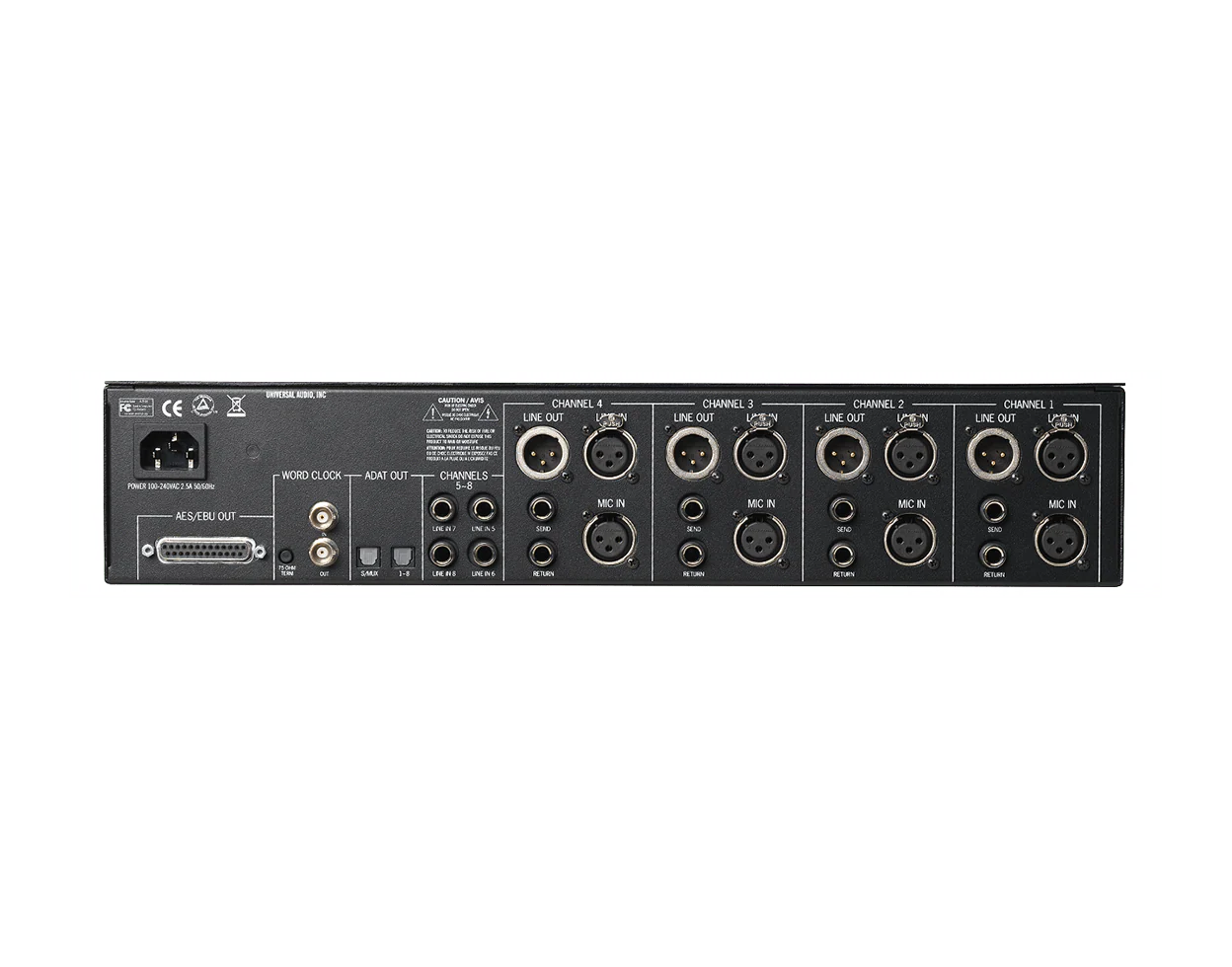

The 4-710d is not just an analog powerhouse; it is a high-fidelity digital hub for your entire studio. The unit features an onboard ultra-low jitter 24-bit/192kHz A/D converter array with eight total digital input channels. Channels 1 through 4 route directly from the internal preamps, while the rear panel features four balanced line-level Insert Returns (channels 5-8). This allows you to connect an external 4-channel preamp or outboard hardware chain straight into the 4-710d's converters.
The digital output section is exceptionally comprehensive, featuring dual ADAT Optical lightpipe ports (with SUXM/S/MUX support for high sample rates) and a DB-25 connector for multi-channel AES/EBU digital routing. Backed by precise BNC Word Clock Input and Output jacks, the 4-710d syncs perfectly as a rock-solid master clock engine or slave device within any multi-interface digital recording environment.
Key Features
FOUR TWIN-FINITY PREAMPS: Four fully independent preamplifier channels featuring continuous phase-aligned blending between tube and solid-state paths.
1176-STYLE COMPRESSION: Integrated analog compressor circuit on every channel with custom Fast/Slow presets for instant transient management.
8-CHANNEL A/D CONVERSION: High-fidelity 24-bit/192kHz analog-to-digital converters expand your digital studio footprint over a single connection.
REAR INSERT LOOPS: Dedicated balanced Send/Return jacks on every channel let you patch in external analog hardware EQs or limiters effortlessly.
LINE INPUT EXPANSION: Four auxiliary rear line inputs route straight to digital channels 5-8, maximizing your interface's optical port capacity.
VARIABLE INPUT IMPEDANCE: Adjustable mic impedance controls toggle between $500\text{ }\Omega$ and $2.0\text{ k}\Omega$ to open up ribbon and dynamic microphones.
ILLUMINATED REAR VU METERS: Distinctive, retro circular VU meters switch instantly between tracking Drive, Level, and Gain Reduction parameters.
COMPREHENSIVE DIGITAL I/O: Dual ADAT lightpipe ports, multi-channel AES/EBU via DB-25, and high-stability BNC Word Clock synchronization.
Technical Specifications
Feature
Specification
Preamplifier Type
Four-Channel Hybrid Twin-Finity Tube/Solid-State Mic Preamp
Internal Tube Load
4 x Hand-Selected 12AX7 Vacuum Tubes (One Per Channel)
