Product Overview

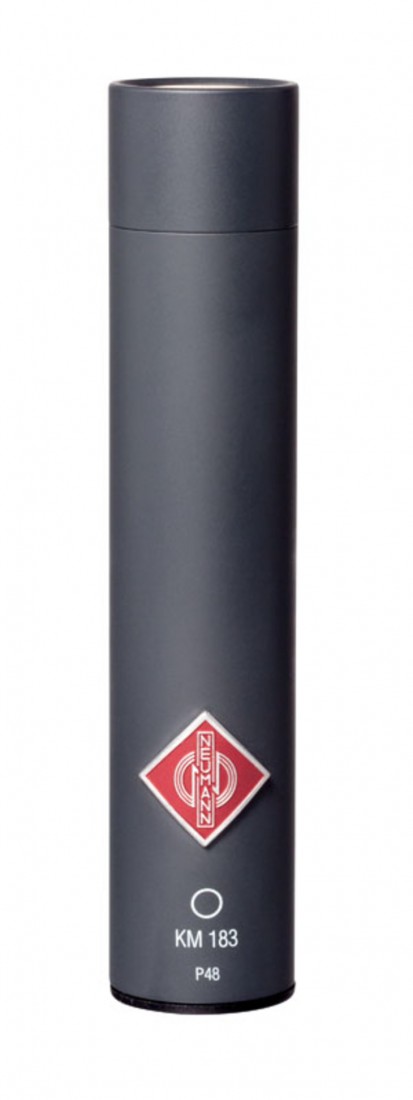

The Neumann KM 183 mt is the black-finish counterpart to the iconic KM 183. As a member of the "Series 180," it offers elite Neumann engineering in a non-modular, cost-effective format. The "mt" designation indicates a durable matte black coating that is scratch-resistant and avoids light glints, making it the preferred choice for television studios, film scoring stages, and live broadcast events where equipment must remain visually unobtrusive.

Product Description

Optimized for Distance and Ambience:

The KM 183 mt is unique among omnidirectional microphones due to its diffuse-field equalization. Because air naturally absorbs high frequencies over distance in large halls, the KM 183 mt features a built-in +7 dB treble boost at 10 kHz (when measured close up). When the microphone is placed further back in a "diffuse field" (where reflected sound dominates), this boost compensates perfectly, resulting in a flat, natural, and incredibly transparent frequency response.

Limitless Bass Performance:

Operating as a true pressure transducer, the KM 183 mt is immune to the "proximity effect"—the bass remains consistent regardless of the distance to the source. Its low-frequency response is virtually limitless, accurately capturing the deepest notes of a pipe organ or the low-end resonance of a grand piano down to 20 Hz. This phase-coherent low-end makes it an essential tool for main A-B stereo arrays in classical recording.

Advanced Transformerless Technology:

The internal circuitry is based on the high-end KM 100 system, utilizing a transformerless design that ensures an ultra-clean signal path. With a self-noise of only 13 dB-A and a high dynamic range of 127 dB, it handles extreme Sound Pressure Levels (SPL) up to 140 dB without distortion. Its low-impedance output stage allows it to drive long cable runs (up to 300 meters) without any loss in signal quality or clarity.

Compact & Professional Design:

Measuring just 107 mm in length, the KM 183 mt is remarkably small. Its slender shape and non-reflective matte finish allow it to be positioned easily in tight spaces or suspended from ceilings, remaining nearly invisible to both audiences and cameras.

Key Features

• Omnidirectional Polar Pattern: Frequency-independent pickup for a natural, open sound.

• Diffuse-Field Equalized: Specifically tuned for accuracy in reverberant acoustic spaces.

• Matte Black (mt) Finish: Non-reflective and durable; ideal for video and stage use.

• Unlimited Low-Frequency Response: Captures the full weight of the low end without proximity effect.

• Transformerless Circuitry: Low noise floor and high output drive capability.

• P48 Phantom Powered: Compatible with all professional studio and field recording equipment.

Applications

• Orchestral & Choral Arrays: The gold standard for A-B stereo pairs and ambient "room" mics.

• Grand Piano & Acoustic Guitar: Captures the true spatial depth and tonal balance of the instrument.

• Pipe Organs: Essential for recording deep low-frequency fundamentals with total accuracy.

• Television & Film Sets: Discreet appearance for on-camera musical performances and scoring.

Technical Specifications
