Product Overview

The Neumann KM 183 A nx represents the elite modular evolution of the world-standard KM 183. Unlike the fixed "Series 180," this system allows the capsule and output stage to be separated. The "nx" version is treated with a specialized Nextel coating—a matte, scratch-resistant finish that does not reflect light, making it the premier choice for television, film scoring, and stage productions where the microphone must remain visually invisible under bright lights.


Product Description

The Modular Advantage:

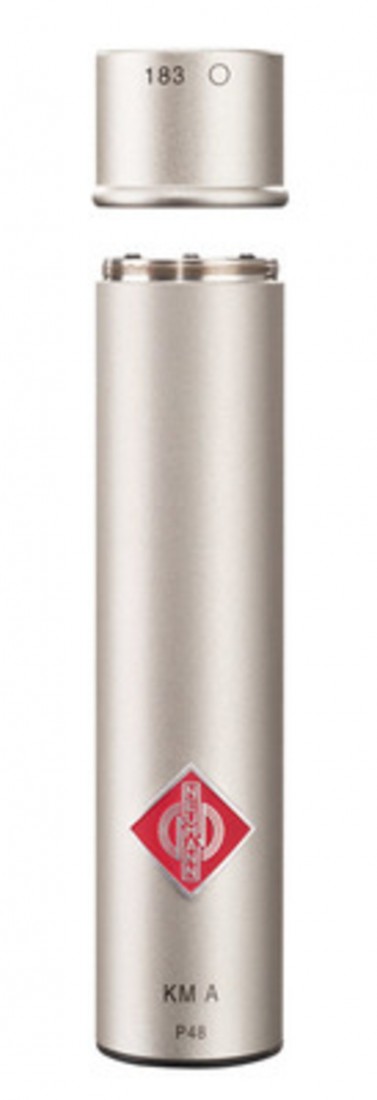

The KM 183 A nx is built for flexibility. The system consists of the passive KK 183 nx capsule head and the KM A nx analog output stage. Because the system is modular, the capsule can be detached and used with the KM D digital output stage (AES 42) or placed on extension cables (up to 100 meters away) for nearly invisible mounting in concert hall ceilings or on film booms.

Diffuse-Field Equalization for Spatial Depth:

As an omnidirectional pressure transducer, the KM 183 A nx is diffuse-field equalized. In large recording spaces, high frequencies are naturally lost over distance. This microphone features a deliberate +7 dB treble boost at 10 kHz in the free field, which translates to a perfectly flat and natural response when placed in the reverberant (diffuse) field. This makes it indispensable for A-B stereo recording, where it captures the "air" and majesty of the venue.

Pure Bass with Zero Proximity Effect:

Being a true pressure transducer, the KM 183 A nx is immune to the proximity effect. Whether placed centimeters from a source or meters away, the bass response remains linear and deep, extending down to 20 Hz. This allows for the authentic capture of pipe organs, double basses, and the low-frequency resonance of a scoring stage without any artificial "muddiness."

Nextel Black: The Camera’s Choice:

The "nx" finish is more than just a color; it is a functional tool. The specialized Nextel coating is non-reflective and textured, ensuring that it never creates glare or hotspots on camera. It is the gold standard for high-end broadcasters and film sets globally.

Key Features

• Nextel Black (nx) Finish: Professional non-reflective matte coating for film, TV, and stage.

• Modular System: Includes KK 183 nx capsule and KM A nx analog output stage (P48).

• Diffuse-Field Equalized: Optimized for natural brilliance in large, reverberant halls.

• Omnidirectional Pattern: Uniform pickup from all directions with no off-axis coloration.

• Transformerless Circuitry: Low self-noise (13 dB-A) and high output drive capability.

• Extreme SPL Tolerance: Handles up to 150 dB (with the integrated -10 dB pad).

Applications

• Orchestral & Choral Recording: The primary choice for main room arrays and A-B stereo.

• Film Scoring: Provides the spatial "reach" and detail required for cinematic soundtracks.

• Pipe Organ & Piano: Captures the full frequency spectrum with unrivaled low-end authority.

• Television & Broadcast: Discreet, glare-free appearance for on-camera musical performances.

Technical Specifications
