Product Overview

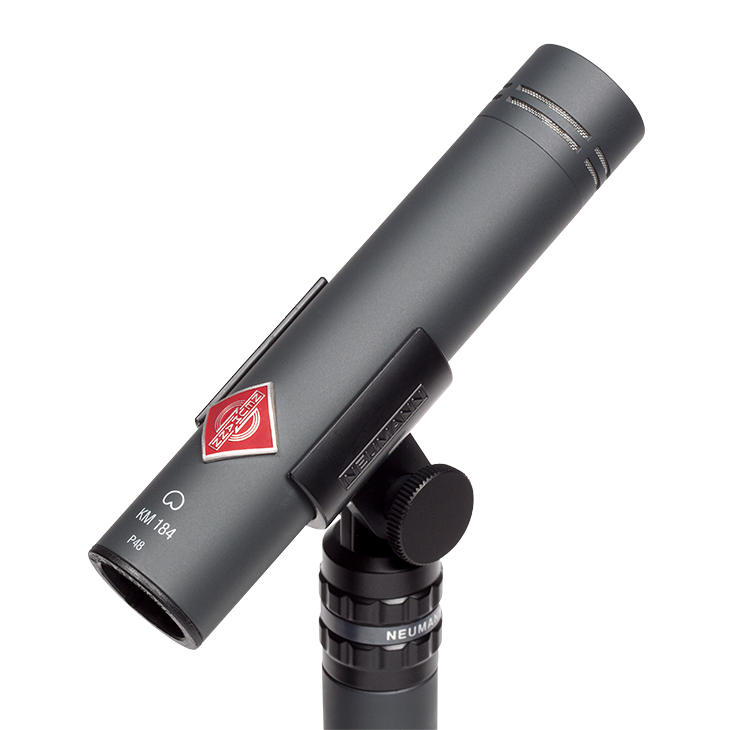

The KM 184 A nx is the modular professional evolution of the classic KM 184. Unlike the fixed "Series 180," this system allows for the separation of the capsule and the output stage, providing a future-proof path between analog and digital workflows. The Nextel Black finish is a durable, scratch-resistant, and matte coating that eliminates light reflections, ensuring the microphone remains nearly invisible on camera or under intense stage lighting.

Product Description

The Power of Modularity:

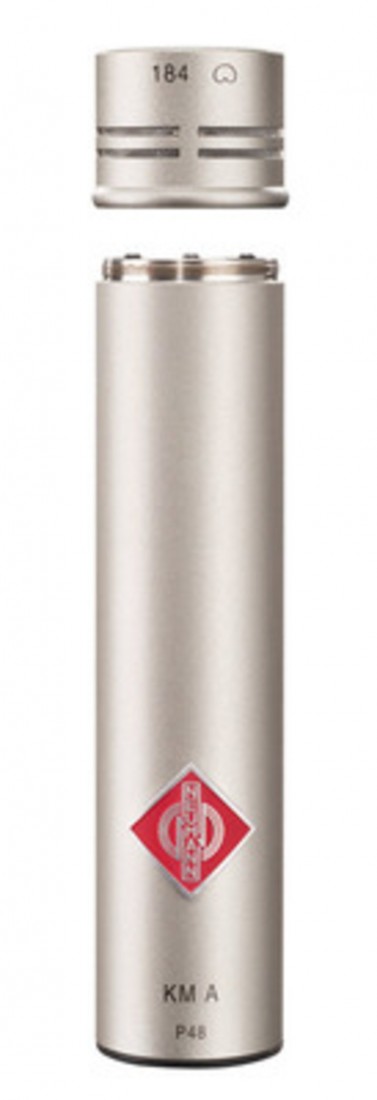

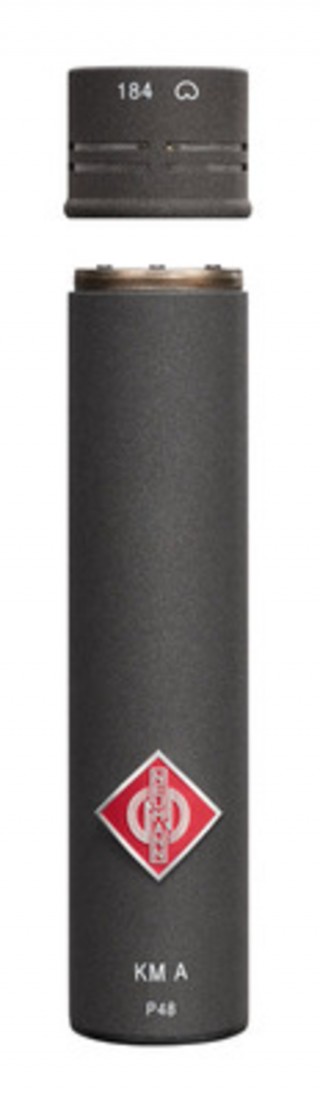

The core of the KM 184 A nx system is its modularity. It features the passive KK 184 nx capsule and the KM A nx analog output stage (P48). This design allows the user to switch between eight different capsule heads or even swap the analog output stage for a KM D digital stage (AES 42). Furthermore, the capsule can be detached and placed up to 100 meters away using specialized extension cables, making it perfect for complex film booms or hidden orchestral miking.

Precision Cardioid Imaging:

The KK 184 capsule is a pressure gradient transducer with a perfectly uniform cardioid pattern. It provides exceptional rejection of sound from the rear ($180^{\circ}$) even at low frequencies, which is vital for minimizing bleed in multi-microphone setups. The frequency response is remarkably smooth and linear, with a subtle treble lift at 9 kHz that adds "freshness" and brilliance to acoustic instruments without sounding artificial.

Elite Transformerless Electronics:

The KM A analog output stage uses high-precision transformerless circuitry to ensure a pristine signal path with high output gain and ultra-low self-noise (13 dB-A). It includes a switchable -10 dB pre-attenuation (Pad), allowing the microphone to handle staggering Sound Pressure Levels (SPL) of up to 148 dB without distortion—ideal for close-miking loud percussion, brass, or guitar amplifiers.

Designed for Visual Discretion:

The "nx" designation stands for Nextel, a specialized technical coating that is deeply matte and non-reflective. This makes the KM 184 A nx the industry choice for television studios and orchestral broadcasts where standard nickel or semi-gloss finishes would create distracting glares for the camera.

Key Features

• Modular Design: Includes KK 184 nx capsule and KM A nx analog output stage.

• Nextel Black (nx) Finish: Non-reflective, scratch-resistant matte coating for TV/Film.

• Uniform Cardioid Pattern: Pinpoint accuracy and excellent off-axis rejection.

• Switchable -10 dB Pad: Increases max SPL tolerance to 148 dB.

• Transformerless Output Stage: Ultra-low self-noise and high electromagnetic immunity.

• Flexible Mounting: Capsules can be used at a distance via extension cables (LC 4).



Applications

• Solo Instruments & Ensembles: Perfect for strings, piano, and acoustic guitar.

• Broadcast & TV: Non-reflective finish is ideal for on-camera musical performances.

• Orchestral Spot Miking: Modular cables allow for "invisible" placement in ensembles.

• Stereo Arrays: Excellent for XY and ORTF stereo recording with perfect imaging.
