The Original Studio Revolution, Re-Engineered for Elite Workflows
The SPL Transient Designer 4 Mk2 addresses a fundamental challenge in mixing and tracking: shaping the transient punch and ambient tail of a sound without destroying its natural dynamic range through standard compression or gating. In 1998, SPL revolutionized the audio industry by introducing level-independent envelope processing. This newest Mk2 generation inherits that identical, groundbreaking analog signal path while stepping forward with a modernized housing and an improved tactile workflow.
By ditching traditional threshold controls, the Transient Designer 4 Mk2 processes quiet room mic bleeds, loud snare hits, and varying acoustic performances exactly the same way. Hand-assembled in Germany, this 4-channel device acts as a precise, organic sound-sculpting engine, giving engineers the ability to tighten up loose acoustic tails or make percussion slices explode forward inside a crowded digital mix.
Standard compressors and gates rely heavily on input thresholds, meaning quiet transients go completely untouched while loud signals get over-compressed. The Transient Designer 4 Mk2 bypasses this issue entirely using Differential Envelope Technology (DET). Its internal envelope trackers automatically adapt, optimizing time constants in real time to match the natural characteristics of the input signal. This lets you speed up or slow down transient bursts seamlessly using just two simple controls per channel, keeping the audio transparent and organic.
Surgical Envelope Control Array:
Each of the four independent processing channels provides straightforward, high-efficiency hardware tools:
Attack Control ($\pm$15 dB): Accelerates or attenuates the initial transient phase of a sound. Boosting it adds instant crack, snap, and front-of-mix presence to kicks, snares, and picked instruments. Cutting it softens harsh, abrasive pick attacks or overly sharp percussion lines.
Sustain Control ($\pm$24 dB): Lengthens or shortens the decay trailing phase of an audio envelope. Boosting it increases room tone, bringing out cymbal tails, guitar resonance, or tom-tom body. Cutting it dampens ring, tightens up ambient bleed, and acts as a transparent noise gate wrapper.
Stereo Matrix Linking and Hard Relay Protection:

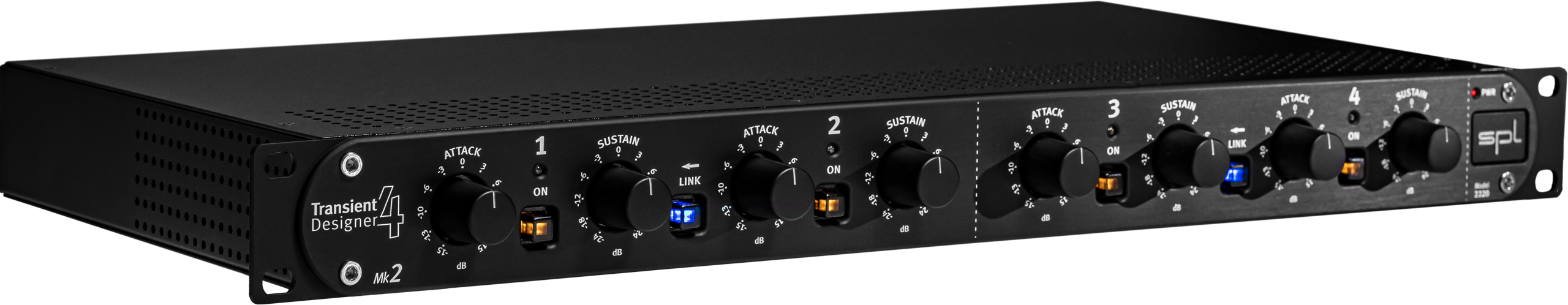

The interface configuration offers maximum operational versatility. Channels can be chained together via front-panel Link switches (linking Channels 1 & 2 or 3 & 4) for cohesive stereo processing, where the left channel functions as the master controller to maintain perfect phase tracking across a stereo bus. Additionally, every channel utilizes a specialized Relay Hard Bypass system. Placed immediately after the balanced inputs and outputs, this circuitry cuts out all switching clicks and automatically bridges the physical inputs to outputs if the device loses power, keeping your live or studio signal path protected.
Key Features
4 INDEPENDENT TD CHANNELS: Provides four fully discrete transient-shaping paths in a space-saving 1U rack format for multi-source tracking.
DIFFERENTIAL ENVELOPE TECHNOLOGY: Employs DET tracking to analyze incoming signal characteristics and automatically calculate musical, adaptive time curves.
LEVEL-INDEPENDENT ENVELOPE MODIFIER: Reshapes audio dynamics with no input threshold settings required, maintaining identical results across all signal volumes.
HIGH-RANGE GAIN ADAPTATION: Delivers up to $\pm$15 dB of transient attack modification and up to $\pm$24 dB of sustain extension or truncation.
DUAL-STAGE STEREO LINK SWITCHES: Pairs adjacent channels (1 & 2 / 3 & 4) seamlessly to lock in stable stereo image processing for overheads or sub-mixes.
RELAY HARD BYPASS AUTOMATION: Gas-insulated hardware relays completely bypass circuitry quietly and automatically protect signal routing during power drops.
ELECTRONICALLY BALANCED I/O: Features professional gold-plated Neutrik XLR connectivity configured to run on a stable +6 dB nominal operating standard.
PREMIUM GERMAN HARDWARE HOUSING: Built in Germany featuring a 4mm thick black anodized aluminum faceplate, solid-milled control knobs, and a rugged powder-coated steel case.
Technical Specifications
Feature
Specification
Device Type
Four-Channel Analog Dynamic Envelope Processor / Transient Shaper
Form Factor
1U 19-inch Hardware Rackmount Unit
Core Core Technology
Differential Envelope Technology (DET Framework)
Attack Modification Range
$\pm$15 dB (Continuously variable)
Sustain Modification Range
$\pm$24 dB (Continuously variable)
Analog Input Configuration

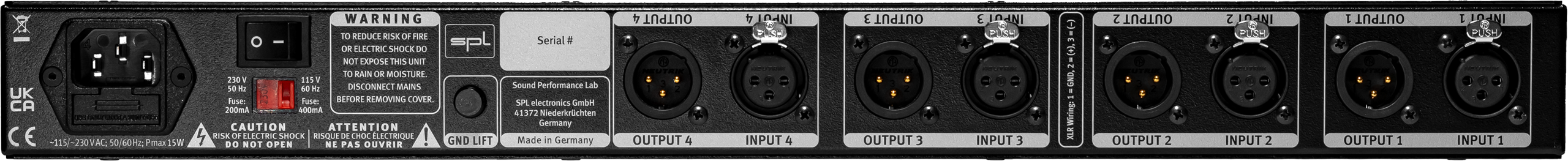

4 x Neutrik XLR (Electronically balanced)
Analog Output Configuration
4 x Neutrik XLR (Electronically balanced)
Nominal Operating Signal Level
+6 dB
Maximum Input Level
21 dBu
Maximum Output Level
21 dBu
Input Impedance
22 k$\Omega$
Output Impedance
100 $\Omega$
Frequency Range (-3 dB)
10 Hz – 100 kHz
Common Mode Rejection Ratio (CMRR)
80 dB (@ 1 kHz)
THD + Noise (0 dBu, 10 Hz – 22 kHz)
< 0.01 % (--90 dB standard mapping)
Noise Profile (A-Weighted)
-97 dBu
Dynamic Range
118 dB
Channel Crosstalk
-90 dB
Hardware Link Configurations
Stereo Link for Channels 1 & 2 / Channels 3 & 4 (Left as Master)
Bypass Architecture
Relay-Driven Hard Copper True Bypass Matrix
Signal Level Indicators
Dedicated Signal LEDs per Channel (Triggers active above -20 dB)
Power Supply System
Internal Linear Power Supply with Low-Noise Toroidal Transformer
Mains Operating Voltages
Selectable: 230 V AC / 50 Hz or 115 V AC / 60 Hz
Fuses Block
T 315 mA (for 230 V) | T 630 mA (for 115 V)
Power Consumption
Max. 25 W
Dimensions (W x H x D)
482 x 44 x 237 mm (19 x 1.73 x 9.33 inches)
Unit Weight
3.3 kg (7.27 lbs)
Shipping Weight (Incl. Box)
4.9 kg (10.8 lbs)
What’s Included in the Box
1 x SPL AUDIO Transient Designer 4 Mk2 Dynamic Envelope Processor Rack Unit
1 x Standard Detachable AC Power Connectivity Cable (IEC)
1 x Official SPL Studio Series Transient Designer 4 Mk2 System Manual
