Product Overview
The Next Generation of the Legendary "Voodoo Box" for Master Chains
The SPL Vitalizer Mk3-T represents the highest pinnacle of evolutionary audio enhancement. For decades, mixing and mastering engineers have relied on the Vitalizer to rescue dull tracks, untangle complex arrangements, and apply high-end gloss to complete stereo mixes. Instead of standard equalization setups that can warp the phase response or cloud mid-range registers, the Vitalizer works dynamically in both the frequency and time domains.
By introducing precise temporal offsets to louder frequencies, it unmasks hidden acoustic details, making individual instruments separate naturally within the stereo field. Shifting from the legacy gold faceplate to the sleek, modern black design of the SPL Studio Series, the Mk3-T steps up the internal processing matrix with upgraded high-voltage power rails, securing even wider headroom, lower self-noise, and an ultra-detailed analog soundstage.
Product Description
Patented Psychoacoustic De-Masking Framework:
The underlying processing mechanism of the Vitalizer Mk3-T maps audio directly onto human hearing curves (the Fletcher-Munson contours). It analyzes the relationship between overlapping frequencies and applies microsecond time delays to dominant signal spikes. This structural timing offset prevents strong transient clusters from masking quieter background elements. As a result, backing vocals, room ambiences, and subtle instrumental accents instantly step forward with stunning three-dimensional space, providing increased perceived loudness without adding harsh artifacts.
$\pm$18V Audio Operating Voltage: The third-generation Mk3-T upgrades its internal solid-state power system to high-voltage $\pm$18V rails. This modification expands the overall dynamic framework to an ultra-wide 110.6 dB, effortlessly handling hot transients from modern professional DAC interfaces.
+250V Sovtek Dual-Triode Processing: The core filtering network and the stereo expander stage are powered by premium Sovtek 12AX7 vacuum tubes running on an authentic +250V high-voltage anode rail. Running the tubes at full plate voltage guarantees exceptional linear headroom and wraps the signal in velvety analog warmth and dense even-harmonic overtones.
Advanced Low-End Core with Integrated Bass Compressor:
The bass optimization architecture provides a dual-mode tuning pot linked to a specialized parallel dynamic loop:
Soft vs. Tight Voicing: Turning the Bass Sound knob left creates a Soft, deep, and massive sub-bass bloom. Turning it right shifts the alignment to produce a Tight, dry, and highly percussive low-end knock.
One-Knob Parallel Bass Compressor: Features an integrated parallel compressor dedicated solely to the bass path. It uses a musical, pre-programmed soft-knee curve that tames dynamic spikes and punches up the low end, while leaving your mid-high frequencies completely untouched, airy, and open.
Mid-Hi Tuning, LC Presence, and Stereo Expansion:
The right-hand processing bank provides deep surgical command over the acoustic field. The Mid-Hi Tune knob targets a broadband shelving filter (adjustable from 1.1 kHz to 22 kHz) to clean out mid-range mud, while the dedicated LC-EQ network adds exceptional presence and definition using vintage-style coil-capacitor filtering. Finally, an active Stereo Expander widens the lateral stereo soundstage far beyond the speaker boundaries while keeping the center image focused and maintaining complete mono compatibility.
Key Features
PATENTED VITALIZER TECHNOLOGY: Patented psychoacoustic time-alignment filters unmask hidden audio layers and increase perceived loudness without phase artifacts.
UPGRADED $\pm$18V ANALOG RAILS: Third-generation power design expands internal headroom and delivers an ultra-low noise floor for high-resolution mastering.
SOVTEK 12AX7 TUBE TOPOLOGY: Premium Sovtek dual-triode vacuum tubes running on a +250V plate voltage introduce rich analog warmth and harmonic detail.
INTERACTIVE BASS TUNE MATRIX: Shapes low-end frequencies smoothly, letting you choose between a deep, soft sub-bass bloom or a percussive, tight knock.
INTEGRATED PARALLEL BASS COMPRESSION: Single-control soft-knee compressor glues and punch-up the low end without squashing mid-to-high transients.
COIL-INDUCTOR LC-EQ PATH: Built-in inductor-coil processing imparts a silky, expensive-sounding sheen across the upper-mid and high frequencies.
MONO-COMPATIBLE STEREO EXPANDER: Widens the lateral soundstage safely, avoiding side-signal thinning or center-image phase cancellation.

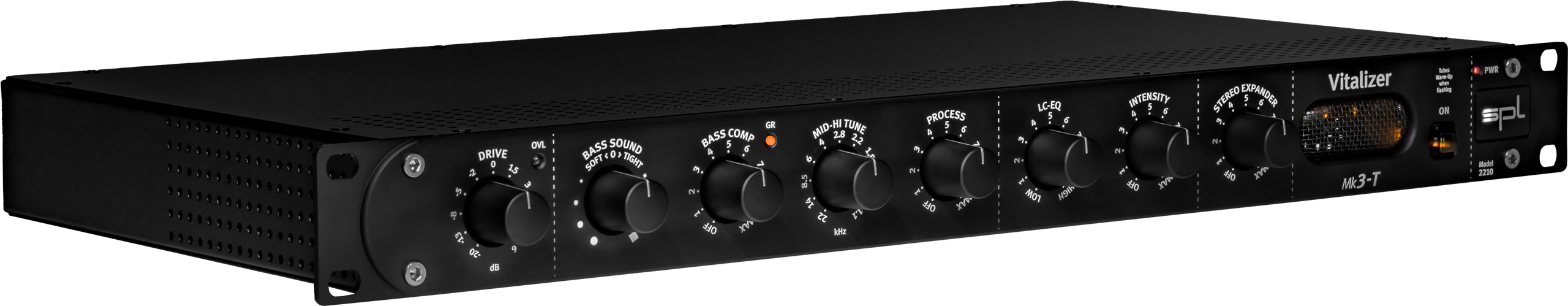

SPL STUDIO SERIES BLACK HOUSING: Features a rugged 1U rack layout with a 4mm black anodized aluminum faceplate and solid-milled aluminum knobs.
Technical Specifications
Feature
Specification
Device Type
Dual-Channel Stereo Program Equalizer, Harmonic Exciter, and Sound Optimizer
