Product Overview

The World's First Harmonic EQ™

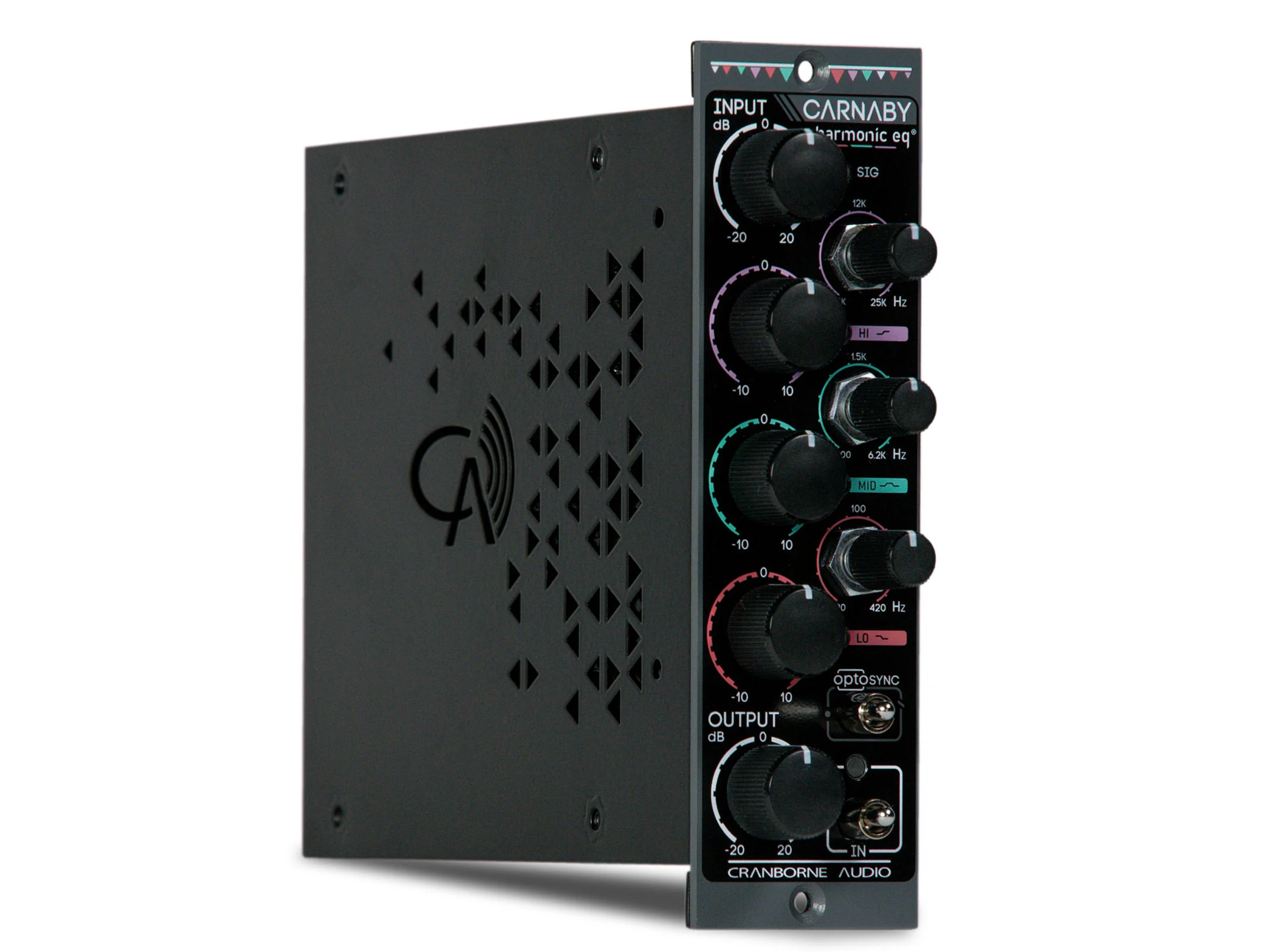

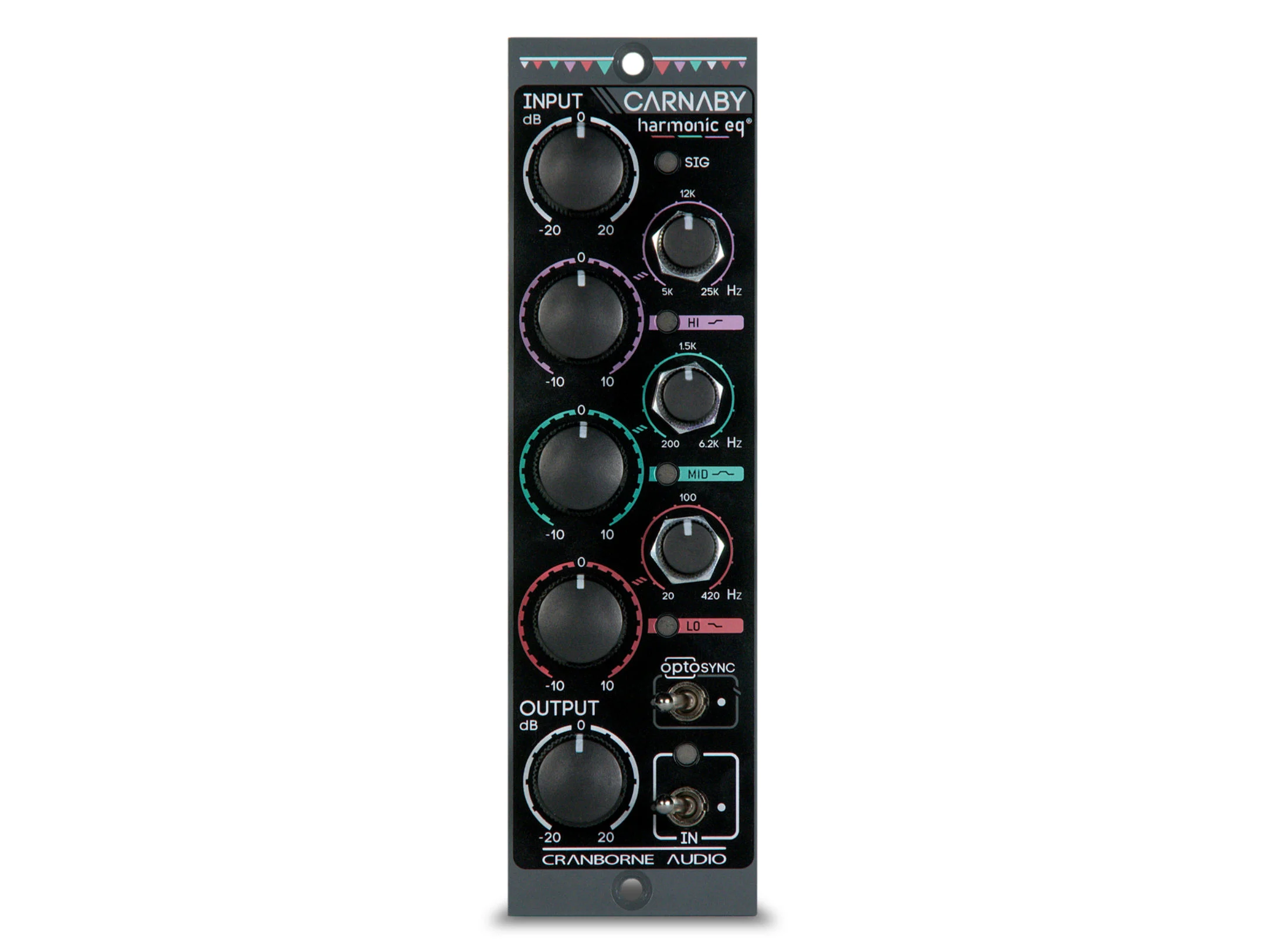

The Carnaby 500 is a 3-band, high-voltage analog EQ that acts as a "Jekyll and Hyde" for your signal. At low drive levels, it provides subtle, transparent enhancement; when pushed, it delivers thick, musical saturation. It is designed for engineers who want to add tonal balance and harmonic depth simultaneously, making it an essential tool for tracking, mixing, and individual instrument processing.

Product Description

A New Way to Equalize:

The core concept of the Carnaby 500 is saturation-based equalization. Each of its three bands uses a proprietary harmonic engine that responds to the input level. As you boost a band, the circuit generates more harmonics relative to that frequency range, resulting in a sound that feels "bigger" and more "alive" rather than just louder.

Three Interactive Harmonic Bands:

• Low (20Hz - 420Hz): Uses sub-harmonic excitation to add massive low-end weight to kick drums and bass without losing clarity.

• Mid (200Hz - 6.2kHz): Adds "bite" and presence to vocals and guitars, helping them cut through a dense mix with analog grit.

• High (5kHz - 25kHz): Creates a "silky" top end by exciting high frequencies, adding expensive-sounding air to vocals and acoustic instruments.

Precision and Integration:

The Carnaby 500 features stepped encoders for 0.5dB precision, making it easy to recall settings or match two units for stereo use. It also includes an Opto-Sync system, which allows you to link two modules wirelessly using light, ensuring that the controls on the left module automatically sync to the right module for perfect stereo imaging.

Key Features

• Proprietary Harmonic EQ™ Technology: 100% analog signal path using saturation for EQ.

• 3-Band Design: Dedicated harmonic engines for Low, Mid, and High frequency ranges.

• ±10dB Boost/Cut: Per band control with interactive harmonic response.

• Stepped Encoders: Ensures high-precision recall and stereo matching.

• Opto-Sync Linking: Wirelessly syncs two modules for perfect stereo operation.

• Saturation LED Feedback: Visual indication of how much harmonic content is being generated.

• High-Voltage Design: Provides massive headroom and low noise floor.

Technical Specifications

Ideal For

• Drum Processing: Adding punch and sub-harmonics to kick and snare.

• Vocal Air: Creating smooth, high-end "sheen" without the harshness of traditional digital EQs.

• Stereo Bus: Using a matched pair to add analog "glue" and harmonic depth to a final mix.

What’s Included in the Box

• 1 x Carnaby 500 Module

• Module Fixing Screws

• Quick Start Guide
