Product Overview

The Neumann KK 120 NX is a specialized, bi-directional component of the KM A/D modular system. This capsule is a pressure gradient transducer that utilizes a single 16 mm diaphragm to achieve its figure-8 characteristic. Because all sound field components reach the diaphragm directly from the front and rear, the frequency response and sensitivity at $0^{\circ}$ and $180^{\circ}$ are identical. The "NX" suffix denotes the Nextel Black finish—a specialized, non-reflective matte coating that is highly durable and ideal for use under bright studio or stage lights.

Product Description

Modular Excellence in Nextel Black:

As part of the KM A/D system, the KK 120 NX can be paired with either the KM A (analog) or KM D (digital AES 42) output stages. The Nextel finish is particularly valued in television, film, and theater productions where equipment must remain visually unobtrusive while providing world-class audio performance.

Symmetrical Figure-8 Precision:

Unlike dual-diaphragm microphones that can have slight variations between sides, the KK 120 NX’s single-diaphragm construction ensures perfect sonic symmetry. This makes it an essential tool for MS (Mid-Side) stereo setups, where it functions as the "Side" microphone, and for Blumlein pairs, providing a natural and cohesive 360-degree soundstage.

Exceptional Signal Integrity:

The KK 120 NX delivers the fast transient response and "airy" top-end characteristic of Neumann's small-diaphragm condensers. With the ability to handle extreme Sound Pressure Levels (SPL) up to 150 dB (when used with the KM A output stage pad), it is equally at home capturing the delicate nuances of a harpsichord or the powerful transients of a percussion ensemble.

Versatile Remote Setup:

The modular design allows the capsule to be detached from the output stage and positioned up to 100 meters away using specialized cables (like the LC 4). This flexibility, combined with the non-reflective NX finish, allows for virtually invisible placement in orchestral pits, on boom poles, or suspended in concert halls.

Key Features

• Nextel Black (NX) Finish: Non-reflective, scratch-resistant matte coating for professional broadcast use.

• Single-Diaphragm Figure-8: Identical sound characteristics from the front and rear for perfect symmetry.

• Modular Compatibility: Designed for use with KM A (Analog) and KM D (Digital) output stages.

• Deep Side Rejection: Exceptional $90^{\circ}$ and $270^{\circ}$ null points for maximum isolation.

• 150 dB SPL Handling: Pure, distortion-free audio even in high-pressure environments.

• German Engineering: Handcrafted for long-term reliability and reference-grade performance.





Applications

• Mid-Side (MS) Stereo: The definitive "Side" capsule for phase-coherent stereo imaging.

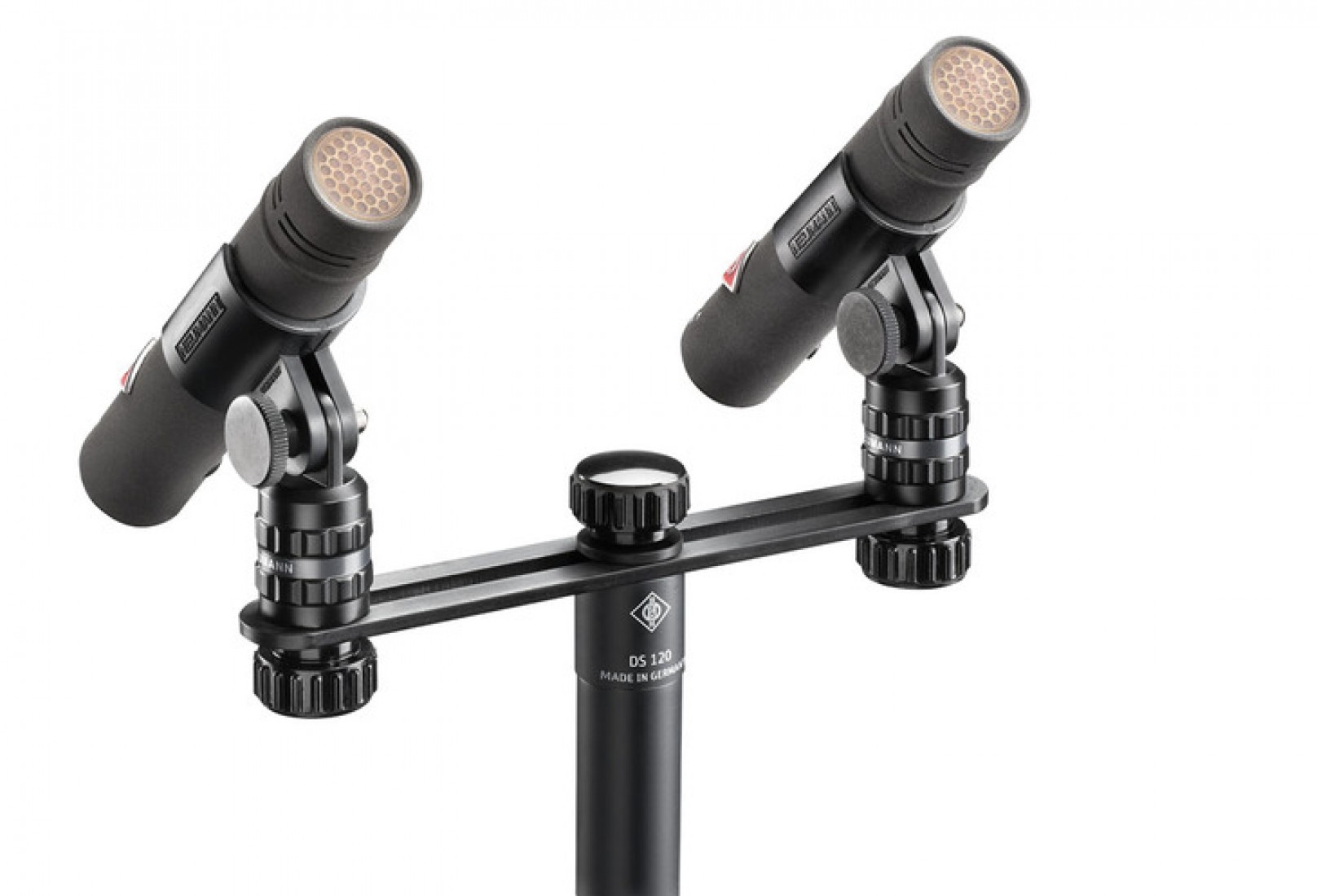

• Blumlein Stereo: Use two KK 120 NX capsules for an immersive, natural room sound.

• Broadcast & TV: The non-reflective finish is ideal for on-camera interviews and film sets.

• Orchestral Recording: Compact and discreet for spot-miking within an ensemble.
