Neumann 008596 Capsule for KM A/D KK 145 nx Modular small diaphragm capsule with analog output stage
Home / Neumann 008596 Capsule for KM A/D KK 145 nx Modular small diaphragm capsule with analog output stage
Product Overview
The Neumann KK 145 nx is a high-precision pressure gradient transducer designed for the KM A/D modular series. While it shares the directional focus of a standard cardioid, the KK 145 nx is unique due to its specialized acoustic tuning. The "nx" version features the industry-standard Nextel Black matte finish, which is completely non-reflective and scratch-resistant, making it ideal for use under high-intensity studio lighting or on film sets where gear must remain invisible to the camera.
Product Description
The "nx" Professional Standard:
The Nextel Black finish is a functional requirement for high-end broadcast and theater productions. It ensures that the microphone body does not catch light reflections, allowing for a low-profile and professional look on-camera. When combined with the modular KM system, the KK 145 nx provides a sleek, modern aesthetic for any high-stakes environment.
Optimized for Close-Range Accuracy:
Standard cardioid microphones often produce an unnatural bass boost (proximity effect) when placed close to the source. The KK 145 nx solves this through a physical, acoustic high-pass filter built into the capsule. It features a natural roll-off starting below 300 Hz. When the capsule is used at a typical close-miking distance of 15 cm (6 inches), the proximity effect naturally fills in the bass, resulting in a perfectly flat, neutral, and broadcast-ready frequency response.
Superior Isolation & Rejection:
The cardioid polar pattern provides excellent attenuation of sound arriving from the rear ($180^{\circ}$), ensuring that the voice or instrument is isolated from room noise, computer fans, or stage bleed. This makes the KK 145 nx an exceptional tool for newsrooms, voice-over booths, and crowded orchestral pits.
Modular Freedom (Analog & Digital):

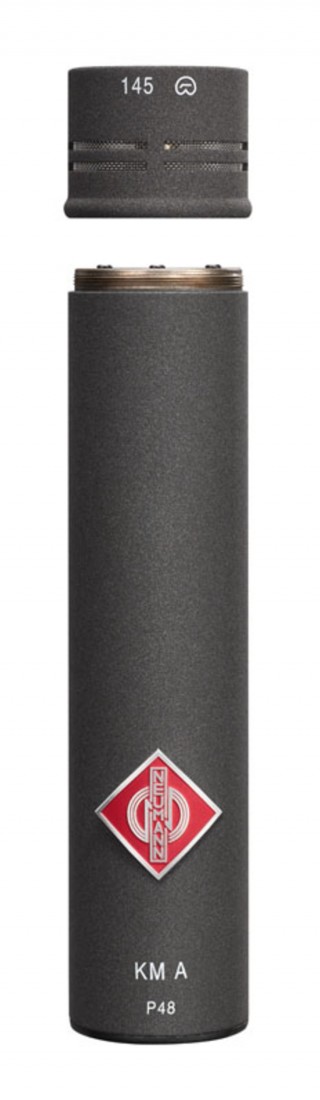

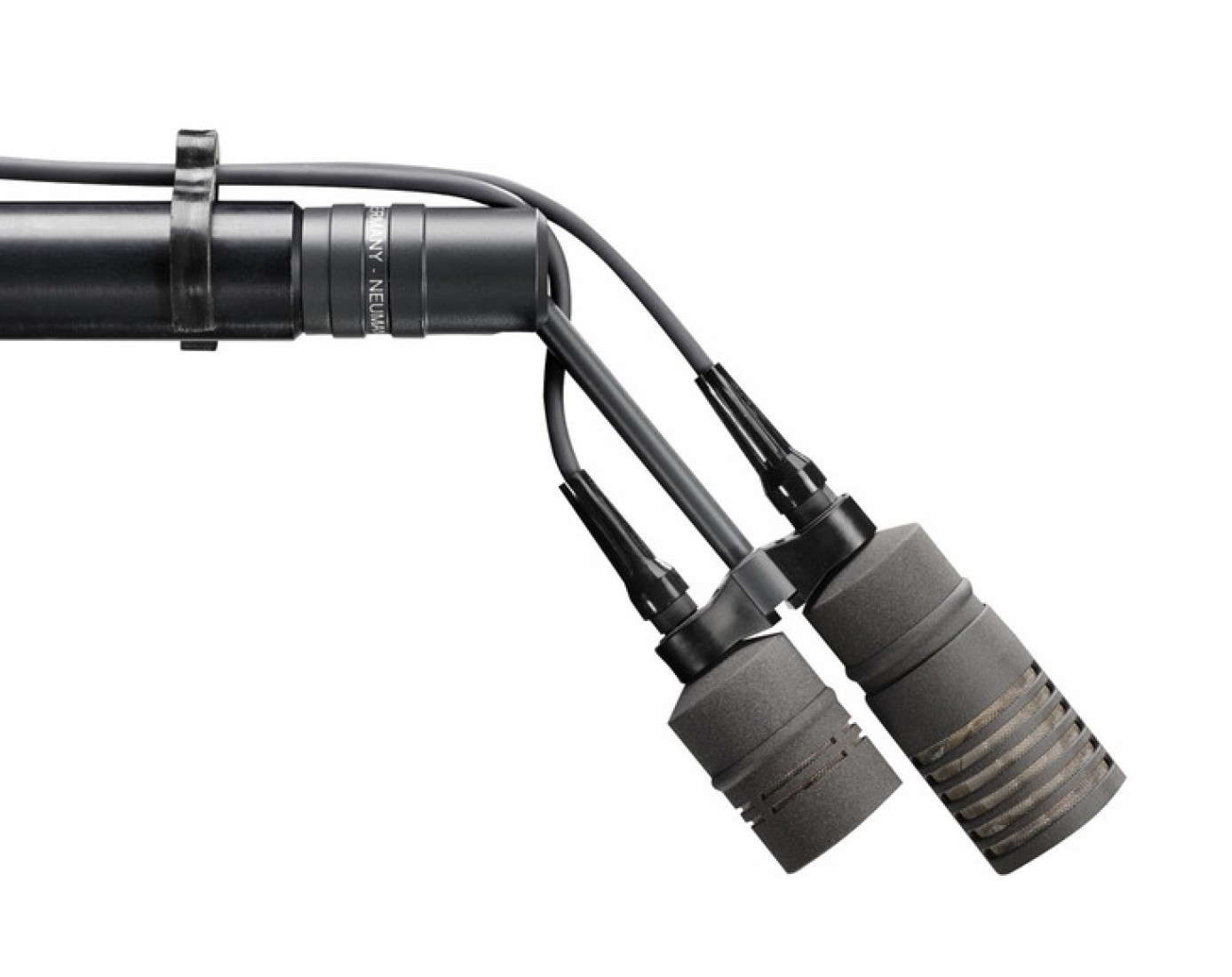

As part of the KM A/D system, the KK 145 nx is a passive capsule compatible with both the KM A nx (Analog P48) and KM D nx (Digital AES 42) output stages. This flexibility allows the capsule to be mounted on extension cables (up to 100 meters) for virtually invisible placement on boom poles or within acoustic instruments.
Key Features
Nextel Black (nx) Finish: Professional non-reflective matte coating for film, TV, and stage.
Integrated Acoustic High-Pass: Specifically tuned to compensate for the proximity effect.
Cardioid Polar Pattern: High rejection of off-axis sound for a focused, direct signal.
Modular Compatibility: Threads directly onto KM A (Analog) and KM D (Digital) output stages.
Extreme SPL Tolerance: Handles up to 150 dB (with output stage pad) without distortion.
